Hifonics BRX1116.1D 1100W RMS + Alpine R-W12D4 Car Audio Subwoofer + Amp Kit

General Features:

• Brutus Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 700 watts x 1 chan.
• 1 ohm: 1100 watts x 1 chan.
• Wired remote bass level control included
• Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
• Mono channel operation
• Variable low-pass filter (35-250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 15 Hz)
• LED power (green) and protect (red) indicator lights
• On-board system diagnostics
• Preamp RCA ouputs allow for daisy chaining multiple amps
• 3-way system protection circuitry (thermal, overload and speaker short protection)
• Heavy duty aluminum alloy head sink
• Lighted connectors
• Fuse Rating: 60A MAXI x 1
• 4 gauge OFC power and ground wiring is recommended for installation
• Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 9.8"W x 10.2"L x 2.4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Also found as: BRX11161D, BRX1116-1D

General Features:

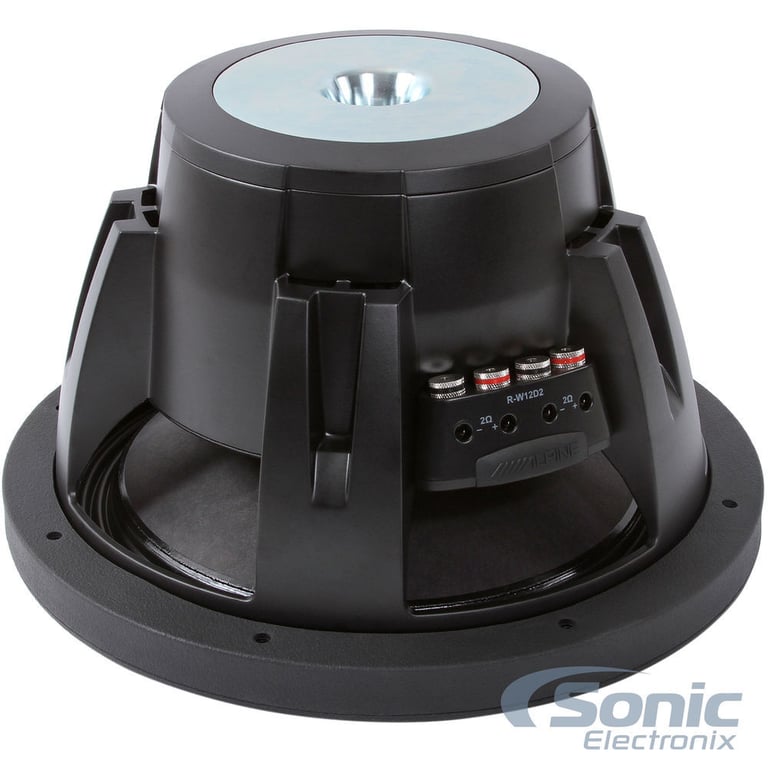

• 12" Dual 4 ohm Type-R Subwoofer
• Power Handling:
• Peak: 2250 watts
• RMS: 750 watts
• Recommended power range: 300 - 750W RMS
• CTA-2031 compliant power ratings
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Polypropylene, mica and talc dust cap
• Reinforced cone neck and spider joint
• Cast aluminum frame with integral shorting sleeve
• 8AWG push terminals with VC configuration jumpers
• 2.6" High excursion overhung voice coil
• 127 oz. Strontium ferrite segmented magnet
• Top-mount depth: 6-3/8"
• Cutout diameter: 10-7/8"
• Frequency Response: 24 - 200Hz
• Sensitivity: 84.3dB
• Resonance Frequency (Fs): 27Hz
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Priced Individually

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
