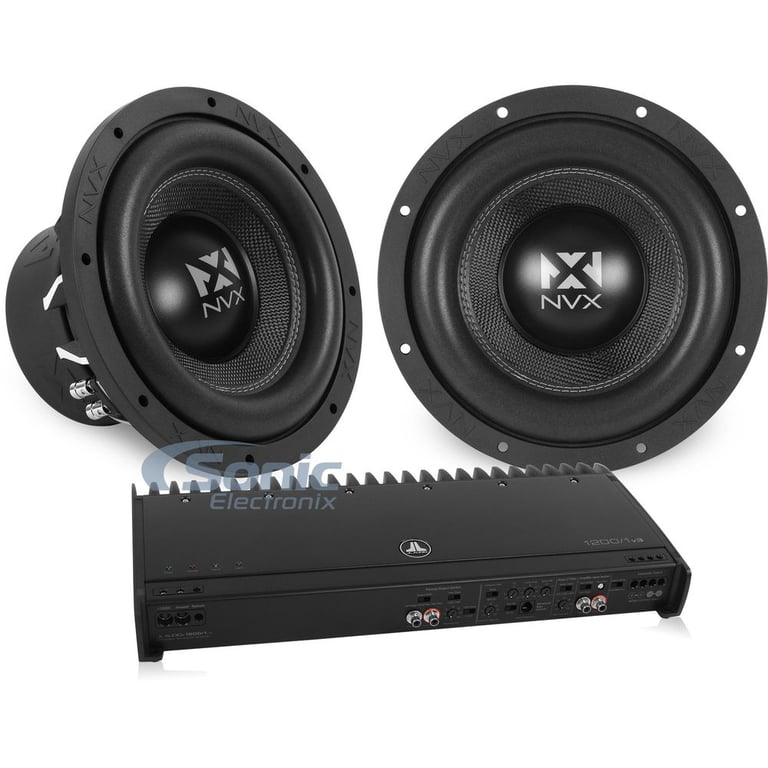

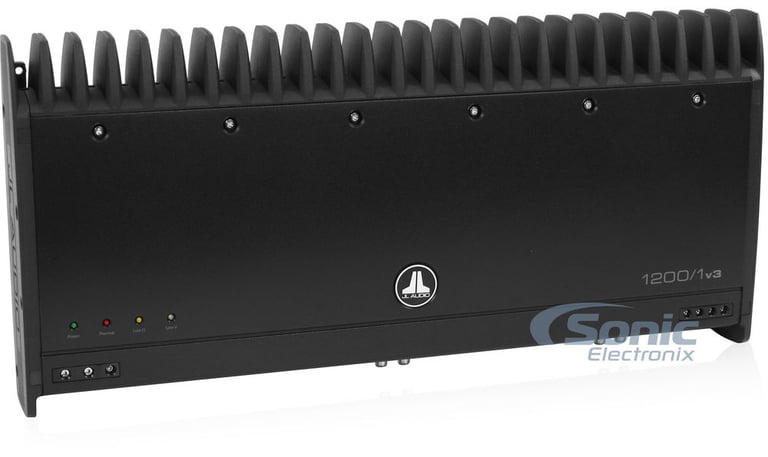

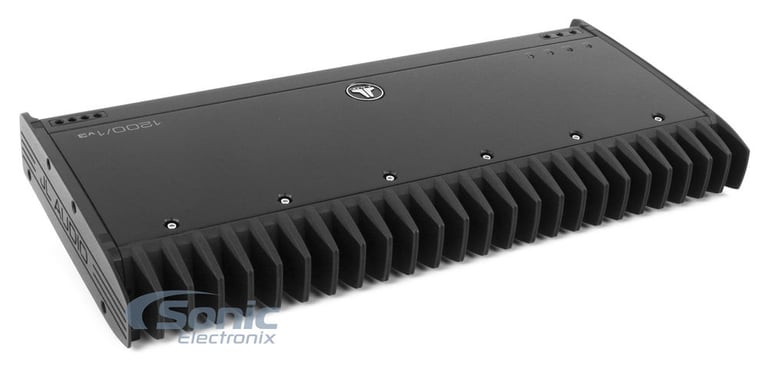

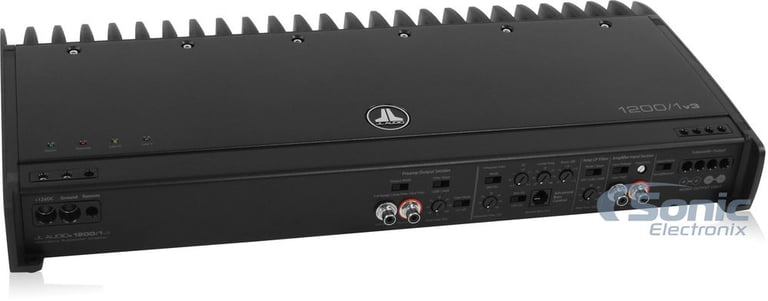

JL Audio Slash 1200/1v3
1200W RMS Monoblock Slash v3 Series Class D Car Amplifier
Quantity: 1
1200/1v3 Specifications:
- Slash v3 Series Class D Monoblock Car Amplifier
- RMS Power Rating (11V-14.5V):
- 4 ohm: 1200 watts x 1 chan.
- 3 ohm: 1200 watts x 1 chan.
- 2 ohm: 1200 watts x 1 chan.
- 1.5 ohm: 1200 watts x 1 chan.
- High-Damping H-Bridge, Class D Mono Circuit
- R.I.P.S. - Regulated, Intelligent Power Supply
- Pulse width modulation-regulated switching power supply

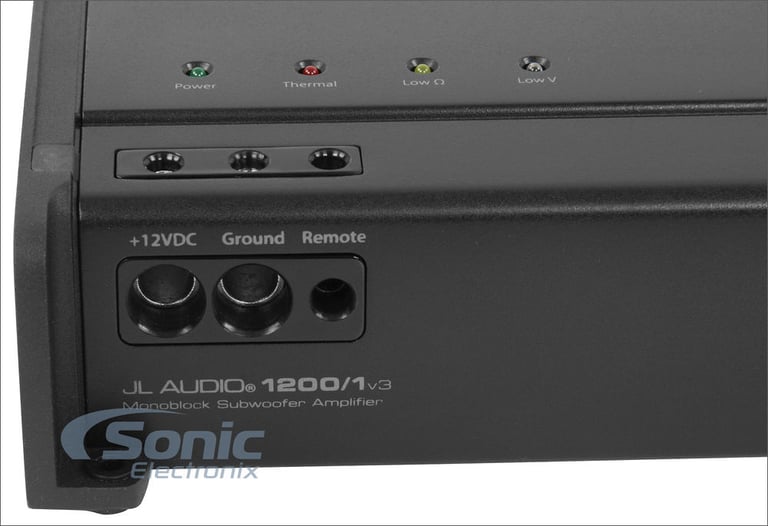

- LED power/thermal/low-impedance/low-voltage indicators

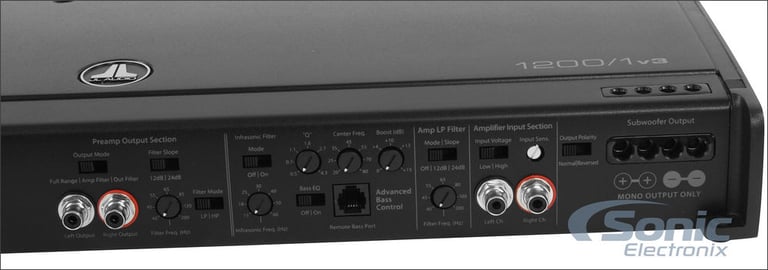

- Differential-balanced input type with RCA jack inputs
- Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
- Single-band, fully parametric equalizer with "Q" and boost adjustment
- Preamp RCA outputs w/ crossover filter options
- Remote bass port input (JL Audio RBC-1 sold separately)
- Input sensitivity:
- Low level: 200mV-2V
- High level: 800mV-8V
- State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley LPF
- Variable low-pass filter: 40 - 200 Hz
- Fully variable, 24 dB/octave Butterworth HPF
- Subsonic ("Infrasonic") Filter: 15 - 60 Hz
- Advanced Bass Control:
- "Q" Bandwidth Control: 0.5 - 4.3
- Center Frequency: 20 - 85 Hz
- EQ Boost Control: 0 - +15 dB
- Selectable output frequency mode: LP / HP
- Selectable output frequency slop: 12 dB / 24dB
- Output filter cutoff frequency: 40 - 200 Hz
- Total Harmonic Distortion: <0.05% @ 4Ω , 50 Hz
- Signal to Noise Ration: >95 dB
- Frequency response: 5 - 250 Hz (+0, -3 dB)
- Damping Factor: >500 @ 4Ω/50 Hz, >250 @ 2Ω/50 Hz
- Inline 100A x 1 ANL or MaxiFuse Recommended
- Dimensions: 19.70"L x 9.25"W x 2.36 "H
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- 2 Year Manufacturer's Warranty
 |
 |
 |
 |
Check out the JL Audio Slash 1200/1v3 Owner's Manual

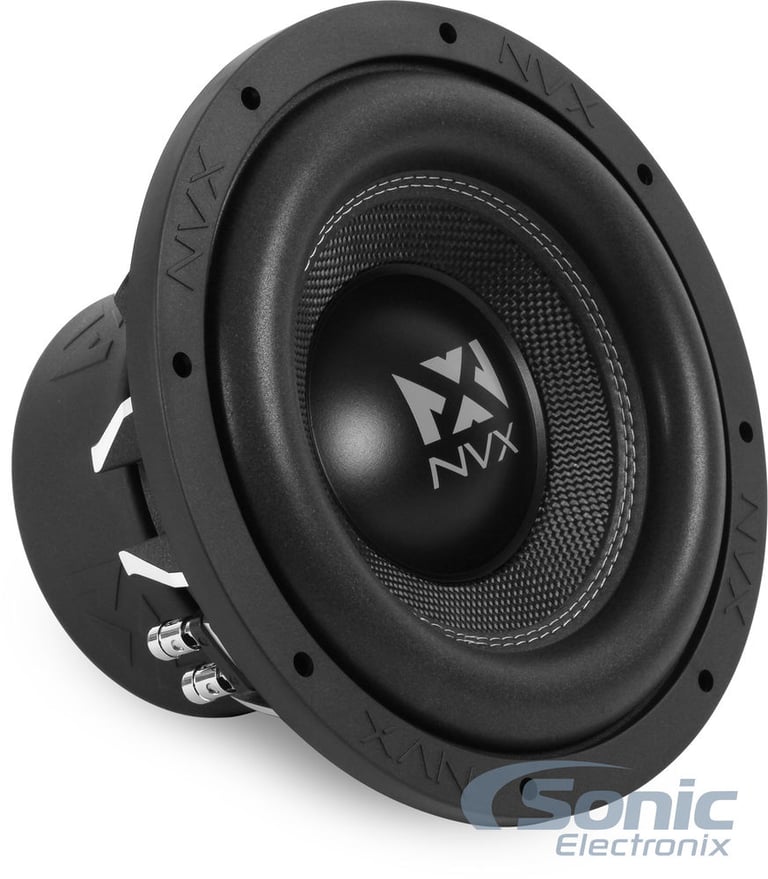

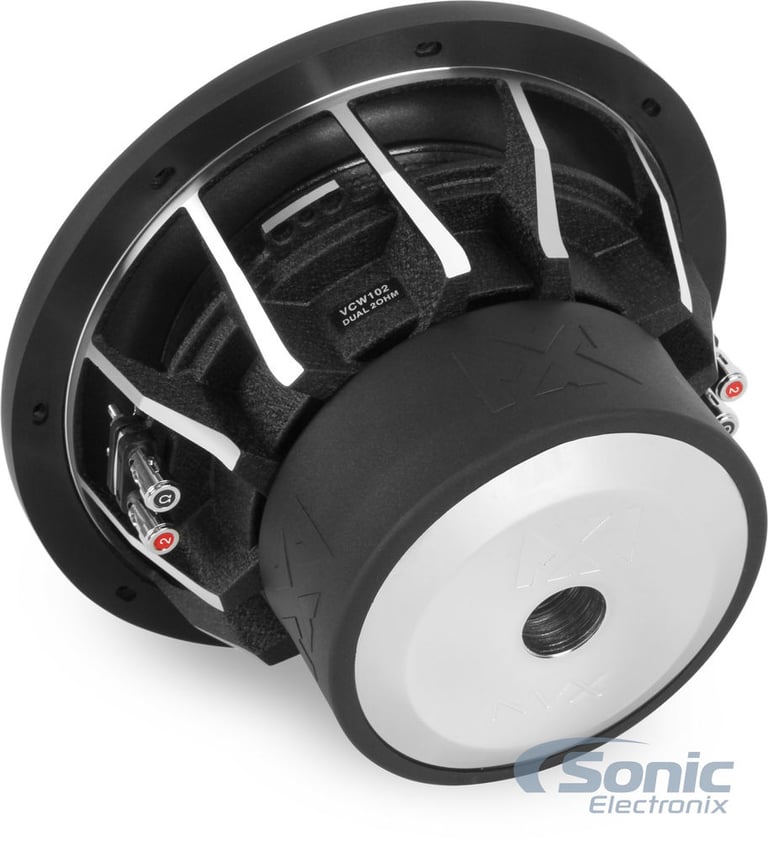

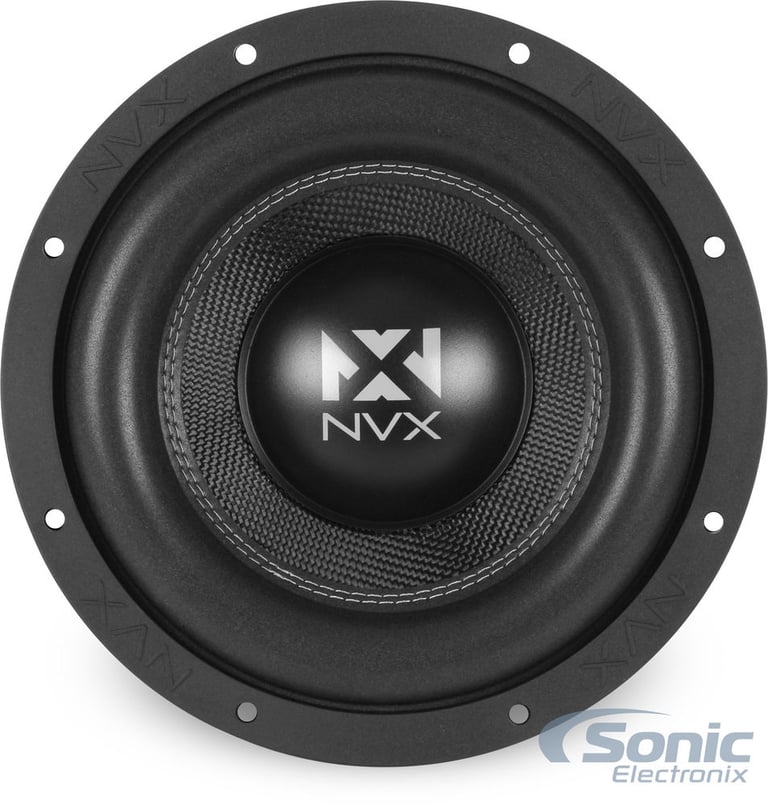

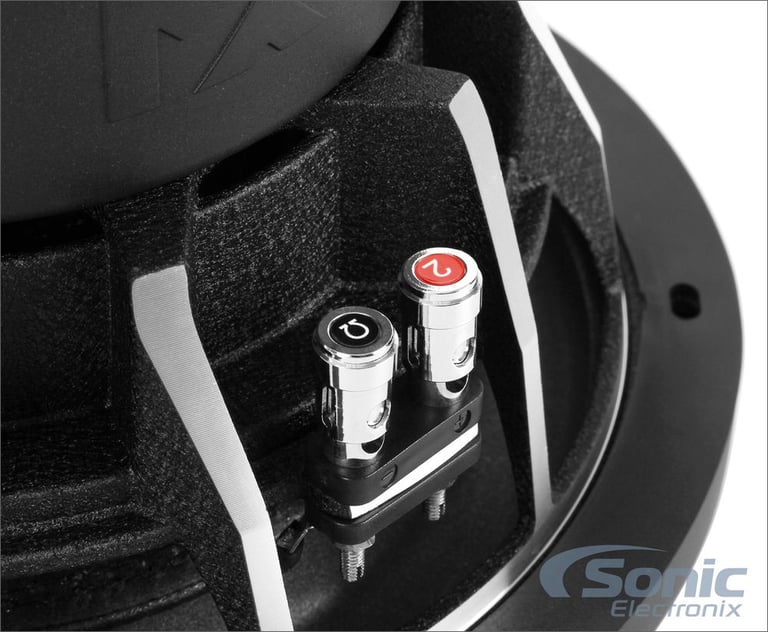

NVX VCW102
750W 10" VC-Series Dual 2-ohm Car Subwoofer
Quantity: 2
General Features:
- 10" Dual 2-ohm VC-Series Car Subwoofer
- Power Handling:
- RMS: 1500 watts per pair / 750 watts each
- Recommended Power Range: 1200 - 1500 Watts RMS total
- Impedance: 2 ohm final impedance when Wired in Series/Parallel

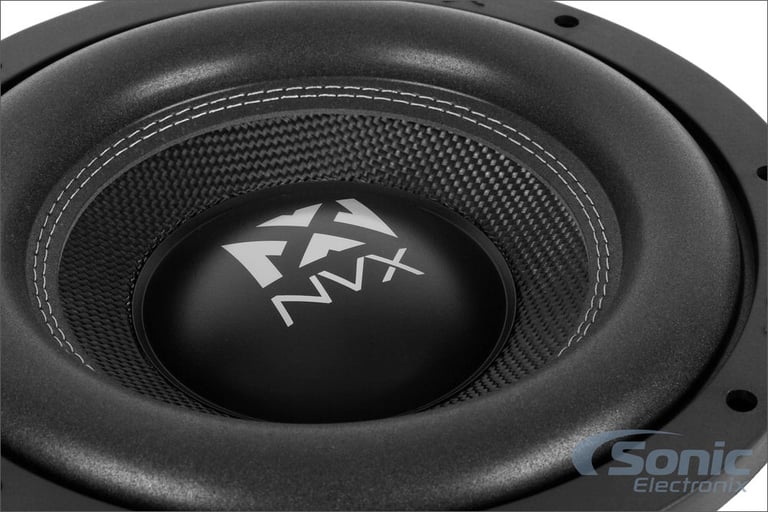

- Pressed paper cone with woven fiber top
- Custom High Roll foam surround with Nylon stitching

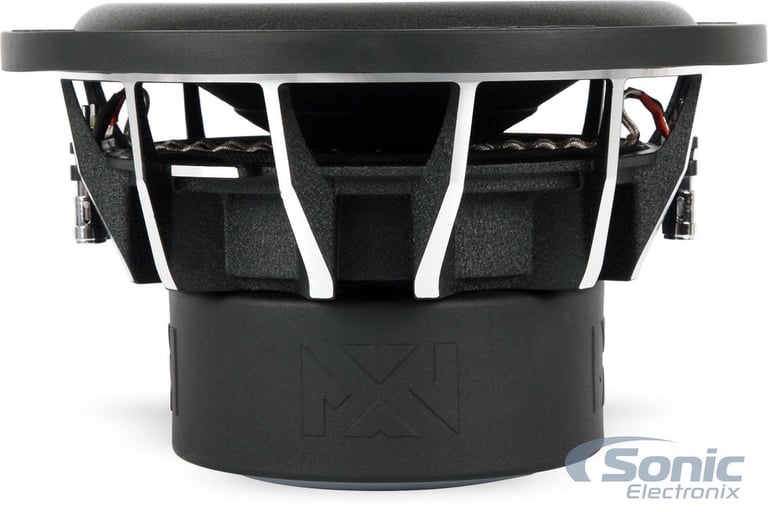

- Die-Cast aluminum basket for maximum rigidity
- Dual Poly-Cotton Spiders
- 2-1/2" Aluminum Voice coil
- 127oz. Triple stacked Ferite magnet motor structure with protective rubber boot
- Frequency response: 20-220 Hz
- Resonance Frequency (Fs): 29 Hz
- Optimal sealed box volume .65 cubic feet
- Optimal ported box volume: 1.0 cubic feet
- Top-mount depth: 6"
- Sensitivity: 83dB
- NVX VCW10GR protective subwoofer grill available (Sold Separately)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Additional Information:
*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.
