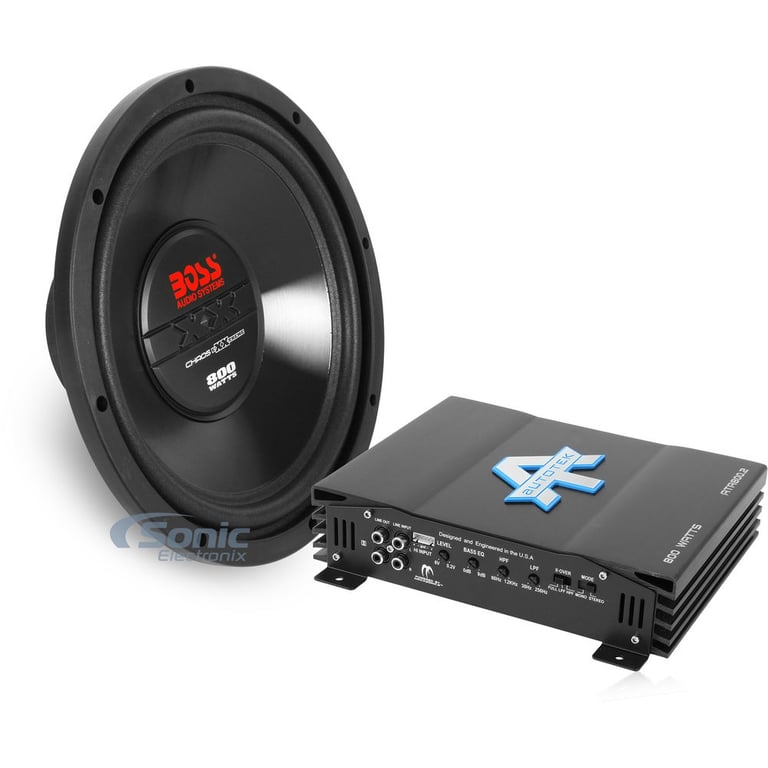

800 Watt Peak 12" Subwoofer + Amplifier Bass Bundle

List price $229.98: Boss CX12 800W Peak 12" Chaos EXXtreme Series Subwoofer + Autotek ATA800.2 2-Channel ATA Series Class AB Amplifier

Boss
Shop all Boss
EXCLUSIVE
highlight-star-icon

• 800 Watts Peak
• 400 Watts RMS
• Single 4 ohm
• Injection Molded Polypropylene Cone
• Foam Surround
• 2" High Temperature Aluminum Voice Coil
• 2 or Mono channel operation
• Dimensions: 9.45" W x 7.09" L x 2.08" H

Learn more about the cx12_ata8002

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

99-8104 main

Metra 99-8104 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1984-2004 vehicles from Toyota

4
-10.42%

$42.99

List price $47.99

UPT900 main

American International UPT900

Single DIN Stereo Dash Pocket for select 1982-2004 vehicles from Toyota, Nissan, Infiniti

1
-55.21%

$12.99

List price $29.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3

Description


Boss brand icon

Authorized dealer

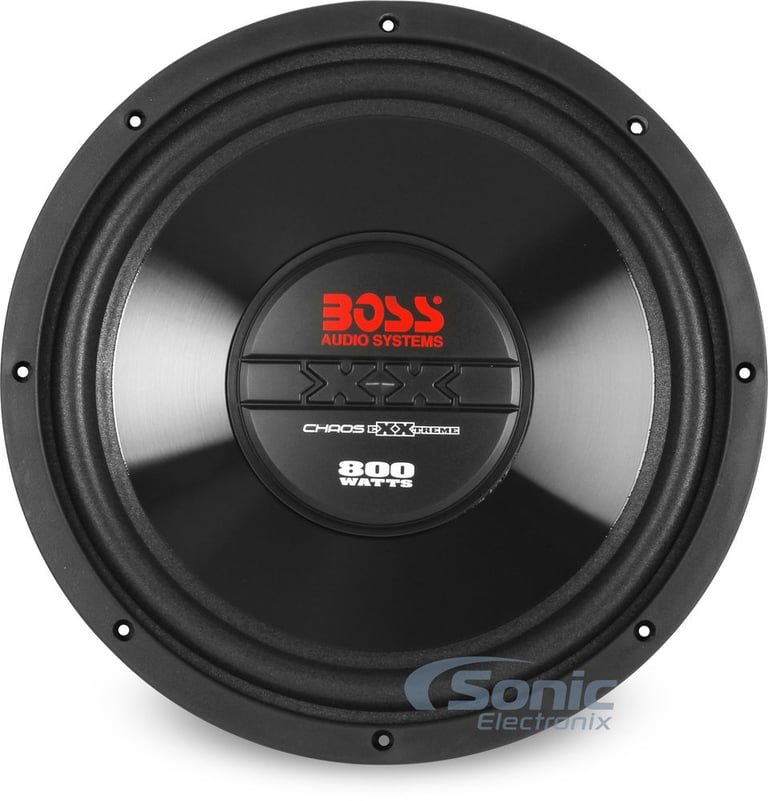

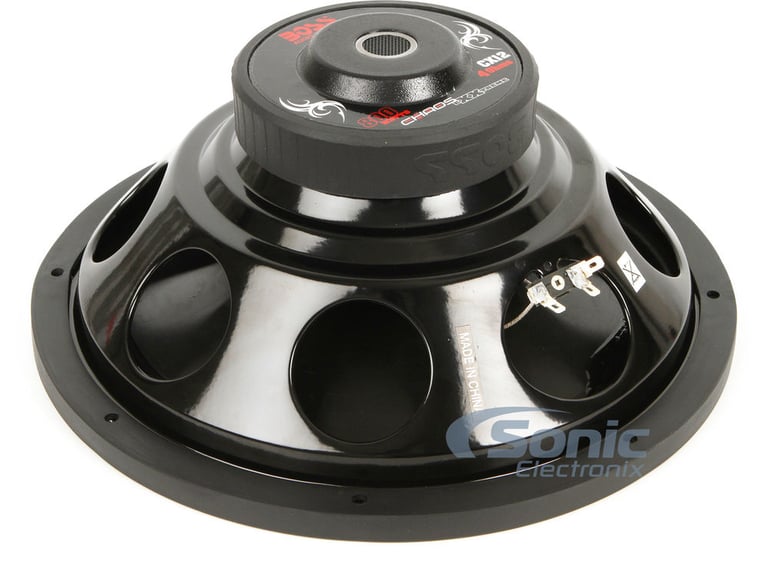

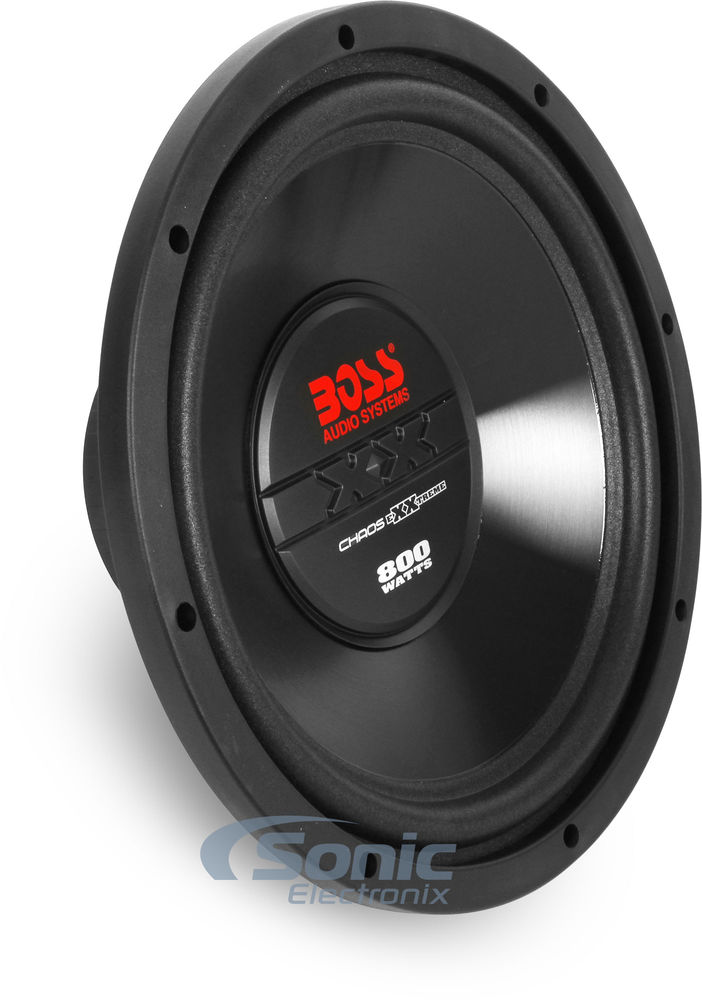

Boss CX12

800W Peak 12" Chaos EXXtreme Series Single 4 ohm Subwoofer
Quantity: 1

General Features:

  • 12" Chaos Exxtreme Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm
  • Black injection molded polypropylene cone
  • Foam surround
  • Designed for sealed and ported enclosures
  • 2" High temperature aluminum voice coil
  • Magnet with rubber protective boot covering
  • Mounting depth: 4-3/4"
  • Frequency response: 25-3,000 Hz
  • Sensitivity: 94 dB
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty

Priced Individually

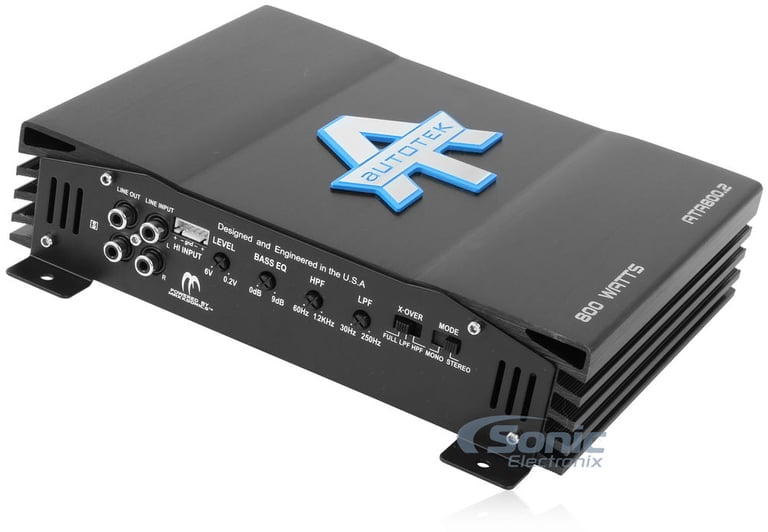

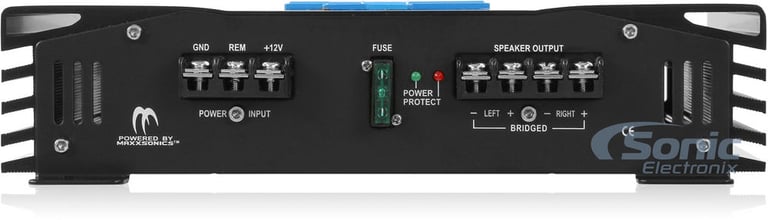

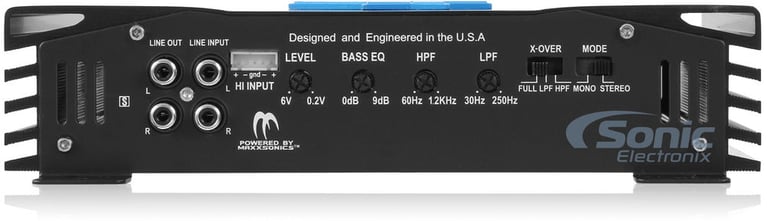

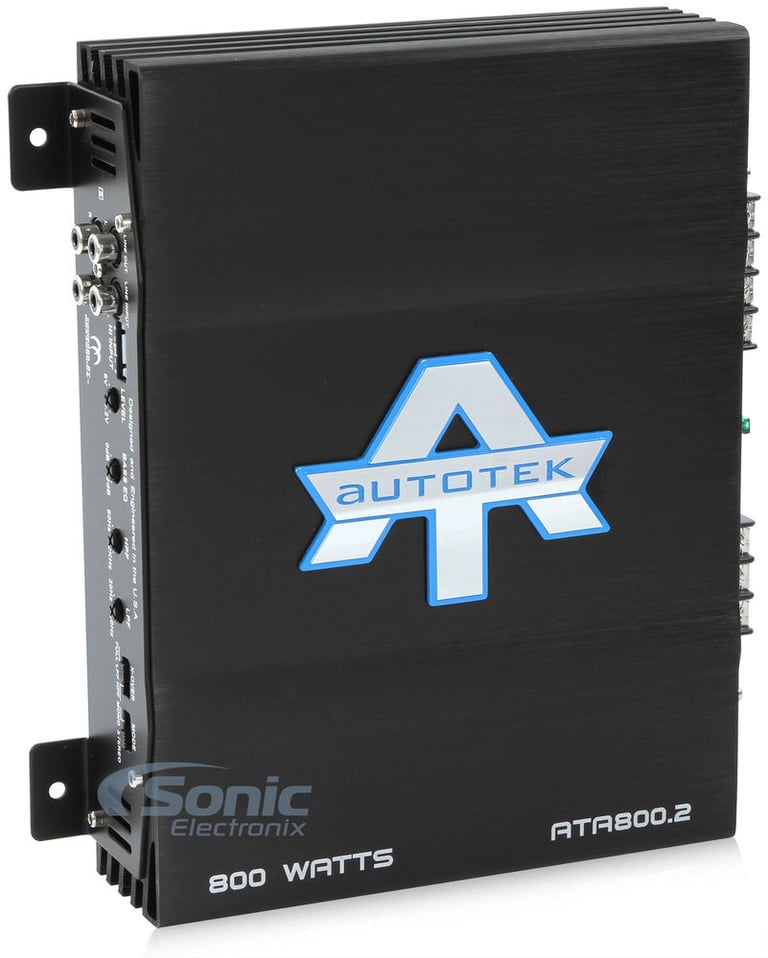

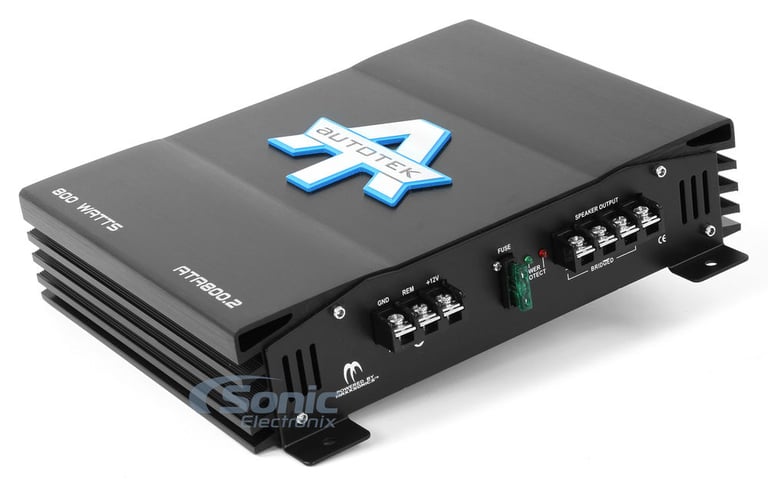

Autotek ATA800.2

800W 2-Channel ATA Series Class AB Car Amplifier
Quantity: 1

General Features:

  • ATA Series 2-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation

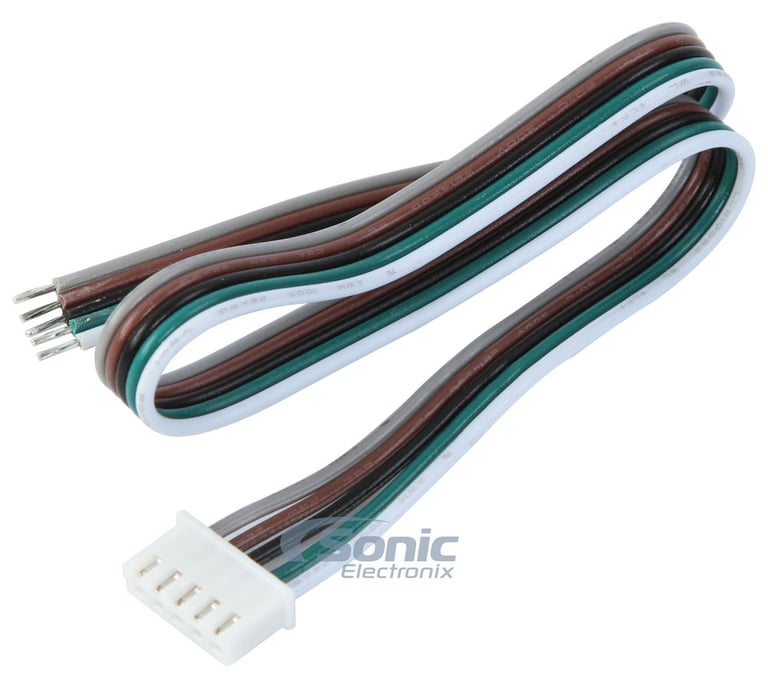

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 30 - 12000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Selectable crossover modes: FULL / LPF / HPF
  • Variable high-pass filter: 60 - 1200 Hz
  • Variable low-pass filter: 30 - 250 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 1
  • 4- 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.45"W x 7.09"L x 2.08"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
Bridged RMS Power
400 watts x 1 channel
Peak Power Output
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal, 4 - 8 AWG Recommended
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Chaos EXXtreme Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Surround
Foam
Woofer Composition
Injection Molded Polypropylene
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Sensitivity
94 dB
Frequency Response
25 - 3,000 Hz
Xmax (millimeters)
4 mm
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CX12_ATA800.2

Weight:

13.36lbs

Internal SKU:

cx12_ata8002

Internal Product ID:

106743

Customer Ratings & Reviews


800 Watt Peak 12

5 star
39%
4 star
50%
3 star
6%
2 star
0%
1 star
6%



Durability
3.9
Value
4.5
Features
3.9
Design
4
Usability
4.6

Customer Reviews

Sort by:

Loading...

Steal!

The following review is for ATA800.2, which is a part of the bundle you are viewing.

I have found in my car audio adventures that Autotek has some of the best amps out there. If you are running a pro setup (highs/mids) I suggest an active crossover.

By MoreTunez on November 6, 2014

33 found this helpful


Great Sub, Definitely Buy

The following review is for CX12, which is a part of the bundle you are viewing.

I saw reviews of this woofer blowing out almost immediately, but bought it anyways. I love this thing, I turned the gain all the way down on the amp and my bass setting on my stereo for almost week, and slowly got it to where I like it over the course of 2 weeks. No blow out and awesome bass. In a sealed box my mirrors shake so bad I can't see out them. Would definitely recommend to a friend.

By Dat Guy on September 22, 2011

32 found this helpful


....idk

The following review is for CX12, which is a part of the bundle you are viewing.

Okay, my friend purchased this sub with a hitron amp that was 50 watts below the rated rms power and within the first two weeks the sub blew! the bad part was that we were only breaking it in, not even blasting. So he let me salvage it and I found that it was a fried voice coil. Now Boss is a pretty good brand, I have a monoblock powering my 1200W Kenwood 12" and it puts a nice dent in your eardrum. This was just one of those quick projects that boss was trying to put together REALLY CHEAP. Other than that, boss is okay. Just not this sub..

By Jordan on December 8, 2010

31 found this helpful


Boss Subs

The following review is for CX12, which is a part of the bundle you are viewing.

okay first of all don't hate on boss because they don't have high quality s***. boss is a brand where you can get decent sound for now and upgrade later. THEY ARE NOT COMPETITION SUBS!!! I would recommend boss to anyone looking for a little thump on tight budget.

By drew on December 1, 2010

32 found this helpful


Awesome

The following review is for ATA800.2, which is a part of the bundle you are viewing.

I would highly recommend this product. It pushes my 2 12" kenwood pretty good i wish i would of spend the extra 10 bucks for 200 more watts
but it pushes it just fine im happy with my product

By Lucio on November 12, 2014

32 found this helpful


good stuff

The following review is for ATA800.2, which is a part of the bundle you are viewing.

This is my first amp and sub. I bought this combo'd with the kenwood 12 inch sub, and I am very satisfied with the amount of power this amp generates and feeds to the sub.

I am getting strong bass with good airflow, that I feel vibrating my head nd body.

I got exactly the type of bass I wanted, not overkill, but just enough to shake up inside the car.

By slava on November 20, 2014

32 found this helpful


perfect

The following review is for CX12, which is a part of the bundle you are viewing.

I had these 2 of these subs for about 2 months and they quake. They honestly shake my whole car and nearby objects. I couldnt ask for a more perfect product.

By alex on July 20, 2012

28 found this helpful


Great Subs!

The following review is for CX12, which is a part of the bundle you are viewing.

I saw some reviews that these subs blow easily. I got them running off a 400 watt mono block Lightning Audio amp. I had mines for a month and they are still rocking. Great price, great buy.

By Bighobdog on October 24, 2014

28 found this helpful


Was everything I was looking for

The following review is for CX12, which is a part of the bundle you are viewing.

I purchased two of these subwoofers on a whim thinking they would help give my installation the additional bass I was looking for. I fed each subwoofer roughly 250-300 watts RMS from the Boss CX1250. When driven close to the rated power this was an affordable fix for my need for bass.

I've been surprised with how these subs can sound in the right box and driven with some decent power. Thanks Sonic!

By Richard on November 9, 2010

29 found this helpful


Good Value

The following review is for CX12, which is a part of the bundle you are viewing.

I would recommend this product because for the money these sound good. I purchased two kits (4 speakers 2 amps) one speaker did blow but we were cranking it UP!

By Mars on December 24, 2012

27 found this helpful




No picture

Belva Sub Box 1SV12G (Gray) (Like New (Open Box))

Single 12" Vented MDF Enclosure

(1)

$59.49

List price $109.99

No picture

Belva 1TRUCK10 (Open Box, Great)

10" Single Shallow Subwoofer Angled Truck or Hatchback Enclosure

(2)

$49.99

List price $99.99

MD-900CM small

Farenheit MD-900CM (Black/Gray/Beige Skins Included)

9" Overhead TFT-LCD Monitor w/ Built-in DVD Player, USB/SD Ports, and 3 Snap-on Skins/Colors

(2)

$169.99

List price $399.99

No picture

Pioneer AVIC-W8600NEX - New (Damaged Packaging, Product A+)

7" Double DIN Touchscreen DVD Multimedia Receiver with Bluetooth, Built-in Navigation, Wireless Apple CarPlay and Android Auto

(3)

$1349.99

List price $1800.00

No picture

Pioneer TS-A2000LD2 (Open Box, Good)

700W Peak (250W RMS) 8” A-Series Dual 2-ohm Shallow Car Subwoofer

$96.00

List price $200.00

ICD-SX712 small

Sony ICD-SX712 (ICDSX712) Digital Voice Recorder - Black

Portable 2GB Digital Flash Handheld Voice Recorder

$159.95

List price $149.95

No picture

Lanzar OPTI4000D Open Box, Very Good Condition (Used)

4000W RMS, Monoblock Class D OptiDrive Series Car Amplifier

$550.00

List price $1699.99

No picture

Belva BBX112BK (BLACK) (Open Box, Good)

1.842 cu ft. Single 12" Ported Car Subwoofer Box Enclosure with Custom Black Baffle

$56.99

List price $139.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Volkswagen Rabbit

2000 Toyota 4Runner

2012 Honda Civic

1981 Ford Bronco

1992 Toyota Pickup

2002 Audi TT Quattro

2009 Mazda B4000

2007 GMC Canyon

1995 Dodge Ram 2500

2008 Subaru Forester

Vehicle
Store
Delete

1995 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
