Boss BASS-800 8" 800 Watt Under Seat Slim Amplified Car Subwoofer + Wire Kit

List price $304.97: Boss BASS-800 Amplified 8" Bass System with Remote Level Control + 8 Gauge Full Spec CCA Wiring Kit

Boss
Shop all Boss
EXCLUSIVE
highlight-star-icon

• 800W Max
• 280W RMS
• Polypropylene cone woofer
• Rubber surround
• Built-in amplifier with MOSFET power supply
• Thermal, overload, and speaker short protection
• Nickel plated RCA and high level inputs

Learn more about the bass800_tc4kit8_bbic3

We apologize

This item has been discontinued


Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
DMX125BT main

Kenwood DMX125BT

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Description


Boss brand icon

Authorized dealer

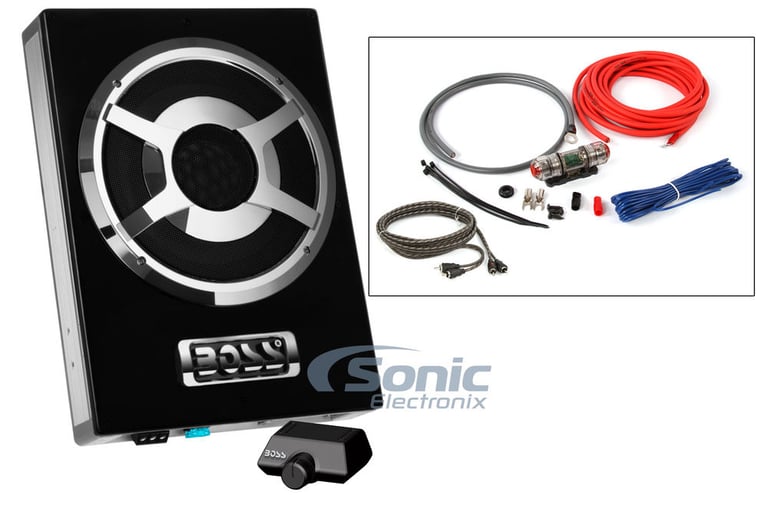

Boss BASS-800

Amplified 8" Bass System with Remote Level Control (BASS800)
Quantity: 1

General Features:

  • 8" Bass Series Amplified Subwoofer with Enclosure
  • Power Ouput:
    • Peak: 800 watts
    • RMS: 280 watts
  • Wired remote bass level control included
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Speaker-level (high-level) inputs
  • Polypropylene cone woofer
  • Rubber surround
  • Passive radiator
  • Soft turn-on circuitry
  • Nickel plated RCA and high level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 20 - 150 Hz
  • Total Harmonic Distortion (THD): <0.4%
  • Signal to Noise Ration: >90dB
  • Selectable phase shift: 0 - 180°
  • Variable low-pass filter: 50 - 150 Hz, 24 dB/octave
  • Subsonic filter: 20 - 50 Hz , 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB
  • Fuse Rating: 15A x 2
  • 8 gauge power and ground wiring is recommended for installation.
  • Dimensions: 9-7/8"W x 13-7/8"L x 3"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty

Priced Individually

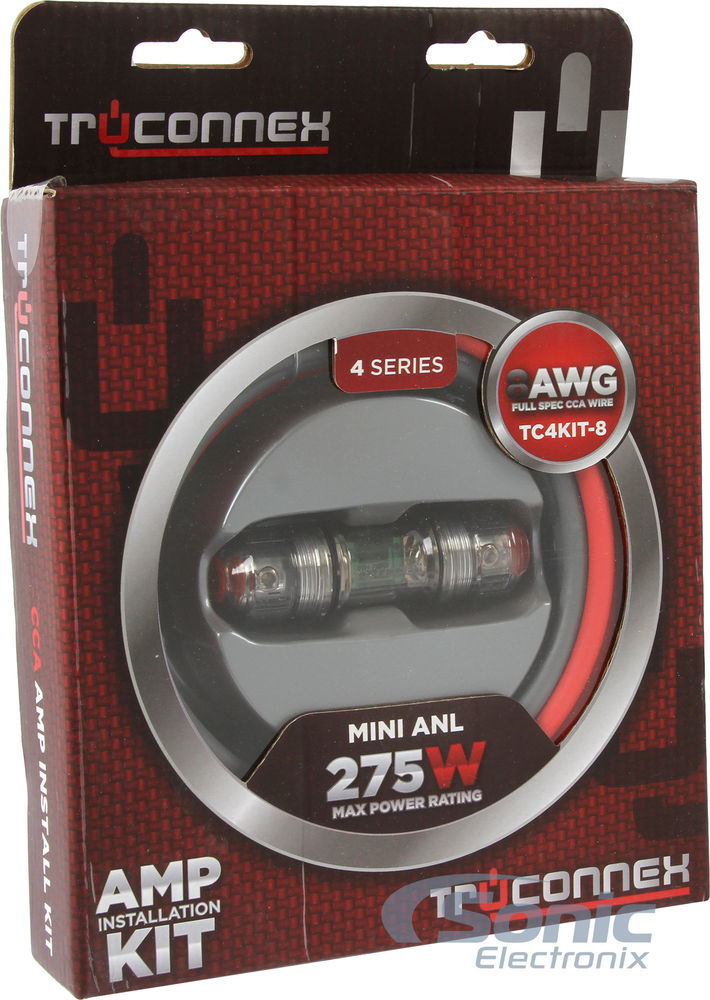

TruConnex TC4KIT-8 by Metra

8 Gauge Full Spec CCA Amplifier Wiring Kit for Systems up to 275 Watts
Quantity: 1

General Features:

  • 8 gauge Power Amplifier Installation Kit
  • Designed specifically for car audio systems up to 275 watts
  • Premium power and ground wire provides optimal power transfer
  • Terminals are Nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Package Includes:

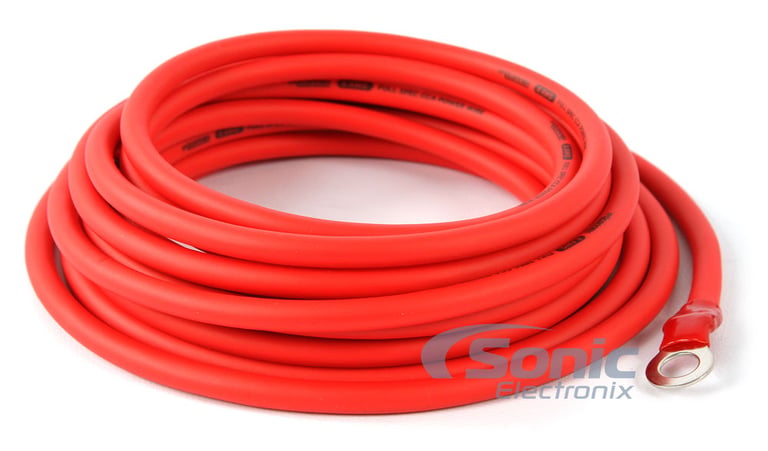

  1. 17 ft. of 8 AWG Red power cable

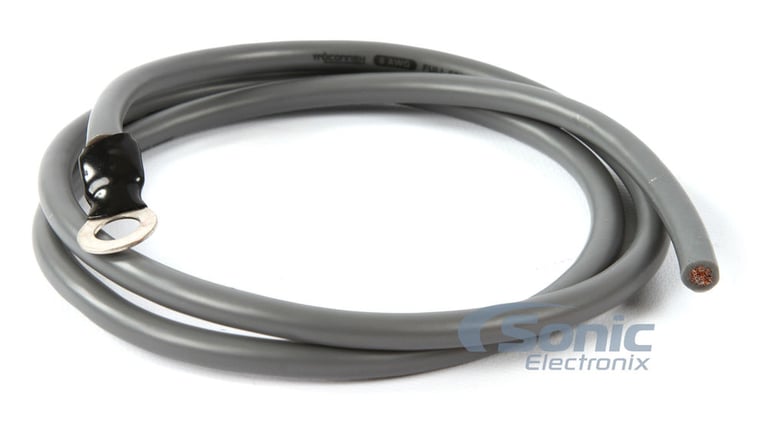

  2. 3 ft. of 8 AWG Gray ground cable

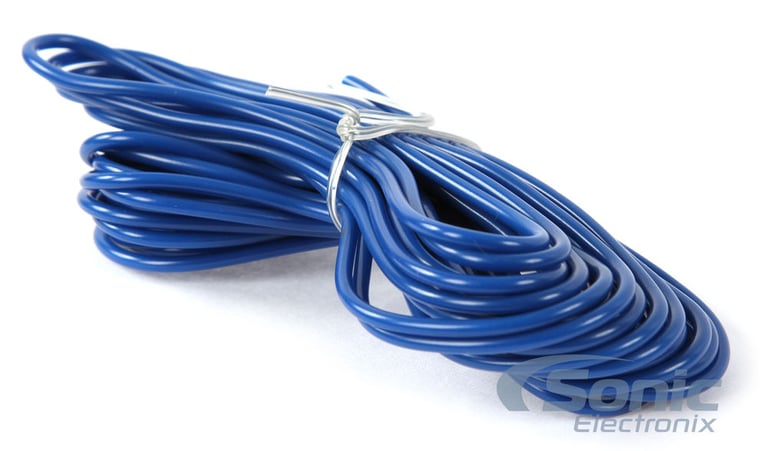

  3. 17 ft. of Blue remote turn-on wire

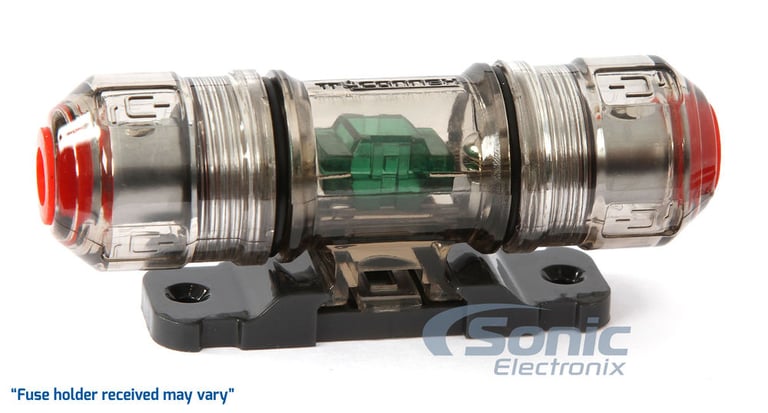

  4. In-line mini ANL fuseholder
  5. 60 Amp ANL fuse

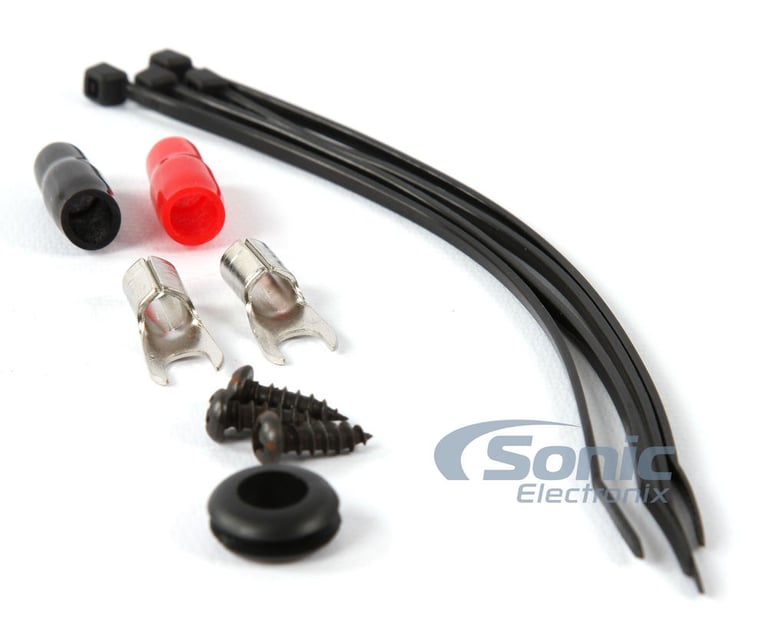

  6. Ring Terminals
  7. Ground Terminals
  8. Vinyl Cable Ties
  9. Screws
  10. Spade Terminals
  11. Grommets

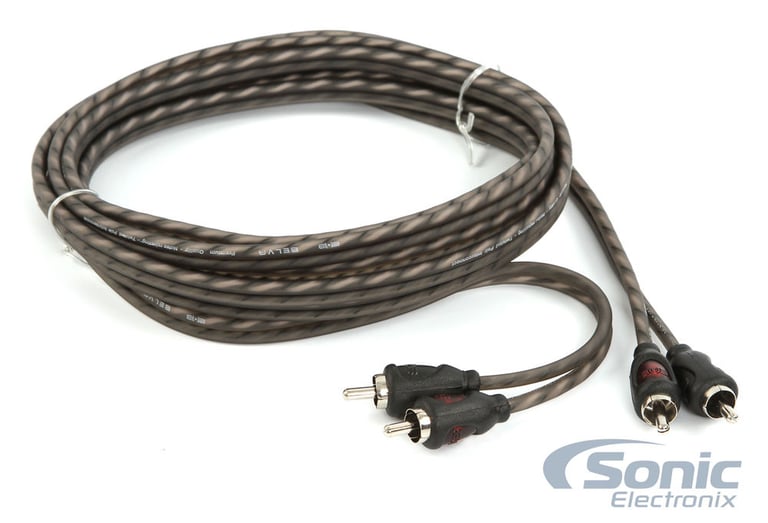

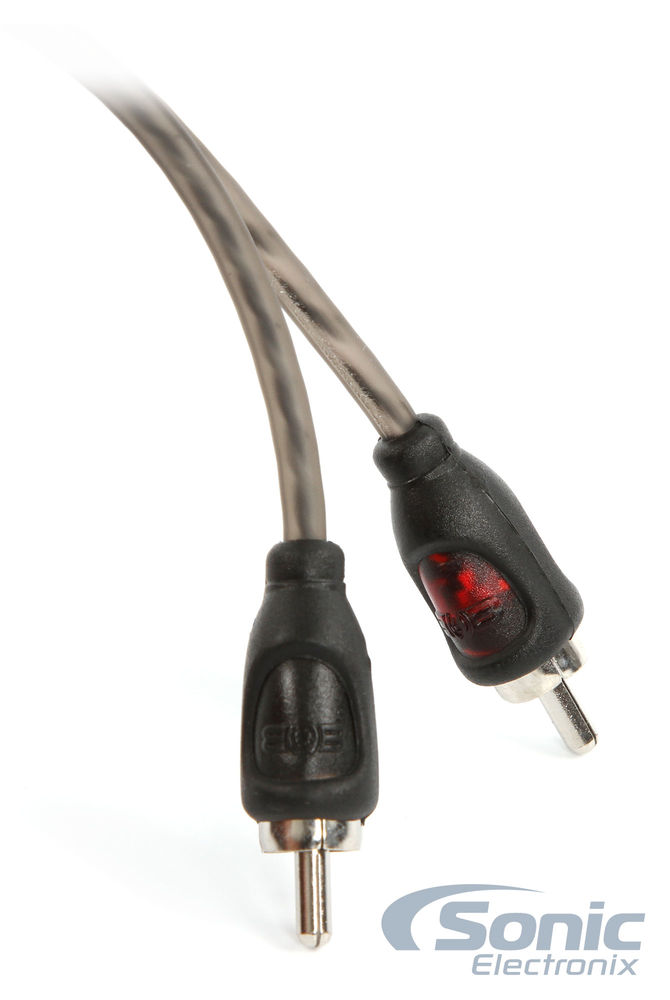

Belva BBIC3

3m (9.8 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)
Quantity: 1

General Features:

  • Audio Interconnect Cable (CCA)
  • 2-Channel RCA, perfect for stacking, strapping or connecting amps
  • Helical Twist construction minimizes noise and interference
  • Patented high tolerance compact machined metal end
  • Packed in resealable bag
  • Length: 3m (9.8 feet)
  • Also available in 16.4 Ft.
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

Specifications & Details


Amplifier Specifications
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
<0.4%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
20 - 50 Hz
Remote bass/level controller
Yes
Fuse Rating
15A x 2
Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
280 watts
Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
91 dB
Frequency Response
20 - 150 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
3"
Width
9-7/8"
Depth
13-7/8"
Box Exterior Color
Black
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BASS-800_TC4KIT-8_BBIC3

Weight:

13.65lbs

Internal SKU:

bass800_tc4kit8_bbic3

Internal Product ID:

106753

Customer Ratings & Reviews


Boss BASS-800 8

5 star
68%
4 star
28%
3 star
0%
2 star
4%
1 star
0%



Durability
4.6
Value
4.9
Features
4.5
Design
4.5
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great value

The following review is for BASS800, which is a part of the bundle you are viewing.

I got the BASS-800 for my sedan, simply because I wanted something to fill in the low ends of my music but not necessarily to blow the doors off my car.

Setup was reasonably uneventful, with the most difficult step of finding a place to mount the remote volume control (Inside the center console). The BASS-800 is smaller than a regular box but it's a little bit of an awkward shape.
The sound the BASS-800 produces is powerful and satisfying, but won't blow your doors off.

I wouldn't get this if you're into hip-hop, but you won't be disappointed if rock or electronic music. It will, however, reveal every rattle in your car!

The only trouble I've had with the BASS-800 was having the heat protection circuit kick in after a 6 hour drive in the summer through a desert, with the volume pretty high...and even then, it was only out for about 5 minutes. Also, the bright blue LED on the volume control remote is VERY bright, so best keep it stashed in a glove box, it'll blind you at night.

Overall, I'm very satisfied with the BASS-800 and I'm planning on purchasing another one for my wife's car so she'll stop borrowing mine for the sound system.

By mykie on January 16, 2009

76 found this helpful


Decent.

The following review is for BBIC3, which is a part of the bundle you are viewing.

Wire works well and for the price you cant beat. USPS lost mine in the mail and Sonic sent me another one for free. Sadly 9ft was not long enough for the clean install I was going for. Sound quality and durability was fine tho for anyone who is worried! Thanks Sonic

By Suvi2k on December 8, 2014

64 found this helpful


Great Wires

The following review is for BBIC3, which is a part of the bundle you are viewing.

Great value and great sound. No interference and solid connections. Can't ask for more.

By Ryan on March 8, 2015

59 found this helpful


good deal

The following review is for BASS800, which is a part of the bundle you are viewing.

ive owned it for a week, it will give you more than a little low-end boost, but it won't wake up your neighbors if thats what you want. It seems to need a few minutes to warm up, but that might be my battery. easy to install. Very deep bass. Good deal all in all

By Evgeniy on January 30, 2008

65 found this helpful


worked as expected

The following review is for BBIC3, which is a part of the bundle you are viewing.

Sound quality is just fine and the length was exactly what I needed for my instal.

By Jim on March 31, 2015

58 found this helpful


good product does the the job

The following review is for BBIC3, which is a part of the bundle you are viewing.

it got the job done. it was economical (cheap) and provides good sound in my daughters car

By ed on January 22, 2015

60 found this helpful


EXCELLENT PRODUCT!!!

The following review is for BBIC3, which is a part of the bundle you are viewing.

Cheap, great item! Definetly would buy again! If your looking for something cheap and a great product than you need this!

By Ian on May 28, 2015

44 found this helpful


Feedback

The following review is for BASS800, which is a part of the bundle you are viewing.

Good product for good price, thank you guys. Finally I got it in my truck

By MadMax on December 29, 2014

51 found this helpful


Good for shallow pockets and people who dont want alot of thump.

The following review is for BASS800, which is a part of the bundle you are viewing.

My friend pulled up to show off his new sub with this and i just laughed at him. Its pretty ugly. BUT i was surprised for the sound quality. Its not a heavy hitter but the sound quality is nicer than my subs.

Pros: The sound quality is very good for the size and price. Built in amp, so its as easy as running the wires to install. Pretty compact so you can fit it into small spaces, and Overall the sound quality is good!

Cons: Its very very ugly. Don't expect to impress people by showing this off. And it doesn't hit hard. (not that i really expected it to)

Overall, if you wanted some bass to complete the sound, but don't want to spend a lot of money or take up a lot of room, then this is a good deal.

By Tyler on October 1, 2009

51 found this helpful


good

The following review is for BBIC3, which is a part of the bundle you are viewing.

good quality very easy to use and install, for the price they work great!

By Kirk on July 6, 2015 Checkmark Icon Verified purchase

41 found this helpful




No picture

Kenwood Excelon DDX9905S DDIN DVD CD Car Install Kit Bluetooth Apple CarPlay

Kenwood Excelon DDX9905S DDIN DVD CD Car Install Kit Bluetooth Apple CarPlay

(6)

$894.95

List price $1243.99

VMX12DVC small

Cerwin-Vega V-MAX 12" DVC VMX12DVC

(4)

$99.99

List price $199.99

XR2120 small

Clarion XR2120

400W RMS XR Series Monoblock Class AB Power Amplifier

(1)

$139.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2019 Chevrolet Equinox

2005 Nissan Frontier

2001 Suzuki Grand Vitara

2013 Honda Ridgeline

2010 Suzuki Equator

2015 Ford C-Max

2011 Toyota 4Runner

1989 Ford Mustang

1974 Cadillac Calais

1993 Jaguar XJS

Vehicle
Store
Delete

2007 Harley Davidson FXD Dyna Super Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
