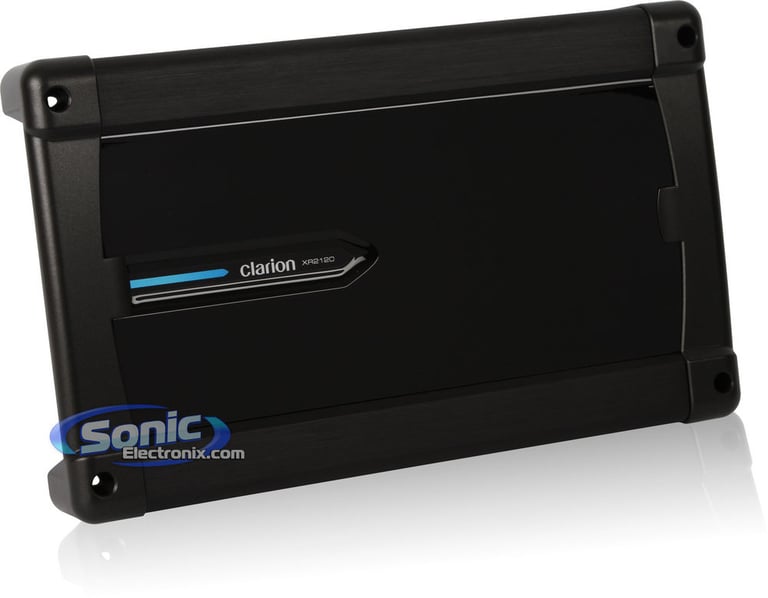

Clarion XR2120 Monoblock XR Series 570W Car Amplifier

Clarion XR2120

400W RMS XR Series Monoblock Class AB Power Amplifier

400W RMS XR Series Monoblock Class AB Power Amplifier

• 400W x 1-Chan. @ 2 Ohms • 280W x 1-Chan. @ 4 Ohms • Built-In Ground Loop Isolation For RCA Inputs • Remote Turn-On With Soft Start Prevents "Thump" • Speaker-Level Inputs

We apologize

This item has been discontinued

DESCRIPTION
Clarion

Authorized dealer

General Features

  • XR Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 280 watts x 1 chan.
    • 2 ohms: 400 watts x 1 chan.
  • Max power output: 570 watts
  • MOSFET power supply
  • LED power and protect indicator
  • Selectable bass boost (0, 6, 12 dB at 50 Hz)
  • Remote turn-on with Soft Start prevents "thump"
  • Built-in ground loop isolation for RCA inputs
  • Mono channel operation
  • Speaker-level inputs
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty black anodized heatsink for efficient heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-5.5V
    • High level: 2V-9V
  • Variable low-pass filter (30-300 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 14"L x 8-1/2"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix Warranty

Product history:

Clarion XR2120 thumbnail
(newest, current model)
Clarion XR2110 thumbnail
(previous model, replaced by Clarion XR2120)
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
280 watts x 1 channels
RMS Power @ 2 ohms
400 watts x 1 channels
Amplifier Specifications
Amplifier Series
XR (Clarion)
Marine Certified
Amplifier Class
AB
Number of Channels
1 - Mono
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0, 6, 12dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
20A x 3
Total Fuse Rating
CEA-2006 Compliant
Yes
Hi-Res Certified
Authorized Dealer
Authorized Dealer

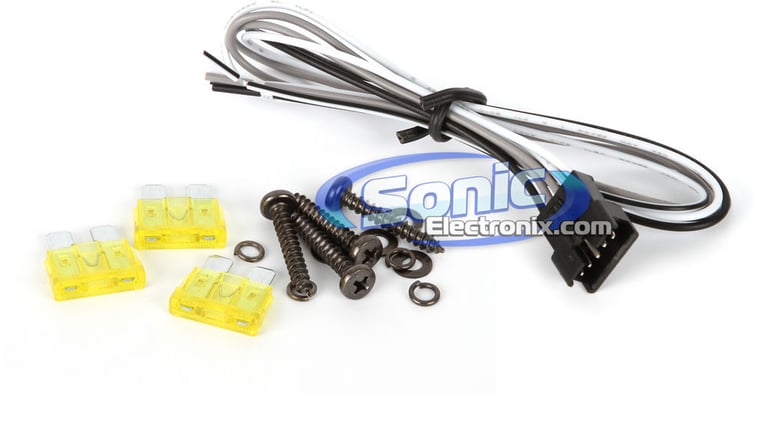

What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5

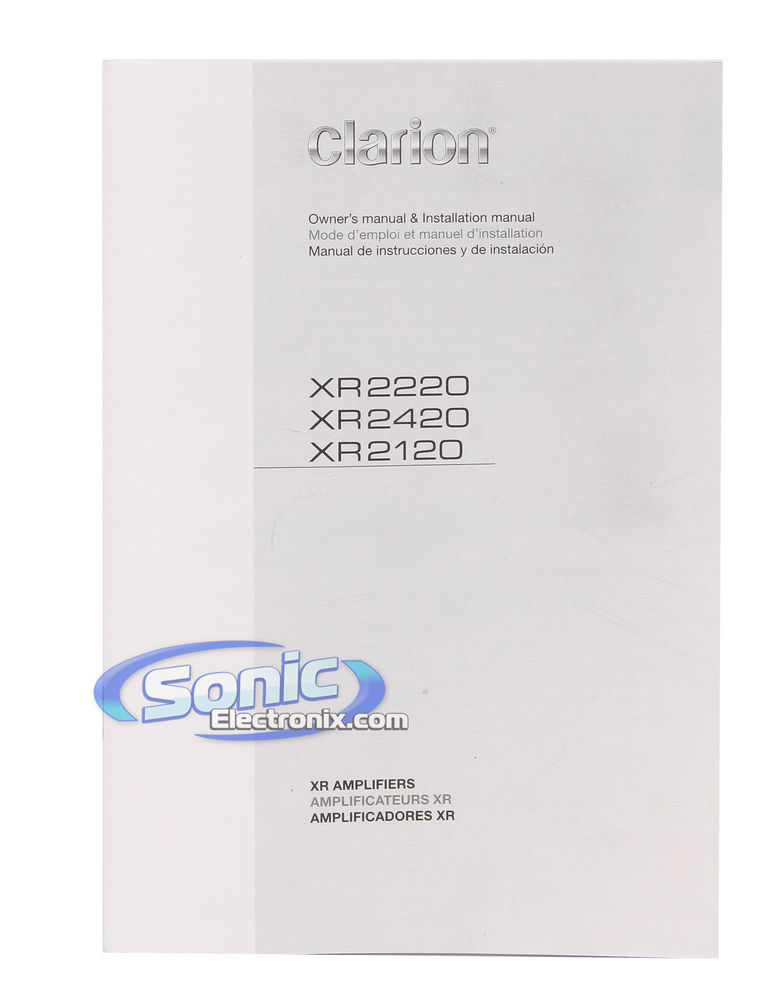

Paperwork
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
