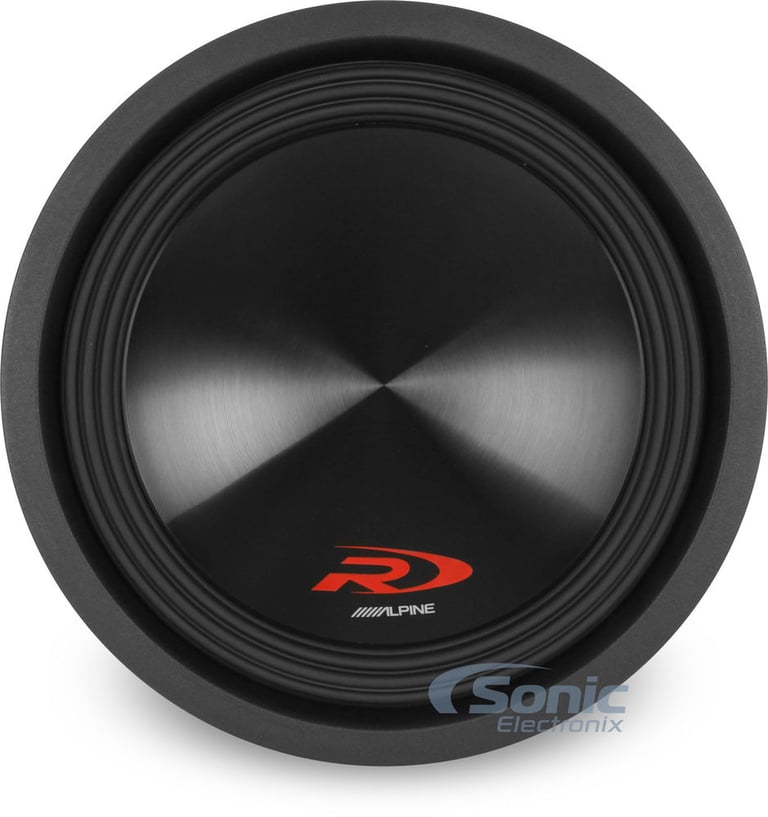

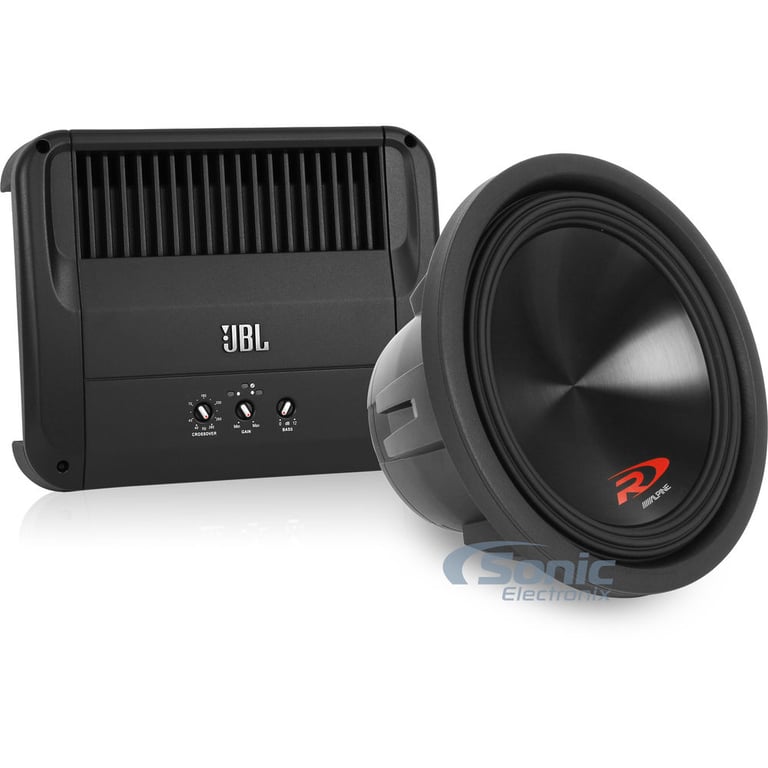

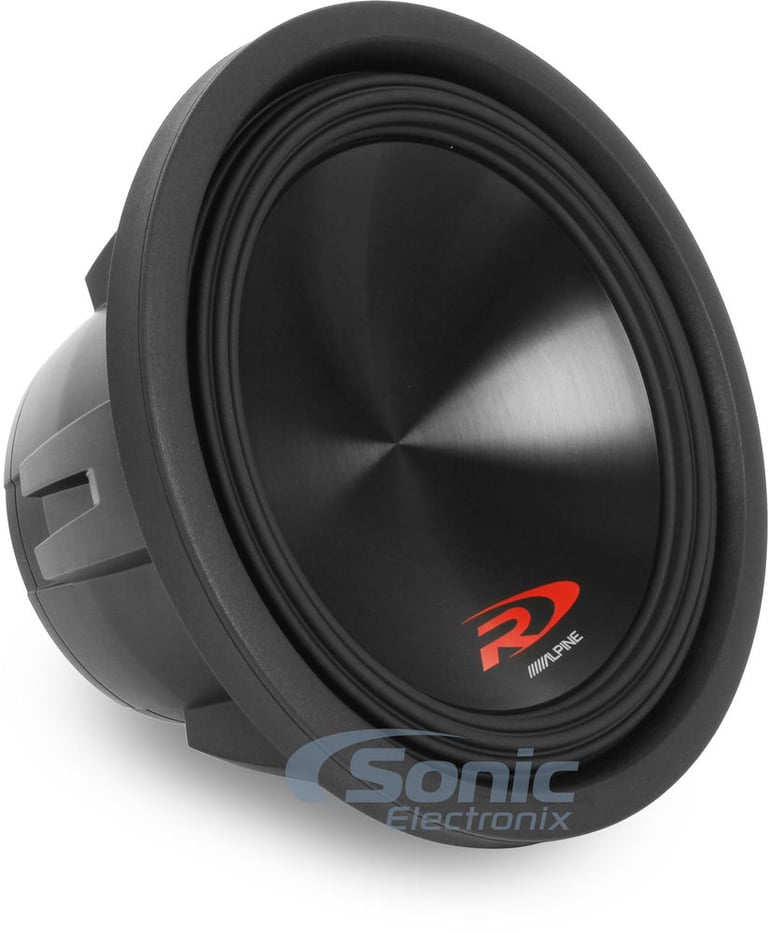

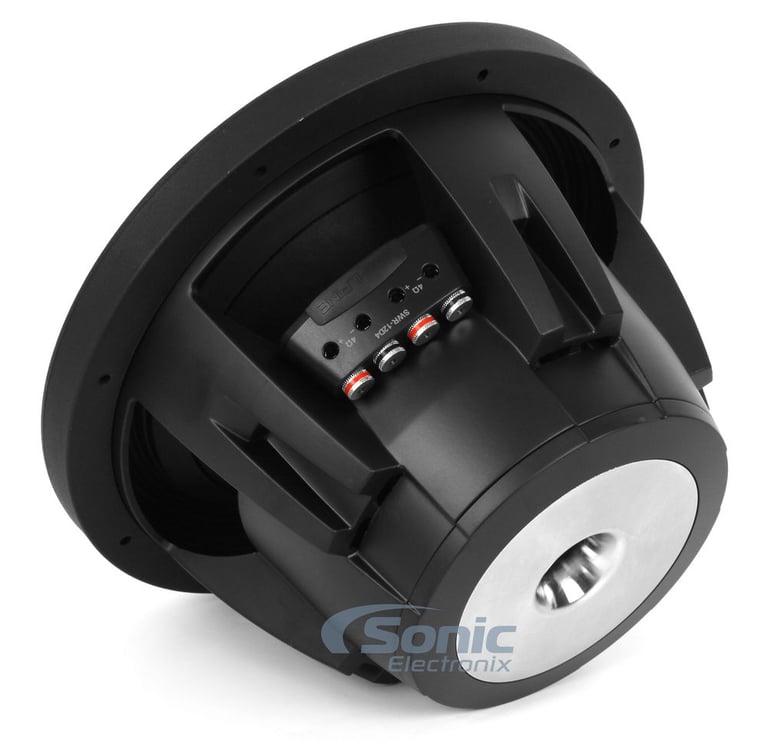

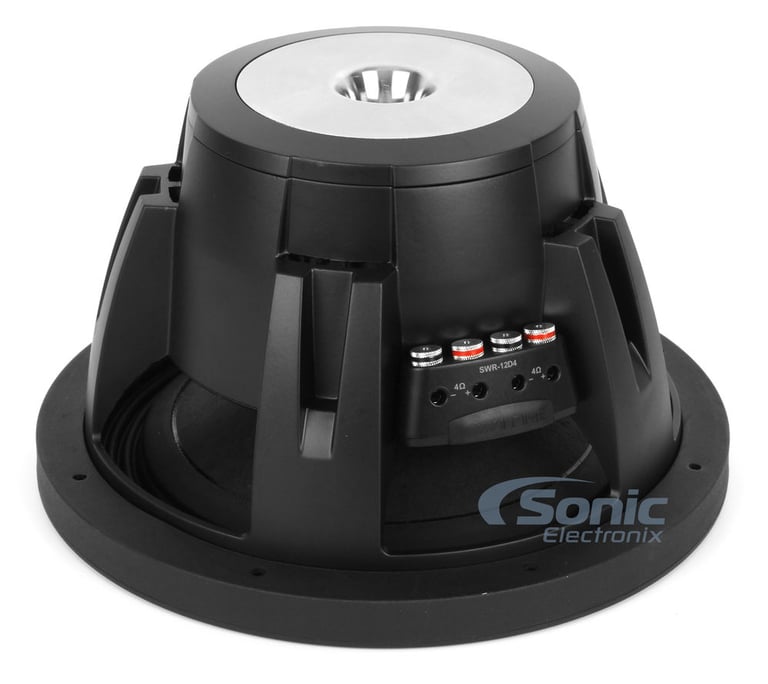

Alpine SWR-12D4
3000W Peak 12" Type-R Series Dual 4-ohm Subwoofer
Quantity: 1
General Features:
- 12" Fifth-Generation Type-R Series Car Subwoofer
- Power Handling:
- Peak: 3000 watts
- RMS: 250-1000 watts
- Recommend power range: 250 - 750 watts RMS
- Impedance: Dual 4 ohm
- Kevlar treated pulp cone
- Reinforced parabolic cone structure with Poly-Mica dust cap
- Durable High Amplitude Multi-Roll santoprene surround
- Progressive Conex spider with reinforced layer tinsel lead
- Concealed mount gasket
- Cast aluminum frame with integral shorting sleeve
- Radial vented heat sink
- Compound Radius Curve pole geometry
- Oversized 2.6", High-Temperature, 4-Layer Dual Voice Coil
- Spiral cut, black anodized aluminum former
- Airflow Optimized dual flare pole vent
- High-grade strontium ferrite segmented magnet assembly
- Integrated 8 AWG push terminals with VC jumpers
- Top-mount depth: 6-3/8"
- Cutout diameter: 10-7/8"
- Frequency response: 24 - 200 Hz
- Xmax: 20mm
- Sensitivity: 84.9dB
- Magnet weight: 127oz
- Protective 2-Piece Grille Available, sold separately: Alpine KTE-12G
- Recommended sealed enclosure: 0.55 - 1.00 ft³
- Recommended ported enclosure: 1.00 - 1.50 ft³
- 1-year Sonic Electronix Warranty
Check out the Alpine Type-R Subwoofer Owner's Manual
Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

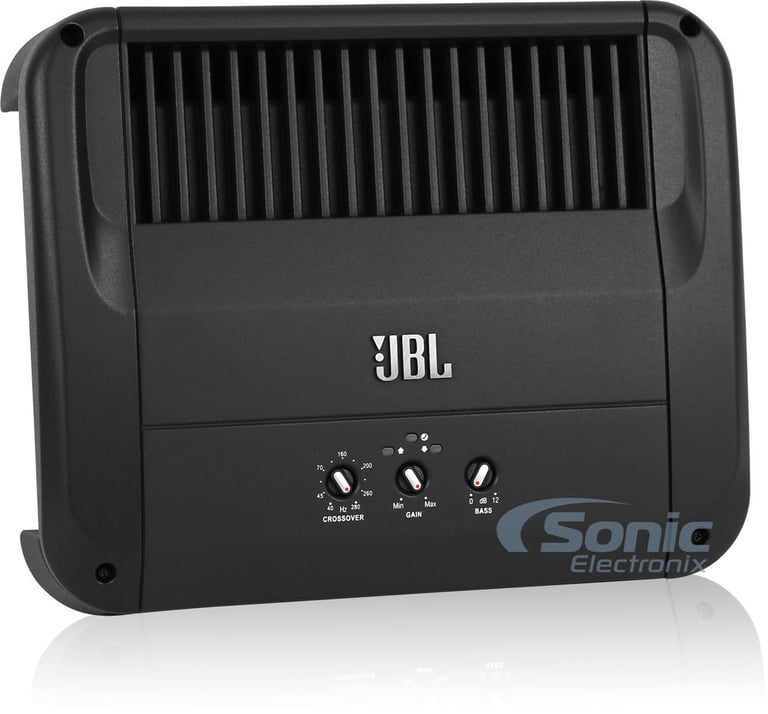

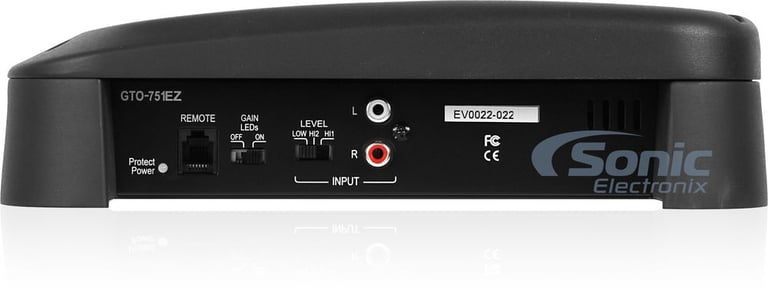

JBL GTO-751EZ
Monoblock GTO Series Class D Car Amplifier
Quantity: 1
General Features:
- Monoblock GTO Series Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 750 watts x 1 chan.
- Max Power: 1200W @ 2ohm, 15.5V DC, 10% THD
- CEA-2006 Compliant Amplifier
- Built-in Gain Indicator LEDs and an included setup CD
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Signal sensing automatic Turn-on

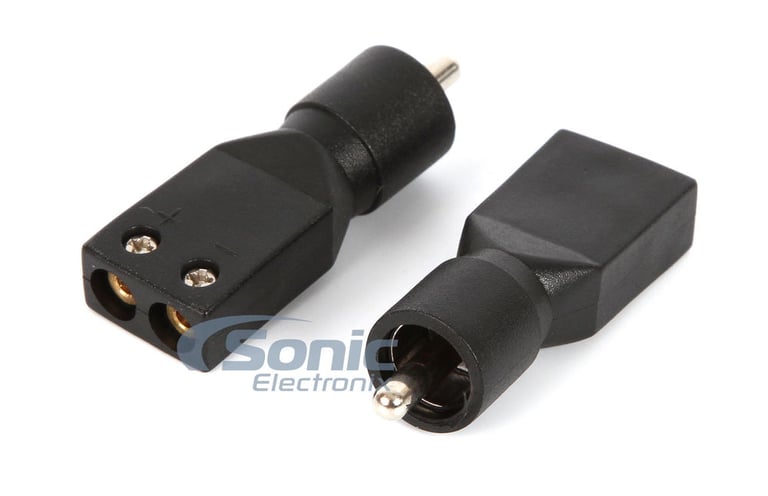

- Speaker-level (high-level) inputs with included adapters
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity: High level: 250mV-10V
- Frequency Response: 10 - 280 Hz (±3dB)
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ration: 80dB

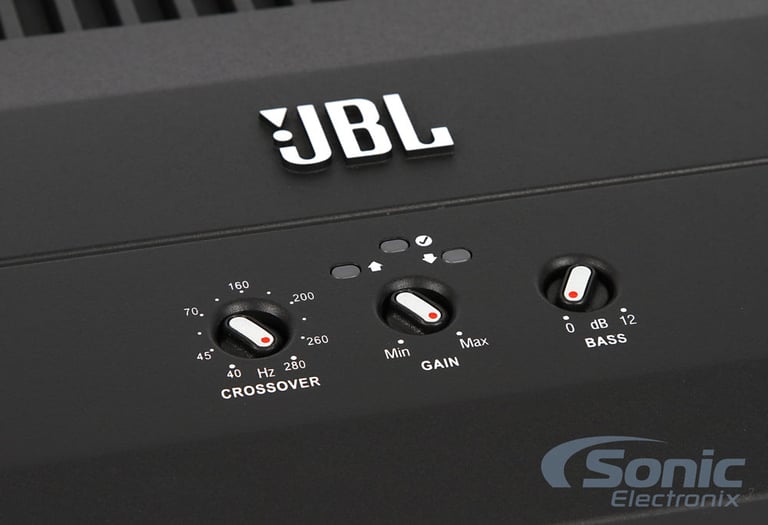

- Variable low-pass filter: 40- 280 Hz
- Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz

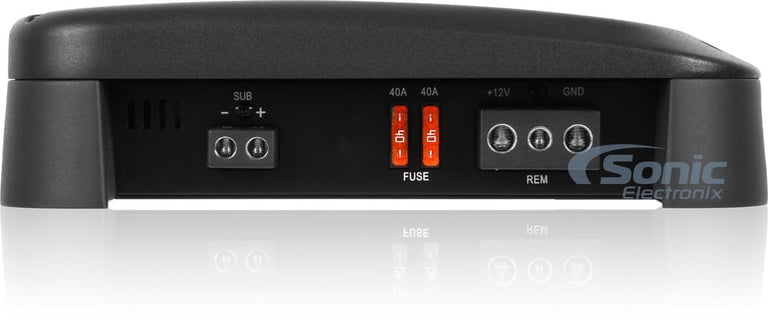

- Fuse Rating: 40A x 2
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 9-11/16"W x 11-15/16"L x 2-9/16"H
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
Check out the JBL GTO Monoblock Amplifiers' Owner's Manual
