Small Subwoofer Driver Frame
The JVC CS-W120's small frame design makes it a perfect solution for a wide range of applications. From custom OEM integration to traditional installs with minimal space, the CS-W120 fits almost anywhere. Its 5-1/16" depth Almost makes the driver a "shallow mount", making it perfect for the enthusiast that lacks space but wants the sound of a full sized woofer.
Well Rounded Modest Power
The JVC CS-W120 houses a 21.30 oz Magnet to make up its motor and provide its modest power. At 150w RMS, the CS-W120 is perfect for a beginner's set up or for the seasoned veteran who is only looking to fill in the lack of low end in an existing system. A pair of drivers in a sealed enclosure is the most common set up, because it provides very well rounded sound quality.
Fine Tuned for Sealed Enclosures
The JVC CS-W120 was designed to save space. As such, it has been fine tuned to work best in a Sealed Enclosure, perfect for the enthusiast building a "SQ (Sound Quality) System". The driver is designed to work well within a fairly wide range of enclosure air volumes in order to fit anyone's particular sound preference.

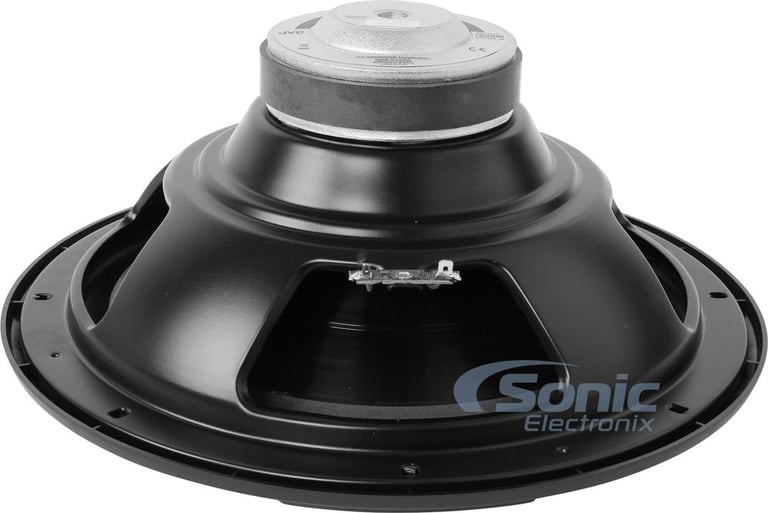

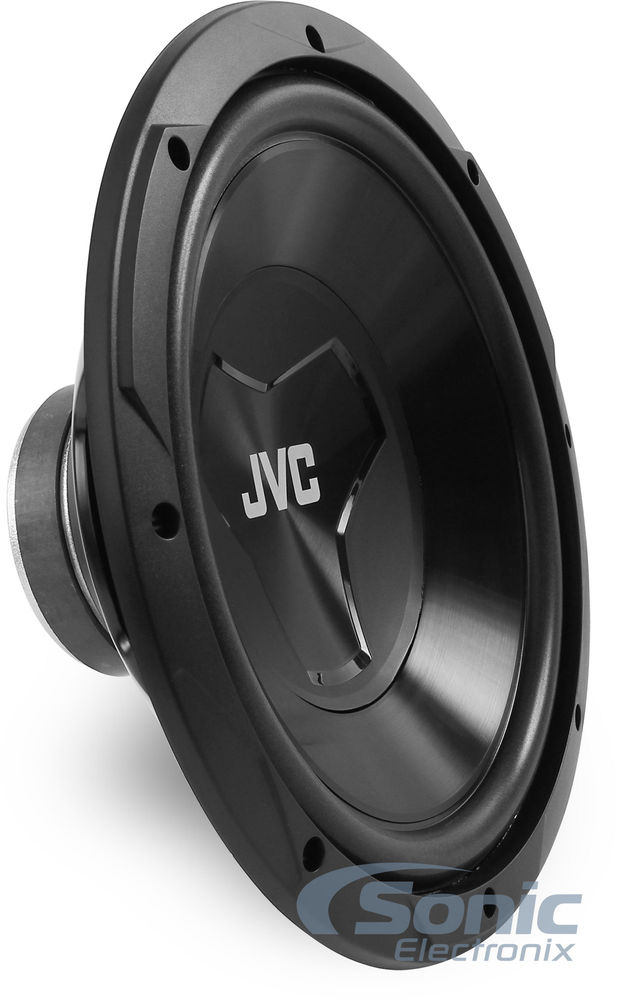

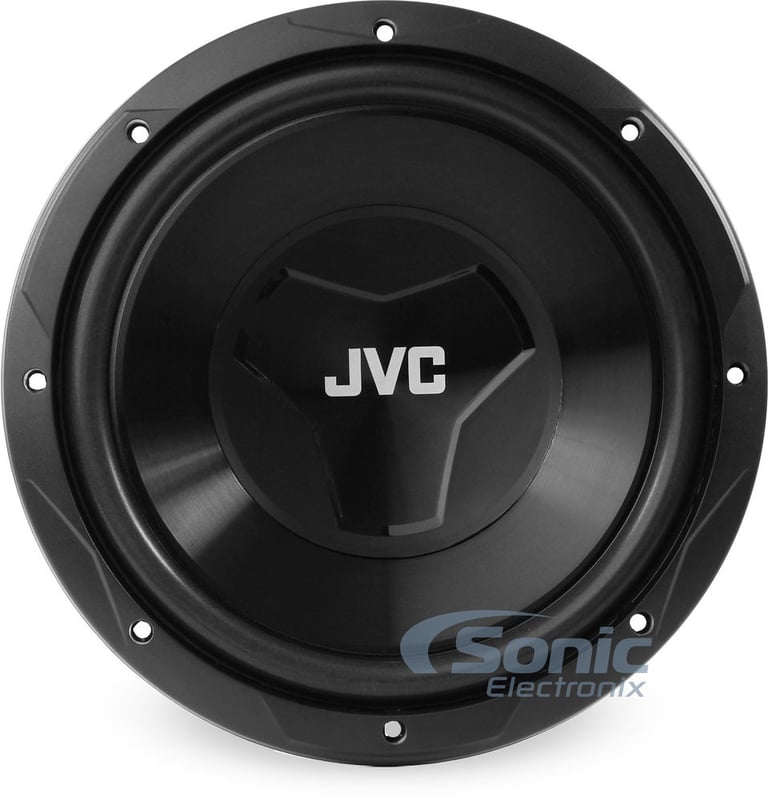

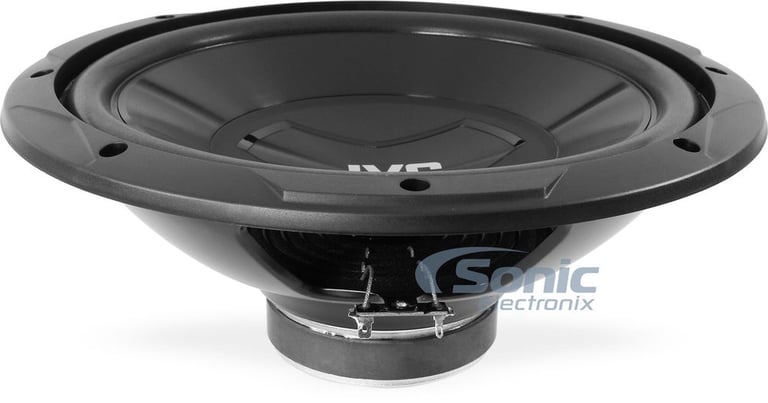

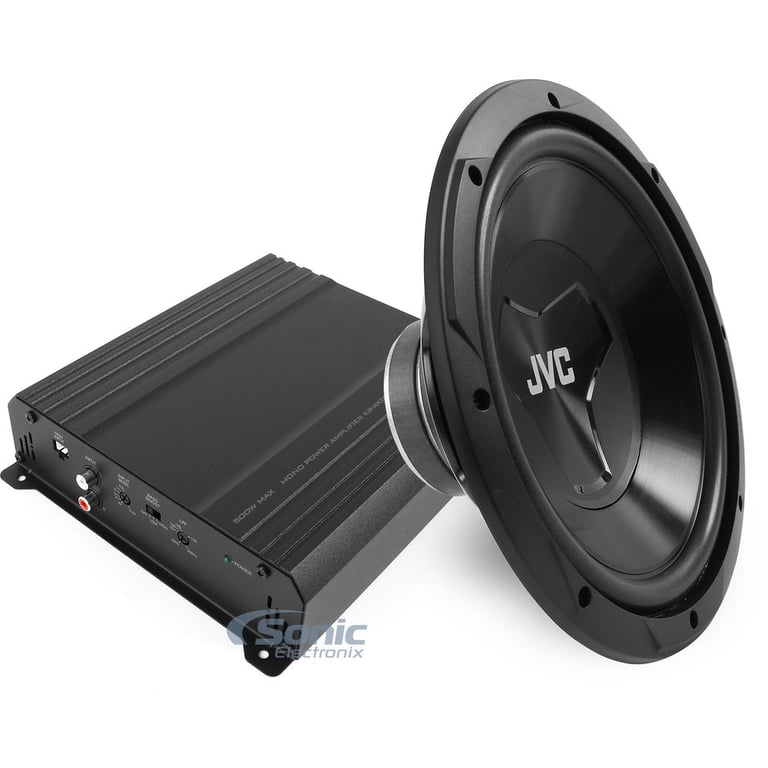

JVC CS-W120
1000W 12" W Series Single 4 ohm Car Subwoofer
Quantity: 1
General Features:
- 12" Single 4 ohm W Series Subwoofer
- Power Handling:
- Peak: 1000 watts
- RMS: 150 watts
- Recommended power range: 125 - 150 watts RMS
- Polypropylene Cone
- High density foam surround
- Super heat resistant ABS gasket
- Faston terminals
- Single 4 ohm voice coil
- Top-mount depth: 5-1/16"
- Cutout Diameter: 11-1/8"
- Magnet Mass: 21.30 oz
- Voice Coil Dia.: 1-1/2"
- Frequency Response: 25 - 2500 Hz
- Sensitivity: 85dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Individually
JVC KS-AX201
The KS-AX201 is a 2-Ohm stable Mono amplifier with 500 Watts Max power output and is perfect for connecting a single or pair subwoofers. It features high and low level inputs for connection to a factory or aftermarket stereo plus a low pass filter for use with a connected subwoofer. The CEA-2006 Compliant 250w RMS @2ohm is perfect for a humble system that does not require loud booming bass. Instead, the KS-AX201 is for the system that simply needs to fill the lack of low end.
High Level and Low Level Inputs

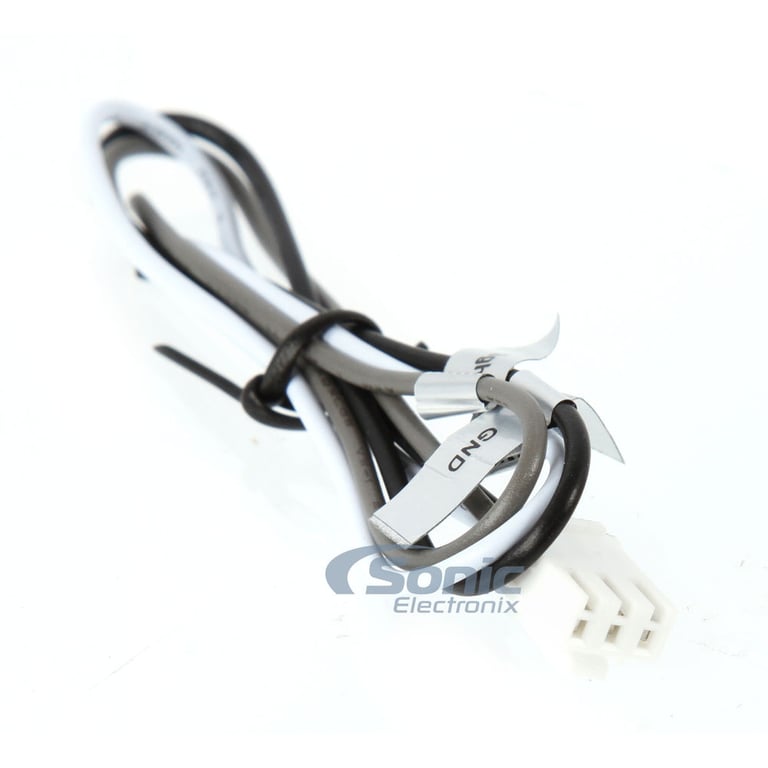

The JVC KS-AX201 is set up to integrate into various applications. The Low Level RCA inputs allow for the amplifier to be installed in any traditional setup where the headunit provides RCA Preouts. In situations where there aren't any RCAs, like when integrating into an OEM Headunit, the amplifier has you covered, with its included High Level Inputs and Harness.
Small Footprint Means Big Use
At roughly 9.0" x 7.3" , the KS-AX201 can easily be hidden away in most vehicles where space comes at a premium. The amplifier fits under most seats, in trunk side cavities, under rear decks, and even in some kick-panels. The imagination is the only limitation to where an installer can hide the amplifier for a discreet install.
The Necessities

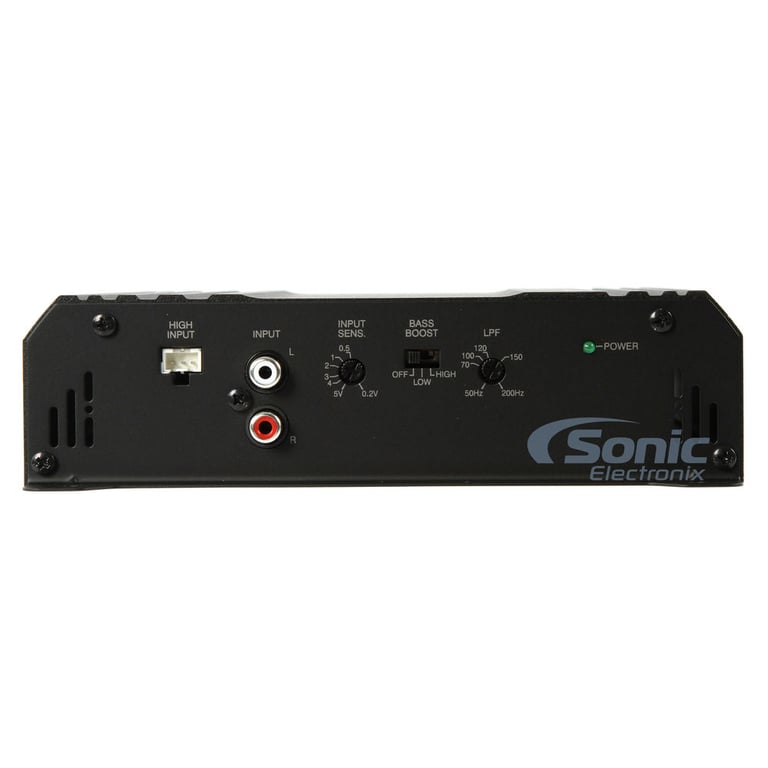

The KS-AX201 is intended to be as user friendly as possible. As such, the amplifier provides very easy to use settings, omitting the confusing knobs and switches of fancier amplifiers and leaving only the necessary. The LPF allows for the user to Filter out all harmful midrange and highs and the Input Sens. makes sure the amplifier matches the sensitivity of the headunit.

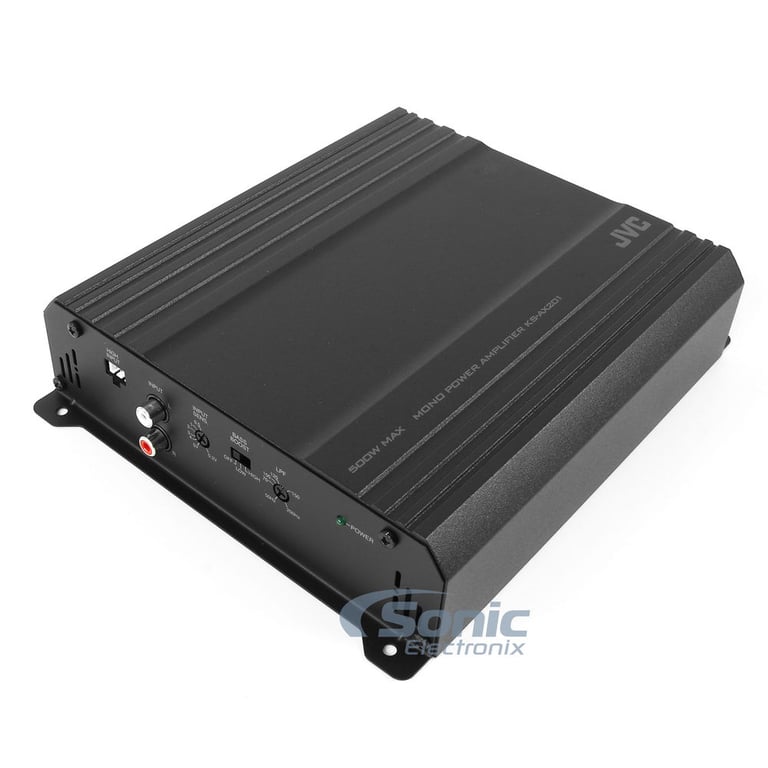

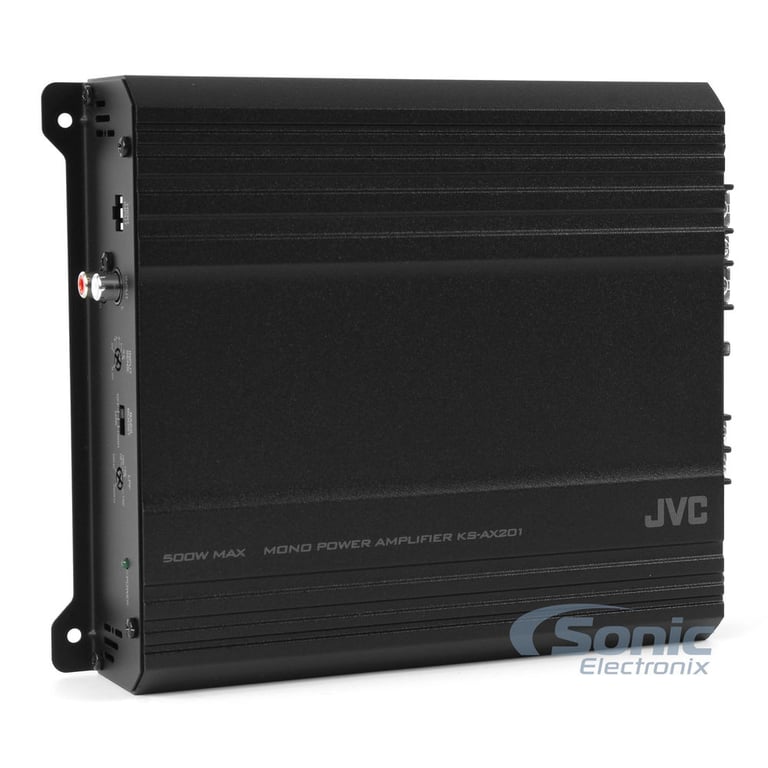

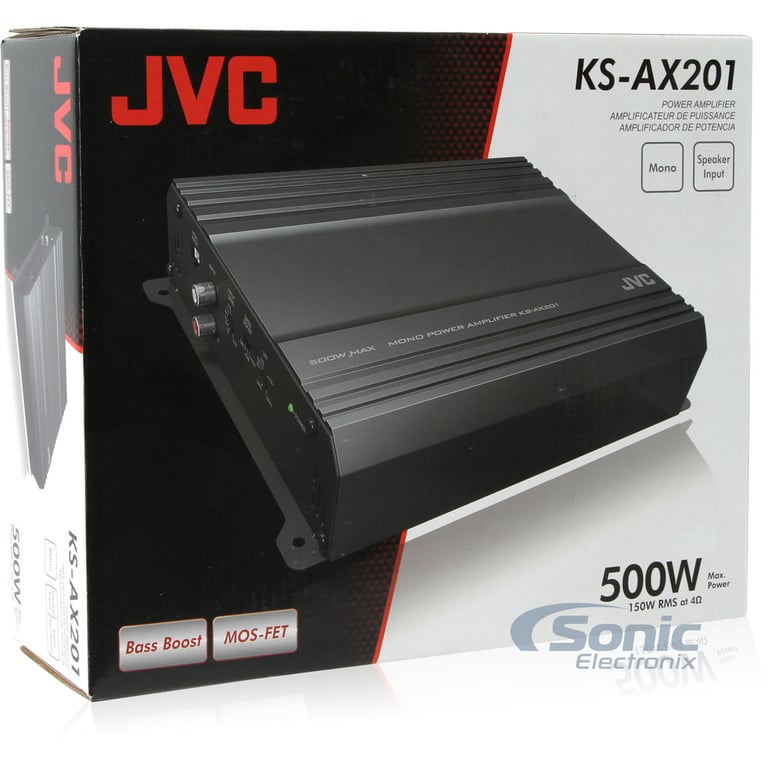

JVC KS-AX201
500W Monoblock AX2 Series Class AB Amplifier
Quantity: 1
General Features:
- AX2 Series Monoblock Class AB Car Amplifier
- RMS Power Rating:
- 4 ohm: 150 watts x 1 chan.
- 2 ohm: 250 watts x 1 chan.
- Max power output: 500 watts
- CEA-2006 Compliant
- Selectable Bass Boost: 0 to +12 dB (Off - High) bass boost at 45 Hz
- Mono channel operation
- Speaker-level (high-level) inputs
- Power On Indicator (GREEN)/Protector Indicator (OFF)
- Total Harmonic Distortion: 0.08% @100 Hz
- Variable low-pass filter: 50 - 200 Hz
- Frequency Response: 20 - 200 Hz

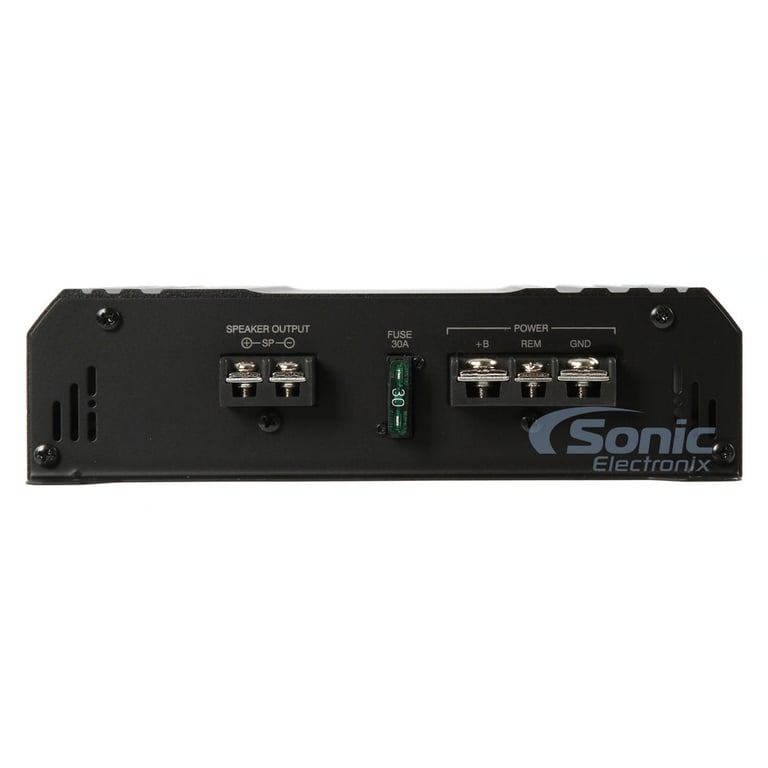

- 8 gauge power and ground wiring is recommended for installation
- Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
- Fuse Rating: 30A x 1
- Weight: 3.10 lbs
- Dimensions: 7.31"W x 8.94"L x 2.00"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
