Dual DV735MB

7" Single DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo with 2-way Dual Mirror Technology

Dual
Shop all Dual
Product videos
highlight-star-icon

• 85W x 4 Chan. MAX • 16W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 3-band graphic equalizer
• 2-Way DualMirror™
• 16M Custom Colors
• 7" LCD Display

Learn more about the dv735mb

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

dv737mb thumbnail

Dual DV737MB

OUR PRICE: $177.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

40
-16.69%

$149.95

List price $180.00

Product Highlights


• 85W x 4 Chan. MAX • 16W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 3-band graphic equalizer
• 2-Way DualMirror™
• 16M Custom Colors
• 7" LCD Display

Description


Dual brand icon

Authorized dealer
















General Features:

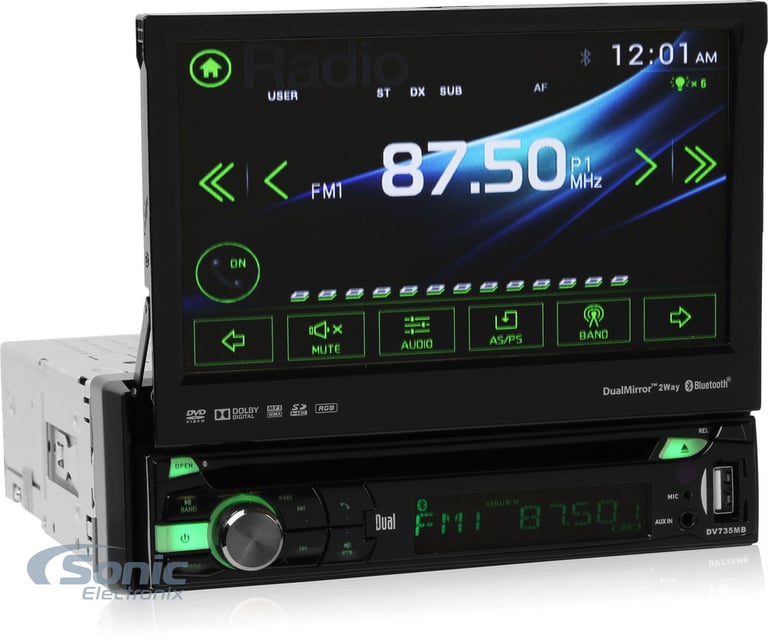

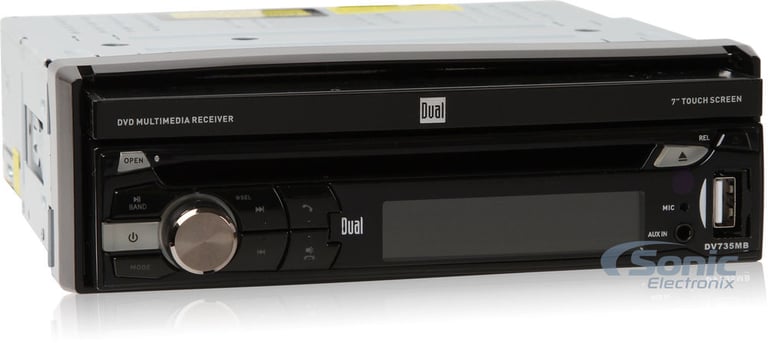

  • Dual DV735MB In-Dash Receiver
  • 7" LCD Display
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 16 watts x 4 channels

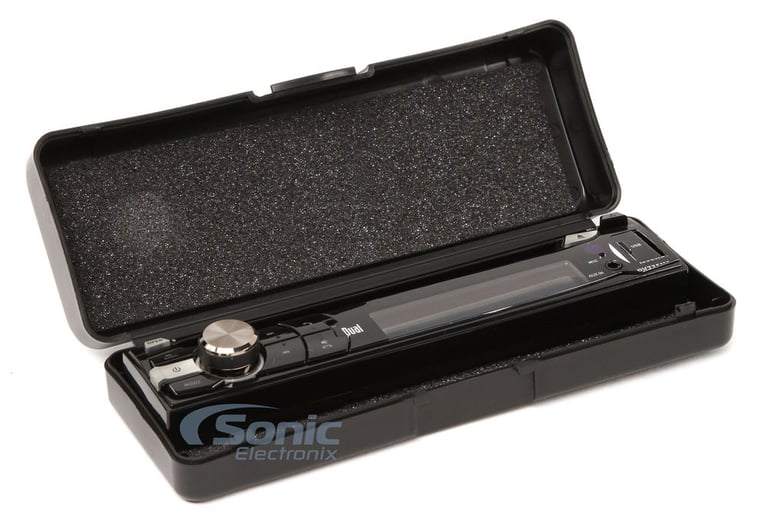

  • Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/12AM presets

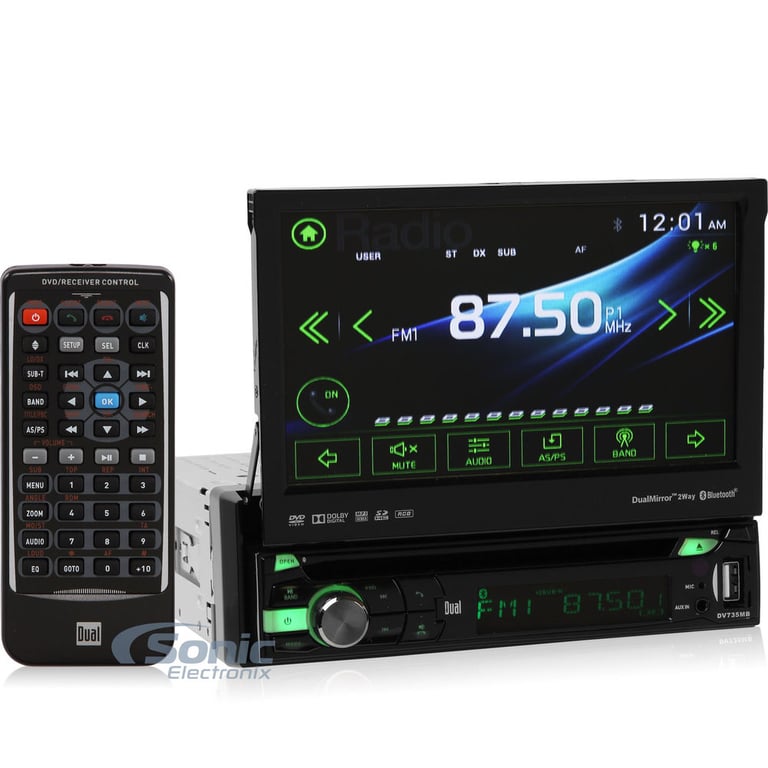

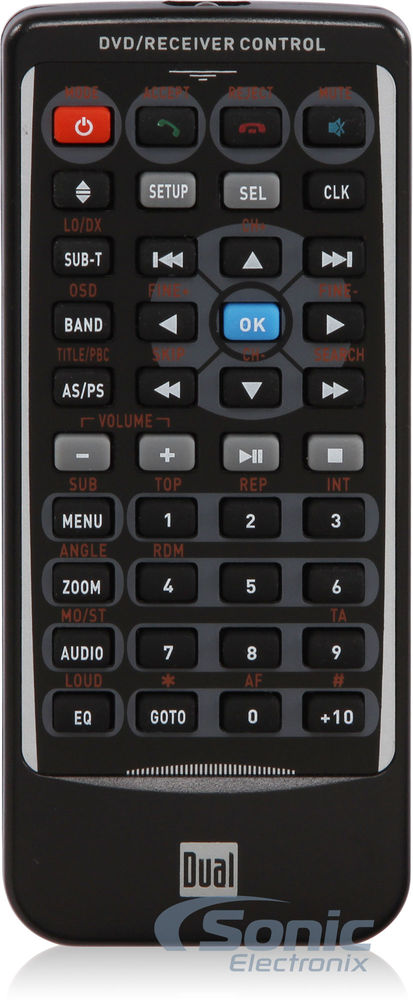

  • Remote control included
  • 2-Way DualMirror™
  • RDS Tuner
  • 16M Custom Colors
  • For DualMirror, use:
    • SL55A - for Android, 5-pin microUSB connector to HDMI + USB (5ft.)
    • SL113A - for Android, 11-pin microUSB connector to HDMI + USB (3ft.)
    • SL115A - for Android, 11-pin microUSB connector to HDMI + USB (5ft.)
    • DL5i - for iOS, HDMI cable & USB cable (5ft.)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW/DVD , MP3/WMA Playback
  • MP3/WMA/AAC/MP4/JPEG Playback via USB
  • 3-band graphic equalizer with 7 selectable tone curves (6 Preset, 1 User)
  • 3.5mm Front Auxiliary Input
  • Front and Rear USB Input (Rear input for charging only)
  • SD Card reader for (audio and video) playback
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones
  • Includes a built-in microphone for clear, convenient, distortion-free talking
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.

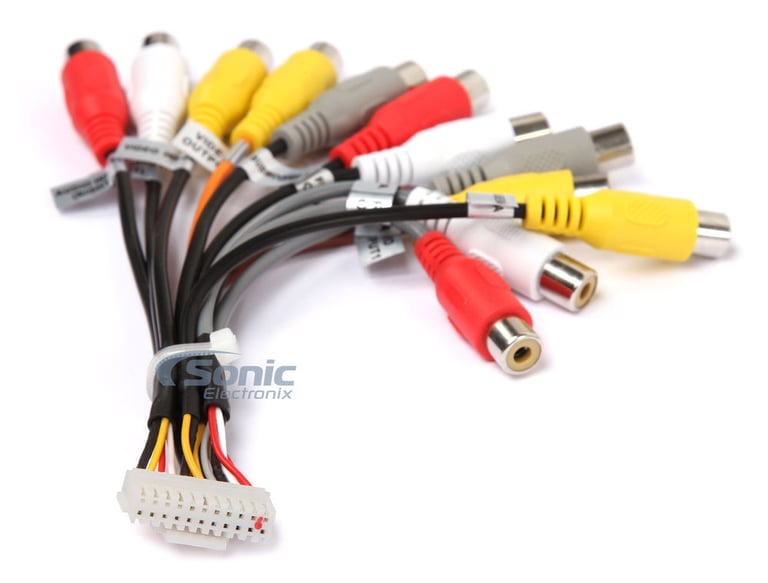

  • 2 Rear RCA Video Output: Used for connection to separate monitors and other devices


Check out the DV735MB User Manual



Product history:

Dual DV737MB thumbnail
(newest, current model)
Dual DV735MB thumbnail
(previous model, replaced by Dual DV737MB)
Dual DV725BH thumbnail
(previous model, replaced by Dual DV735MB)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

i509-WRA-JL small

Alpine i509-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" WVGA Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Hi-Res audio playback

(1)

$2899.95

List price $3480.00

i407-WRA-JK small

Alpine i407-WRA-JK

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Customizable user interface and wallpapers

$1199.95

List price $1440.00

DDX5707S small

Kenwood DDX5707S

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(5)

$399.00

List price $580.00

i509-WRA-JK small

Alpine i509-WRA-JK

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" Touchscreen WVGA Display
• Designed for select 2011-2018 vehicles from Jeep
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Splash-proof and dust-proof touchscreen and bezel (IP53-rated)

$2599.95

List price $3120.00

I407-WRA-JL small

Alpine I407-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2018-2023 Wrangler (JL) and Gladiator
• 6.95" TFT Active Matrix Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Ready
• High-resolution audio playback

$1499.95

List price $1800.00

AVH-W4500NEX small

Pioneer AVH-W4500NEX

• Double DIN Bluetooth CD/DVD Receiver
• 7" Touchscreen Display Display
• Wireless Apple CarPlay and Android Auto Compatible
• 5 display colors, 112 key color options
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(5)

$999.99

List price $1200.00

108TO4_PKG1 small

Pioneer DMH-C5500NEX Package for 2015-2017 Toyota Camry

• Double DIN Bluetooth Digital Multimedia Receiver
• 8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Equalizer
• SiriusXM Satellite Radio Ready
• Built-in HD Radio

(134)

$829.96

List price $1028.97

DDX9907XR small

Kenwood eXcelon DDX9907XR

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible

(2)

$1199.00

List price $1400.00

KW-V960BW small

JVC KW-V960BW

• Double DIN In-Dash Bluetooth CD/DVD Receiver
• 6.8" Resistive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphics Equalizer with 8 Selectable Presets
• SiriusXM Satellite Radio Ready

(2)

$949.00

List price $999.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size

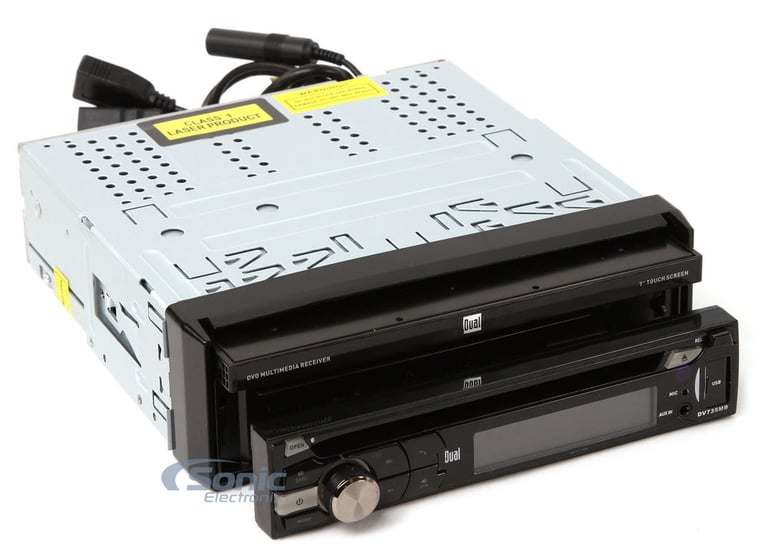

Single DIN with Flip-Out Screen
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
16 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
3-band graphic
Display Type
LCD Text Display
Touchscreen
Yes
Screen Size
7"
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
Mirroring Control
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Outputs
Audio/Video (RCA)
HDMI
Memory Card Slot
SD
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DV735MB

Weight:

6.00lbs

Internal SKU:

dv735mb

Internal Product ID:

107491

Product and How-to Videos


  • Dual DV635MB & DV735MB Bluetooth Multimedia Receivers | Product Overview
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


Dual DV735MB thumbnail image

5 star
40%
4 star
20%
3 star
0%
2 star
0%
1 star
40%



Durability
3.4
Value
4
Features
4.4
Design
4.8
Usability
3.8

Customer Reviews

Sort by:

Loading...

Great stereo, poor support!

The following review is for a previous version (DV725BH).

I bought this stereo after going over countless reviews for other stereos and I have to say I'm really impressed by it. It was the only stereo that offered everything that I wanted at a GREAT price:
* Front USB, AUX, and memory card inputs
* Rear HDMI and USB power inputs, multiple AV inputs including backup camera support and passenger DVD output
* DVD & CD support
* Bluetooth support with microphone for phone calls
* Dual Mirror Support
* Removable faceplate
* Slide out 7" display
* Analog steering wheel control interface built in
* Remote control

It also has multicolor support so it's a very colorful unit! I didn't really need that, but it's nice to have and very pleasing and catching to the eye.

Anyhow, it's a lovely device and I would highly recommend it. The only negative things about it are the display on the faceplate is hard to see during the day and their customer support is awful (the same guy answers the phone every time, plus he sounds about as thrilled as Ferris Bueller's teacher to help you). He's also quick to say there's no help for the issue you're having. Funny thing about it is that when I had an Axxera stereo, it was the SAME guy who answered their customer support line too! =) Anyhow other than those two things, there's no other negatives about it!

Great stereo, great price!

By Jer on July 20, 2015 Checkmark Icon Verified purchase

21 found this helpful


dual dongle

The following review is for a previous version (DV725BH).

I would recommend this product to everyone. NO more wires. It's wifi

By Ice on September 1, 2015

10 found this helpful


A Waste of Money

The following review is for a previous version (DV725BH).

A Big waste of Money. Had to buy extra, Antenna Adapter, Dongle Extension Cords, Radio Dash Adapter twice, and Radio Wiring Harness Adapter.

PROS: Touch Screen, Large Icons, Removable Face, Color Selection, Bluetooth Phone.

CONS: First, You have to buy the Radio to get the Website to download the instruction book.
CONS: Very Specific on Flash Drive, SD Card, won't read any of Mine and they are basic MP3 and Very Specific on Phones for Dual Screen, and all this info is only in the downloadable instruction manual. Dongle won't work behind Radio, so I had to buy extensions for it to go down under dash and attach to bottom of dash for access to reset button. The dongle is needed for the Bluetooth to work, Bluetooth won't work without it. There is no Clock, if the Radio is turned off, there is no Clock, You have to have the radio on with the screen out to have the time. There is no Memory for Phone Numbers, once You turn of the ignition, You lose everything. I had to buy an Adapter twice to get it to fit properly first time the screen would hit the dash, second was out so far it would hit the shifter, I modified the second adapter so it fit just right. The Dual Screen won't work with My Phone, and I even bought the Hard Wire Cable (Per Sonic) to see if that would work and it doesn't either, and besides, You need the Dongle for the Bluetooth to work. The Radio is a PIA, trying to save stations is a nightmare in it's own right.
I bought this Radio so I could use My GPS off the Phone on the main screen, that doesn't work. I was better off just buying a GPS separate. The only advantage I have over My old Radio is the Hands Free Phone, But then it doesn't save My frequent numbers,. And I still haven't gotten to the Back Up Camera, I don't even know if that works. By the time I got all the proper cables and adapters, is was past Sonics 60 day return policy. I would have returned it otherwise. Save Your Money look for something different.

By Timothy J. on January 24, 2016 Checkmark Icon Verified purchase
1999 Chevrolet K1500 Suburban

1 found this helpful


Great product

First car radio, installed it myself abit complicated for beginners but pretty straight forward, all.items there so no need to buy anything.

By Triston on October 13, 2016


Looks great - for the short time it worked...

The following review is for a previous version (DV725BH).

This seems like a great head unit from the looks of it. Bunch of fancy features. Decent power. Pretty visible screen. Fairly straight forward OS.
Only problem is - the flip out screen is terrible. At the least - the screen will come out slowly, with some issues, like the motors constantly spinning even when its fully extended. At it's worst it won't open at all under cold conditions. I was making a road trip too during said cold conditions. Having no tunes for a 12 hr drive pretty much sucks.
I would NOT recommend this unit to anyone. If you want a screen, play it safe and just get a double-din unit. None of this flip-out crap.

By Sean on April 12, 2016 Checkmark Icon Verified purchase
2008 Nissan Xterra




CCAUSB small

Clarion CCA-USB

USB Extension Cable with Covered Port for Select Clarion Receivers

(3)

$19.99

List price $39.99

HDR 180 small

Sennheiser HDR 180

Extra Headset for RS180 Wireless Headphone System

$84.99

List price $129.95

CVTDF102 small

Kicker CVTDF102 (48CVTDF102)

700W Peak (350W RMS) Loaded Single 10" Sealed Enclosure

$249.99

List price $279.99

No picture

Hertz HD 13RG

Universal Grilles for Front Motorcycle Speakers in select 1998-2013 vehicles from Harley Davidson

$69.99

List price $80.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Dodge Viper

2004 Mazda B3000

2007 Ford Ranger

1996 Ford Windstar

2002 Saturn SL

2005 Ford Expedition

1985 Isuzu Impulse

1993 Ford E Series

2023 Dodge Durango

2017 Subaru Outback

Vehicle
Store
Delete

2015 Can-Am Commander E XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
