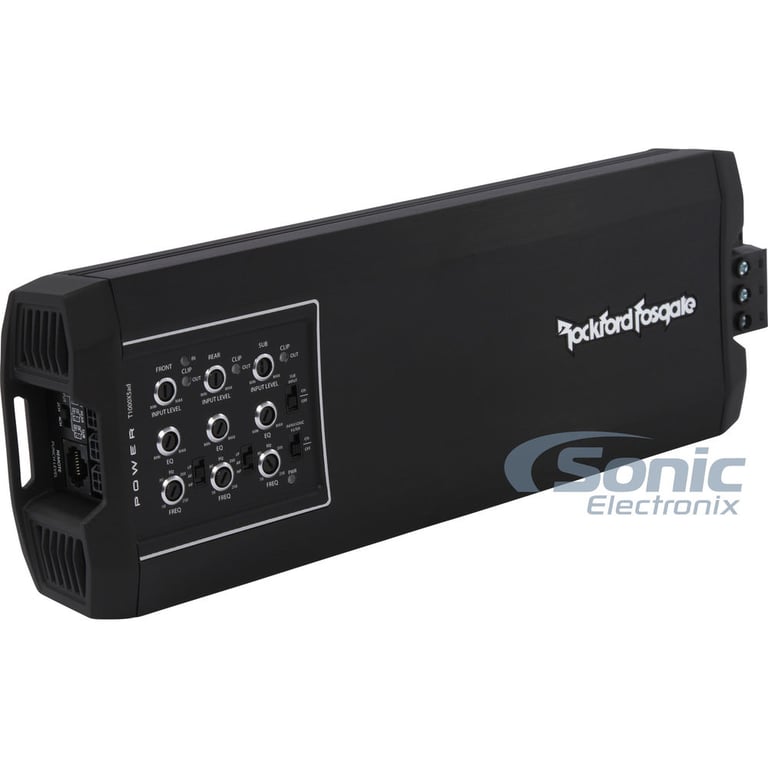

Rockford Fosgate T1000X5AD (Open Box, Complete)

1000W Power Series Ultra Compact Bridgeable Class AD 5-channel Car Amplifier

Rockford Fosgate
Shop all Rockford Fosgate
highlight-star-icon

• 100 Watts x 4 + 400 Watts x 1 RMS @ 4 ohm
• 100 Watts x 4 + 600 Watts x 1 RMS @ 2 ohm
• Total Peak Power: 1000 Watts
• CEA-2006 Compliant/Preamp Outputs/LPF
• Dual extruded aluminum heat-sink for extreme heat dissipation
• 1.6"W x 4.3"L x 12"H

Learn more about the ls-t1000x5ad-obc7

We apologize

This item has been discontinued

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

General Features:

  • Rockford Fosgate Power Series T1000X5ad
  • Class-AD Full Range 5-Channel Amplifier
    • Channels 1/2/3/4: Class-AD
    • Sub Channel: Class-BD
  • Full Range RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Subwoofer RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 600 watts x 1 chan.
  • Total power output: 1000 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • Constant power technology
  • Delivers instantaneous output power over varying impedance loads
  • 25% increase in total amplifier power
  • C.L.E.A.N. (Calibrated Level Eliminates Audible Noise
    • LED indicators identify both signal clipping and output level clipping
    • Eliminates speaker damage due to distortion
  • 3-Stage Airflow ensure your amplifier runs cool and at optimal performance
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual extruded aluminum heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 150mV-12V
    • High level: 150mV-12V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ration: >80db (Full Range), >75db (Sub)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Subsonic filter: 50 - 250 Hz, 12 dB/octave
  • Fuse Rating: 100 A x 1
  • Optional Punch Level Controller Sold Separately - PLC2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 1.6"W x 4.3"L x 12"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the T1000X5ad Owner's Manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Amplifier Specifications
Series
Power Series
Amplifier Class
AD
Number of Channels
5-Channel
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
Full Range: 2 ohms, Sub: 1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
50 - 250 Hz
Signal-to-Noise Ratio
Full Range: >80dB, Sub: >75dB
Channel Separation
12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
100A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

T1000X5ad-2

Weight:

8.00lbs

Internal SKU:

ls-t1000x5ad-obc7

Internal Product ID:

177825
