Name: JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used
Brand: JL Audio
SKU: ls-rd9005-obc6
Price: 579.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Reviews
Add-ons
Related Searches

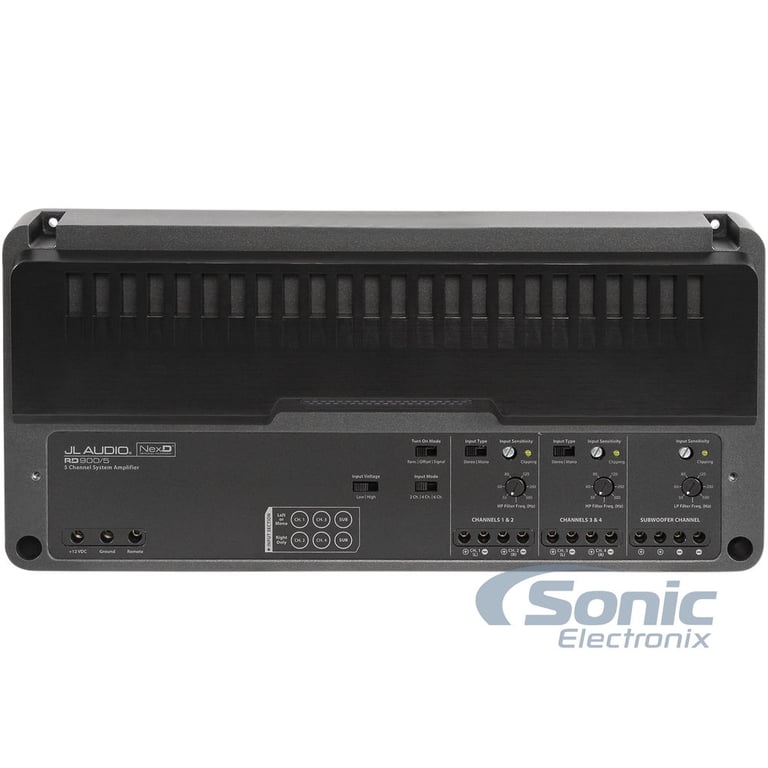

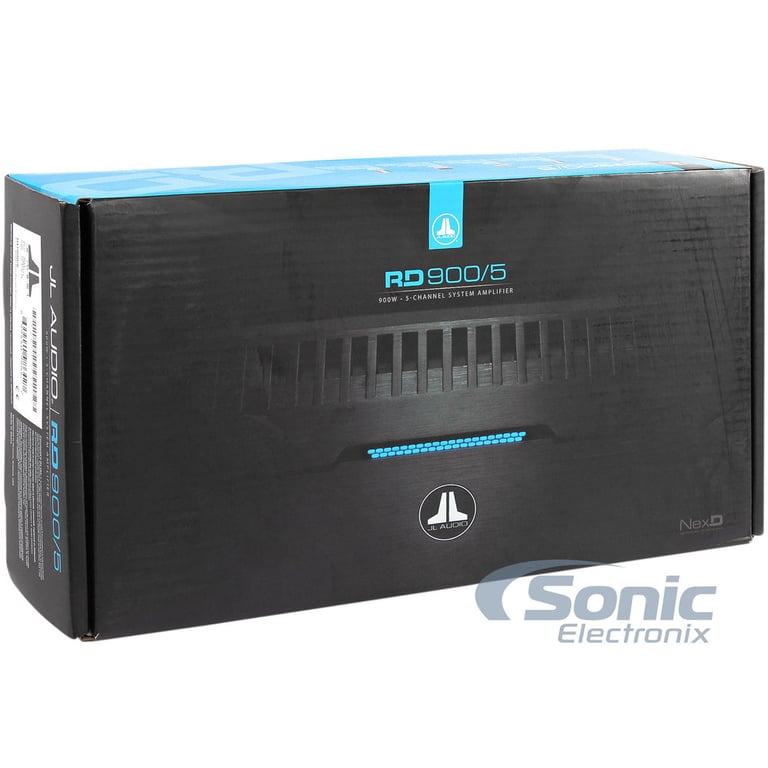

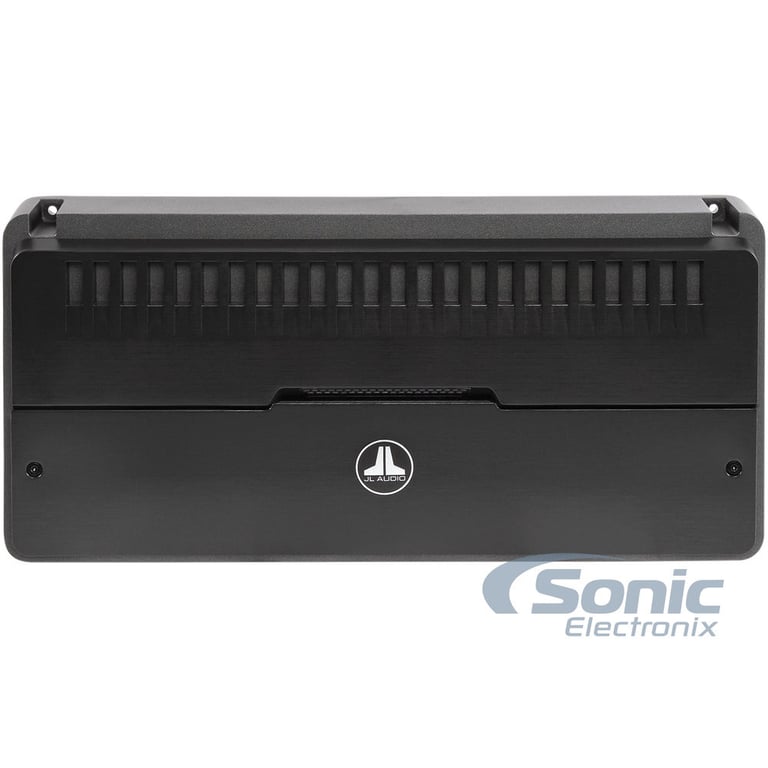

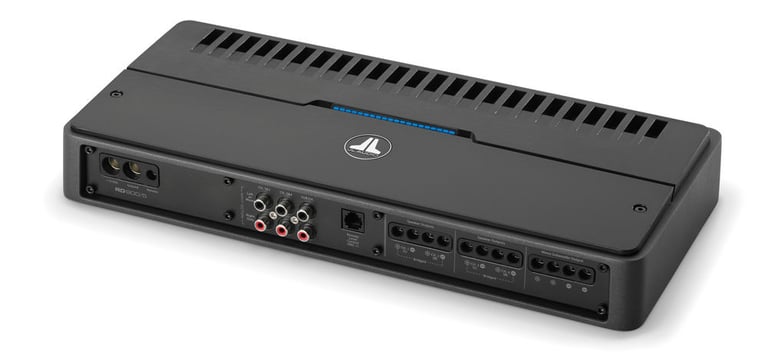

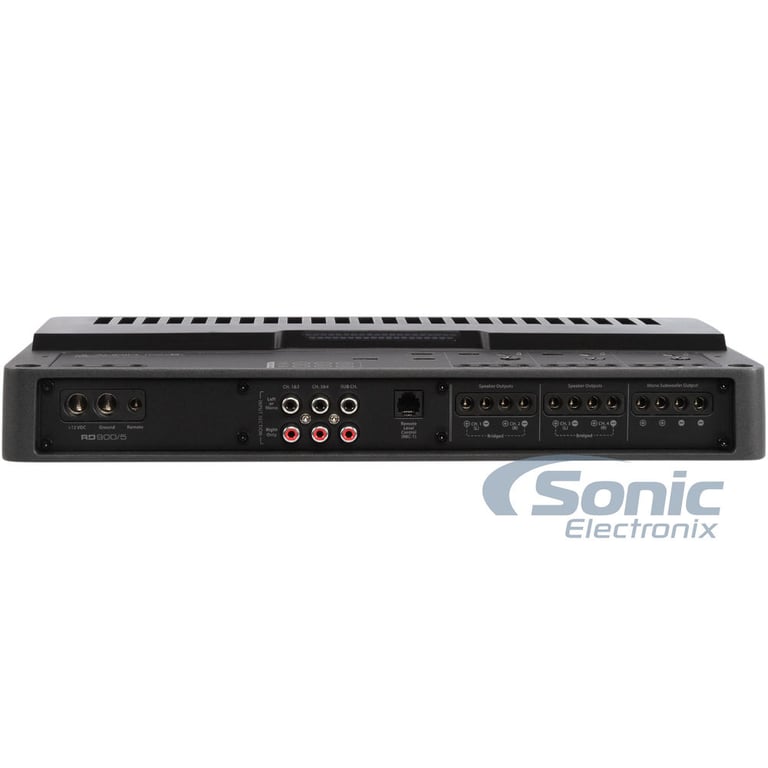

JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used Image 1 — JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used

JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used Image 2 — JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used

JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used Image 3 — JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used

JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used Image 4 — JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used

JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used Image 5 — JL Audio Class-D 5-Channel RD900/5 - Open Box, Very Good Condition Used

Product highlights

• 75 watts x 4 chan. + 250 watts x 1 chan. @ 4 ohm
• 100 watts x 4 chan. + 500 watts x 1 chan. @ 2 ohm
• Total Peak Power: 1800 Watts
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Heavy duty aluminum alloy heat-sink
• 7"W x 14-11/16"L x 2-3/16"H

Learn more about the ls-rd9005-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

JL Audio's RD Series Amplifiers Class D Power for Days

JL Audio RD900/5 5-Channel Class D Amplifier

Lots of power, installer-friendly design and options for every audio enthusiast, all make it easy to choose a JL Audio RD Series amplifier.

The RD900/5 has the do-it-yourself audiophile completely in mind while powering your entire sound system. Capable of pushing out up to 75 watts of clean power to 4 channels at 4 ohms, plus another 500 watts at 2 ohms to your sub, this amp has the flexibility to push your cabin speakers, your subwoofers, or a combination of them depending on your needs. The RD multi-channel amps have built-in 12 dB/octave low-pass filters and three turn-on modes: Traditional 12-volt trigger, signal sensing and DC offset. Top off the package with a sleek, single-cast piece of aluminum in black powdercoat and blue LEDs, and your power looks as clean as it sounds.

Designed For Installers

JL Audio’s engineers had professional and at-home installers in mind with the RD Series. All of the inputs and controls are on the same side of the chassis, simplifying the setup whether you’re in a shop or in your driveway. The output clipping indicators on each channel section mean you don’t need specialized tools to accurately set the gain. A remote level control input gives you the option to install a bass level knob, sold separately, in the front seat, giving you full control over the bass output for every song you play.

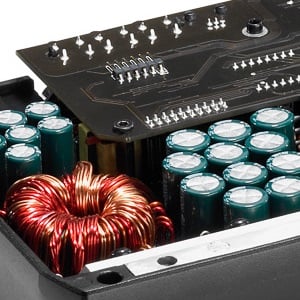

NexD™ Switching Technology

The RD Series also incorporates JL Audio’s NexD Switching Tehnology. Since Class D amplifiers have a tendency to produce distortion at some ranges, NexD Switching helps cancel it out before feedback is ever applied. All of this helps ensure the some of the cleanest possible signal to your subwoofer and speakers from your brand new Class D amplifier.

For an amp that delivers power, utility, simplicity and plenty of options, take a look at all of the JL Audio RD Series amps at Sonic Electronix. We’re sure you’ll end up with one in your cart.

General Features:

JL Audio RD-Series RD900/5
Class-D 5-Channel Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan. + 250 watts x 1 chan.
2 ohm: 100 watts x 4 chan. + 500 watts x 1 chan.
1 ohm: ------------N/A------------

Total power output: 1800 watts
NexD™ Technology delivers outstanding sound quality, efficiency and reliability
LED clipping indicators
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Bridging switch for each channel pair
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Total Harmonic Distortion (THD): <1%
Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
Variable high-pass filter: 50 - 500 Hz, 12 dB/octave
Low-Pass Slope (dB/octave): 12 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
Fuse Rating: 80 A x 1
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 7"W x 14-11/16"L x 2-3/16"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

250 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Series

RD Series

Amplifier Class

Number of Channels

5-Channel

Total Peak Power Output

1800 watts

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1%

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Channel Separation

12 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Fuse Rating

80A x 1

Strappable

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
