Name: Kicker CXA600.5 (43CXA6005) Open Box
Brand: Kicker
SKU: ls-43cxa6005-obc10
Price: 449.99 USD
Availability: Discontinued

by Kicker

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

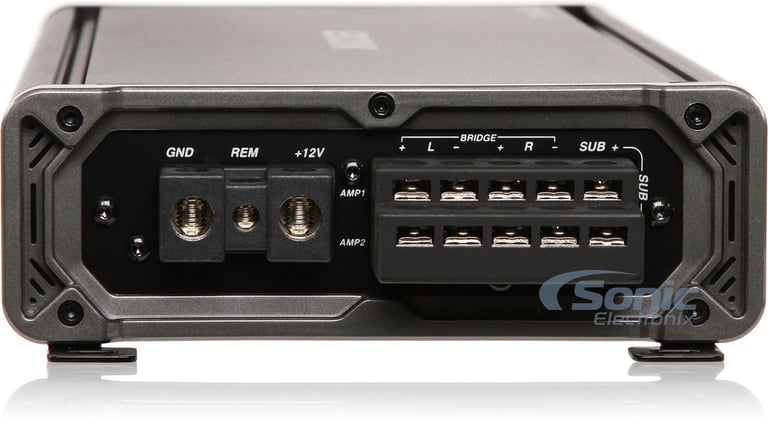

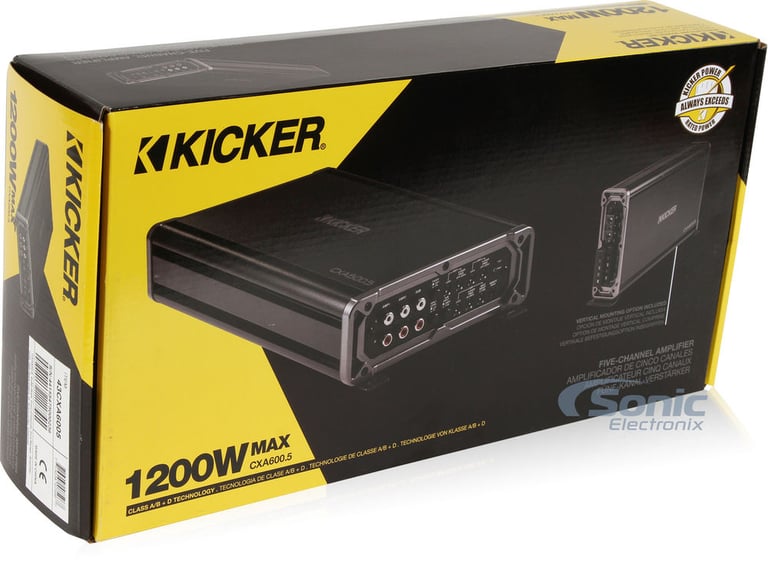

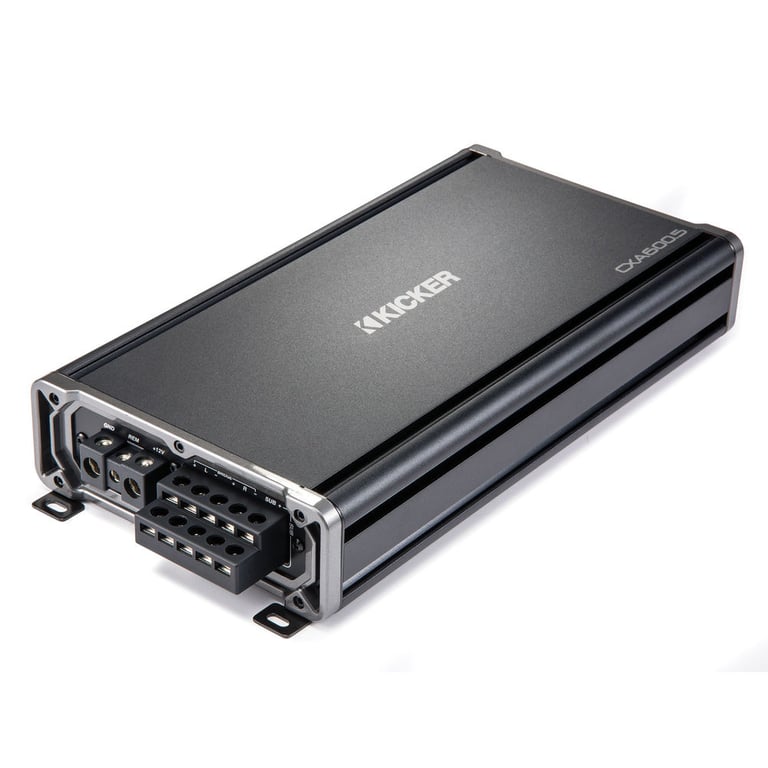

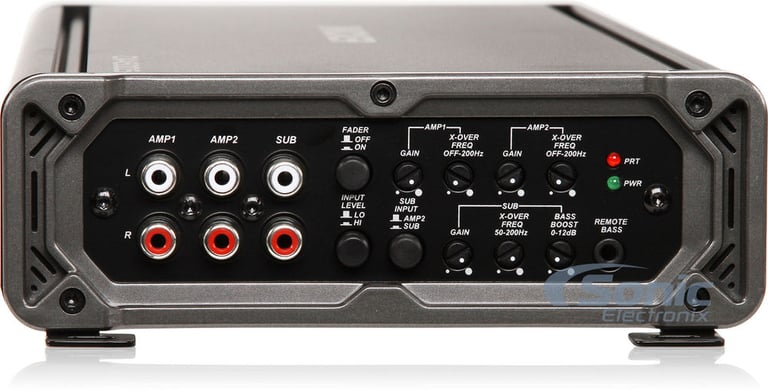

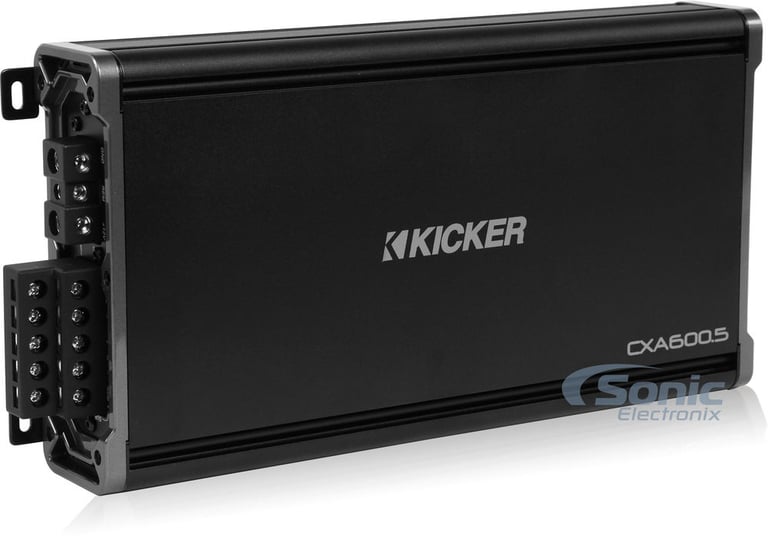

Kicker CXA600.5 (43CXA6005) Open Box Image 1 — Kicker CXA600.5 (43CXA6005) Open Box

Kicker CXA600.5 (43CXA6005) Open Box Image 2 — Kicker CXA600.5 (43CXA6005) Open Box

Kicker CXA600.5 (43CXA6005) Open Box Image 3 — Kicker CXA600.5 (43CXA6005) Open Box

Kicker CXA600.5 (43CXA6005) Open Box Image 4 — Kicker CXA600.5 (43CXA6005) Open Box

Kicker CXA600.5 (43CXA6005) Open Box Image 5 — Kicker CXA600.5 (43CXA6005) Open Box

Kicker CXA600.5 (43CXA6005) Open Box Image 6 — Kicker CXA600.5 (43CXA6005) Open Box

Product highlights

• 75 Watts RMS x 4 @ 2 ohm
•
• 2 ohm: 300 watts x 1 chan. Subwoofer Channel
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low/High-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Dimensions: 7-3/16"W x 12-7/16"L x 2-3/8"H

Learn more about the ls-43cxa6005-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

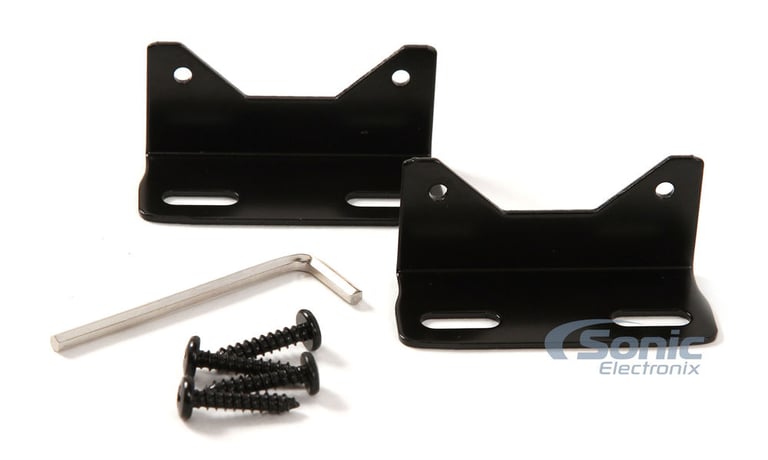

Mount a Kicker CX amp vertically to save space

The CX Series spans all kinds of systems, whether you're just trying to get a little more out of your factory radio or you're ready to blow the doors off with a completely aftermarket setup. Either way, the quality of your sound is at the heart of the CX Series. Sleek, simple styling and installation flexibility all round out the amplifiers' functionality.

Kicker makes your installation simple, but gives you plenty of options. Make it easy on yourself when plugging in with Kicker's KISL so you can take high-level signal from the headunit's speaker outputs straight into the amp's RCA input. Also, most models are just more than two inches thick and included brackets allow you to install these vertically. If space is at a premium in your ride, the CX series gives off plenty of power while saving you some room.

CXA600.5

The CXA600.5 makes for a great all-in-one power solution for your stereo. This Class-D 2-ohm stable 5-channel amp is built to handle 75 watts at 2 ohms for 4 channels, or 150 watts at 4 ohms for 2 channels when bridged, and the subwoofer channel can pump out 300 watts at 2 ohms.

Like most of the amps in the CX series, it's easy to control your bass output from the driver's seat. Pick up a Kicker CXARC wired remote bass level control, plug it in, and optimize your sound easily.

Under the hood

The CX Series has a lot of built-in technology to make sure your system just keeps going for the long haul. With litz-wound transformers to maximize power transfer while minimizing power loss, high current switching, buffered RCA outputs, these amps are built to put out lasting, quality power.

These amps also include their own crossovers and an adjustable KickEQ Bass Boost. A 3-second turn-on delay helps eliminate any additional interference that might affect your system.

Power a sub or a whole system with Kicker CX amps

But these amps also have Kicker's Failsafe Integration Technology inside. That means they can take signal from any audio source and run it straight into the amp. For you, it means no need for line-out converters, step down modules, processors or less conventional wiring to complete your system. Kicker's FIT eliminated the need for additional equipment that could introduce additional noise to your signal. It even works well with factory amplified systems from other premium brands.

For a potent, versatile power solution for your sound system, pick up as many CX Series amps as you need here at Sonic Electronix. Add one, or however many you need, to your cart today.

General Features:

Kicker CX Series CXA600.5
Class-D 2-Ohm Stable 5-Channel Amplifier
RMS Power Rating:

2 ohm: 75 watts x 4 chan.
4 ohm: 150 watts x 2 chan. Bridged
Subwoofer Channel: 2 ohm: 300 watts x 1 chan.

Total power output: 1200 Watts
Pulse Width Modulated MOSFET power supply
Kicker CXARC wired remote bass level control available and sold separately
LED power (green) and protect (red) indicators
Soft start turn-on
4/3/2 or mono channel operation
Speaker-level (high-level) inputs via RCA

Requires Kicker KISL, available and sold separately

3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity:

Low level: 125mV-5V
High level: 250mV-10V

Frequency Response: 10 - 20,000Hz
Signal to Noise Ration: >95dB
Variable Low-Pass Crossover: Off - 200Hz 12dB/octave
Variable High-Pass Crossover: Off - 200Hz 12dB/octave
Variable Low-Pass Crossover (Sub Channel): 50 - 200Hz 12dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 7-3/16"W x 14"L x 2-3/8"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Product history:

	Kicker CXA600.5 (43CXA6005) Open Box (newest, current model)
	Kicker CX600.5 (12CX600.5) (previous model, replaced by Kicker CXA600.5 (43CXA6005) Open Box)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 2 ohms

300 watts x 1 channel

Power Specifications - Full Range Channels

Peak Power @ 2 ohms

150 watts x 4 channel

Bridged Peak/Max Power

300 watts x 2 channel

Power Specifications - Subwoofer Channel

Peak Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Series

CX Series

Amplifier Class

Number of Channels

5-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.00%

Speaker Level Inputs

Optional (Requires Accessory Adapter)

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 200 Hz

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Kicker 43CXARC

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
