Product highlights

• D-Series 4-Channel Amplifier with Digital Signal Processor
• 4 ohm: 125 watts x 4 chan.
• 2 ohm: 200 watts x 4 chan.
• AudioControl's Smart User DSP software inlcluded
• 30 Bands of graphic equalization
• FEATURE 6
• FEATURE 7

Learn more about the ls-d4800-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

D-4.800: Preview at CES 2016

General Features:

D-Series 4-Channel Amplifier with Digital Signal Processor
RMS Power Rating:

4 ohm: 125 watts x 4 chan.
2 ohm: 200 watts x 4 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohm: 400 watts x 2 chan.

Allows users to truly optimize the performance of their audio system

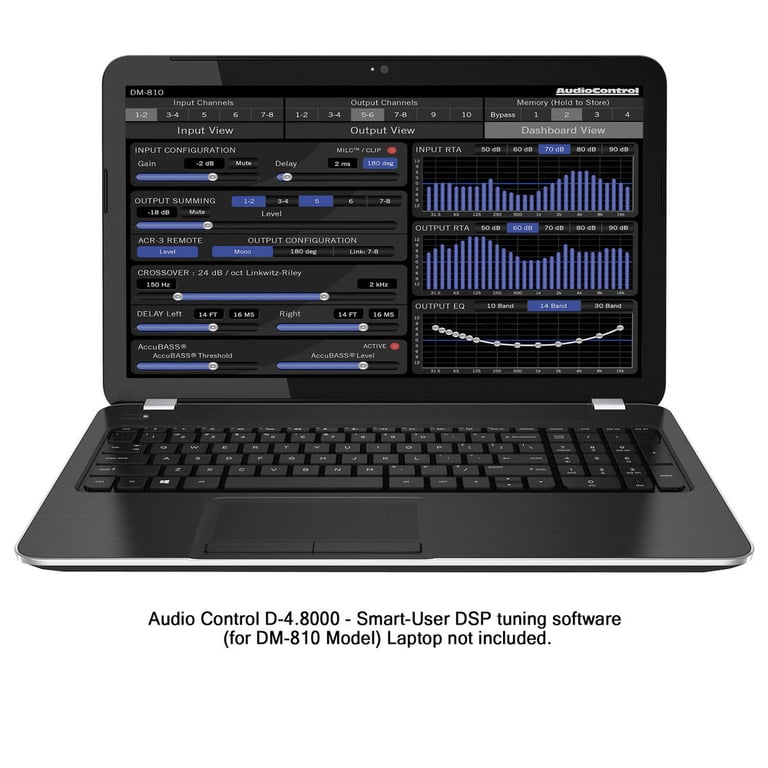

All controls and adjustments accessible through AudioControl's Smart User DSP software inlcluded
6 speaker level inputs
Line-level and Digital audio inputs
RTA (real-time analyzers) for inputs and outputs
Provides up to 10 channels of output
Configure settings such as:

30 Bands of graphic equalization
Signal time-alignment
Input delay
Phase Control

Proprietary AudioControl Feature:

GTO™ Signal Sensing
MILC™ Clip Detection
AccuBASS®

Low Pass Crossover Frequency: 30 Hz to 300 Hz
Low/High Pass Slope 24 dB/octave
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 9"W x 8"D x 2-1/8"H
Authorized Internet Dealer
5 Year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

250 watts x 4 channel

Peak Power @ 2 ohms

400 watts x 4 channel

Bridged Peak/Max Power

800 watts x 2 channel

Amplifier Specifications

Number of Channels

4-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes

Preamp Outputs

2 pairs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

Low-Pass Crossover Frequency

30 - 300 Hz

Channel Separation

24 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

AudioControl ACR-3 REMOTE

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

5 years

Labor Warranty Duration

5 years

Warranty Provider

Manufacturer

Customer Ratings & Reviews

AudioControl D4800 (Open Box, Complete) thumbnail image

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		4.9
Usability		4.4

Customer Reviews

Sort by:

awesome amp

The following review is for D-4.800, which is a part of the bundle you are viewing.

this amplifier works/sounds great. would definately recommend to anyone

By Anonymous on February 11, 2019 Checkmark Icon

Verified purchase

35 found this helpful

Report abuse

This is new school for sure..

The following review is for D-4.800, which is a part of the bundle you are viewing.

I couldn't imagine using something like this 20+ years ago, but I am glad we have it now. The amount of settings you can change while sitting in the drivers seat is pretty awesome, plus you can visually and audibly see and hear those changes in real time. Pretty cool stuff, and the Amp itself is powerful too, and I like the disconnectable speaker terminals. Makes for a neat and easy installation.

By Anonymous on January 26, 2019

34 found this helpful

Report abuse

Great amp/dsp, contol of dsp is a set back

The following review is for D-4.800, which is a part of the bundle you are viewing.

I couldn't imagine using a separate dsp, amp, and other integration equipment to retain the factory head unit in my ram. My head unit has settings for my air suspension that would obviously never be retained by any aftermarket head unit. So integration was a necessity and this audio control amp made it possible and far easier than any other product I have seen to date. The ability to receive an amplified input and use them to create any type of output, including control of an RCA output for a separate sub amp is very user-friendly. I do wish the ability to use a Bluetooth dongle was built into the d-4.800 like the d-6.1200. Having to use the hardwired USB interface to connect to the amps DSL is the biggest drawback of this amplifier.

By Joshua on August 23, 2020 Checkmark Icon

Verified purchase

35 found this helpful

Report abuse

Great Amp/DSP combo product

The following review is for D-4.800, which is a part of the bundle you are viewing.

The DSP settings alone make this purchase worth it. The power output for the 4 channels is the icing on the cake. I was able to verify the RMS rating and I am not having any problems running 3 ohm speakers at their max level and the just keeps on pushing no problems at all. Time alignment and EQ settings work great and add that extra flexibility to my system. I run the line level out to my audio control mono amp to run my sub and my wiring is very minimal thanks to all the features of this amp.

By Donnie on February 1, 2018 Checkmark Icon

Verified purchase

30 found this helpful

Report abuse

Built like a tank

The following review is for D-4.800, which is a part of the bundle you are viewing.

This dsp/amp is SOLID! It is also surprisingly compact which made it fit even better in my preferred install spot under my driver's seat. All the connections look high quality and the heatsink fins are strong so you don't have to worry about them getting bent. Will update this once I get it installed and tuned, but i am sure it is going to sound as good as it looks and feels.

By chris on May 30, 2024 Checkmark Icon

Verified purchase

7 found this helpful

Report abuse

Great amp with DSP

The following review is for D-4.800, which is a part of the bundle you are viewing.

Still figuring out the best setting. Only thing I would suggest to aaC is to include a mic input so you can auto-tune and then adjust from there.

By Dave on August 29, 2024 Checkmark Icon

Verified purchase

1 found this helpful

Report abuse
