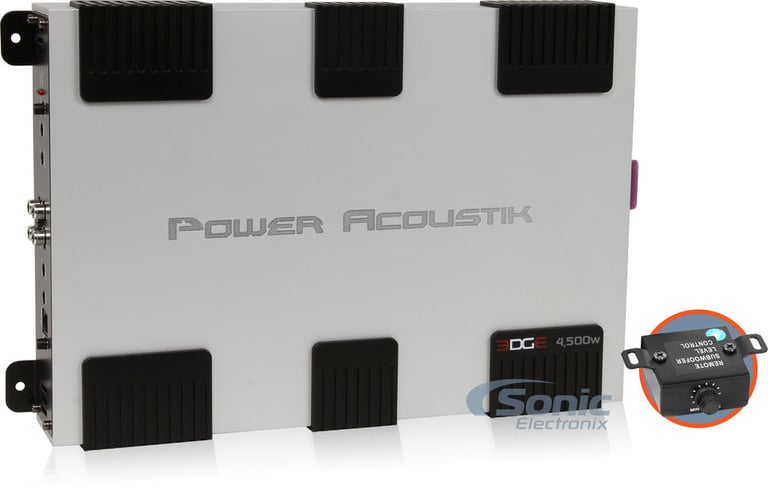

Power Acoustik EG1-4500D

4500W Peak (2250W RMS) Edge Series 1-Ohm Stable Class-D Monoblock Amplifier

Power Acoustik
Shop all Power Acoustik
Product videos
highlight-star-icon

• 750 Watts RMS x 1 @ 4 ohm
• 1500 Watts RMS x 1 @ 2 ohm
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 4500 Watts
• Military Grade PCB w/ PWM MOSFET power supply
• Variable low-pass filter: 30 - 250 Hz
• Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 to +18 dB bass boost

Learn more about the eg14500d

We apologize

This item has been discontinued


Loading...
40-EU20 main

Metra 40-EU20 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2024 vehicles from Ford, BMW, Chevrolet

3
-35.74%

$8.99

List price $13.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

ADS-MSR main

iDataLink Maestro SR (ADS-MSR) Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

-17.65%

$139.99

List price $169.99

Metra 99-5835G

Single DIN or Double DIN Stereo Dash Kit for select 2015-2019 Transit-350 and Transit-150 and Transit-250

-43.59%

$109.99

List price $194.99

Product Highlights


• 750 Watts RMS x 1 @ 4 ohm
• 1500 Watts RMS x 1 @ 2 ohm
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 4500 Watts
• Military Grade PCB w/ PWM MOSFET power supply
• Variable low-pass filter: 30 - 250 Hz
• Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 to +18 dB bass boost

Description


Power Acoustik brand icon

Authorized dealer



General Features:

  • Power Acoustik EG1-4500D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
    • 1 ohm: 2250 watts x 1 chan.
  • Total power output: 4500 watts
  • Military Grade PCB w/ PWM MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers

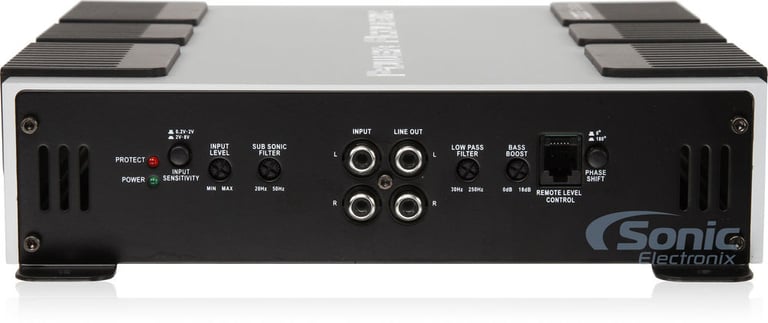

  • Input sensitivity:
    • Low level: 0.2V-2V
    • High level: 2-8V
  • Variable low-pass filter: 30 - 250 Hz
  • Subsonic filter: 20 - 50 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz

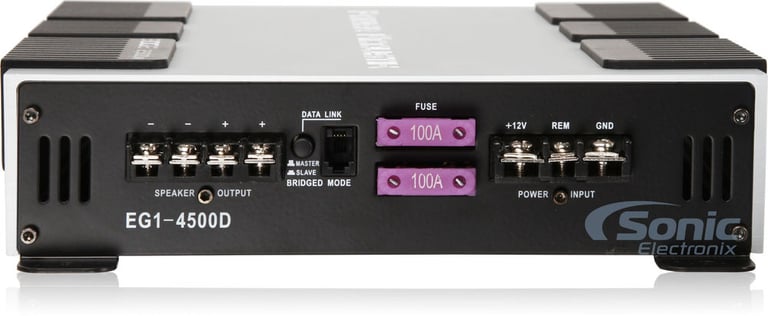

  • Fuse Rating: 100 A x 2
  • Phase Shift: 0° to 180°
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9"W x 13"L x 2.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Power Acoustik EG1-4500D Owner's Manual

Product history:

Power Acoustik EG1-4500D thumbnail
(newest, current model)
Power Acoustik GT1-4500D thumbnail
(previous model, replaced by Power Acoustik EG1-4500D)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
2250 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
1500 watts x 1 channel
Peak Power @ 2 ohms
3000 watts x 1 channel
Amplifier Specifications
Series
Edge Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4500 watts
Total RMS Power Output
2250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
20 - 50 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
100A x 2
Total Fuse Rating
200
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

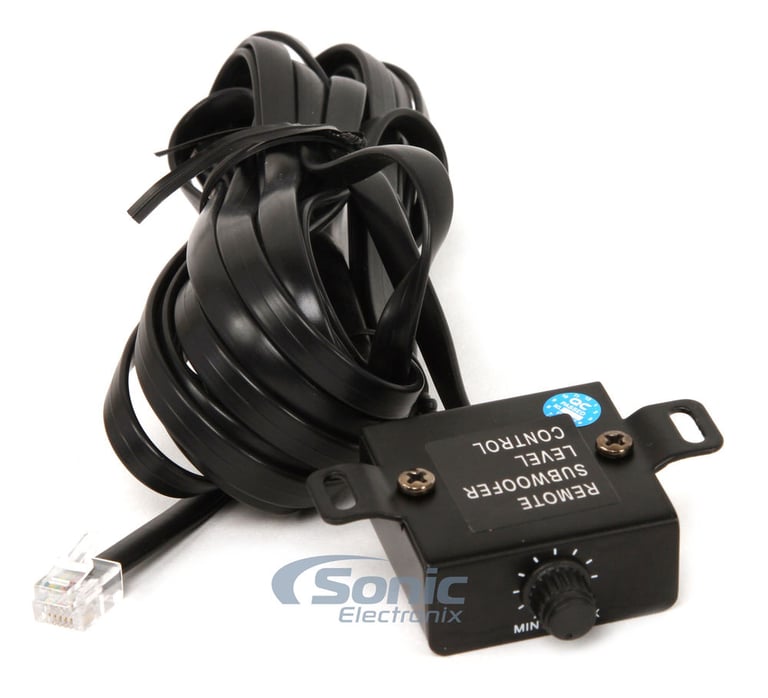

Wired gain knob (wire attached)

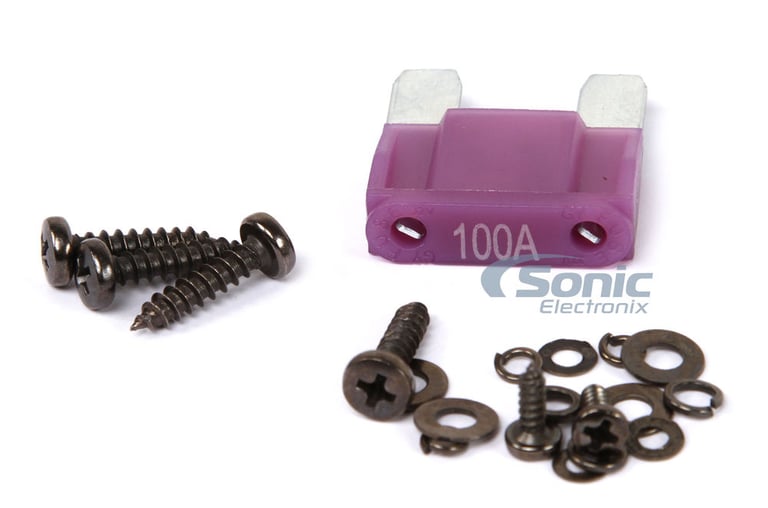

Mounting screws (4)
Washers (4)
One spare fuse
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EG1-4500D

Weight:

10.60lbs

Internal SKU:

eg14500d

Internal Product ID:

112637
