Name: Crunch DRA2550.1D (Open Box Complete)
Brand: Crunch
SKU: ls-dra25501d-obc282225
Price: 104.96 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

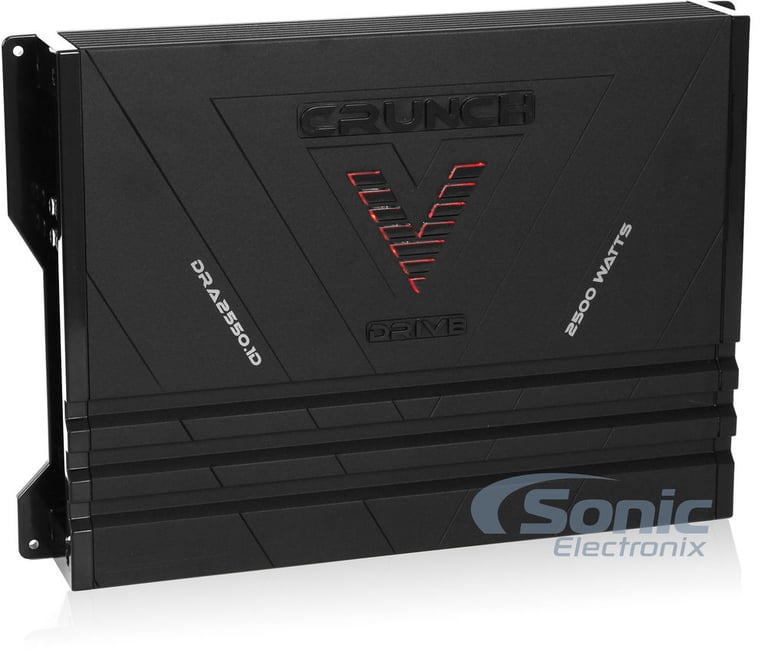

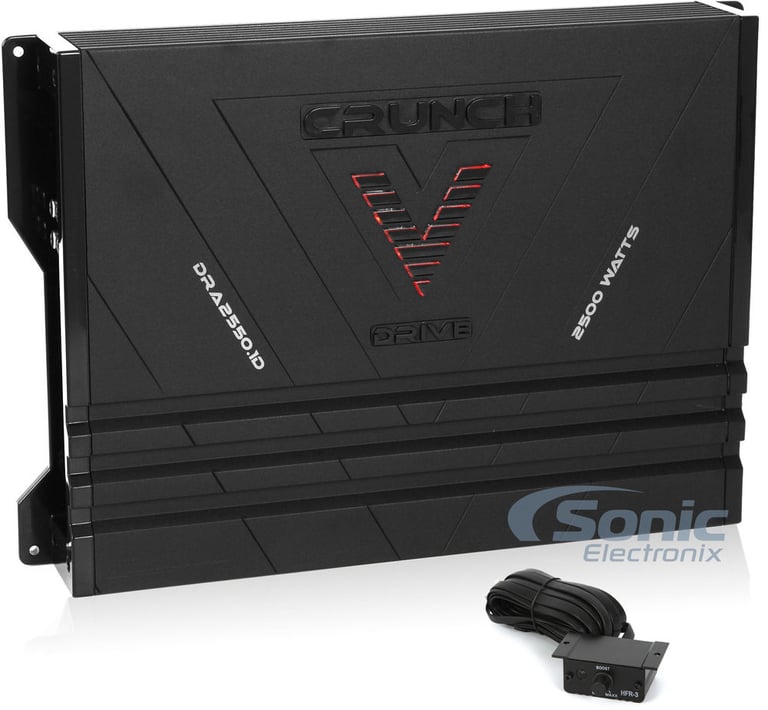

Crunch DRA2550.1D (Open Box Complete) Image 1 — Crunch DRA2550.1D (Open Box Complete)

Crunch DRA2550.1D (Open Box Complete) Image 2 — Crunch DRA2550.1D (Open Box Complete)

Crunch DRA2550.1D (Open Box Complete) Image 3 — Crunch DRA2550.1D (Open Box Complete)

Crunch DRA2550.1D (Open Box Complete) Image 4 — Crunch DRA2550.1D (Open Box Complete)

Crunch DRA2550.1D (Open Box Complete) Image 5 — Crunch DRA2550.1D (Open Box Complete)

Product highlights

• Peak: 625W x 1 @ 4 ohm, 1250W x 1 @ 2 ohm, 2500W x 1 @ 1 ohm
• Total Peak Power: 2500W
• Wired Bass Level Remote
• Bass Boost: 0-10 dB
• Illuminated Badge and Heatsink
• Dimensions: 13-3/4"L x 9-1/2"W x 2-1/8"H

Learn more about the ls-dra25501d-obc282225

NVX - Worth the Envy - Direct to Consumer Car Audio

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Note: This is an open box complete product

General Features:

V-Drive Series Single Channel Monoblock Class D Car Amplifier
Max Power Rating:
- 4 ohm: 625 watts x 1 chan.
- 2 ohm: 1250 watts x 1 chan.
- 1 ohm: 2500 watts x 1 chan.

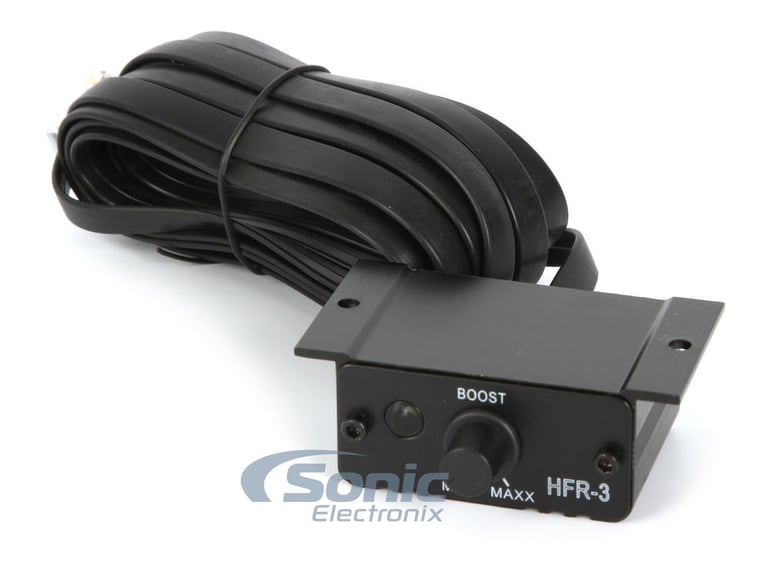

Wired bass level remote included
SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
Exponential variable-power supply (EXVP) for efficient DC to AC conversion

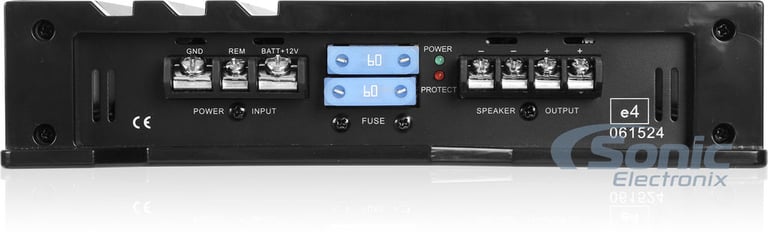

LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
Soft Start Turn-on
1 channel operation
Illuminated badge and heatsink
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Level: 200mV-6V

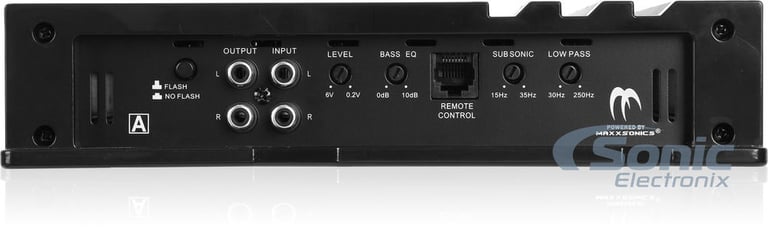

Variable low-pass filter (30-250 Hz, 24 dB/octave)
Variable subsonic filter (15-30 Hz)
Damping factor: >200
Frequency response: 15-250 Hz
Dimensions: 13-3/4"L x 9-1/2"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 day Sonic Electronix warranty

Specifications & Details

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 30 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

60A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
