Name: Rockford Fosgate Prime R500X1D
Brand: Rockford Fosgate
SKU: ls-r500x1d-obc285033-1
Price: 129.24 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all Rockford Fosgate

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Rockford Fosgate Prime R500X1D Image 1 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 2 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 3 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 4 — Rockford Fosgate Prime R500X1D

Product highlights

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• Dimensions: 8-1/2"L x 6-3/4"W x 2"H

Learn more about the ls-r500x1d-obc285033-1

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

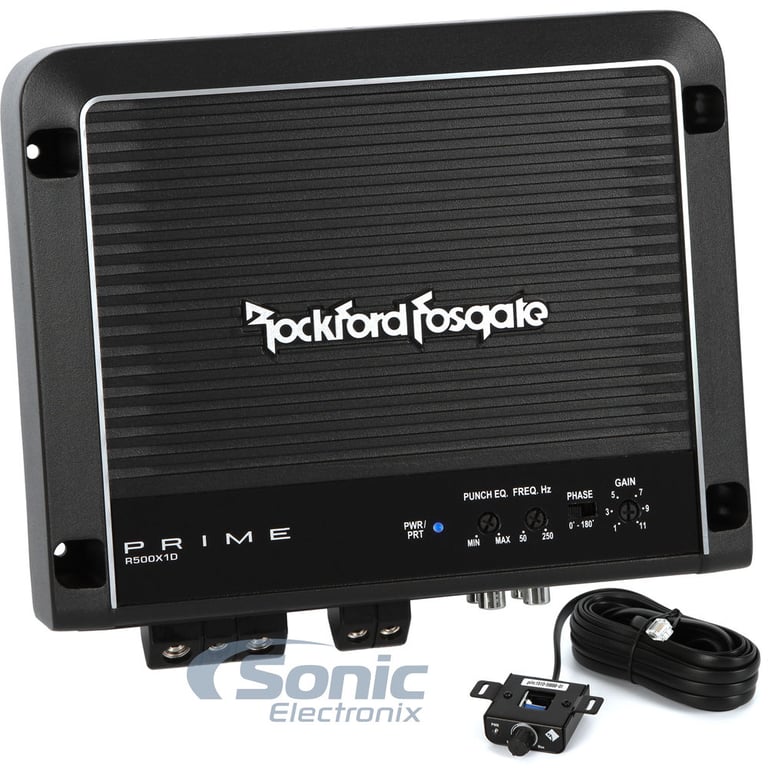

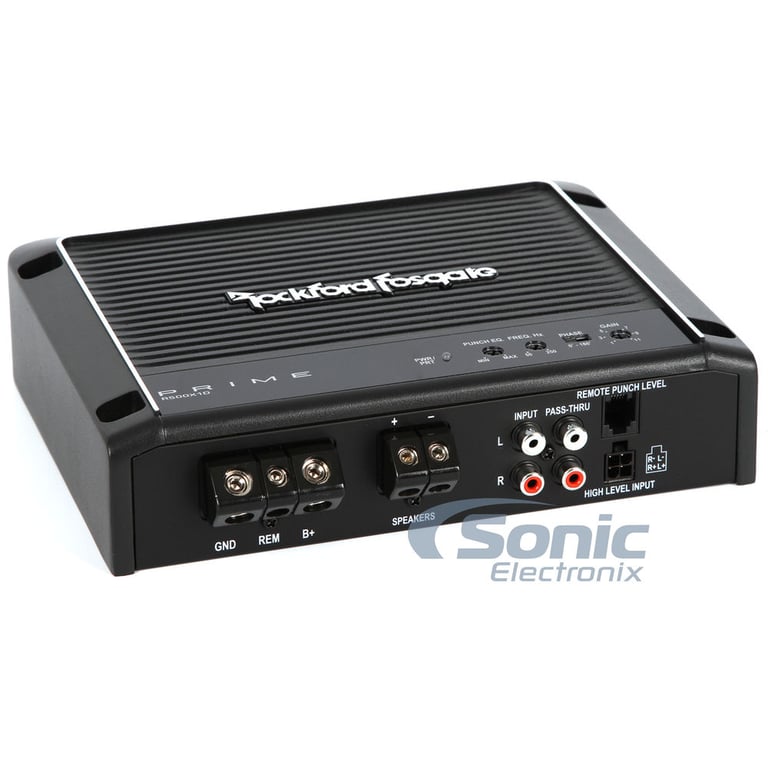

Rockford Fosgate R500X1D - Prime Series Class D Monoblock Amplifier

The R500X1D is a 500 watt mono amplifier using efficient Class-D circuit topology. This amplifier is capable of running a 2-Ohm load and includes on-board Punch Bass and remote Punch Level Control. Like all Rockford Fosgate amplifiers, the R500X1D's power ratings conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

General Features:

Item Condition: Like New, Open Box, Complete
Not Refurbished

Prime Series Class D Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 300 watts x 1 chan.
2 ohm: 500 watts x 1 chan.

CEA-2006 compliant amplifier
Efficient Class-D circuit topology
12dB/octave Butterworth crossover
RCA pass-thru outputs
On-board Punch EQ with +18dB boost @ 45Hz.
High level inputs

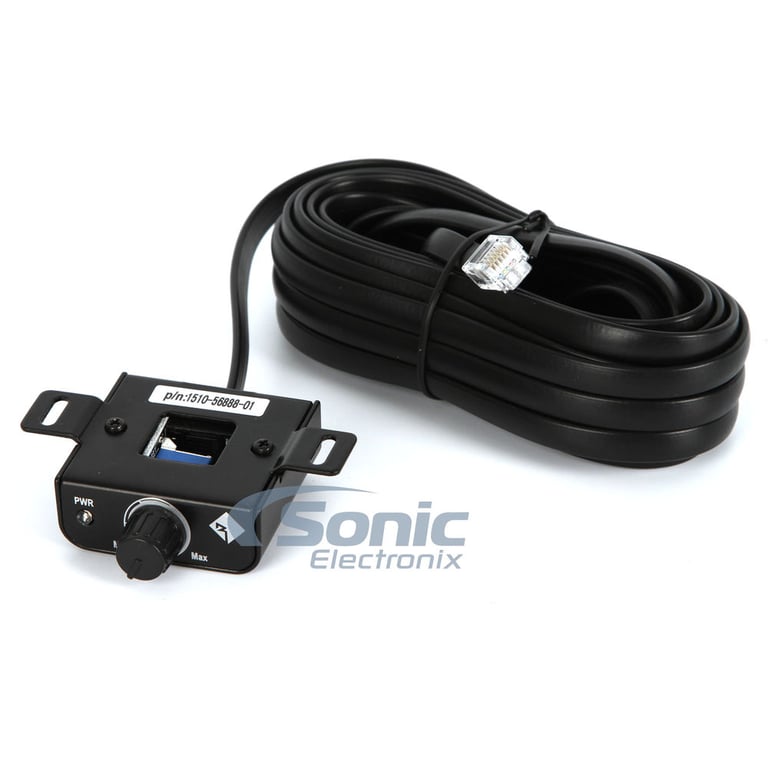

Remote PLC (Punch Level Control)
0°/180° Phase Switch
Real time output and power supply thermal sensing

Cast aluminum heatsink
4 Gauge power/ground connectors
MOSFET power supply
Over current protection
Short circuit protection
Muted turn on
Frequency Response: 20 - 250 Hz +/- 1 dB
Efficiency: 89% @ 4-ohm
Total Harmonic Distortion: <1.0%
Signal to Noise Ratio: >100 dB
Damping Factor: >200 dB
Input Sensitivity: 150 mV - 4V
Recommended Fuse: 50A x 1 (not included)
8-gauge speaker wire terminals
4-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Dimensions: 8.50"L x 6.80"W x 2.00"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

Check out the Rockford Fosgate R500X1D Owner's Manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Series

Prime Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

>100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

50A X 1 In-Line Fuse Recommended

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Rockford Fosgate Prime R500X1D thumbnail image

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

Cant go wrong

Once again Sonic Electronix has surpassed my expectations. Bought this amazing amp as an “open box item” and boy am I glad I took the risk. Amplifier was brand new!!! Someone opened the box to look at it maybe? Amplifier is great, running it at 2 ohms, powering my 2 10 inch NVX subs at around 550 watts in my 2020 Scat Pack(yeah the power is underrated, this particular one was dynoed and pulled 664 watts). Factory head unit, using an Audio Control LC2i to send the signal, the gain is set to about 1/3 and it bumps!!! This was a steal for the price. Amazing amplifier from Rockford Fosgate, as usual. You CANNOT go wrong.

By Angel on November 11, 2020 Checkmark Icon

Verified purchase
