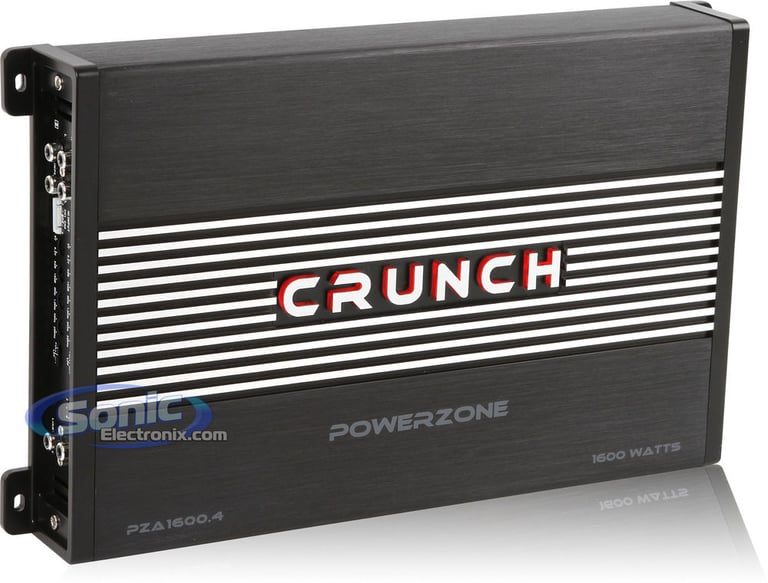

Crunch PZA1600.4

1600W 4-Channel Class A/B Power Zone Series Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

4-Channel Power Zone Series Amplifier • Bass Boost (0-12 dB @ 45Hz) • Preamp RCA Outputs • 4-Way System Protection Circuitry • Heavy Duty Aluminum Alloy Heatsink • Fully Adjustable 12 dB Crossover • Nickle-Plated RCA Level Inputs

Learn more about the pza16004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

pz18004 thumbnail

Crunch PZ1800.4

OUR PRICE: $79.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


4-Channel Power Zone Series Amplifier • Bass Boost (0-12 dB @ 45Hz) • Preamp RCA Outputs • 4-Way System Protection Circuitry • Heavy Duty Aluminum Alloy Heatsink • Fully Adjustable 12 dB Crossover • Nickle-Plated RCA Level Inputs

Description


Crunch brand icon

Authorized dealer

  • 4-Channel Power Zone Series Amplifier
  • MAXX Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 400 watts x 4 chan.
    • Bridged, 4 ohm: 800 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

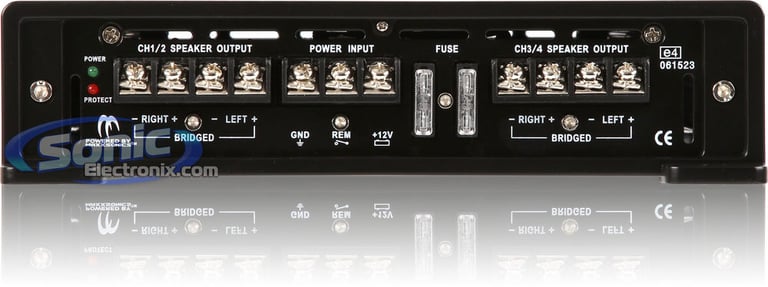

  • LED power green and protect red indicators
  • Bass Boost (0-12 dB @ 45Hz)
  • Soft Start Turn-on
  • 4 Channel operation

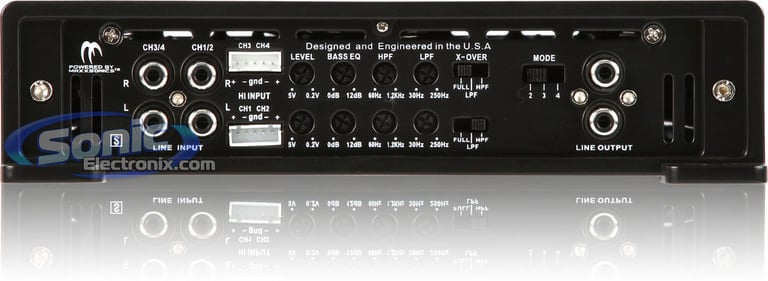

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Fully adjustable 12 dB crossover
  • Nickle-Plated RCA level inputs
  • Nickle-Plated screw terminals
  • Variable low-pass filter (30-250 Hz)
  • Variable high-pass filter (60-1200 Hz)
  • Damping factor: >180
  • Signal to noise ratio: >90 dB
  • Frequency response: 10-45,000 Hz
  • THD (Total Harmonic Distortion): 0.05%
  • Channel separation: >80 dB
  • Variable input level control: 0.2V-5V
  • Fusing: 2 x 25 amps
  • Dimensions: 14-3/8"L x 8-11/16"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Crunch PZ1800.4 thumbnail
(newest, current model)
Crunch PZA1600.4 thumbnail
(previous model, replaced by Crunch PZ1800.4)
Crunch PZT1400.4 thumbnail
(previous model, replaced by Crunch PZA1600.4)
Crunch P1400.4 thumbnail
(previous model, replaced by Crunch PZT1400.4)

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
Not specified by manufacturer
RMS Power @ 2 ohms
Not specified by manufacturer
RMS Power @ 1 ohm
Not specified by manufacturer
Bridged RMS Power
Not specified by manufacturer
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
200 watts x 4 channel
Peak Power @ 2 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
Not specified by manufacturer
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
Not specified by manufacturer
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZA1600.4

Weight:

8.50lbs

Internal SKU:

pza16004

Internal Product ID:

33122
