JL Audio M1000/5v2 (OPEN BOX, LIKE NEW)

1000W 5-Channel Class D Marine Full-Range Amplifier

1000W 5-Channel Class D Marine Full-Range Amplifier

• RMS: 75W x 4 + 400W x 1 @ 4 ohms, 100W x 4 + 600W x 1 @ 2 ohms
• Total RMS Power: 1000W
• Unregulated MOSFET switching type
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• NexD™ Switching Technology

List price $1029.99
Save: $230.00

$799.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

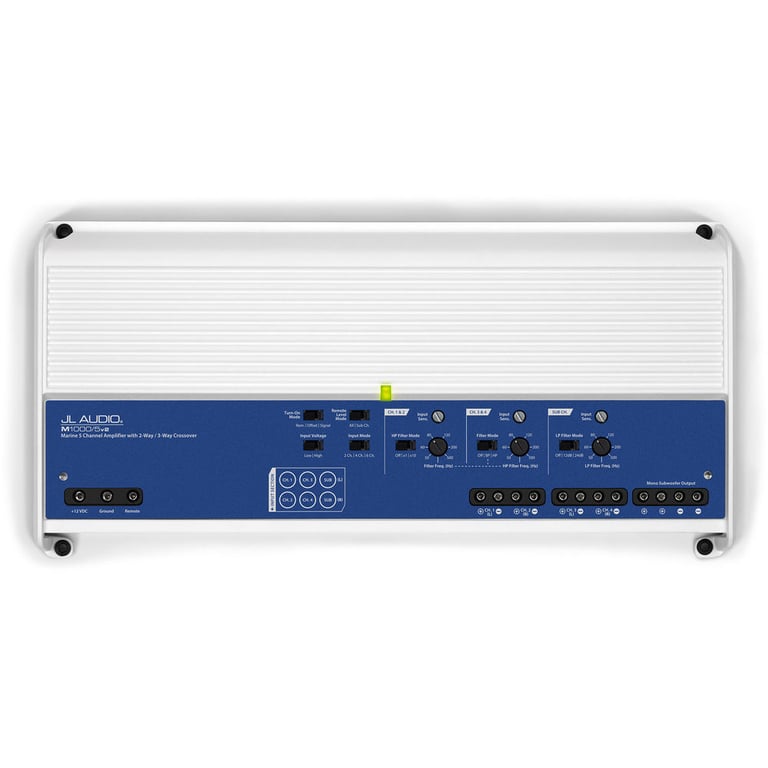

JL Audio M1000/5v2 - Cover Off

M1000/5v2 - 5-Channel Class D Marine Full-Range Amplifier

Here is the perfect, all-in-one solution to drive a potent 4-speaker + dual subwoofer marine audio system. The M1000/5v2 delivers up to 1000 W of clean power and can comfortably drive two pairs of quality component speaker systems with 75 W x 4 @ 4 Ω, while also delivering a stout 600 W of power to a dual subwoofer system. The breakthrough that makes this much power possible in such a small chassis is the NexD™ switching amplifier design

The M1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

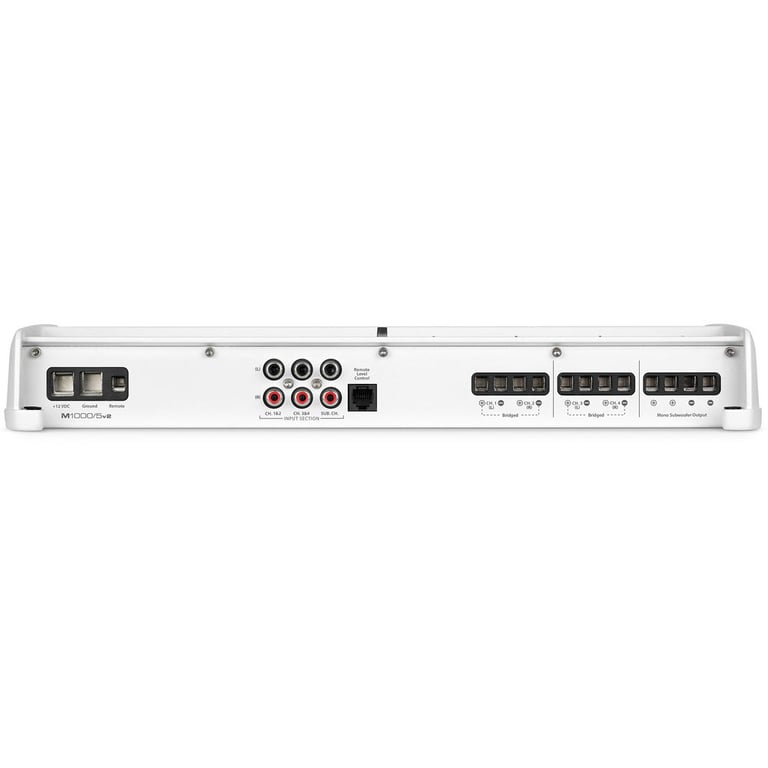

M1000/5v2 Inputs Outputs

Key Features:

Flexible Centerpiece

The obvious feature that sets the M1000/5v2 apart is its 5 Channels. However, not all setups have the luxury of 5 Channels to get a signal from. JL Audio engineers have you covered; the M1000/5v2 is equipped with the ability to apply only two channels of input to deliver signal to all five amplifier channels. Simply slide the "Input Mode" switch to "2 Ch", use only the inputs to channels 1 & 2, and the amplifier will do the rest of the hard work. With just one pair of RCAs, the M1000/5v2 sends signal to Ch 3 & 4 and will derive its subwoofer channel signal from a sum of all four input signals.

Advanced Rollback Protection

Should your JL Audio amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases, but it ensures that your music keeps on playing, even under the most demanding conditions.

NexD Switching Technology

JL Audio have taken the simple fixed PWM approach - found in almost all common amplifiers - and enhanced it with a very high switching frequency: 400 kHz, which is exponentially higher than most Class D Full-range amplifiers. This pushes the amplifier's bandwidth to a much higher frequency than seen before, and still provide minimal distortion and improved efficiency, while keeping typically bulky circuity more compact. Your speakers will reward you with crisp, clear performance. The bottom line is simply great audio: clean, powerful and reliable.










General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished
  • 5-Channel Class D Marine Full-Range Amplifier
  • Full-range RMS Power Rating@ 14.4 V:
    • 4 ohms: 75 watts x 4 chan.
    • 2 ohms: 100 watts x 4 chan.
    • Bridged, 4 ohms: 200 watts x 2 chan.
  • Subwoofer RMS Power Rating @ 14.4 V:
    • 4 ohms: 400 watts x 1 chan.
    • 3 ohms: 500 watts x 1 chan.
    • 2 ohms: 600 watts x 1 chan.
    • 1 ohms: ----------N/A-----------
  • Full-range RMS Power Rating @ 12.5 V:
    • 4 ohms: 60 watts x 4 chan.
    • 2 ohms: 90 watts x 4 chan.
    • Bridged, 4 ohms: 180 watts x 2 chan.
  • Subwoofer RMS Power Rating @ 12.5 V:
    • 4 ohms: 360 watts x 1 chan.
    • 3 ohms: 480 watts x 1 chan.
    • 2 ohms: 600 watts x 1 chan.
    • 1 ohms: ----------N/A-----------
  • Total power output: 1000 watts RMS
  • Unregulated MOSFET switching type
  • NexD™ ultra-high-speed switching design
  • Selectable turn-on modes
    • +12V remote turn-on lead (preferred method)
    • DC Offset-Sensing: detects a very small DC signal (high level signals)
    • Signal sensing: detects presence of a full-range audio signal
  • Dual-Range Differential Balanced Input Section
    • RCA inputs accept Speaker-Level Inputs or Line-Level signals
  • LED power (green) and protect (red) indicators
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • White and gray powder-coat finish
  • Gasketed covered controls and stainless steel hardware
  • Wired remote level control available, sold separately: JL Audio HD-RLC
    • Presents the ability to control Subwoofer Channel or All Channels
  • Input Voltage Range (Selectable):
    • Low level: 200 mV - 2 V RMS
    • High level: 800 mV - 8 V RMS
  • Frequency Response (Full): 12 - 22,000 Hz
  • Frequency Response (SubW): 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1.0% @ 2 Ω per channel
  • Signal to Noise Ration: >104 dB
  • Damping Factory @ 4ohms: 150 / 50 Hz
  • Variable high-pass filter: 50 - 500 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
  • Recommended Inline-Fuse Rating (not included): 80 A x 1 (AFS, AGU or MaxiFuse™)
  • 4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.09"W x 14.73"L x 2.05"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Note from JL Audio: While this amplifier is specially designed for marine applications, it is not waterproof and it should not be mounted where it is likely to get wet.

Check out the JL Audio M1000/5v2 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channels
RMS Power @ 2 ohms
100 watts x 4 channels
Bridged RMS Power
200 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channels
RMS Power @ 2 ohms
600 watts x 1 channels
Amplifier Specifications
Amplifier Series
M-Series (JL Audio)
Marine Certified
Yes
Amplifier Class
D
Number of Channels
5
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
80A x 1 In-Line (not included)
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer
