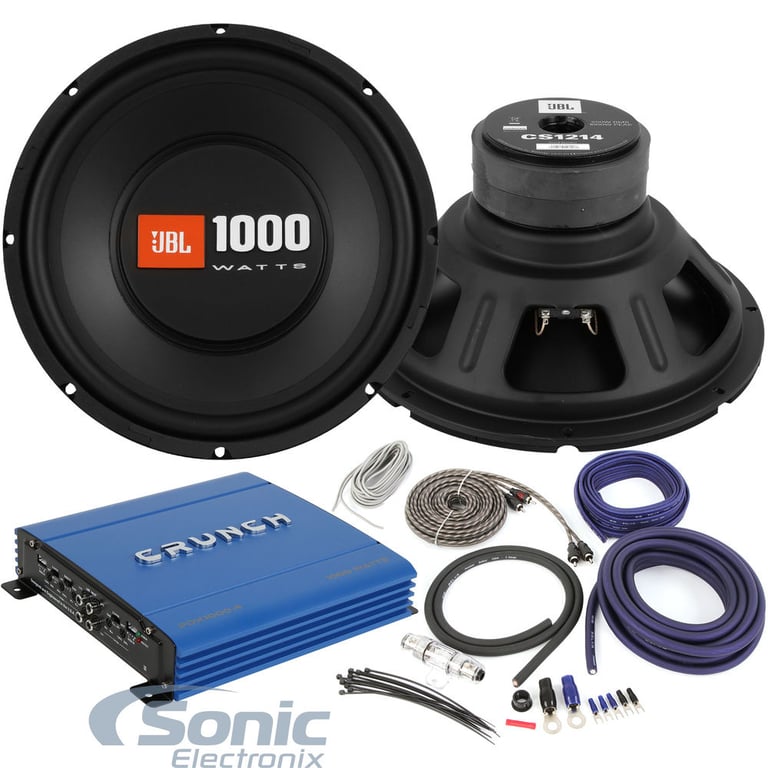

JBL 500 Watt RMS 12" Bass Package (CS1214 PDX-1000.4)

General Features:

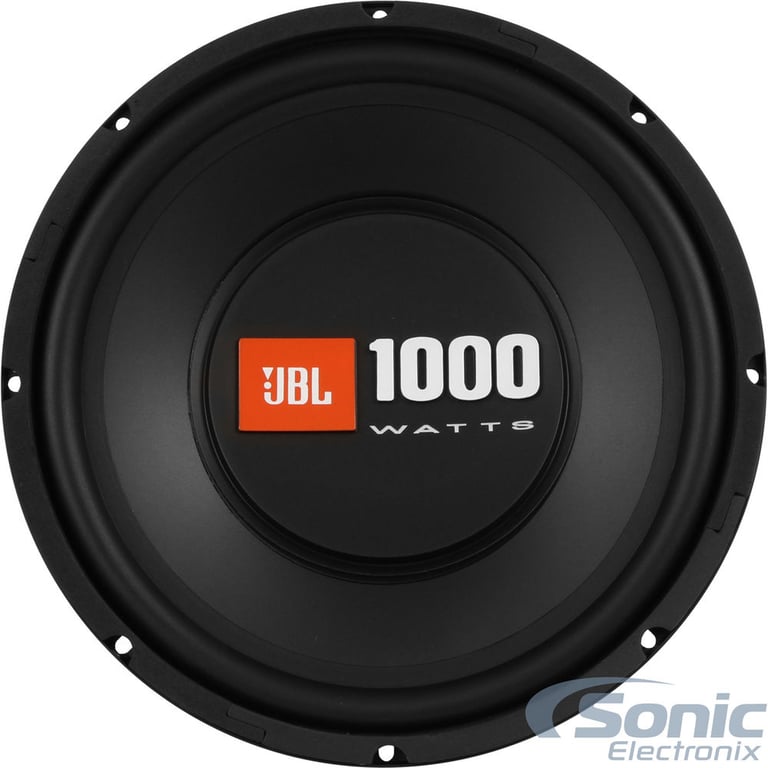

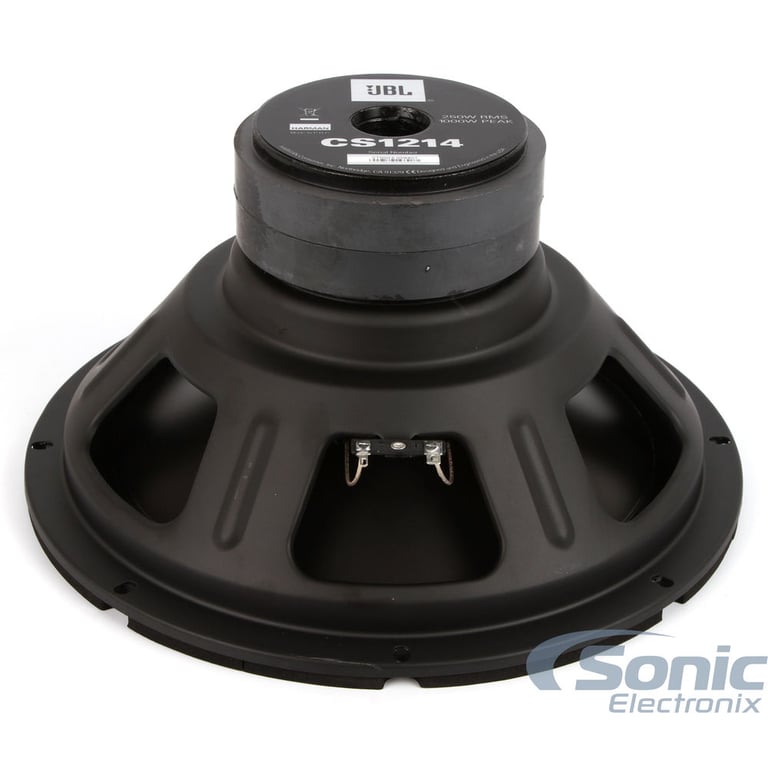

• 12" CS Series Car Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 250 watts
• Recommended power range: 100 - 250 watts RMS
• Impedance: 4 ohm
• High excursion, high BL motor
• Polypropylene Cone
• Rubber Surround
• 1-1/2" Voice coil
• Frequency response: 35-200 Hz
• Resonance Frequency (Fs): 28 Hz
• Top-mount depth: 6-1/16"
• Sensitivity: 90dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

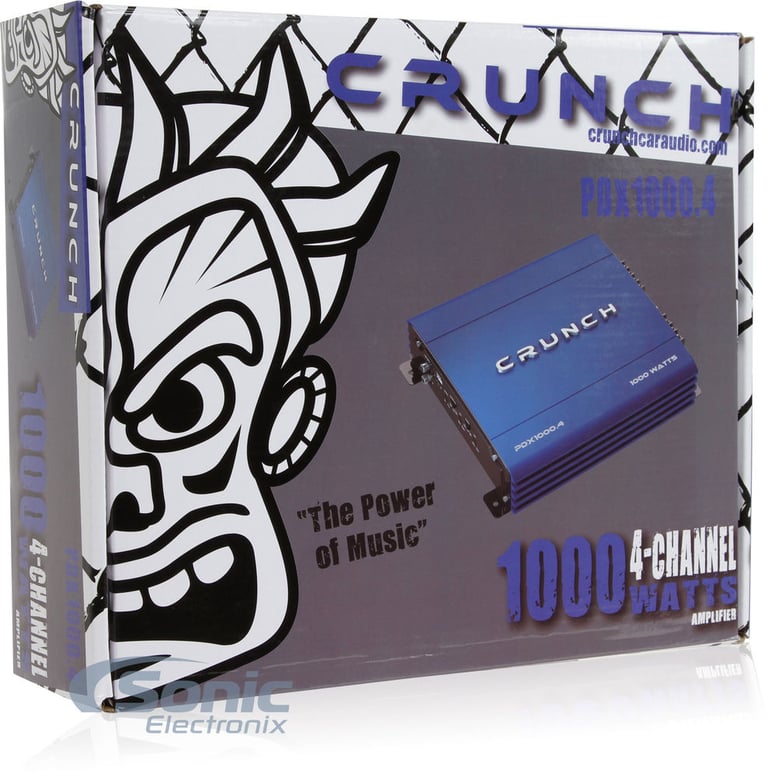

General Features:

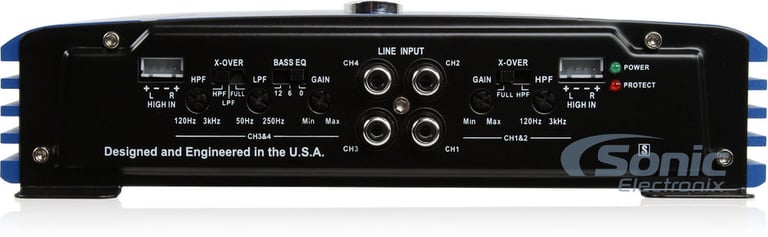

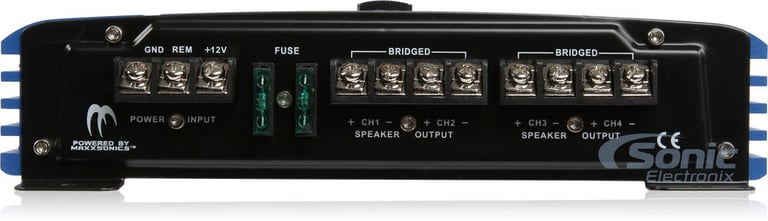

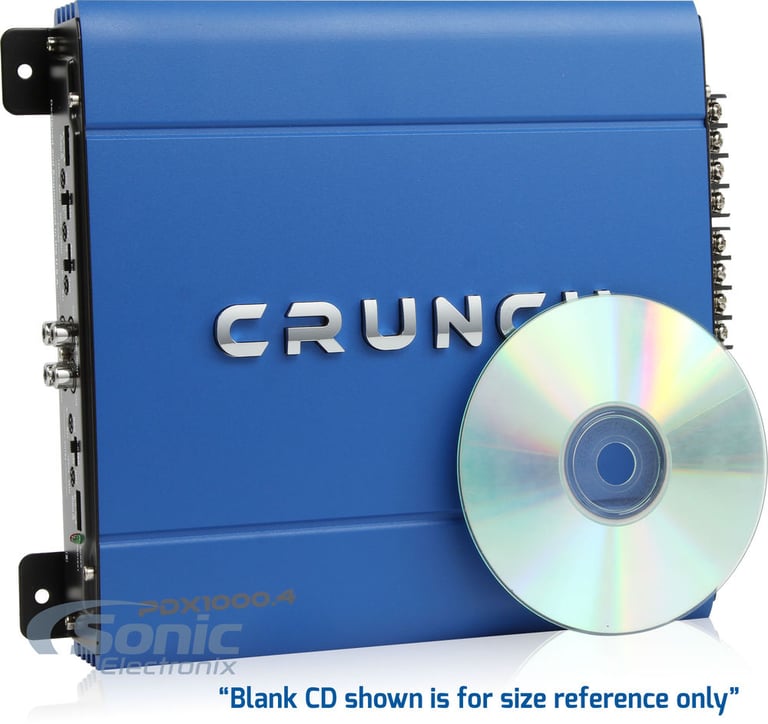

• PDX Series 4-Channel Class A/B Car Amplifier
• MAX Power Rating (14.4V):
• 4 ohm: 125 watts x 4 chan.
• 2 ohm: 250 watts x 4 chan.
• Bridged, 4 ohm: 500 watts x 2 chan.
• RMS Power Rating:
• 4 ohm: 75 watts x 4 chan.
• 2 ohm: 125 watts x 4 chan.
• Bridged, 4 ohm: 250 watts x 2 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• 4, 3 or 2 channel operation
• Speaker-level inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity: 200mV-6V
• Variable high-pass filter 120 - 3,000 Hz, 12 dB/octave
• Variable low-pass filter 50 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 - +12 dB bass boost at 45 Hz
• Damping factor: >180
• Signal-to-nose ratio: >98dB
• Frequency response: 20 - 20,000 Hz
• Fuse rating: 30A x 2
• Dimensions: 10-1/4"L x 9-7/8"W x 2-1/16"H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

General Features:

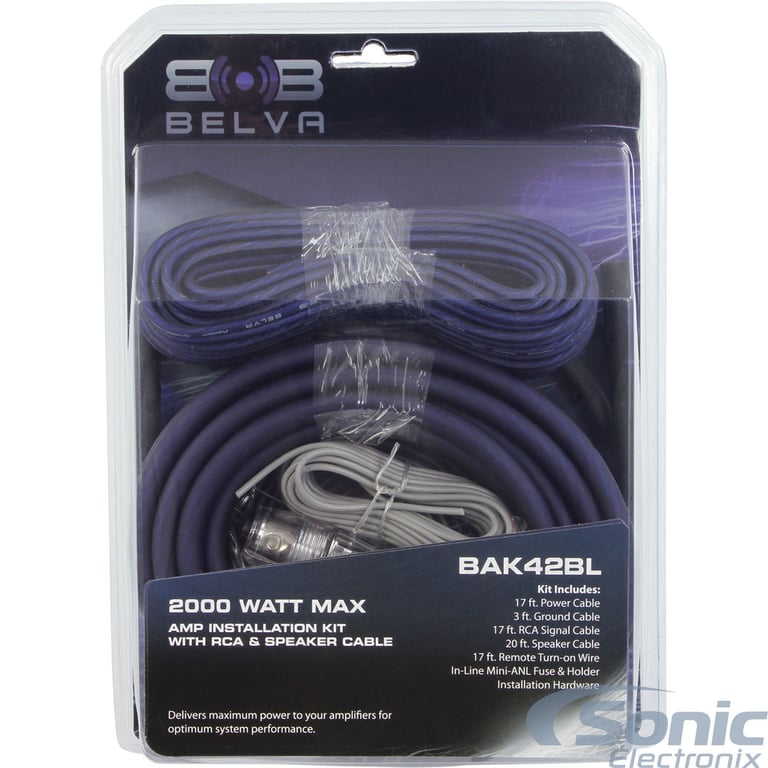

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

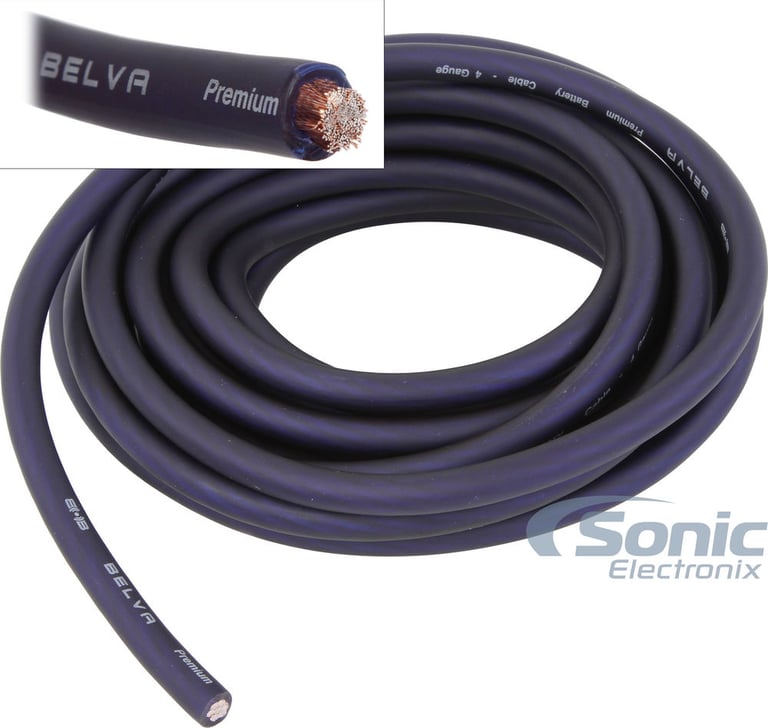

1. 17 ft. (5.2 meters) Blue 4 gauge power wire

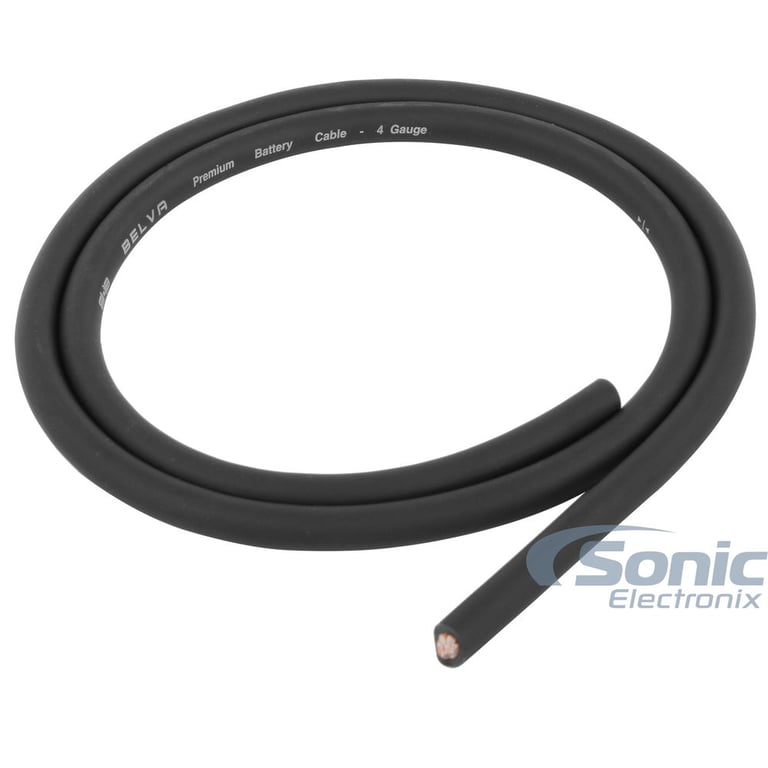

2. 3 ft. (.91 meters) Black 4 gauge ground wire

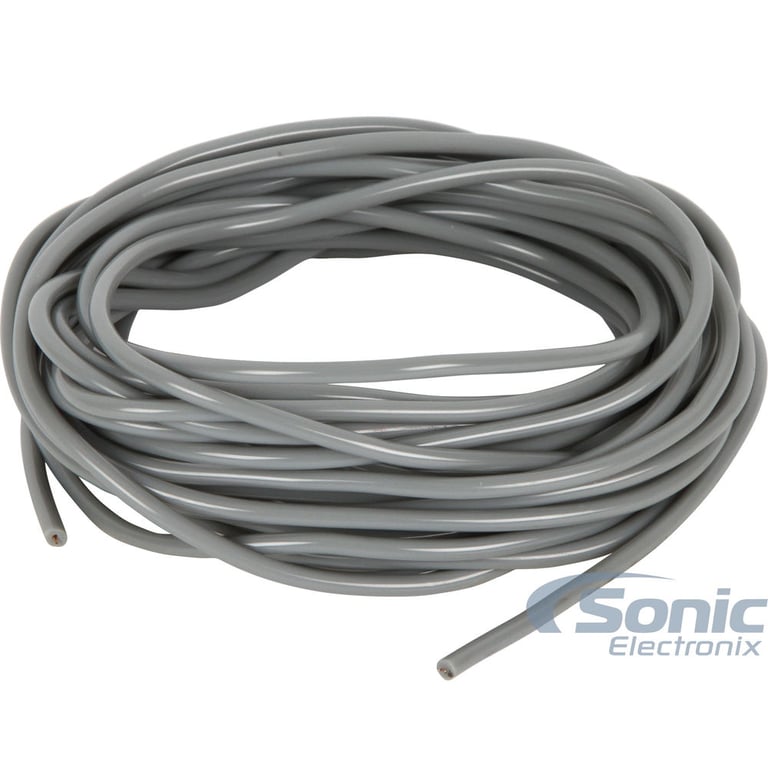

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

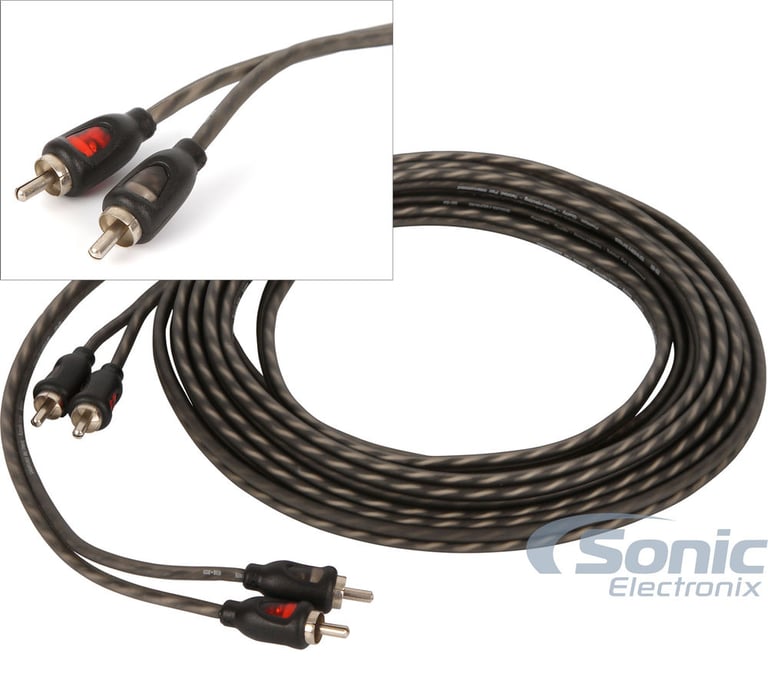

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

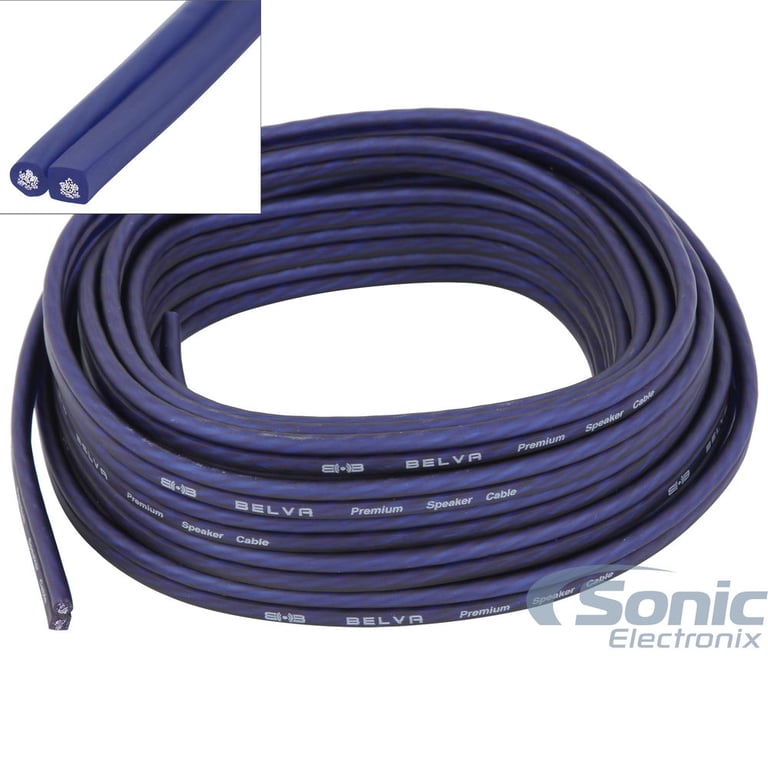

5. 20 ft. (6.1 meters) Speaker cable

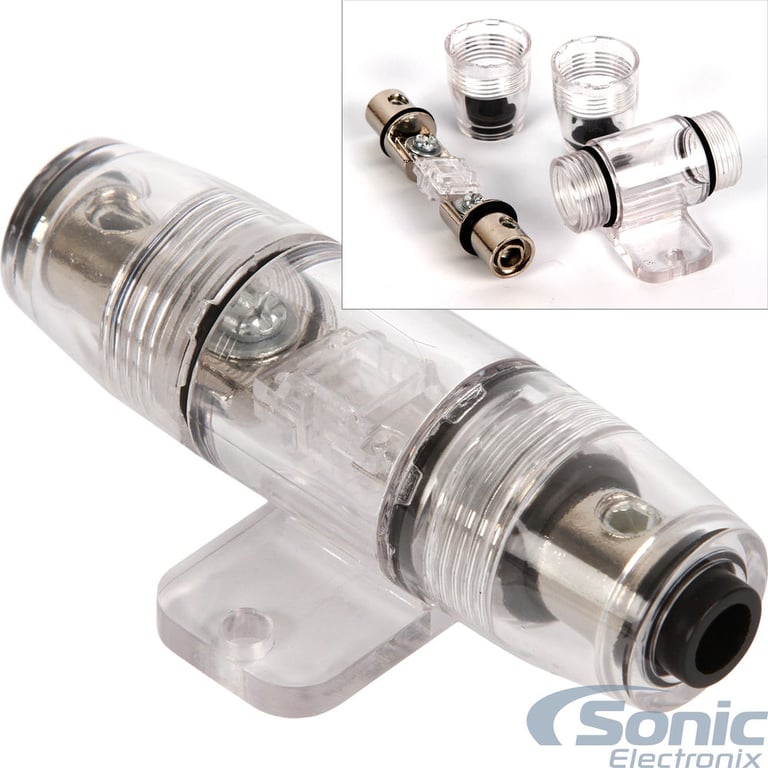

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

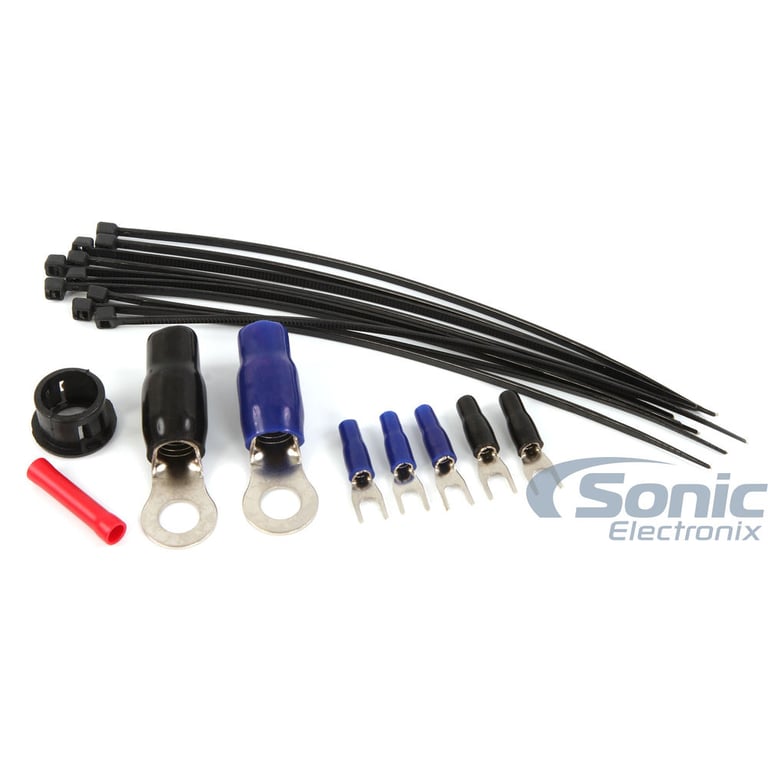

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
