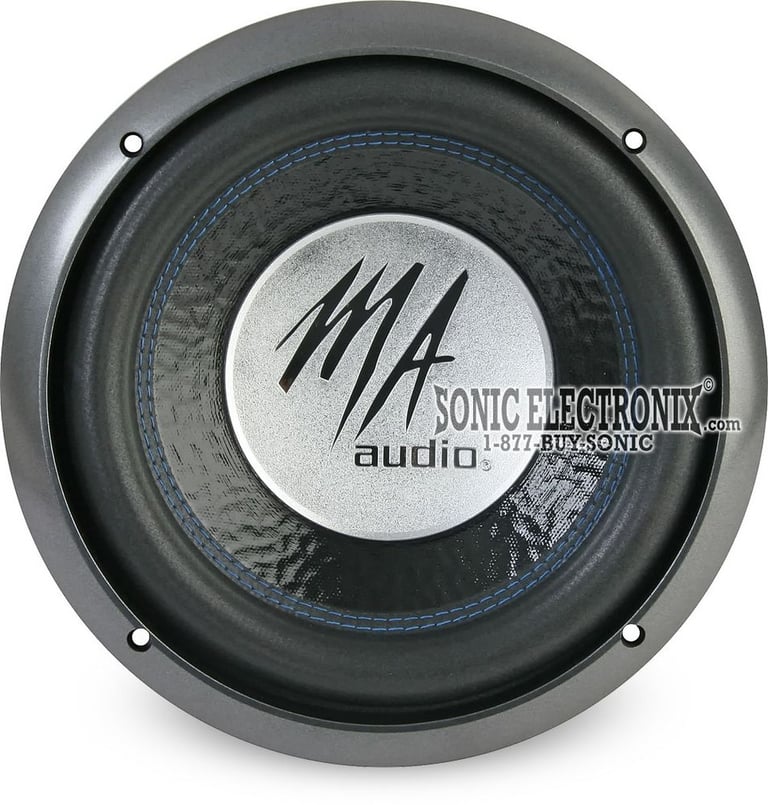

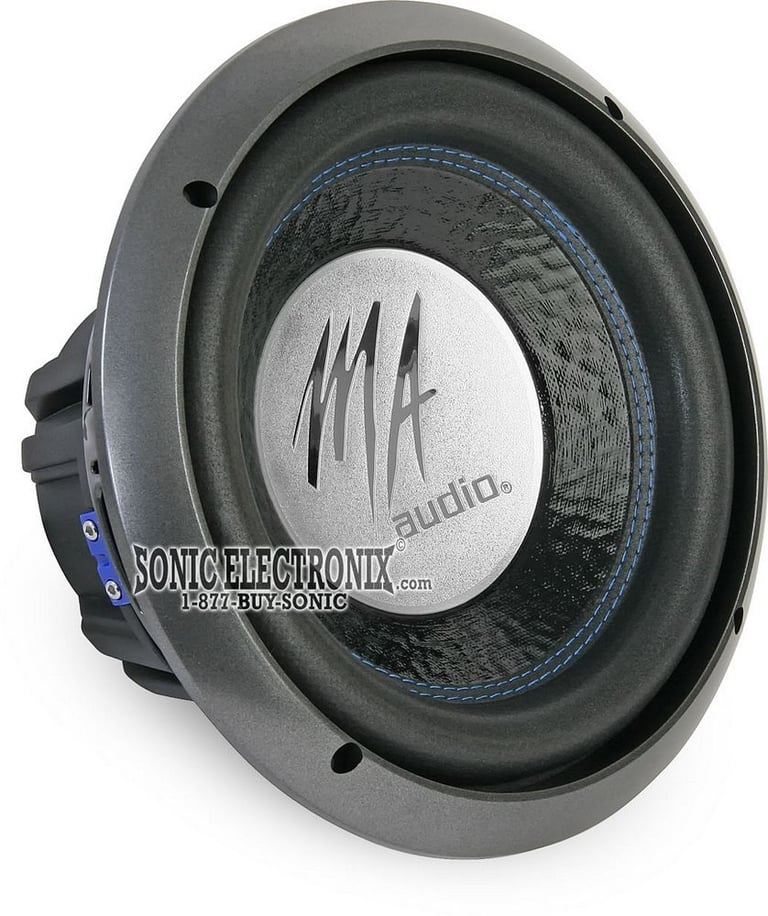

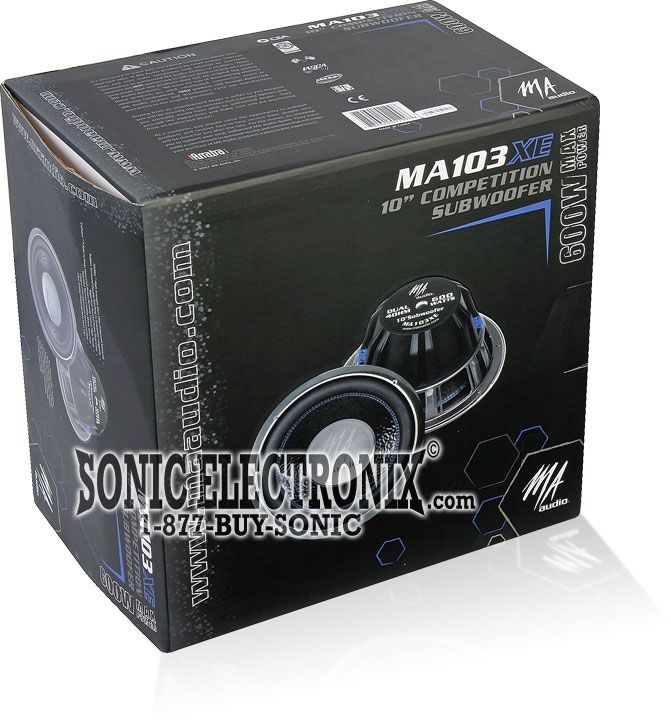

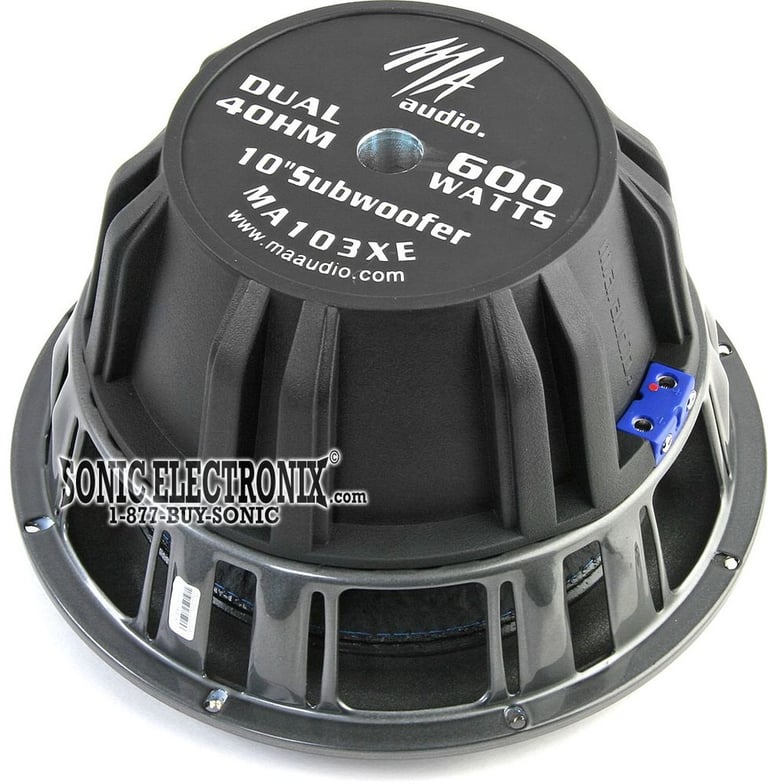

MA Audio MA103XE

10" Dual 4 ohm XE Series Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

10" Dual 4 Ohm XE Series Subwoofer • 600W Max • 300W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 110oz. Double stacked strontium magnets

Learn more about the ma103xe

We apologize

This item has been discontinued


Loading...
TR1 main

PAC TR1 (TR-1)

Video Lockout Bypass Trigger for Alpine, Pioneer, Kenwood and Other Popular Aftermarket Radios

31
-44.86%

$15.99

List price $29.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Product Highlights


10" Dual 4 Ohm XE Series Subwoofer • 600W Max • 300W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 110oz. Double stacked strontium magnets

Description


MA Audio brand icon

Authorized dealer

  • 10" Dual 4 Ohm XE Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Non pressed paper cone woofer
  • Double stitching rubber surround with glass fiber reinforcement
  • Die-cast basket
  • Dual laminated progressive Dupont spider
  • "CoilVent" T-yoke allows for greater power handling while keeping voice coils cool
  • Polypropylene dust cap
  • Platinum plated block terminals
  • Plastic sealant gasket
  • Kapton voice coil former
  • Dual 4 ohm copper coated aluminum voice coils
  • 110oz. Double stacked strontium magnets
  • Sensitivity: 88dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MA Audio MA103XE thumbnail
(newest, current model)
MA Audio MA100XE thumbnail
(previous model, replaced by MA Audio MA103XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA103XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA103XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA103XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA103XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Reinforced Paper
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.6"
Cutout Diameter
9.2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MA103XE

Weight:

12.00lbs

Internal SKU:

ma103xe

Internal Product ID:

11888

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MA103XE thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

BEST SUB EVER MADE

this is a hard hitting, amazing sounding, great looking MA audio subwoofer. i have two of these hooked up the a 500watt at 1 ohm MB quart amp and it demolished my friends two American bass 12inch subs hooked to a 1800 watt amp

By DJ on January 6, 2010

4 found this helpful


This sub is awesome!!!!!

I would definitely recommend this sub to anyone who is budgeted and still wants pounding bass. I just bought one 10" and have about 350 watts going to it. And with the right box it is awesome. It has taken everything I can dish out, and then some.

By Ricardo on February 13, 2009

4 found this helpful


Best bang for the buck!

My goal was to get something that was first, a 10" DVC under $100; and second, NOT an overated "name brand" sub. After researching this brand I felt it was worth the value, and so far it's lived up to my expectations. I listen to all forms of music, from classical to rap; it all has bass. I also play jazz bass guitar so my preference for quality bass sound is rather acute.

The right box is key, which I made using RE Audio's online enclosure calculator. Powered by a Hifonics BXi608 running 300w @ 2ohms, with the box built to MA specs for a ported enclosure. My trunk has 3 layers of dampening, cavities filled w/expanding foam, the interior/roof has one layer of dampening. The quality of sound is excellent and the volume is certainly enough to make you sick.

By dbt on July 30, 2009
