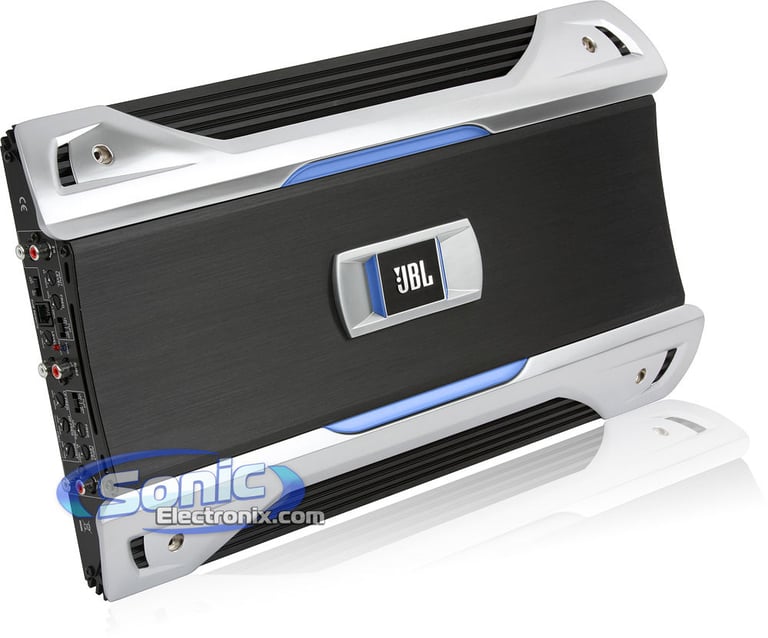

JBL GTO5355

660W RMS, 5-Channel Grand Touring Series Amplifier

1
JBL
Shop all JBL
Product videos
highlight-star-icon

Grand Touring Series 5-Channel Class AB Car Amplifier • 55W x 4 chan. + 225W x 1 chan. @ 2 ohms • 75W x 4 ch • 75W x 4 chan. + 360W x 1 chan. @ 4 ohms • 125W x 4 chan. + 535W x 1 chan. Max • Cast-Aluminum Heatsink

Learn more about the gto5355

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

Grand Touring Series 5-Channel Class AB Car Amplifier • 55W x 4 chan. + 225W x 1 chan. @ 2 ohms • 75W x 4 ch • 75W x 4 chan. + 360W x 1 chan. @ 4 ohms • 125W x 4 chan. + 535W x 1 chan. Max • Cast-Aluminum Heatsink

Description

JBL

Authorized dealer

  • Grand Touring Series 5-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 55 watts x 4 chan. + 225 watts x 1 chan.
    • 2 ohms: 75 watts x 4 chan. + 360 watts x 1 chan.
  • Max power output: 125 x 4 chan. + 535 watts x 1 chan. approx. (1035 watts)
  • LED power and protection indicators
  • Tuned Bass EQ (0-12 dB bass boost)
  • Cast-aluminum heatsink
  • Variable high-pass filter (10-100 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response (Chan. 1-4): 10-83000 Hz
  • Frequency response (Chan. 5): 20-250 Hz
  • Dimensions: 18-9/16"L x 10-3/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Also can be found as: GTO-5355
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

JBL GTO5355 thumbnail
(newest, current model)
JBL GTO755.6 thumbnail
(previous model, replaced by JBL GTO5355)

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
55 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
225 watts x 1 channel
RMS Power @ 2 ohms
360 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Peak Power @ .5 ohm
Amplifier Specifications
Series
Marine Certified
Amplifier Class
A/B
Number of Channels
5
Total Peak Power Output
1035 watts
Total RMS Power Output
660 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
THD at Rated RMS Power
0.04%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 100 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 2
Total Fuse Rating
Strappable
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

JBL

Model Number:

GTO5355

Weight:

14.00lbs

Internal SKU:

gto5355

Internal Product ID:

12245

Product and How-to Videos

  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews

JBL GTO5355
1
Rate or review product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
5
Value
5
Features
5
Design
5
Usability
5
Sort by:
Loading...

great amp

This amp cranks. I have a nissan titan with the factory Rockford Fosgate system. It is powering my 2 aftermark 6x9's (eclipse) and 2 factory 6.5" and the factory RF 8" sub. I don't even have the levels of the amp turned up 1/2 way and it is cranking the system. Good clean power. If you need a good 5 channel amp....i recommend this one.

By thedietz on March 19, 2013

9

found this helpful.
Helpful? Report abuse
