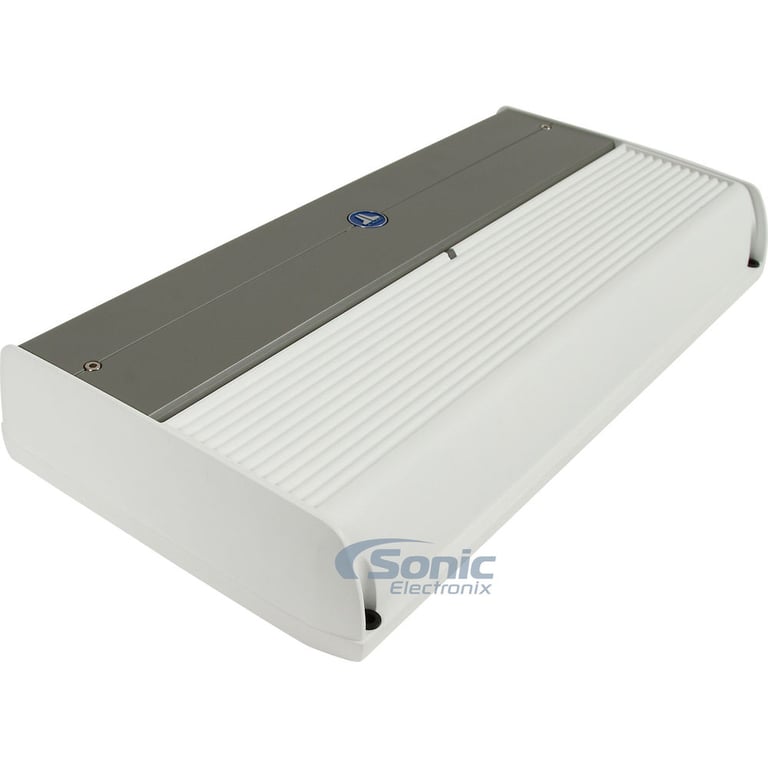

JL Audio M1000/1v2 (Open Box Complete) Image 1 — JL Audio M1000/1v2 (Open Box Complete)

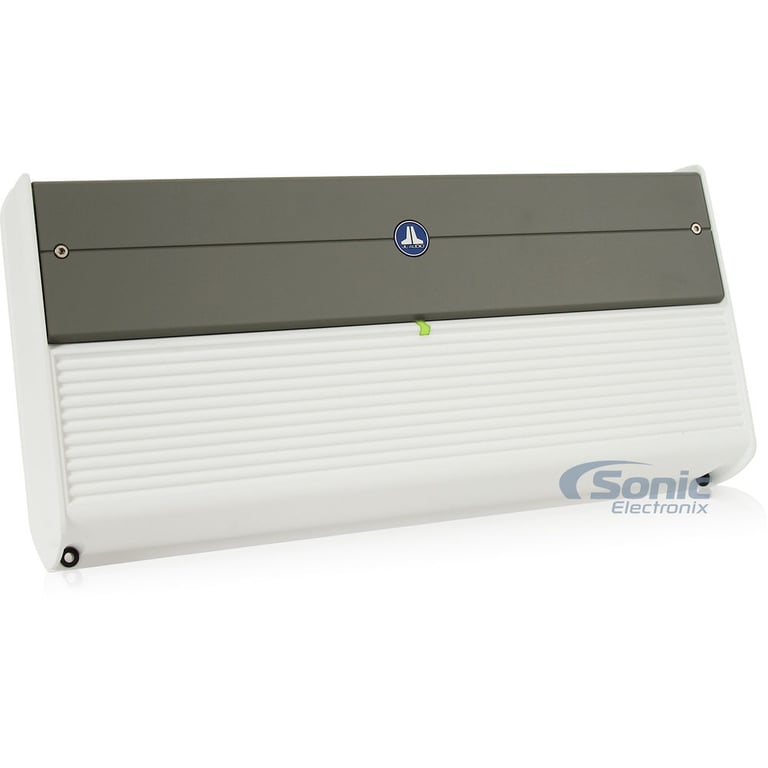

JL Audio M1000/1v2 (Open Box Complete) Image 2 — JL Audio M1000/1v2 (Open Box Complete)

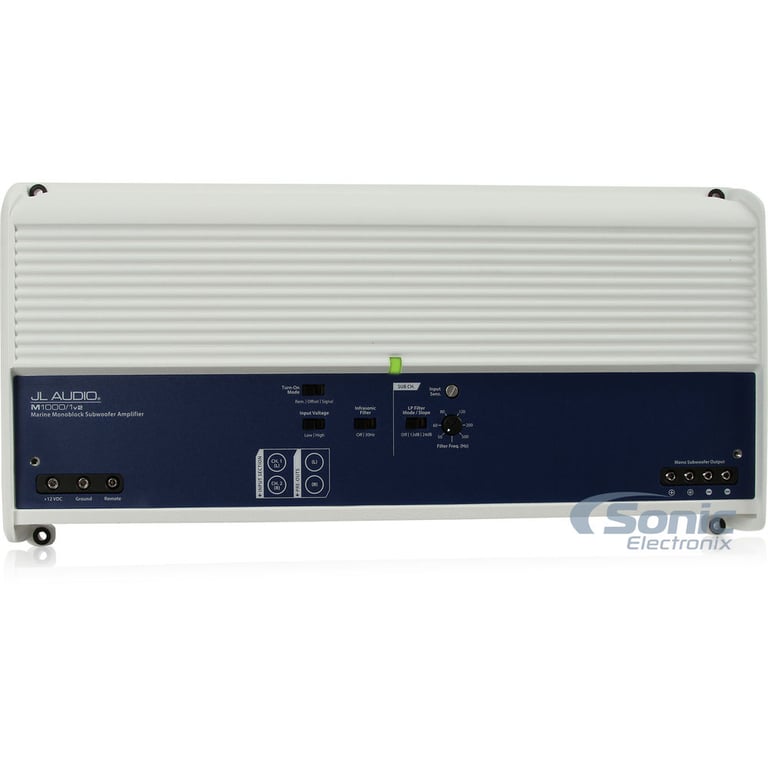

JL Audio M1000/1v2 (Open Box Complete) Image 3 — JL Audio M1000/1v2 (Open Box Complete)

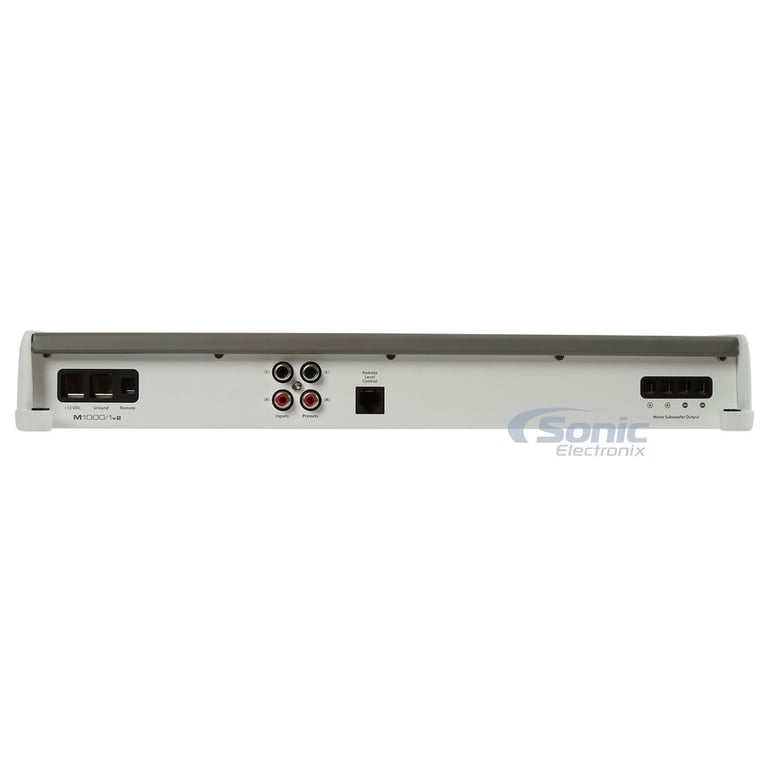

JL Audio M1000/1v2 (Open Box Complete) Image 4 — JL Audio M1000/1v2 (Open Box Complete)

JL Audio M1000/1v2 (Open Box Complete) Image 5 — JL Audio M1000/1v2 (Open Box Complete)

Product highlights

• RMS: 600W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm
• Total RMS Power: 1000W
• Unregulated MOSFET switching type
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• NexD™ Switching Technology

Learn more about the ls-m10001v2-obc

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

M1000/1v2 - Monoblock Class D Marine Subwoofer Amplifier

This potent monoblock subwoofer amplifier employs JL Audio's high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The M1000/1v2 is capable of delivering 1000 Watts of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.

Designed specifically for subwoofer applications, the M1000/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer output level or master volume for all channels can be directly controlled from the helm. The M1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels.

Key Features:

Advanced Rollback Protection

Should your JL Audio amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases, but it ensures that your music keeps on playing, even under the most demanding conditions.

NexD Switching Technology

JL Audio have taken the simple fixed PWM approach - found in almost all common amplifiers - and enhanced it with a very high switching frequency: 400 kHz, which is exponentially higher than most Class D Full-range amplifiers. This pushes the amplifier's bandwidth to a much higher frequency than seen before, and still provide minimal distortion and improved efficiency, while keeping typically bulky circuity more compact. Your speakers will reward you with crisp, clear performance. The bottom line is simply great audio: clean, powerful and reliable.

General Features:

Item Condition: Like New, Open Box, Complete
Not Refurbished

Monoblock Class D Marine Subwoofer Amplifier
RMS Power Rating @ 14.4 V:

4 ohm: 600 watts x 1 chan.
3 ohm: 800 watts x 1 chan.
2 ohm: 1000 watts x 1 chan.
1 ohm: ----------N/A-----------

RMS Power Rating @ 12.5 V:

4 ohm: 500 watts x 1 chan.
3 ohm: 650 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: ----------N/A-----------

Unregulated MOSFET switching type
NexD™ ultra-high-speed switching design
Selectable turn-on modes

+12V remote turn-on lead (preferred method)
DC Offset-Sensing: detects a very small DC signal (high level signals)
Signal sensing: detects presence of a full-range audio signal

Dual-Range Differential Balanced Input Section

RCA inputs accept Speaker-Level Inputs or Line-Level signals

JL Audio XD-CLRAIC2-SW required for speaker level, sold separately

LED power (green) and protect (red) indicators
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
White and gray powder-coat finish
Gasketed covered controls and stainless steel hardware
Detented, Calibrated Filter Freq. Potentiometer
Wired remote level control available, sold separately: JL Audio HD-RLC
Input Voltage Range (Selectable):

Low level: 200 mV - 2 V RMS
High level: 800 mV - 8 V RMS

Frequency Response: 7 - 500 Hz (+0, -1dB)
Total Harmonic Distortion (THD): <1.0% @ 2 Ω per channel
Signal to Noise Ration: >83 dB
Damping Factory @ 4ohm: >1000 / 50 Hz
Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
Selectable Subsonic (Infrasonic) Filter: Off / 30 Hz
Recommended Inline-Fuse Rating (not included): 80 A x 1 (AFS, AGU or MaxiFuse™)
4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 7.09"W x 14.73"L x 2.05"H
Authorized Internet Dealer
90 Day Manufacturer's Warranty

Note from JL Audio: While this amplifier is specially designed for marine applications, it is not waterproof and it should not be mounted where it is likely to get wet.

Check out the JL Audio M1000/1v2 Owner's Manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

1000 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Series

M Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Optional (Requires Accessory Adapter)

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

Switchable Off/30 Hz

Signal-to-Noise Ratio

>83 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

80A X 1 In-Line Fuse Recommended

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
