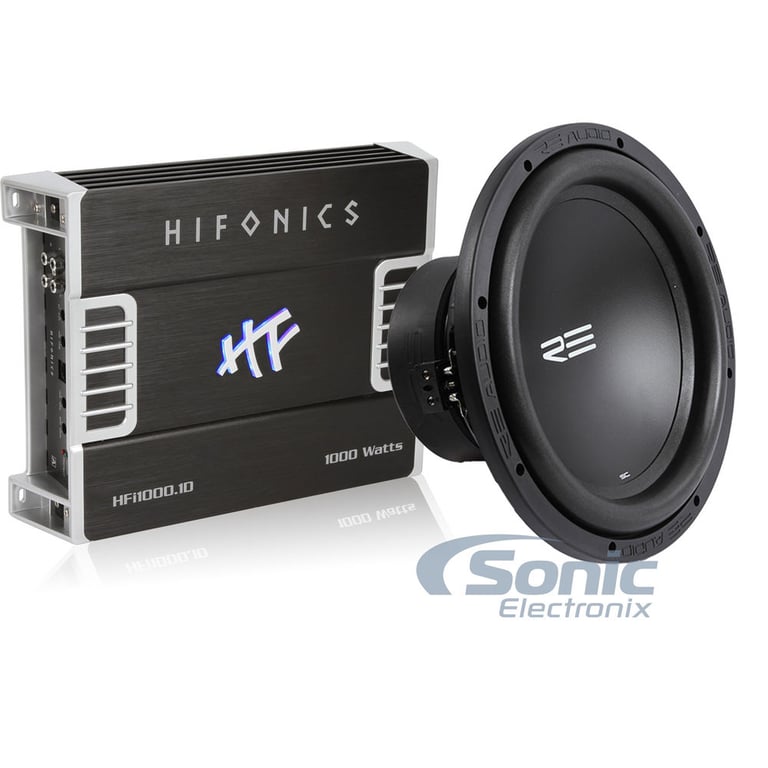

RE Audio Subwoofer and Hifonics Amplifier Combo

RE Audio SCX12v2 12" SCXv2 Series Dual 4 Ohm Subwoofer + Hifonics HFi1000.1D 1000 Watt RMS Monoblock Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 12" Dual 4 Ohm SCXv2 Series Subwoofer
• RMS: 450 watts
• Dual composite 2-piece cone
• 1000 Watt RMS Class D Monoblock HFi Series Subwoofer Amplifier
• 1-Ohm Stable

Learn more about the hfi10001d_scxv212d4

We apologize

This item has been discontinued


Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

72-8110 main

Metra 72-8110 Speaker Harness for 2003-2025 Subaru, Toyota, Scion

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

31
-17.86%

$229.99

List price $279.99

Product Highlights


• 12" Dual 4 Ohm SCXv2 Series Subwoofer
• RMS: 450 watts
• Dual composite 2-piece cone
• 1000 Watt RMS Class D Monoblock HFi Series Subwoofer Amplifier
• 1-Ohm Stable

Description


Hifonics brand icon

Authorized dealer

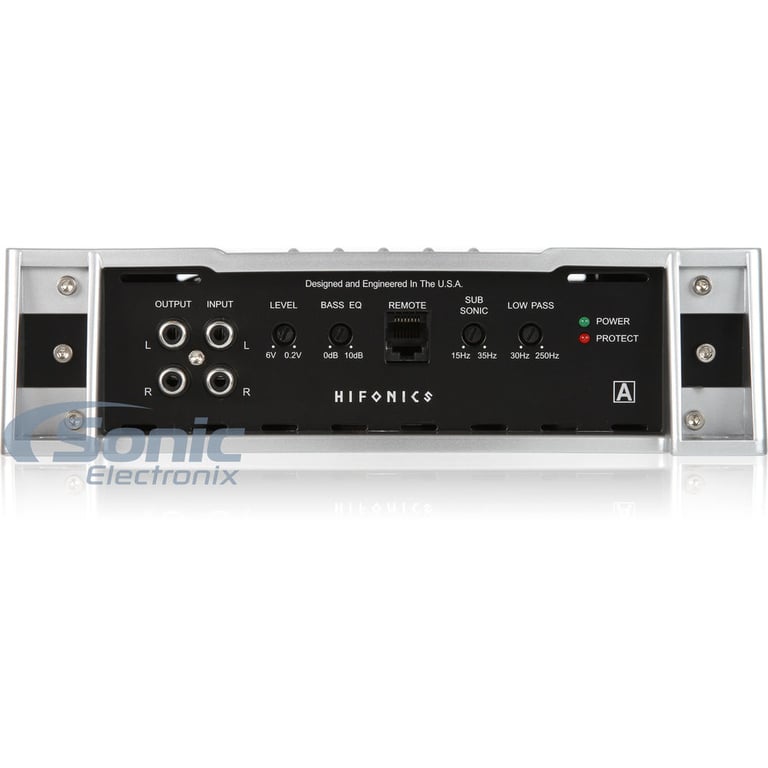

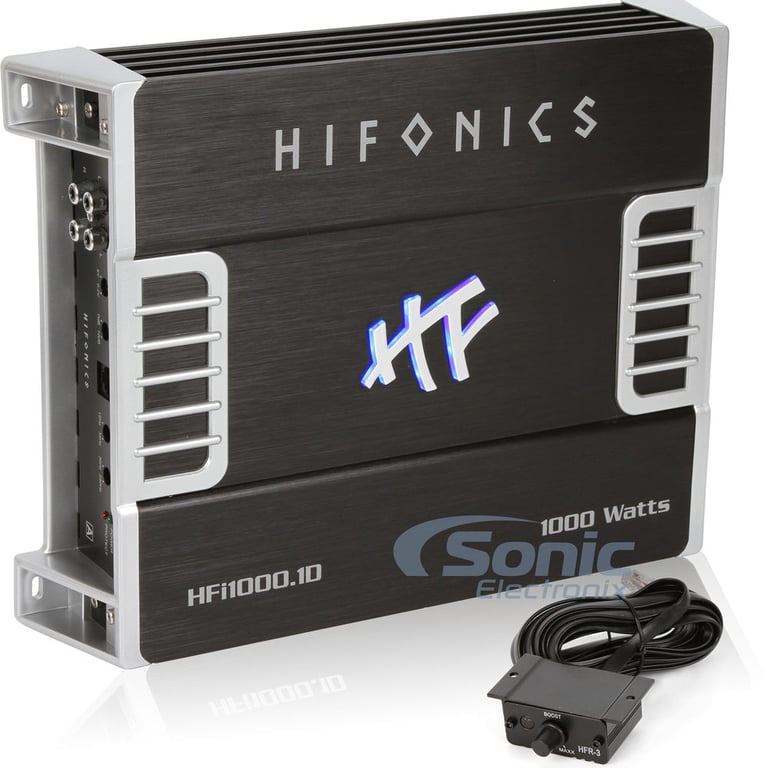

Hifonics HFi1000.1D

1000 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier
Quantity: 1

General Features:

  • HFi Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (green) and protect (red) indicators

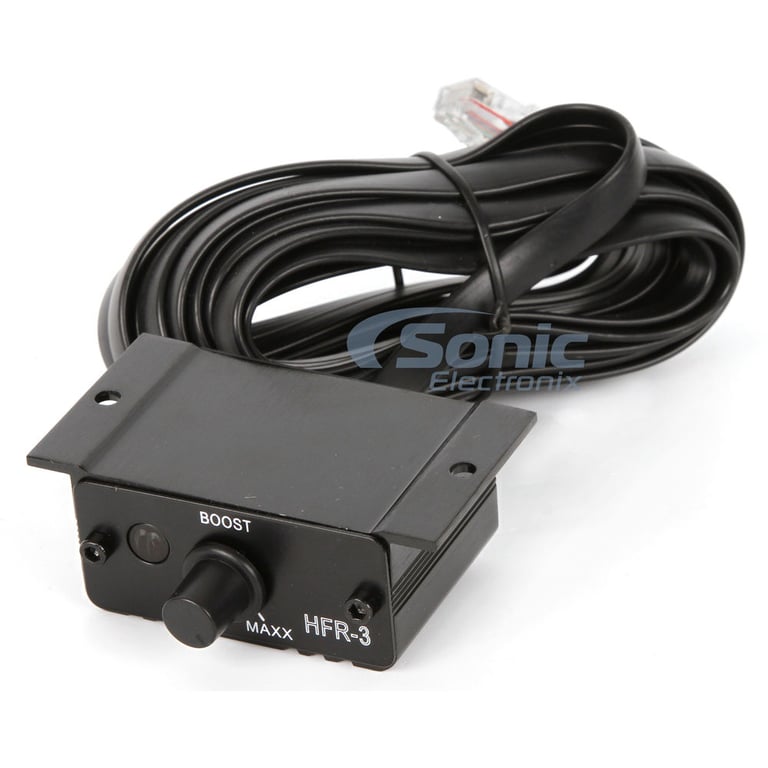

  • Wired HFR-3 remote bass level control included
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

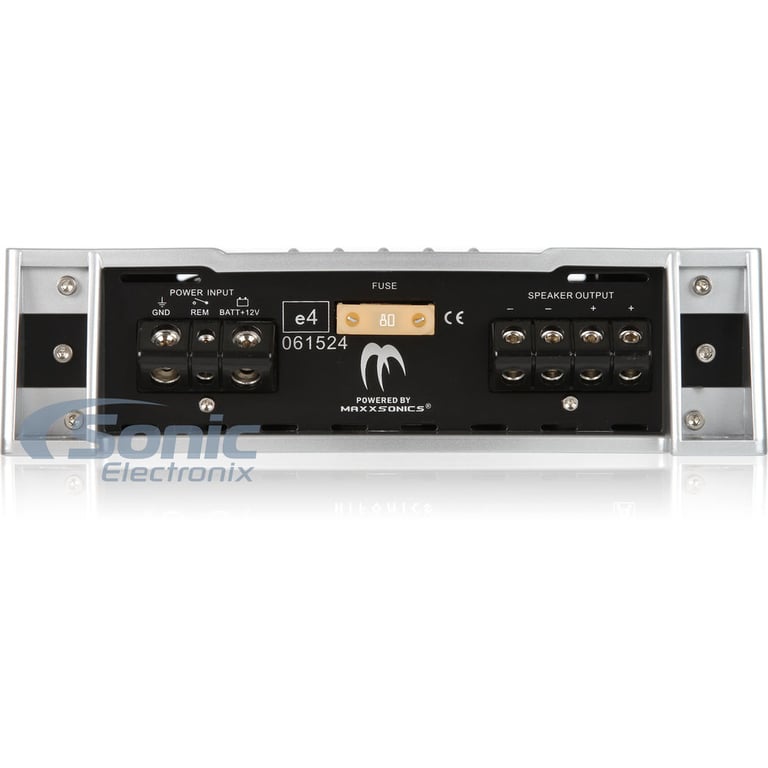

  • Dual 12 gauge speaker output terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals
  • Four corner mounting ear tabs
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • THD and Noise: <0.1
  • Signal to Noise Ration: >95 dB
  • Damping factor: >200
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
  • Fuse Rating: 80A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

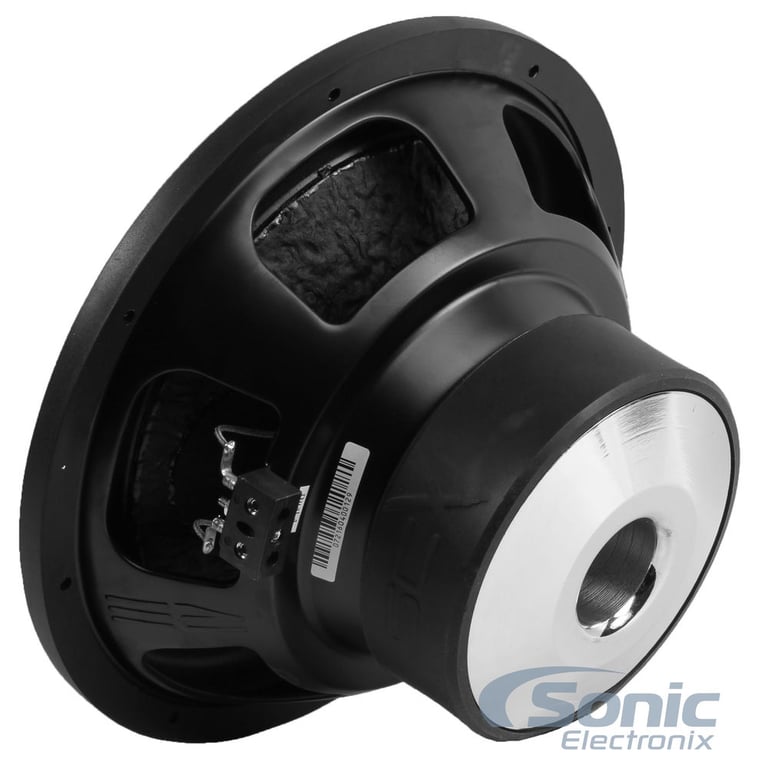

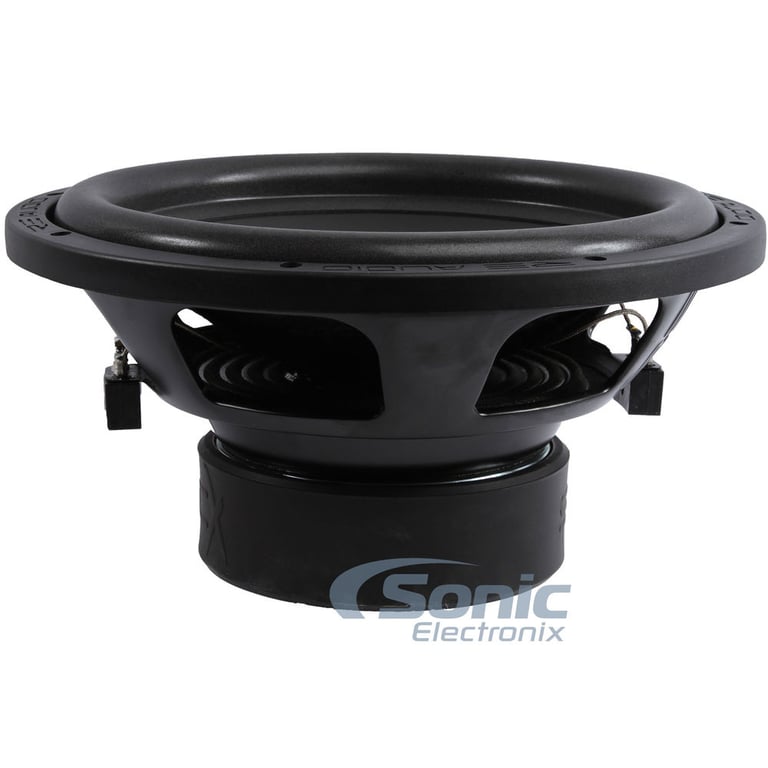

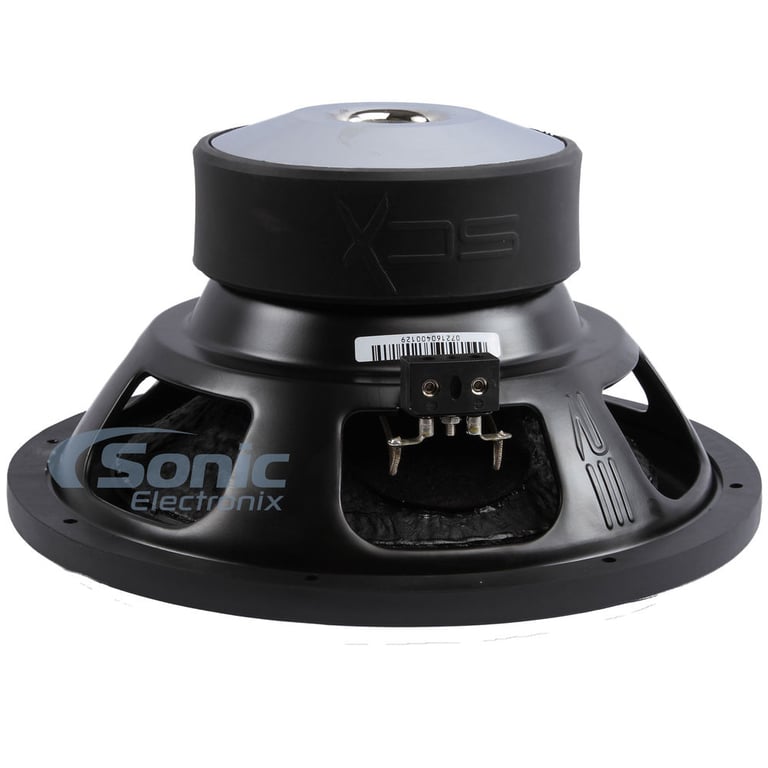

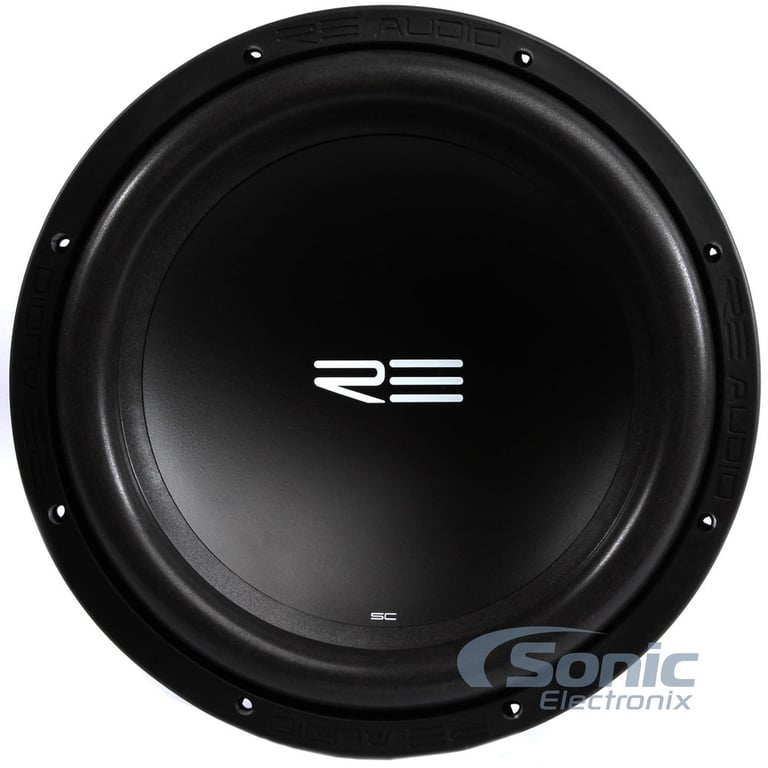

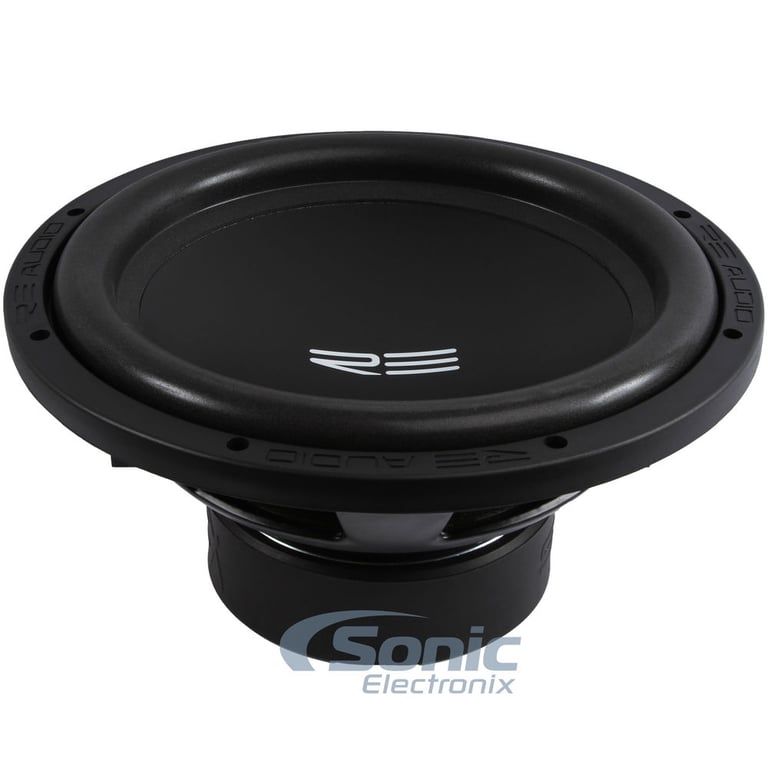

RE Audio SCX12v2 (SCX 12 v2)

450W 12" SCXv2 Series Dual 4 Ohm Subwoofer (REXV212D4)
Quantity: 1

General Features:

  • 12" Dual 4 Ohm SCXv2 Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Heavy duty steel stamped basket
  • Tork-Tite terminals
  • Double stacked magnets
  • FEA optimized motor structure
  • 2.5" 4-layer aluminum voice coil
  • One-Way Linear Excursion (Xmax): 18.6 mm
  • Sensitivity: 87.2 dB 1 watt / 1 meter
  • Top-mount depth: 6.13"
  • Cutout Diameter: 11.20"
  • Displacement: 0.17 ft³
  • Weight: 17.8 lb
  • Matching amplifier: RE Audio SA 1500.1
    ✔ Add a Second Subwoofer for a 900 watt (RMS) setup!
  • Also available in a 10" version: RE Audio SCX 10 v2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: SCX12D4-V2, SCXV2-12D4, SCXV212D4

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio RE Audio SCX 12 v2 Subwoofer Enclosure Guide


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
<0.1 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
80A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
SCX v2 Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
450 watts
Woofer Surround
Foam
Woofer Composition
Composite Polypropylene Cone - CPPC
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.52 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.86 cubic feet
Sensitivity
87.2 dB
Xmax (millimeters)
18.6 mm
Top-Mount Depth (Mounting Depth)
6.13"
Cutout Diameter
11.20"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFI10001D_SCXV212D4

Weight:

26.00lbs

Internal SKU:

hfi10001d_scxv212d4

Internal Product ID:

125683

Product and How-to Videos


Customer Ratings & Reviews


RE Audio Subwoofer and Hifonics Amplifier Combo thumbnail image

5 star
81%
4 star
13%
3 star
2%
2 star
1%
1 star
2%



Durability
4.7
Value
4.8
Features
4.6
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

great amp

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

This is great amp I have it running 2 kicker 12s and it hits hard in my 2006 tahoe I love it....Never gets hot and its clean looking with a great price......BUT MAKE SURE TO INVEST IN A VERY GOOD BATTERY OR CAP

By BIG CHEVY RIDER on March 13, 2013

55 found this helpful


great value

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

Excelent amp, works great, have it in an 02 Escalade EXT running two JL 12W3's in a JL box, just pounds :)

By Hawk on October 8, 2011

53 found this helpful


Winner, hands down

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

When i bought this amp, i was skeptical because of the long hated line of Hifonics products.

When i got this amp, i hooked it up to my Kicker 15" L7... i had the amp at a 2 ohm load giving the L7 a good 750 rms and damn... It sounded like that L7 had a full on 1000 rms load going into it.. I had to tape down various plastic pieces in the back of my car and secure my trunk with padding...

Get...this..amp. Also check out the 1200.1D brutus series.. That is my current amp!

By BassHeadDan on February 20, 2013

50 found this helpful


VERY GOOD AMP.

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

I have this amp pushing 2 Memphis 15's and this amp hasn't got hot at all! Played music for 6 hours str8 pounding and when i touched the amp it was just warm.

By rekesia on October 27, 2011

52 found this helpful


Amazing amp

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

I have this paired with a 12" Rockford Fosgate P3 subwoofer and this little amp gives it more than enough power! I highly recommend these Hifonics amps!!

By Cole on October 26, 2011

51 found this helpful


true power

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

Wicked little amp its a true 1000 rms I have it on a 2010 Rockford fosgate T1D215 in the high output vent box running in 1 ohm I swear I think if I turned the gain past 3/4 I could make that T1 15 start popping. It hits just as hard as my buddys 2 l7 15inch with a Rockford fosgate 1000.1 amp. Great great amp.

By David on October 11, 2011

48 found this helpful


Awesome quality

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

I have a Chevy Astro van it's hard to get speakers to thump in that big of an area. But my Hifonics amp with my two 12s, Boss speakers, really do the job. I love the quality sound i get with them. Thanks.

By Nassau mike on November 22, 2011

48 found this helpful


More Bang for Your Buck

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

This amp is wonderful. If you love deep rich bass with a constant R MS this is the amp for you!

By Big J on September 30, 2014

44 found this helpful


Rockin' hard!!

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

Kicks ass!!! Don't was your money on a expensive kicker amp, this is way better!! A must buy!!

By Adam on January 12, 2012

44 found this helpful


great amp

The following review is for HFi1000.1D, which is a part of the bundle you are viewing.

All the power you need running jl 15 in van shakes windows.

By twilson333 on February 27, 2013

44 found this helpful




S8L54 small

Kicker S8L54 8" L5 Solo-Baric 02S8L54

$89.99

List price $179.99

ANL2020G small

Xscorpion ANL2020G

Gold ANL Inline Fuse Holder with 0/2 Gauge Input & Output with Adapters

(7)

$9.99

List price $16.99

MDR-1RNC small

Sony MDR-1RNC

Over-Ear Digital Noise Cancelling Head Phones (Up to 99% Noise Cancellation)

$249.99

List price $499.99

FFXBM10WBL small

Odyssey FFXBM10WBL

Black Label Flight FX Series DJ Turntable Coffin Holds 2 Turntables in Battle Mode & 10" Mixer

$399.99

List price $559.99

TWR300 small

Mr DJ TWR300

300W Max, TW Series Super High-Frequency Tweeter

(3)

$3.99

List price $19.99

GX6103-BEIGE small

XO Vision GX6103 (Beige/Tan)

Pair of Beige/Tan Leather Headrests Pillows loaded with 6" TFT-LCD Headrest Monitors (GX-6103 Beige/Tan)

(1)

$124.99

List price $329.99

HDJ-500-G small

Pioneer HDJ-500 - Green

Over-Ear Professional DJ Headphones with Swiveling Ear Cup (Green)

$79.99

List price $109.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Toyota RAV4

2025 Nissan Kicks

1983 Chevrolet Camaro

2007 Toyota Corolla

1990 Oldsmobile Cutlass Supreme

2013 BMW X6 M

2011 Porsche 911

1995 Mazda MX-6

2023 Honda Pilot

2011 Porsche Panamera

Vehicle
Store
Delete

2007 Harley Davidson FLHTC/I Electra Glide Classic

2017 Harley Davidson FLS Softail Slim

2008 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

2006 Harley Davidson FLHTI Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
