See all parts that fit your 2005 Rendezvous

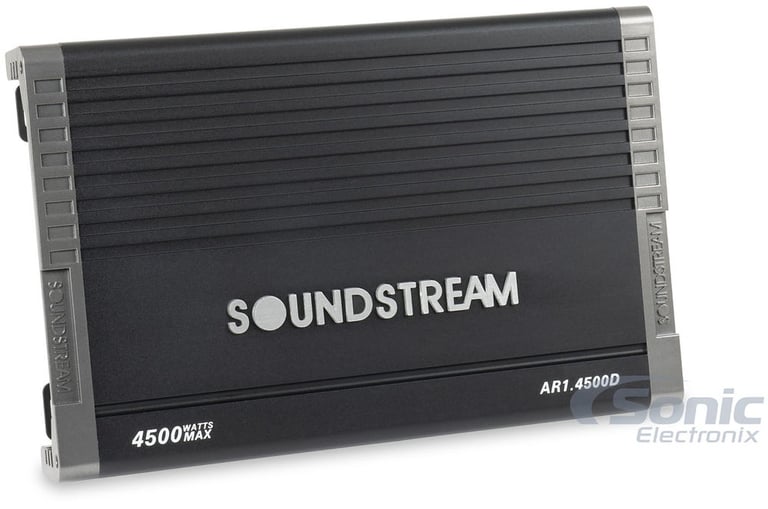

Soundstream AR1.4500D

4500W Peak (2200W RMS) Arachnid Series Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob

highlight-star-icon

• 900 Watts RMS x 1 @ 4 ohm
• 1,100 Watts RMS x 1 @ 2 ohm
• 2,200 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 4,500 Watts
• Built-in Low Pass and Subsonic Filters
• 0-12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 8.5" W x 13.75" L x 2.125" H

Learn more about the ar14500d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


Soundstream brand icon

Authorized dealer

General Features:

  • Soundstream Arachnid Series AR1.4500D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 900 watts x 1 chan.
    • 2 ohm: 1,500 watts x 1 chan.
    • 1 ohm: 2,200 watts x 1 chan.
  • Total power output: 4,500 watts
  • Pulse Width Modulated MOSFET power supply

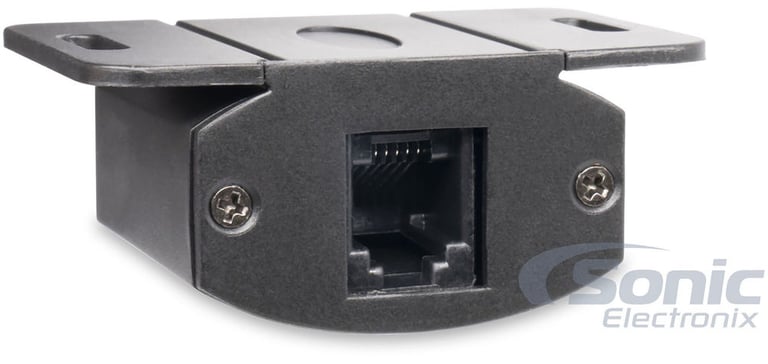

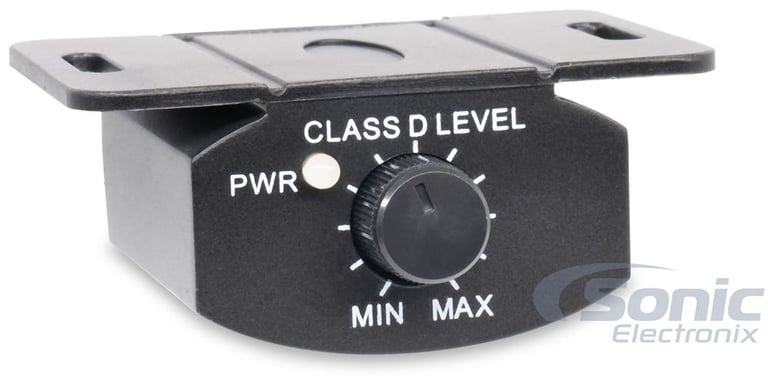

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation

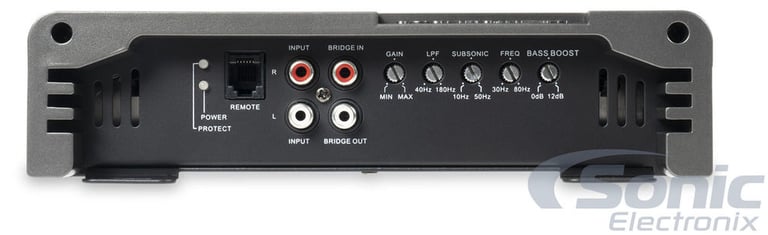

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

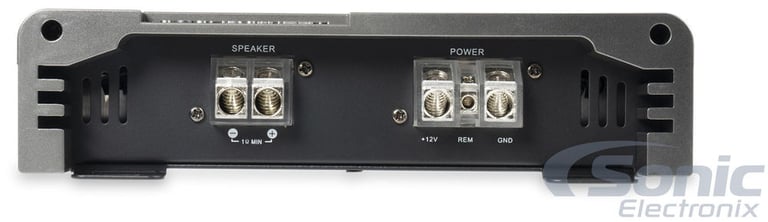

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • High level: 200mV-8V
  • Frequency Response: 20 - 190 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: 96dB
  • Variable low-pass filter: 40 - 180 Hz, 12 dB/octave
  • Subsonic filter: 10 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • *Specifications may differ from packaging, manual and product website. Above specs pulled from multiple sources*
  • Dimensions: 8.5"W x 13.75"L x 2.125"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NOTE: Manufacturer specifications and design subject to change without notice for improvements.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
900 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 1 ohm
4500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4500 watts
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

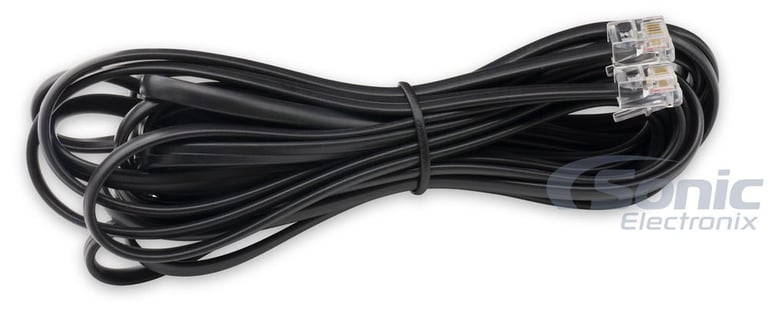

Wired gain knob (wire attached)

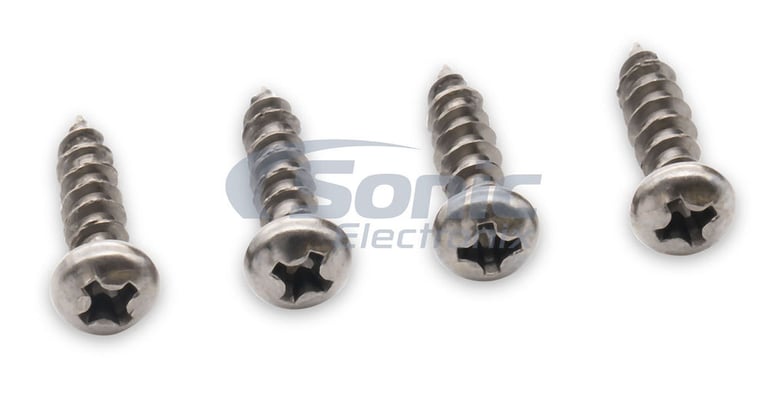

Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AR1.4500D

Weight:

3.90lbs

Internal SKU:

ar14500d

Internal Product ID:

127475

Customer Ratings & Reviews


Soundstream AR1.4500D thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp at a low price

Powers my T5.154 wired down to two ohms perfectly. I couldn’t have asked for a better deal to power my system.

By Chase on May 14, 2020 Checkmark Icon Verified purchase

3 found this helpful


Great buy

I have them pushing two hifonics subwoofers
2,000rms each I love this amp

By Anonymous on December 12, 2019

3 found this helpful


Soundstream AR1.4500D

Very efficient mono... It's worth the buy... You get lots of performance for a low cost

By Anonymous on March 10, 2019

3 found this helpful


AWSOME PERFORMANCE FOR THE BUCK

For the price, this amp performs excellent and above expectations.

By JULIO on May 12, 2020 Checkmark Icon Verified purchase

2 found this helpful


Great product for a great price.

If your looking for an amp that delivers great power but don’t have a high budget, then this amp will be a good choice it’s not to expansive and the power it delivers is great. It also has a backlit logo which makes it look so much more expensive then what it really is.

By Anonymous on August 1, 2019

2 found this helpful


Great power, low price

Currently running 1 T5.124 on a two ohm load with this amp. Soon to add another T5 and drop to one ohm. I have yet to even have the amp feel warm. It handles all I want it to do. Only negative I have is the bass knob is pretty cheapo plastic. It works but just doesn't have the quality like the amp. Will review more after adding other sub and running on one ohm load. I would recommend this amp already though.

By Anonymous on August 5, 2018 Checkmark Icon Verified purchase

2 found this helpful
