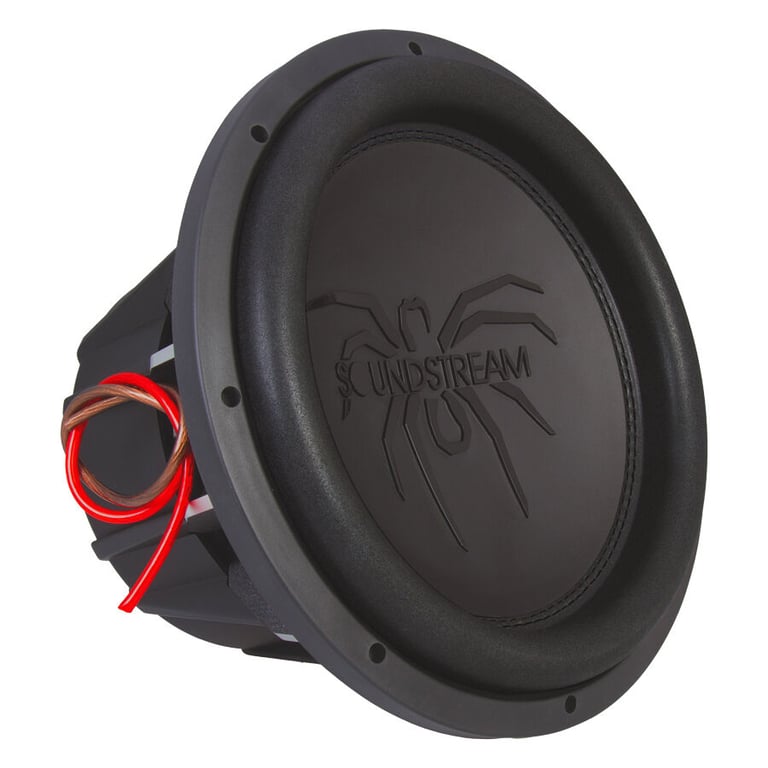

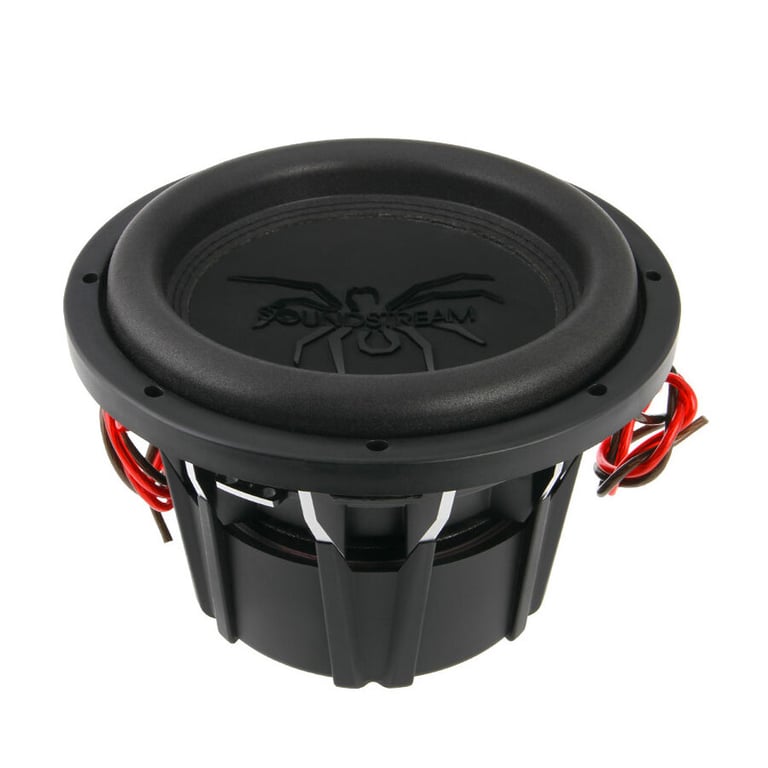

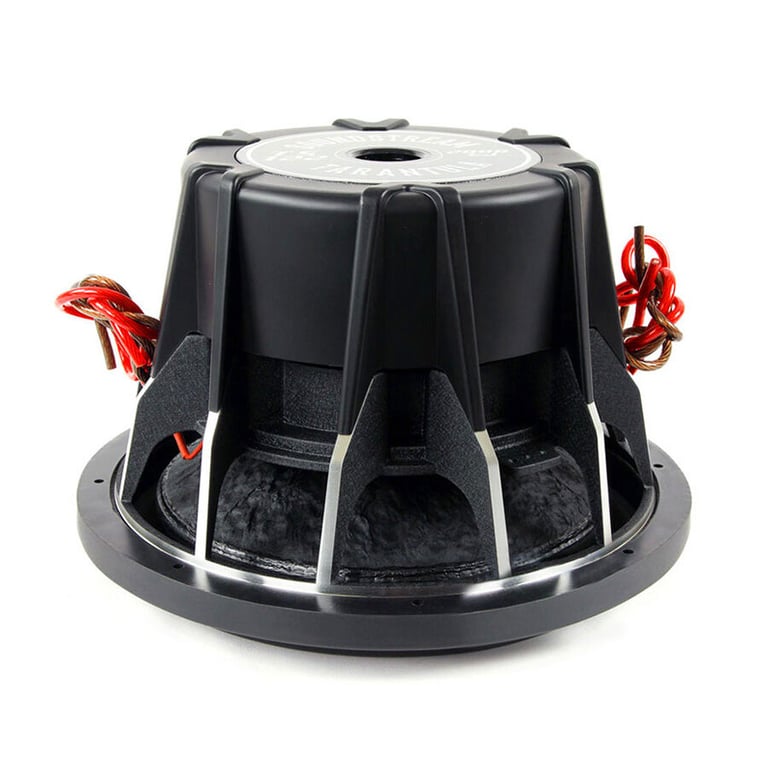

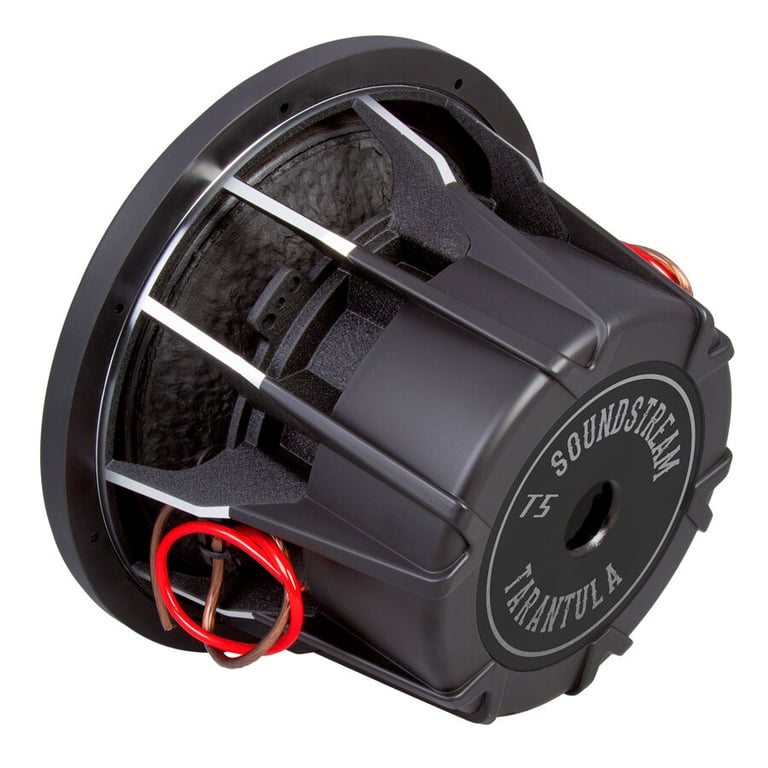

Name: Soundstream T5.104
Brand: Soundstream
SKU: t5104
Price: 169.95 USD
Availability: Discontinued
Rating: 5.0000 (4 reviews)

Shop all Soundstream

by Soundstream

About
Wiring Guide
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Product highlights

• 900Watts RMS
•1,800 Watts Max
• Non-transfer spruce pulp cone
• Polyether foam suround
• Die-cast aluminum basket
• Overcompensating motor structure
• Pre-wired terminals

Learn more about the t5104

Description

Authorized dealer

General Features:

10" 4-Ohm Tarantula Series Subwoofer
Power Handling:

Peak: 1,800 watts
RMS: 900 watts

Non-transfer spruce pulp cone with UV and chemical protection
Polyether foam surround
Overcompensasting motor structure
Stitched and glued surround and cone joints
Die-cast aluminum basket
Pre-wired terminals
3" Dual voice coil
Top-mount depth: 6.25"
Cutout diameter: 9.375"
Sensitivity: 83.5 dB
Resonance Frequency (Fs):
*Some specs may differ in manual and packaging, above specs based on manual*
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Soundstream T5.104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream T5.104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream T5.104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Soundstream T5.104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

Tarantula Series

Subwoofer Size

10"

Peak Power Handling

1800 watts

RMS Power Handling

900 watts

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

4 ohms

Voice Coil Material

Voice Coil Diameter

Sensitivity

83.5 dB

Xmax (millimeters)

14 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Non-trans

Woofer Surround

Polyether Foam

Magnet weight

Magnet Type

Subwoofer Grille

CTA-2031 Compliant

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Minimum Sealed Box Volume

.5 cubic feet

Optimum Sealed Box Volume

.75 cubic feet

Maximum Sealed Box Volume

1 cubic feet

Minimum Ported Box Volume

1 cubic feet

Optimum Ported Box Volume

1.25 cubic feet

Maximum Ported Box Volume

1.5 cubic feet

Top-Mount Depth (Mounting Depth)

6.25"

Cutout Diameter

9.37"

Shallow Mount Installation

Electromechanical Parameters

Free-Air Resonance (Fs)

40.5 Hz

Equivalent Compliance (Vas)

.37 liters

Total Speaker Q Value (Qts)

5.99

Electrical Q Value (Qes)

.666

Electrical Resistance of Voice Coil (Re)

7.2 ohms

Mechanical Q Value (Qms)

What is in the box?

Paperwork

WITB: Subwoofers

Other Accessory #1

Other Accessory #2

Other Accessory #3

Other Accessory #4

Other Accessory #5

Other Accessory #6

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
