Boss PV3700 5 Channel Amplifier w/ Complete 4 AWG Amp Kit

3700W 5-Channel Phantom Series Full Range Class AB Amplifier + Amp Kit

Boss
Shop all Boss
highlight-star-icon

• RMS: 225W x 4 + 750W x 1 @ 4 ohm
• Total Peak Power: 3700W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• Complete 4 Gauge 6-Channel Amplifier Installation Kit

Learn more about the pv3700_bak46

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Boss brand icon

Authorized dealer

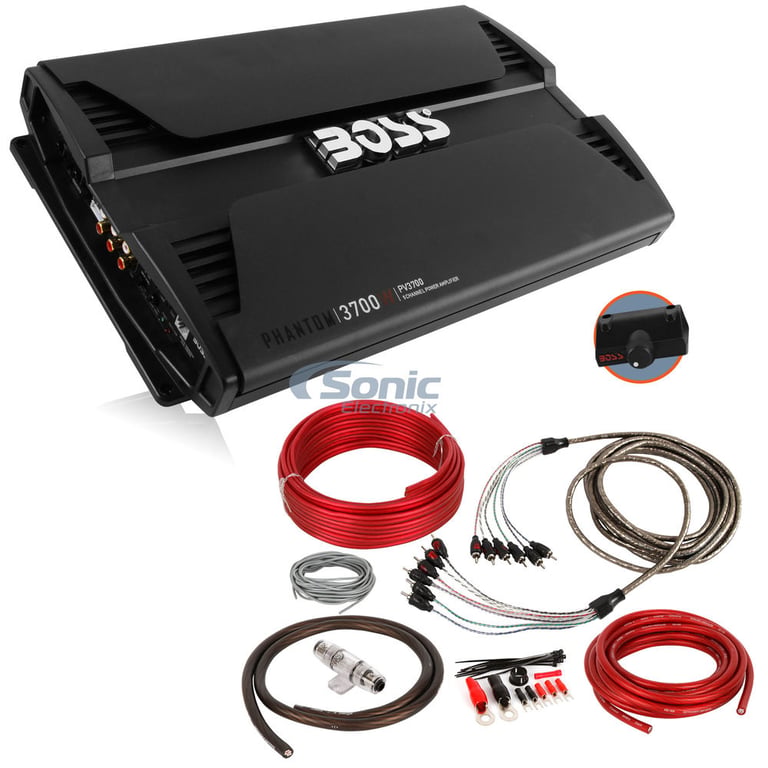

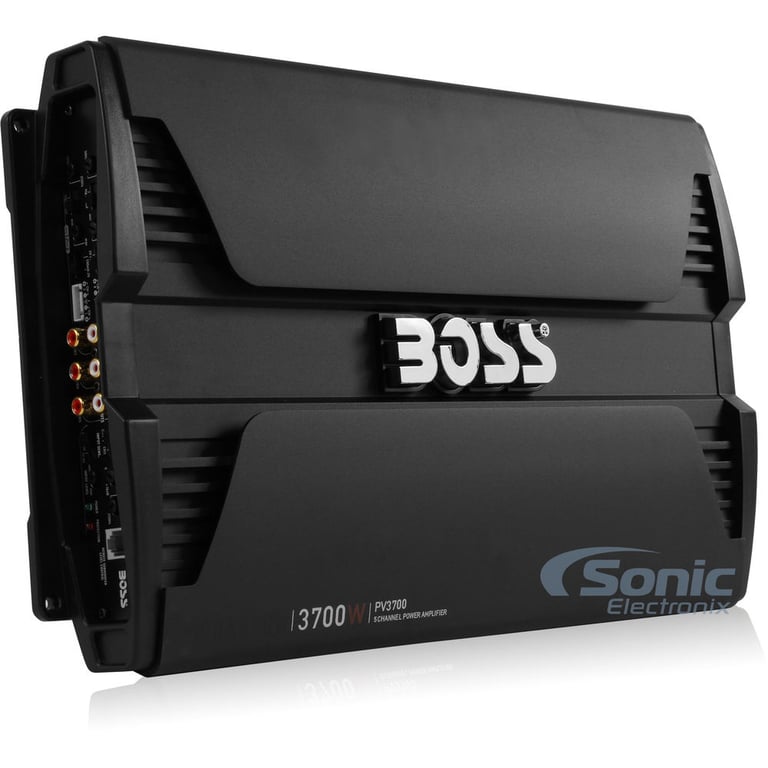

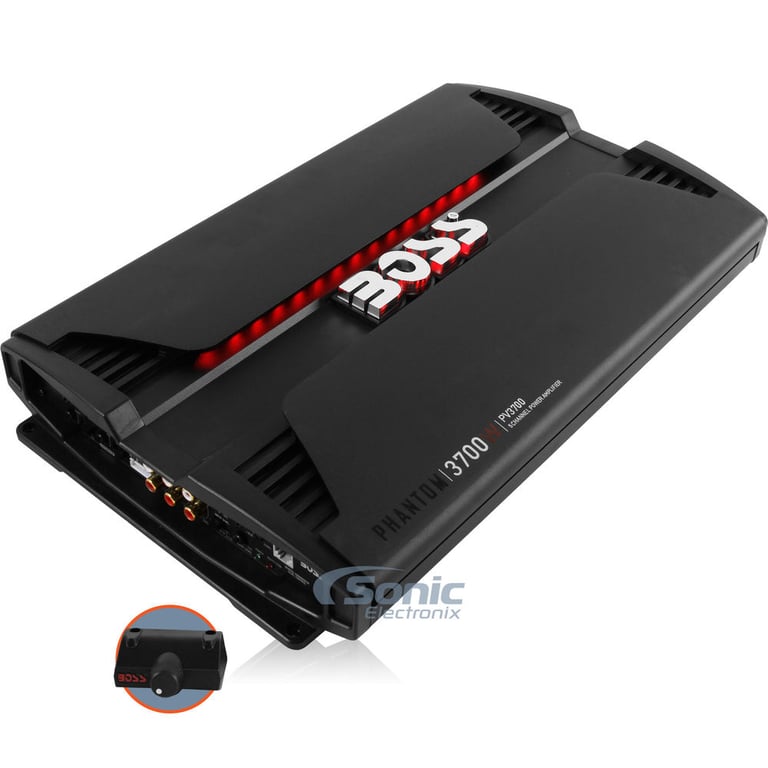

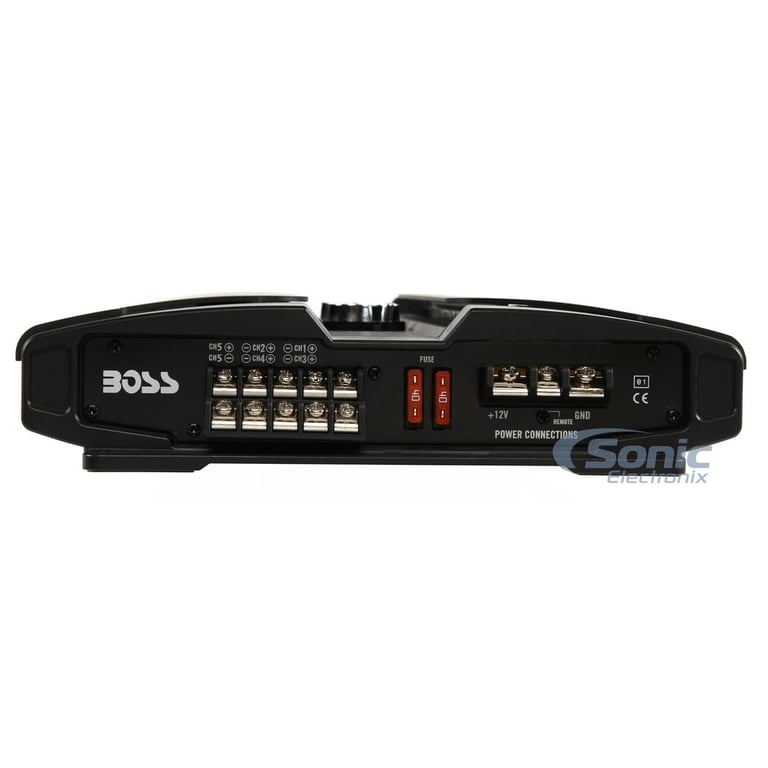

Boss PV3700

3700W 5-Channel Phantom Series Full Range Class AB Amplifier
Quantity: 1

General Features:

  • Phantom Series 5 Channel Full Range Class AB Amplifier
  • RMS Power Rating:
    • 4 ohm: 225 watts x 4 chan. + 750w x 1 chan.
  • Peak Power Rating:
    • 2 ohm: 500 watts x 4 chan. + 1500 watts x 1 chan.
    • Bridged, 4 ohm: 1100 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

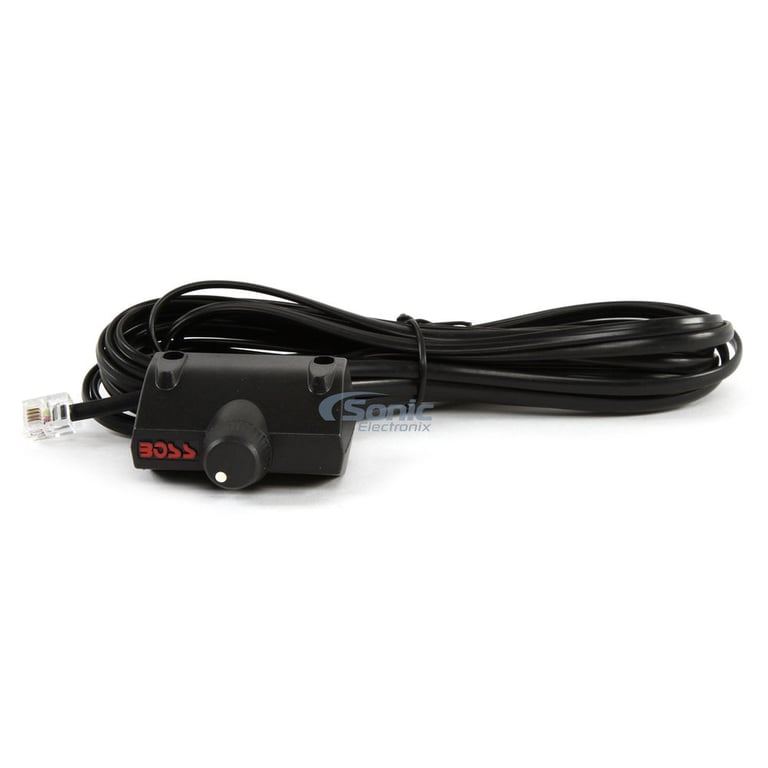

  • Wired remote bass level control included
  • Soft start turn-on

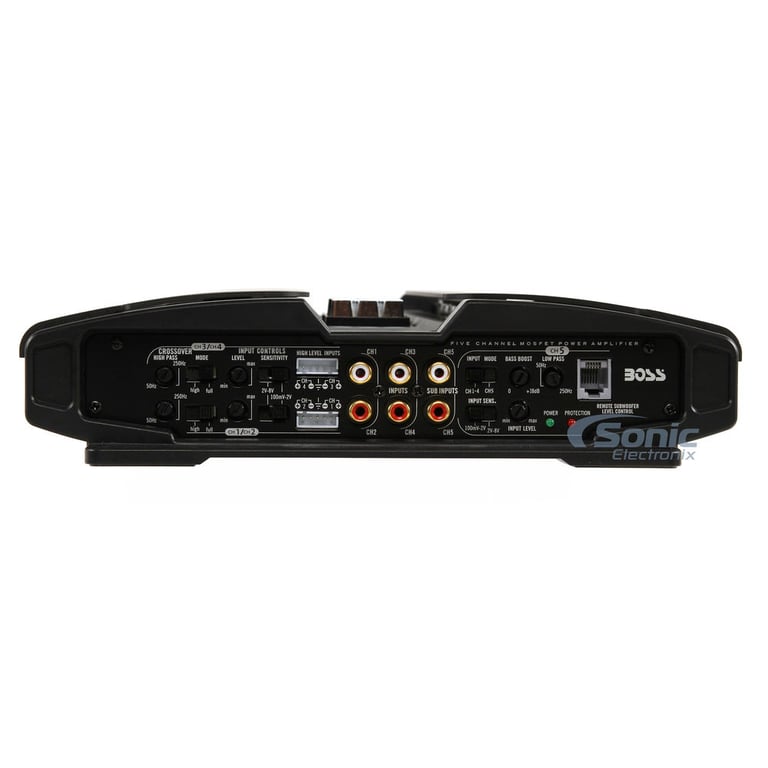

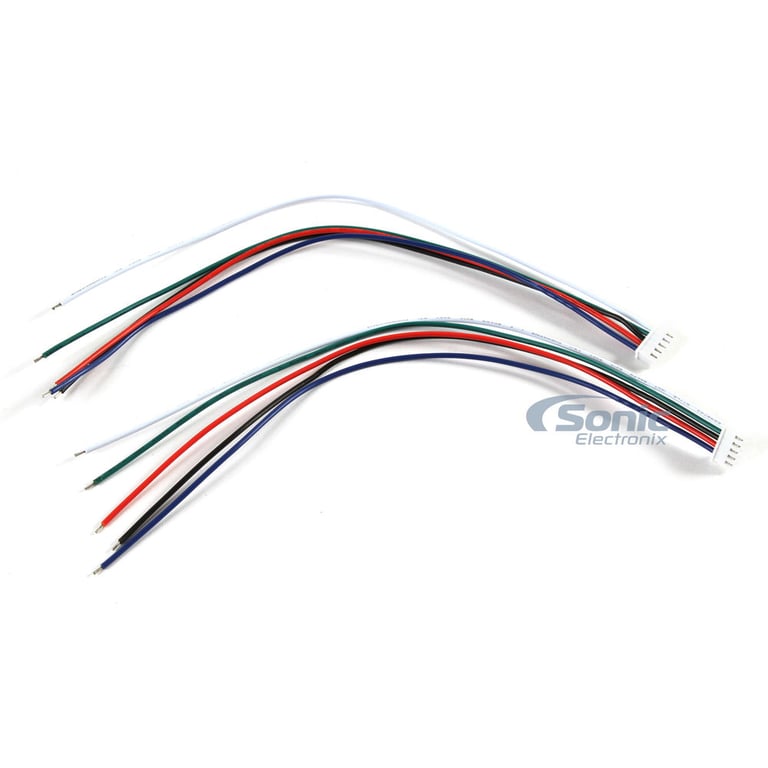

  • Speaker-level (high-level) inputs
  • Gold-plated RCA low level and high level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty black anodized heat-sink
  • Input sensitivity:
    • Low level: 2V - 8V
    • High level: 100mV - 2V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 103 dB
  • Channel Separation: 90 dB
  • Damping Factor: 125+
  • Variable Bass Boost: 0 to +18dB
  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Fuse Rating: 40A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.31"W x 17.00"L x 2.25"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

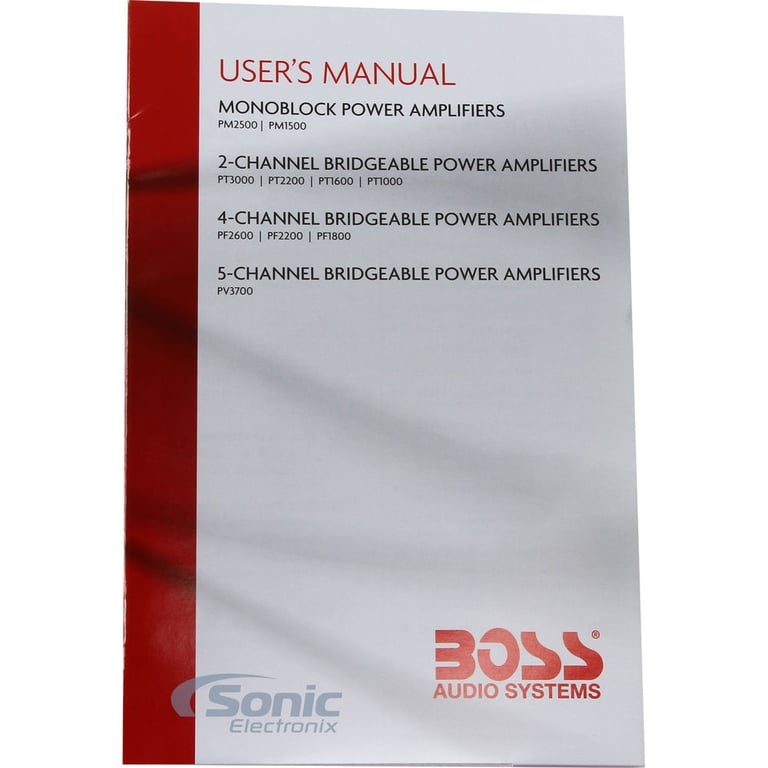

Check out the Boss PV3700 Owner's Manual

Belva BAK46

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

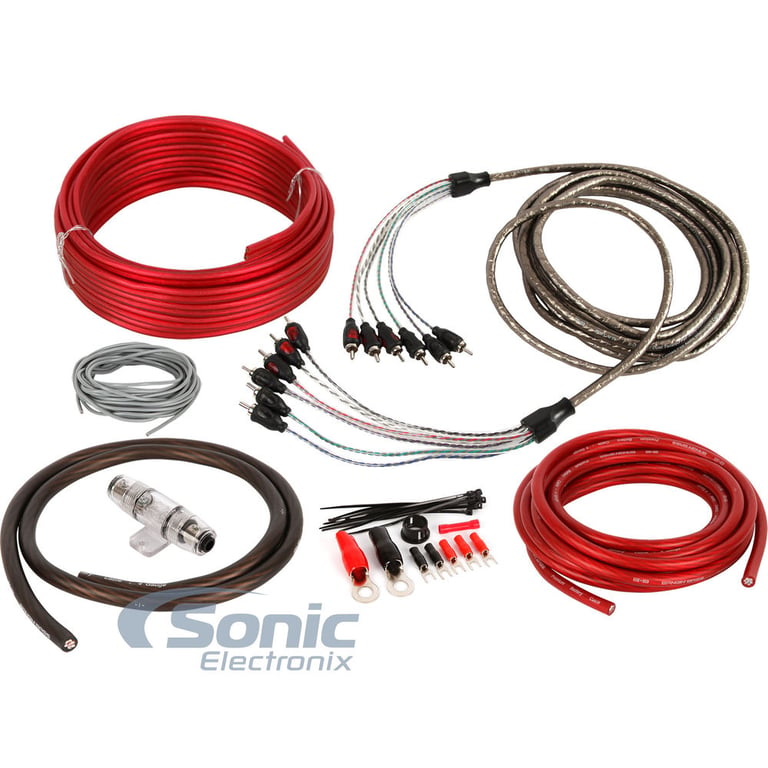

Kit includes:

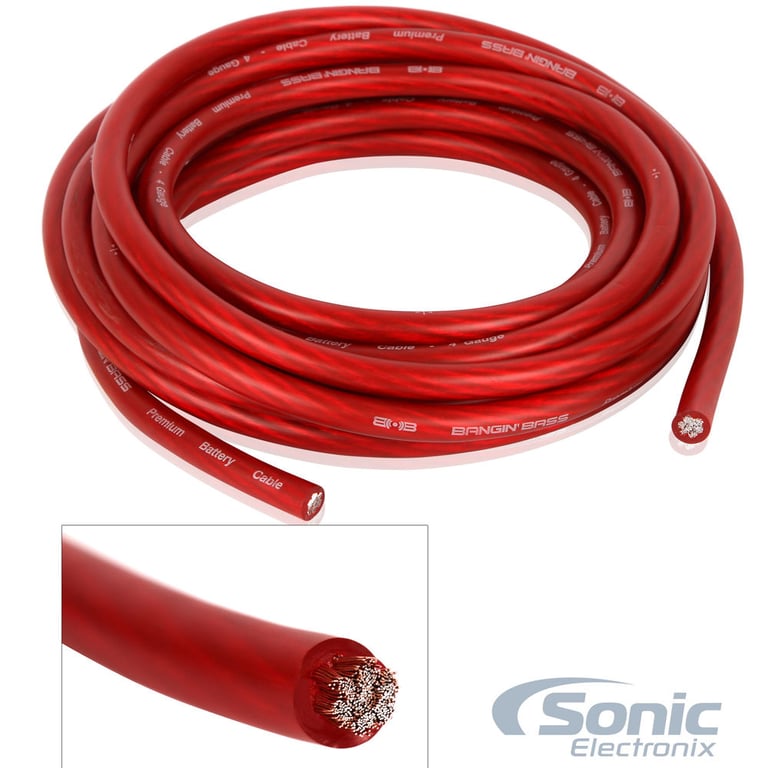

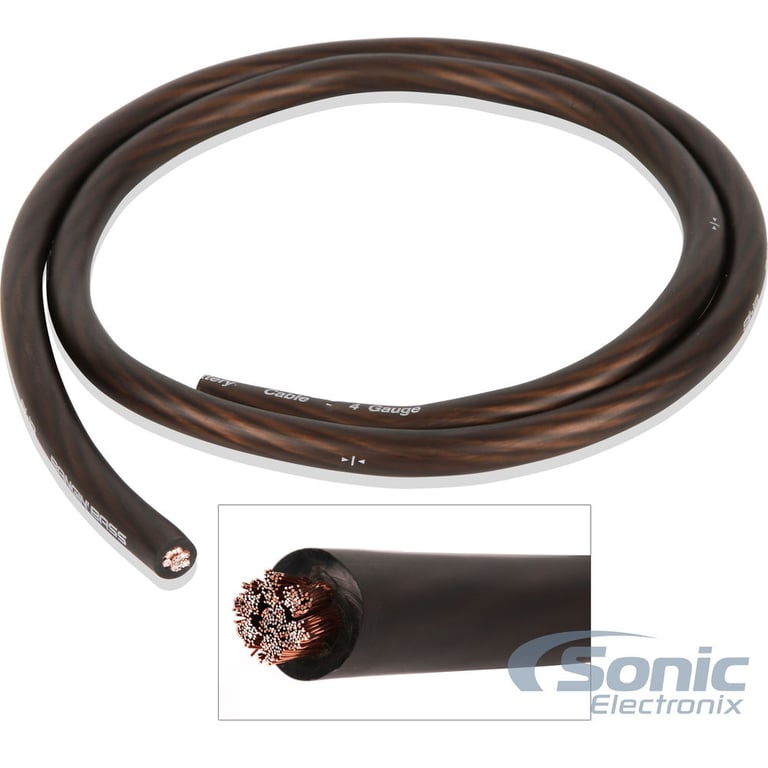

  1. 17 ft. (5.2 meters) Red 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire

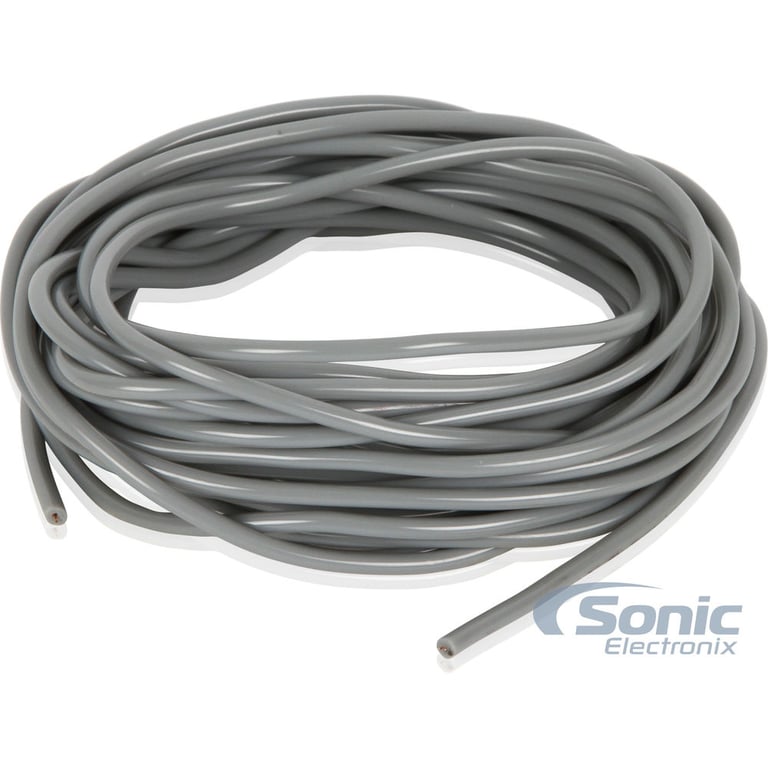

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

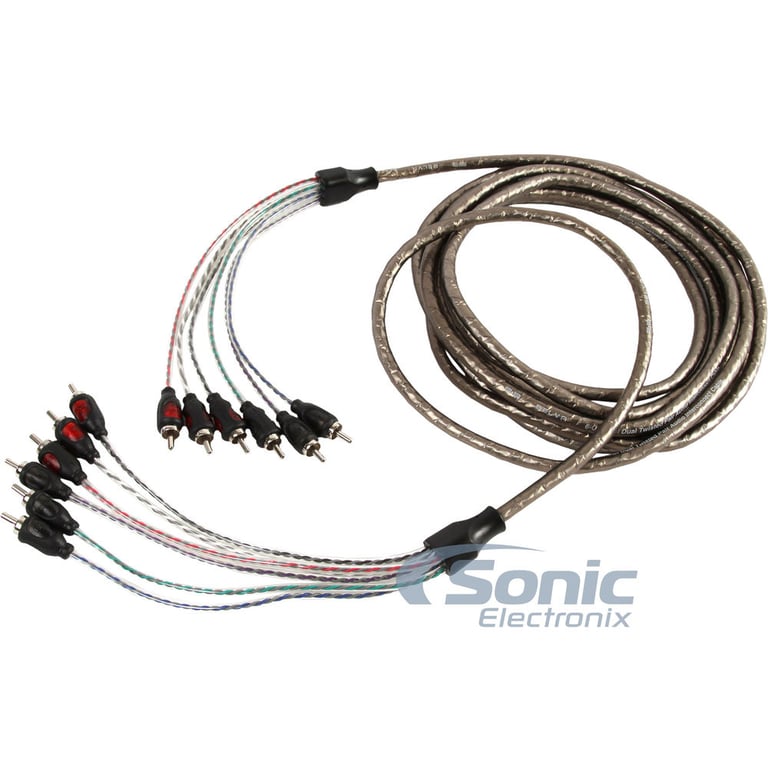

  4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable

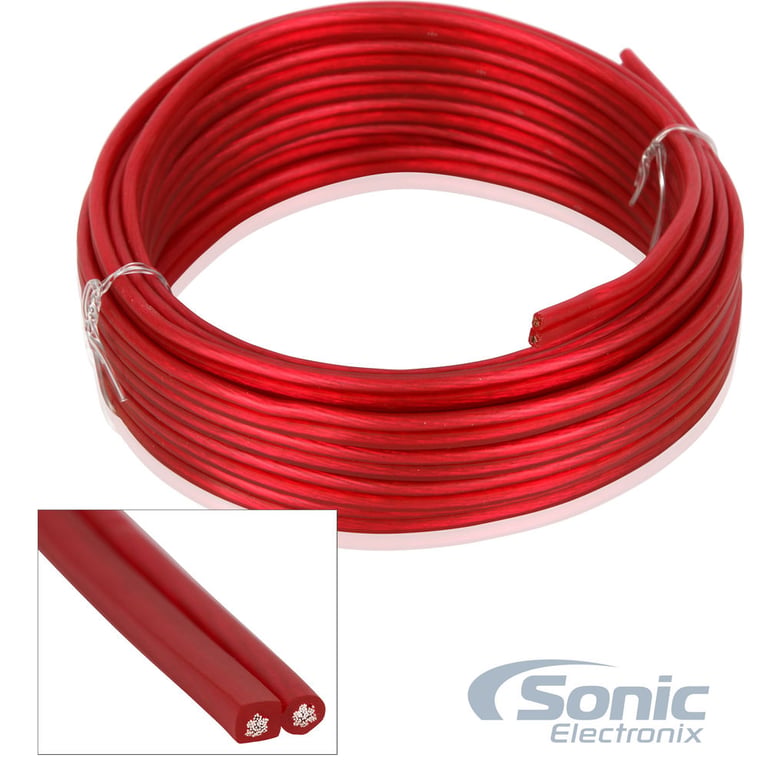

  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable

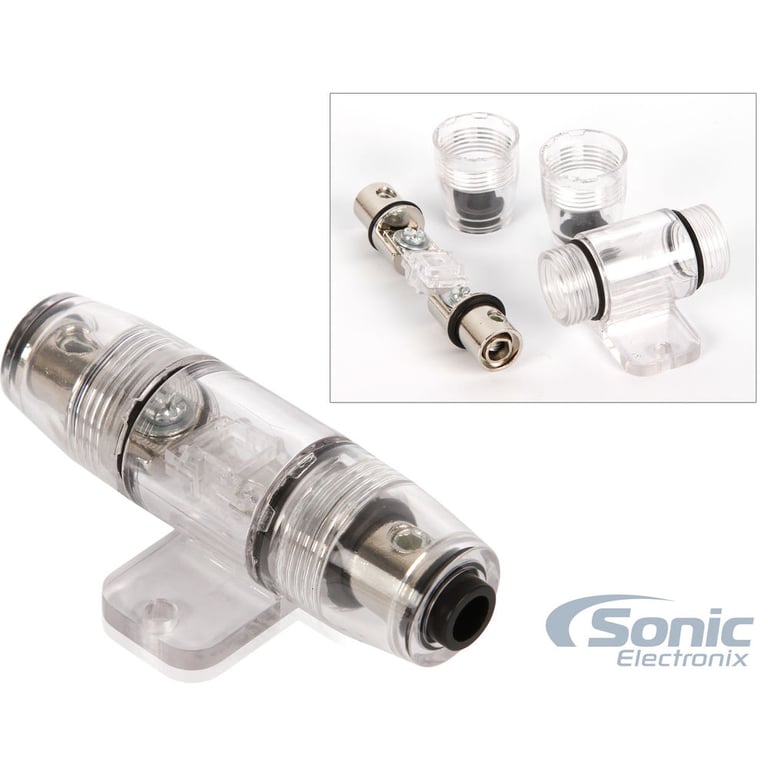

  6. One MINI-ANL Fuse Holder with a 80 amp fuse

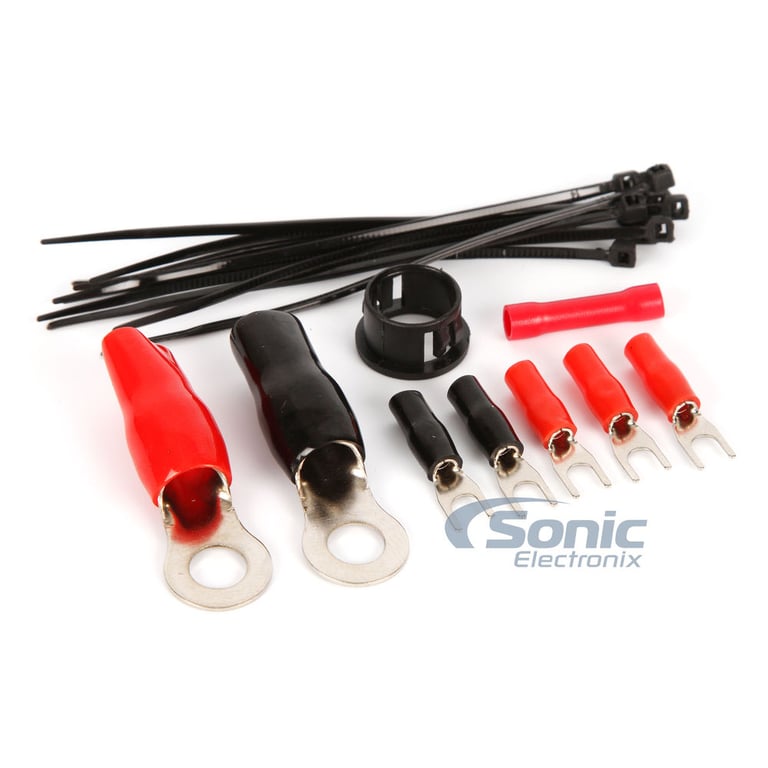

  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
3700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK46,PV3700

Weight:

18.33lbs

Internal SKU:

pv3700_bak46

Internal Product ID:

128841

Customer Ratings & Reviews


Boss PV3700 5 Channel Amplifier w/ Complete 4 AWG Amp Kit thumbnail image

5 star
81%
4 star
12%
3 star
5%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Value/perfect Amp install kit for my 5 channel

The following review is for BAK46, which is a part of the bundle you are viewing.

This Amp install kit made it easy as I had 6 in to 1 rca cables on both ends and made it easier to fish in the wires Through the front to the back...

By Abner on January 25, 2018

57 found this helpful


Excellent

The following review is for BAK46, which is a part of the bundle you are viewing.

Everything fit my amp as if they spoke with the manufacturer beforehand. the lengths are correct the RCA's I love them. The quality and feel!! I saw FEDEX coming and I felt like a little kid. Sitting at my dining room table pre-wiring and letting the cables get used to being straight again after being coiled in the package. You WILL NOT BE DISAPPOINTED!!!

By Anonymous on November 18, 2018

55 found this helpful


quality

The following review is for BAK46, which is a part of the bundle you are viewing.

The RCA cable was really convenient. I was even able to cut it in the middle to fit it through a small hole and then solder it back together. (this did take a looong time but its possible)
Wire was quality too

By Sean on October 30, 2017

54 found this helpful


Helpful kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Great kit with everything you need to get your system going and can handle adequate power

By David on February 3, 2020 Checkmark Icon Verified purchase

50 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

The kit is complete with everything you need to install an amplifier and speakers.
Power and ground wire very flexible.

By casper on February 9, 2022 Checkmark Icon Verified purchase

47 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

I bought this kit and am quite happy with it, the 4 gauge cable and RCA's seem to be of high quality along with the rest of the parts. only problem I had was the length of the power cable, in an avalanche I came up about 2ft short mounting the amp in the back of the truck so I had to go to the local shop to get a 2ft cable to make it from the fuse to the battery. would I buy this kit again yes.....

By David on April 2, 2017 Checkmark Icon Verified purchase

50 found this helpful


Just do it ..

The following review is for BAK46, which is a part of the bundle you are viewing.

I questioned whether the installation kit would really be "all that."

It was .. almost everything you need is included ... I opted for getting the quick connect/disconnect adapters for the speakers. Had those been in the kit I would have lost it.

Great quality, great layout, totally worth it.

By MICHAEL on October 5, 2015

47 found this helpful


Great Kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Bought this and am sooo happy I did. Price was great and the quality of all the components is too. Even the speaker was great quality. Highly recommend.

By Brian on October 20, 2016

47 found this helpful


Great price fast delivery

The following review is for BAK46, which is a part of the bundle you are viewing.

Great value for quality products and fast delivery will order again

By Anonymous on October 19, 2019

43 found this helpful


Great value

The following review is for BAK46, which is a part of the bundle you are viewing.

I got this kit free with an NVX amp I ordered and I have to say it's a great kit, the speaker wire worked great as well as the rca's as I had no road noise with them. Would recommend to anyone not looking to break the bank.

By Lucas on January 23, 2022 Checkmark Icon Verified purchase

41 found this helpful



BAK42BK,EVO4000.1 small

Sound Storm Labs (SSL) EVO4000.1 4000W Class D Amplifier + Amp Kit + Remote

4000W Max (3000W RMS) EVO Series Class-D Monoblock 1 ohm Stable Amplifier with Bass Knob Included

(63)

$194.94

List price $326.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Nissan Maxima

2008 Cadillac XLR

2014 Scion xB

2010 Dodge Challenger

2004 GMC Sierra 1500

2000 Jaguar XJ8

2016 Chevrolet Corvette

1990 Isuzu Trooper

2010 MINI Cooper

1984 Ford Thunderbird

Vehicle
Store
Delete

2008 Harley Davidson FXSTC Softail Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
