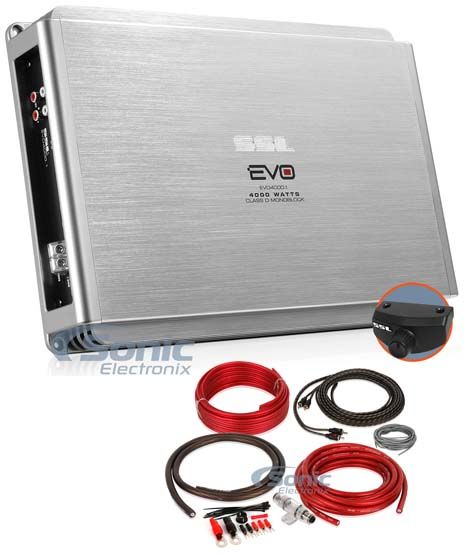

Sound Storm Labs (SSL) EVO4000.1 4000W Class D Amplifier + Amp Kit + Remote

4000W Max (3000W RMS) EVO Series Class-D Monoblock 1 ohm Stable Amplifier with Bass Knob Included

highlight-star-icon

• 750W RMS x 1 @ 4 ohms
• 1500W RMS x 1 @ 2 ohms
• 3000W RMS x 1 @ 1 ohm
• Total Peak Power: 4000 Watts
• Built-In Low Pass and Subsonic Filters
• 0-18 dB Bass Boost
• Aluminum Heatsink
• Dimensions: 10" W x 14.69" L x 2.3" H

Learn more about the evo40001_bak42

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

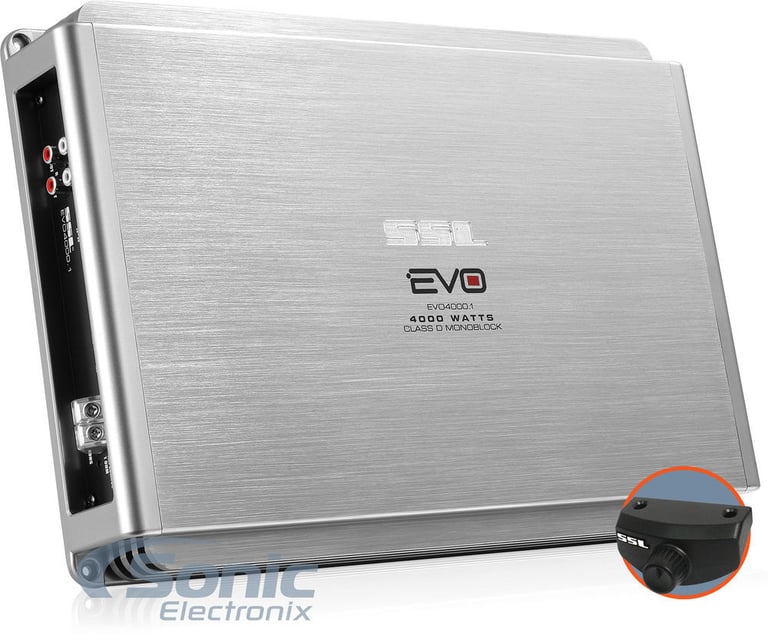

Sound Storm Labs (SSL) EVO4000.1

4000W Max 4000W Peak (3000W RMS) EVO Series Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • EVO Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 750 watts x 1 channel
    • 2 ohms: 1500 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
    • Strapped Bridged: 6000 watts x 1 channel @ 2 ohms
  • Peak Power Rating:
    • 2 ohms: 2000 watts x 1 channel
    • 1 ohm: 4000 watts x 1 channel
  • Total RMS power output: 3000 watts
  • LED Power/Protect Light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • MOSFET PWM (Pulse Width Modulated) Power supply
  • Soft turn-on circuit
  • Nickel plated RCA low level inputs
  • Nickel plated speaker and power terminals
  • Dark Gray anodized heatsink
  • Switchable phase control: 0 to 180°
  • Input sensitivity:
    • Low level: 100mV - 2 volts
    • High level: 2V - 8 volts
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 15 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 105A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14.69" L x 10" W x 2.3" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: EVO4000.1

Check out the Sound Storm Labs (SSL) EVO4000.1 Owner's Manual

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue and Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

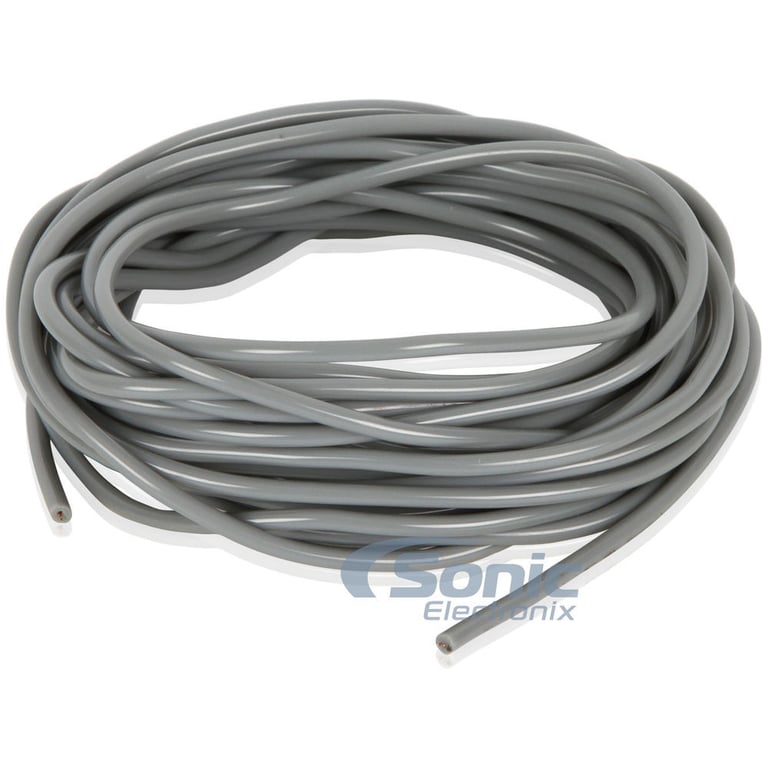

  1. 17 ft. (5.2 meters) Gray 4 gauge power wire

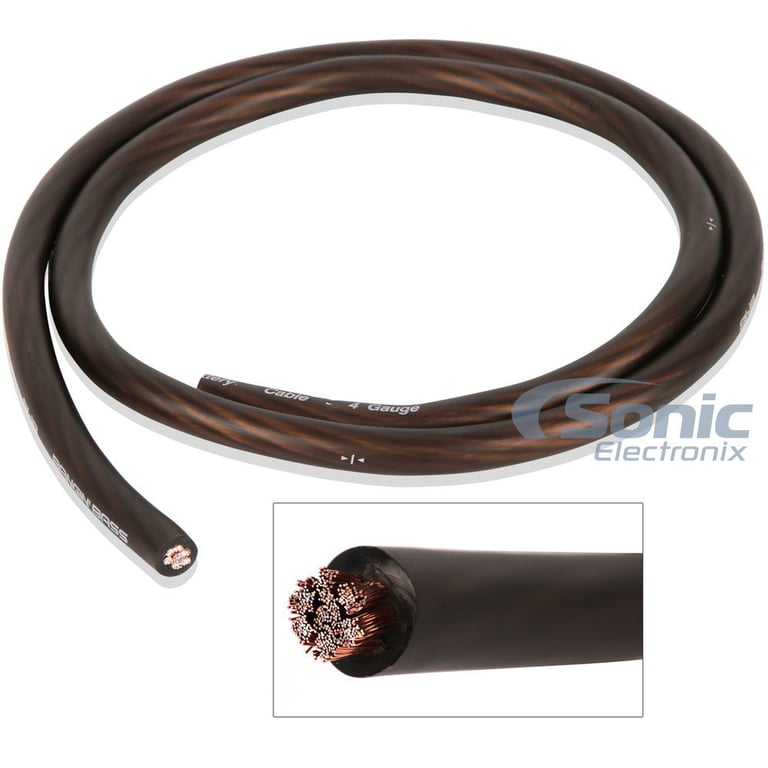

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

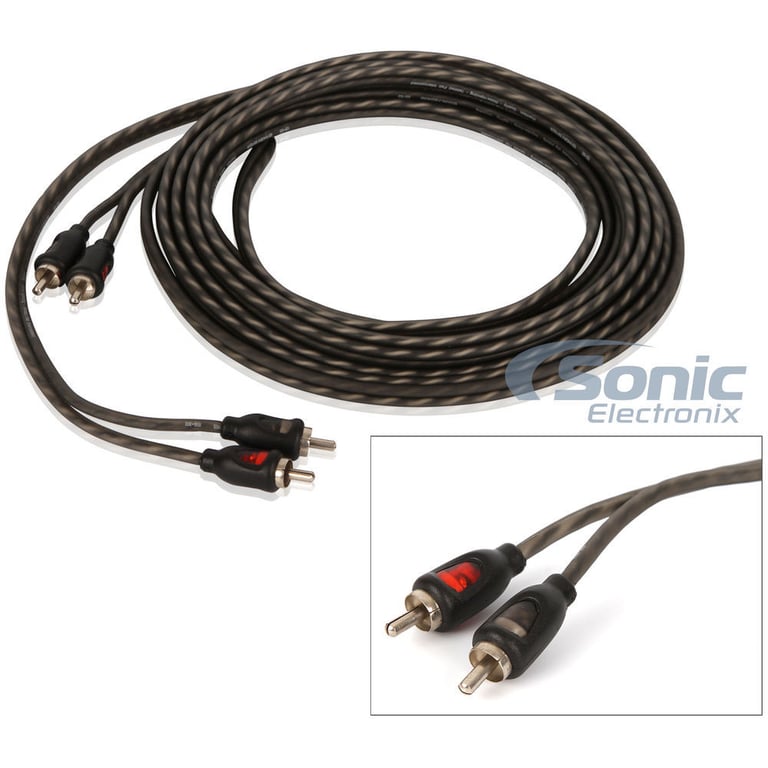

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

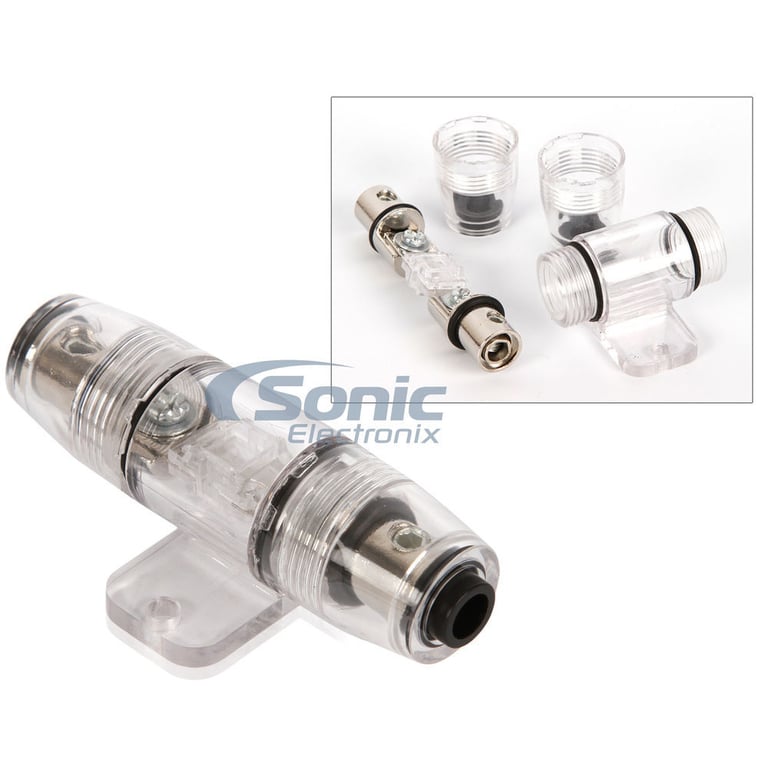

  6. One MINI-ANL Fuse Holder with a 80 amp fuse

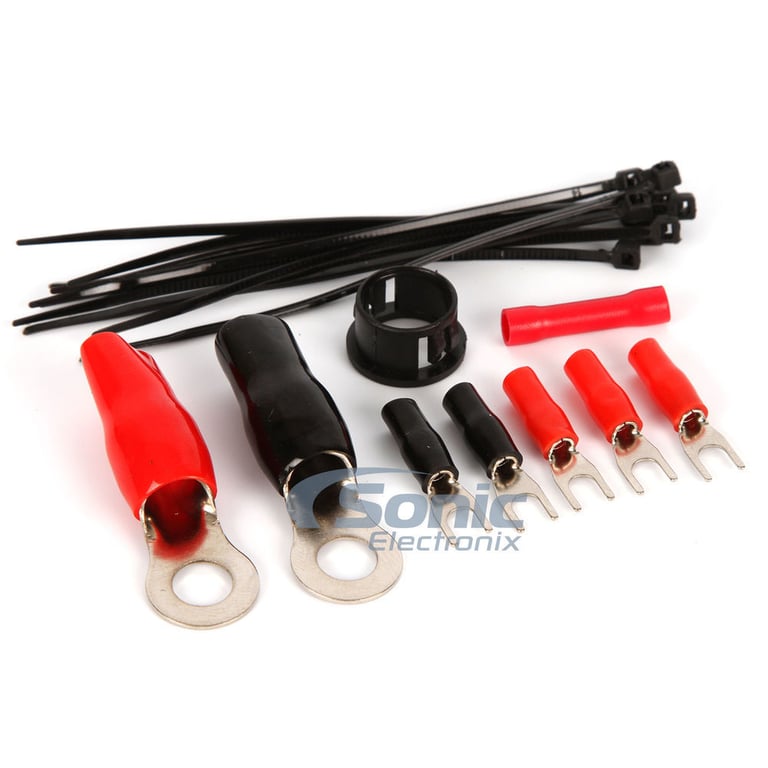

  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
Bridged RMS Power
6000 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 3
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK42BK,EVO4000.1

Weight:

14.54lbs
