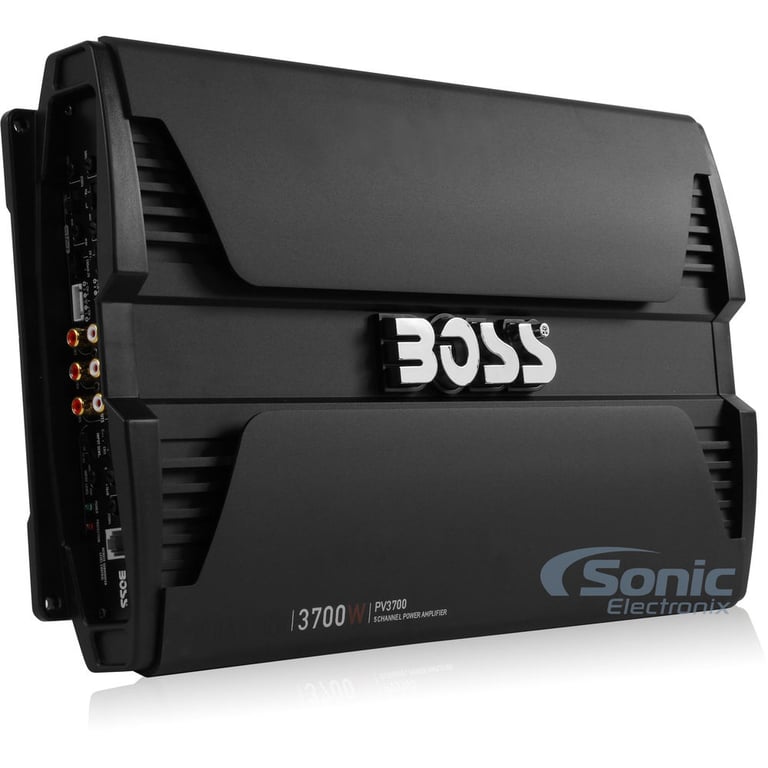

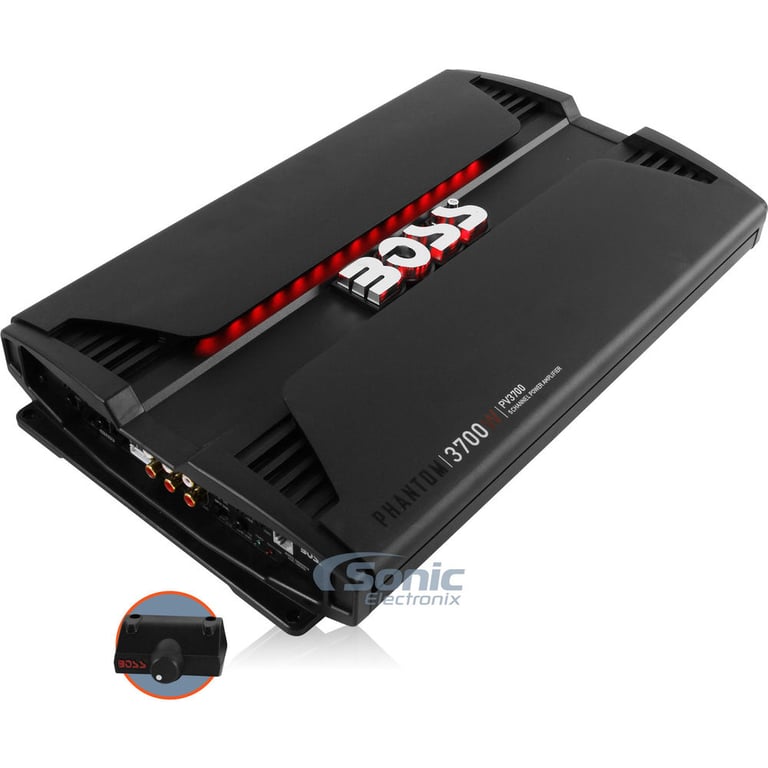

Boss PV3700

3700W 5-Channel Phantom Series Full Range Class AB Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 225W x 4 + 750W x 1 @ 4 ohms
• Total Peak Power: 3700W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 17.00" L x 2.25" H

Learn more about the pv3700

We apologize

This item has been discontinued

Expert built bundles that save you more (1)


Choose from any of our many bundles that include this product for even more savings!

Boss PV3700 5 Channel Amplifier w/ Complete 4 AWG Amp Kit

3700W 5-Channel Phantom Series Full Range Class AB Amplifier + Amp Kit

(28)

$260.98

Product Highlights


• RMS: 225W x 4 + 750W x 1 @ 4 ohms
• Total Peak Power: 3700W
• Gold-plated RCA low level and high level inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.31" W x 17.00" L x 2.25" H

Description


Boss

Authorized dealer

General Features:

  • Phantom Series 5 Channel Full Range Class AB Amplifier
  • RMS Power Rating:
    • 4 ohms: 225 watts x 4 chan. + 750w x 1 chan.
  • Peak Power Rating:
    • 2 ohms: 500 watts x 4 chan. + 1500 watts x 1 chan.
    • Bridged, 4 ohms: 1100 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • Gold-plated RCA low level and high level inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

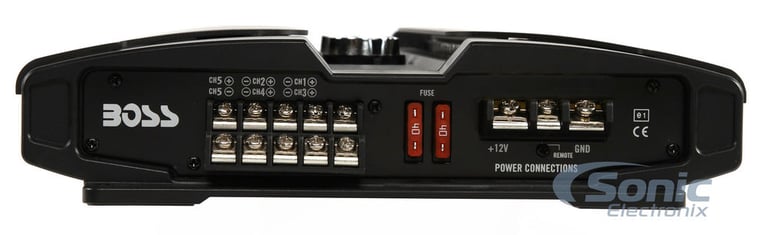

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty black anodized heat-sink
  • Input sensitivity:
    • Low level: 2V - 8V
    • High level: 100mV - 2V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 103 dB
  • Channel Separation: 90 dB
  • Damping Factor: 125+
  • Variable Bass Boost: 0 to +18dB
  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Fuse Rating: 40A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.31"W x 17.00"L x 2.25"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Check out the Boss PV3700 Owner's Manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
500 watts x 4 channel
Bridged Peak/Max Power
1100 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
1500 watts x 1 channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Phantom Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
5
Total Peak Power Output
3700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

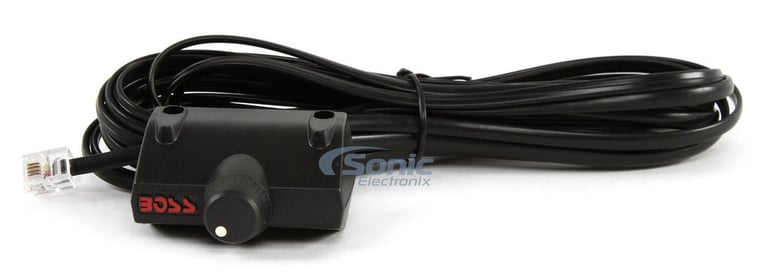

Wired gain knob (wire attached)

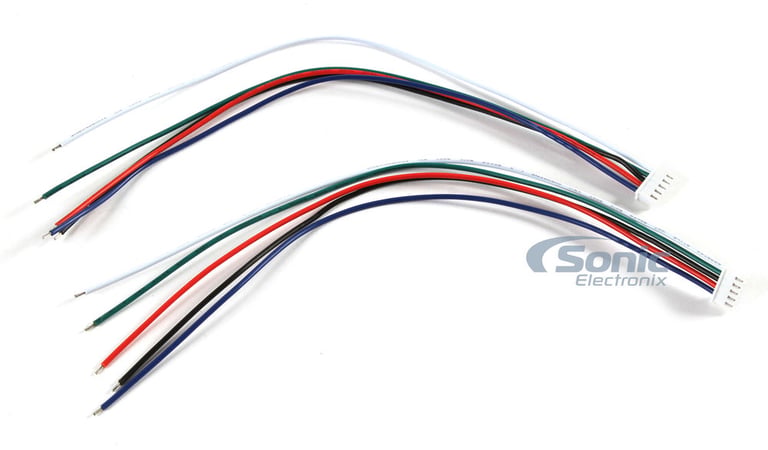

High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PV3700

Weight:

13.90lbs

Internal SKU:

pv3700

Internal Product ID:

93807

Product and How-to Videos


Customer Ratings & Reviews



5 star
75%
4 star
13%
3 star
6%
2 star
0%
1 star
6%



Durability
4.5
Value
4.6
Features
4.8
Design
4.7
Usability
4.8
Sort by:

Loading...

Best amp for the money

After spending a few weeks getting the crossover in my head unit set up, this has turned out to be an amazing 5 channel amp for the money. Im only running a 4 ohm load on the sub channnel and its very respectable. Ive had all of the top name amps and I really cant see the justification in buying them unless you're an extreme audiophile or into competitions.

By Chad on October 19, 2015

20

found this helpful.

Boss PV3700

This amp worked perfect for my system using all 5 channels has the power to push it all very nice quality

By Anonymous on June 12, 2018

9

found this helpful.

No problems, big sound.

I am running 4 kicker 6.5's, 2 tweeters, and 2 kicker comp 15's on this thing and it slams. Gain a little over half on the sub channel. For the price it's the best around and performs surprisingly well.

By Keene on August 31, 2017

9

found this helpful.

Great sound for value .

This amp has really good clean power especially for it's price .I was not expecting any thing near the quality of sound it gives along with plenty of volume . I am using this 5 ch amp with 4- JBL 6X9's & 2- JBL 10" Subs .

By jeff on August 28, 2017

7

found this helpful.

Awesome amp

I have bought several amps that did not work out, but this boss 5 channel amp runs my system with 12 inch subs and it rocks...Very well worth the money

By Richard on June 3, 2017 checkmarkIcon Verified purchase

7

found this helpful.

Great amp powerful enough

I hooked up this bad boy to a 1998 Expedition using the factory radio and 4 6x8 pioneer speakers and 2 pioneer 12" subs and its rocks

By alexander on March 31, 2017 checkmarkIcon Verified purchase

6

found this helpful.

Good product

Good product, easy to install, good sound quality. Highly Recommended

By Chucho on December 12, 2016

6

found this helpful.

Excellent product

Great power , clean sound able to run all my speakers with no problems

By Roy on November 13, 2016

6

found this helpful.

worth every penny and then some

what a great amp for the money. you could easily spend two or three times as much for and amp that does what this one does. puts out loud clear clean sound no problems. don't waste money on big names. this amp is all you need.

By James on April 1, 2016

8

found this helpful.

Good Value

Plenty of power at a good price. Getting some engine noise that i need to work out but that is minor. The amp is running a set of components, a set of 6.5", and 2 subs. I am satisfied except for the minor noise.

By M on January 20, 2018

5
