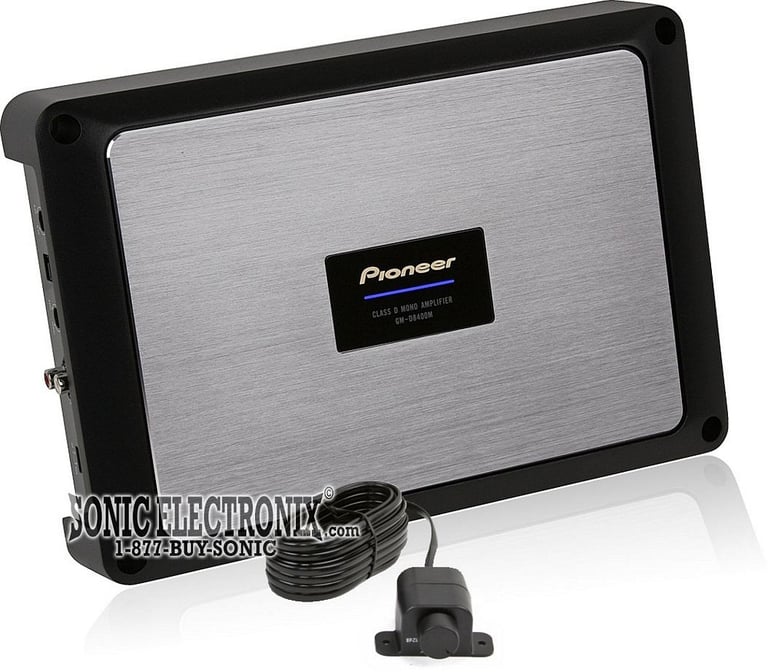

Pioneer GM-D8400M

1200W Max, Class D Monoblock Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

GM Digital Series Class D Monoblock Car Amplifier • 300W x 1 chan. @ 4 ohm • 600W x 1 chan. @ 2 ohm • 1200W x 1 chan. Max • Wired Remote Bass Level Control Included • Speaker-level Inputs with Included High-level to RCA Adapter

Learn more about the gmd8400m

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

LS-gmd9601-OBCra229300 thumbnail

Pioneer GM-D9601 OPEN BOX COMPLETE

OUR PRICE: $169.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-7502 main

Metra 82-7502

Tweeter Mounting Adapter Plate (for select 2019-2023 3 and CX-30)

1
-43.78%

$8.99

List price $15.99

A275C main

AudioControl A275C

100W RMS 2.75" Altitude Series Component Midrange 4-ohm Car Speakers

1
-28.99%

$49.00

List price $69.00

Product Highlights


GM Digital Series Class D Monoblock Car Amplifier • 300W x 1 chan. @ 4 ohm • 600W x 1 chan. @ 2 ohm • 1200W x 1 chan. Max • Wired Remote Bass Level Control Included • Speaker-level Inputs with Included High-level to RCA Adapter

Description


Pioneer brand icon

Authorized dealer

  • GM Digital Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max power output: 1200 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator

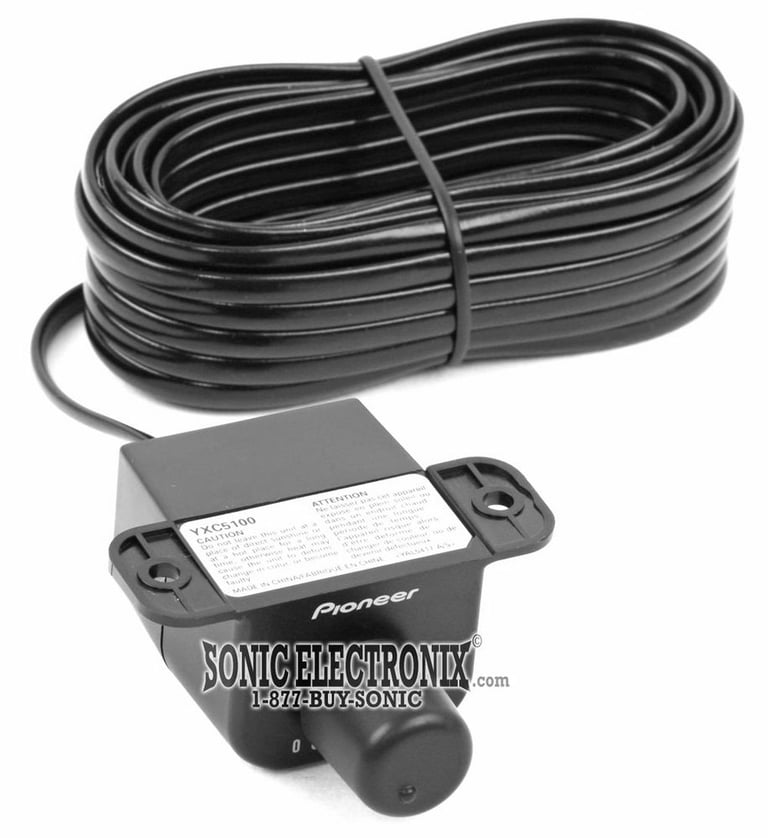

  • Wired remote bass level control included
  • Variable bass boost (0-12 dB at 50 Hz)
  • Compact amplifier design
  • Balanced isolator input circuit
  • Speaker-level inputs with included high-level to RCA adapter
  • Heavy duty aluminum alloy heatsink
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals

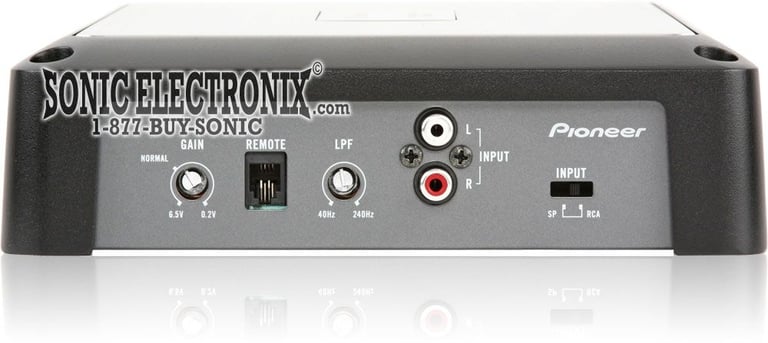

  • Variable low-pass filter (40-240 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • Dimensions: 11-3/8"L x 7-7/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer LS-GM-D9601-OBC-2 thumbnail
(newest, current model)
Pioneer GM-D8500M thumbnail
(previous model, replaced by Pioneer GM-D9601 OPEN BOX COMPLETE)
Pioneer GM-D8400M thumbnail
(previous model, replaced by Pioneer GM-D8500M)

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

AP-W81AC main

Deaf Bonce Apocalypse AP-W81AC

1200W Peak (600W RMS) 8" Apocalypse Series 4-ohm Midbass Car Speakers

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

-17.26%

$239.95

List price $290.00

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

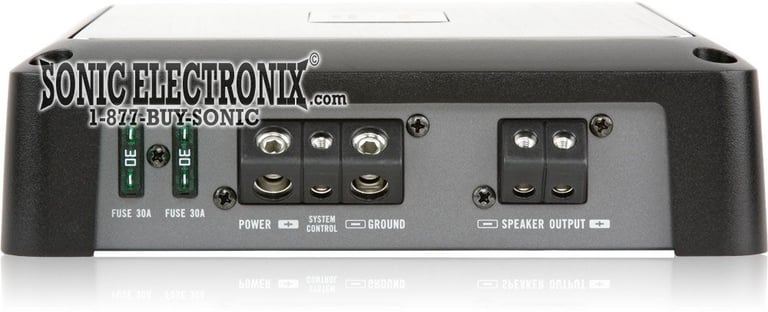

Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-D8400M

Weight:

9.00lbs

Internal SKU:

gmd8400m

Internal Product ID:

13240
