Pioneer GM-D8500M Class D Car Amplifier Monoblock Amp

Pioneer GM-D8500M

1200W Max GM Digital Series Class D Monoblock Amplifier

GM Series Monoblock Car Amplifier • Class D • 300W x 1 Chan. @ 4 Ohms • 600W x 1 Chan. @ 2 Ohms • 1200W Max • 0-12 dB Bass Boost • Chrome-Plated Terminals • Speaker-Level Inputs • Balanced Isolator Input Circuit

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

LS-gmd9601-OBCra229300 thumbnail

Pioneer GM-D9601 OPEN BOX COMPLETE

OUR PRICE: $169.99

View item
DESCRIPTION
Pioneer

Authorized dealer

  • GM Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 1 chan.
    • 2 ohms: 600 watts x 1 chan.
  • Max power output: 1200 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator

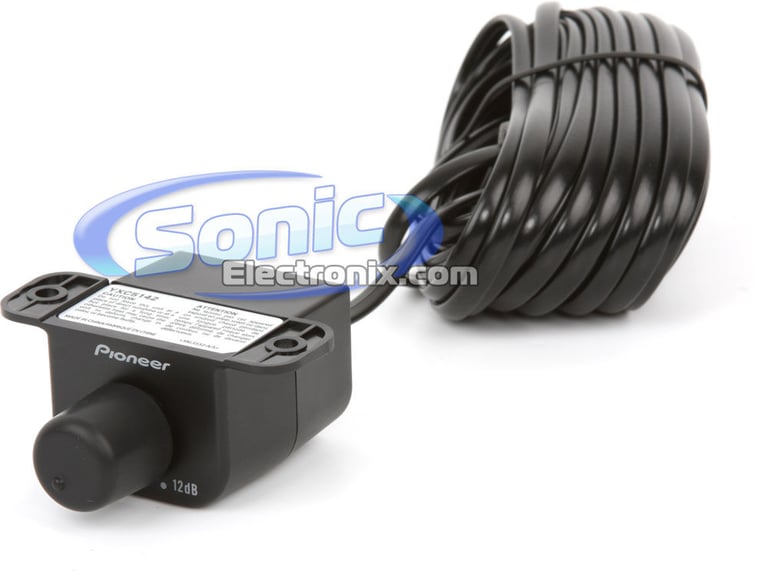

  • Wired remote bass level control included
  • Variable bass boost (0-12 dB at 50 Hz)
  • Compact amplifier design
  • Balanced isolator input circuit

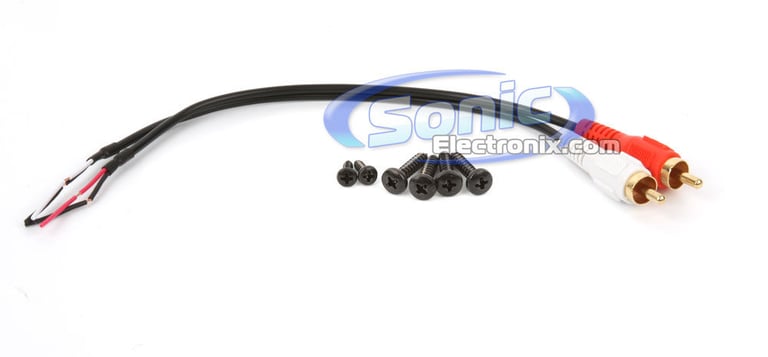

  • Speaker-level inputs with included high-level to RCA adapter
  • Heavy duty aluminum alloy heatsink
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable low-pass filter (40-240 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • Dimensions: 11-3/8"L x 7-7/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer LS-GM-D9601-OBC thumbnail
(newest, current model)
Pioneer GM-D8500M thumbnail
(previous model, replaced by Pioneer GM-D9601 OPEN BOX COMPLETE)
Pioneer GM-D8400M thumbnail
(previous model, replaced by Pioneer GM-D8500M)
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channels
RMS Power @ 2 ohms
600 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No
Fuse Rating
30A x 2
Total Fuse Rating
Strappable
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
VIDEOS AND HOW - TO
REVIEWS
Pioneer GM-D8500M

Pioneer GM-D8500M

4.8

(34)

Write a review

Overall rating distribution

5 star
85%
4 star
12%
3 star
3%
2 star
0%
1 star
0%

By feature average rating

Durability
4.8
Value
4.8
Features
4.4
Design
4.6
Usability
4.8

Tyrus

March 18, 2012

amazing amp

This amp looks perfect and puts out amazing power, i have this powering 2 12" power acoustics and they SLAM. This amp looks amazing and produces awesome sound and doesn't over heat.

16

found this helpful.

Tyler

June 26, 2012

wicked amp!

i have this amp powering two 12" svc pioneer subs, 300watts rms each wired to 2 ohms in a 1.68 cubic foot box (for each sub) ported and tuned to 45 hz, and they slam so hard i cant even use my rear veiw mirror anymore, nor my side mirrors! my whole car shakes so much i cant even have a drink in my cup holder without some slpashing out! this amp is way under rated, would recomend to anyone who wants a fair priced amp that rocks very hard and does NOT need an alternator upgrade to power!

im running it with stock 105 amp alternator, new battery and big 3 upgrade with 4 gauge wire and no problems what so ever. and im powering 2 other amps for my 8 speakers also!

also! these things are tough as a rock! i also have the gm-d7500m amp and my trunk leaked a bit (fixed now haha) and when i opened up the trunk, the equivilent of a whole bucket of water spilled dirrectly on top of it, and no sparks, no shorts, no nothing! it was perfeclty fine! like it was right on top of it!

tough as a rock! buy it! you wont be sorry!

13

found this helpful.

Bruce

November 7, 2011

Great sound

I bought 2 of these amps to run 2 pioneer 12 inch subs, they work great. Haven't turned them past normal setting and they crank hard. Excellent quality as you expect from pioneer.

14

found this helpful.

aaron8301

August 12, 2011

Love. Pioneer. Amps.

This pushes my two Infinity Reference 12" subs like they were meant to be - hard and clean! The remote knob is much easier than constantly going into my head unit's menu to adjust the bass as well. I don't know how I ever lived without it.

14

found this helpful.

Frank

July 20, 2011

Amazing

Great amp! Fits perfectly behind the rear seat in my truck! I have it powering a 10inch Alpine Type-S 1043D and it is a much happier sub with this amp. The bass controll knob is very nice, it doesn't give a "cheep" vibe. I would buy this amp again. I like that it's 2 Ohm stable that gives me room to upgrade the sub without having to upgrade the amp. I have had my System playing at full power for a 2.5 hour drive and the amps never quit once...

11

found this helpful.

H

February 17, 2011

Small but powerful

I bought this amplifier to compliment my alpine type r sub. My alpine sub can handle 600 rms and this was the only amplifier that could feed my sub 600 rms for the price that I was willing to pay.

This pioneer amp also satisfied my criteria for being a small amp that delivered a lot of power. I didnt have a lot of room in my extra cab truck, so this small size was definitely a plus. I have this amp nicely tucked away under my seat.

the only downside i can think of that it doesn't have high pass filters, which is what you want in an amp if your sub is enclosed in a vented box. But you can purchase an fmod that attaches onto your rcas to match the hz that your vented box is tuned to.

12

found this helpful.

Thomas

December 29, 2011

WOW

Picked up one of these bad boys at wal**rt about a year ago. This amp is a beast for the size. 800 watts does not get any more powerful than this.
If you are looking for a good quality amp and a decent price, this is it.

10

found this helpful.

Don

November 22, 2011

Pioneer GM-D8500M

Clean sound, great looking, recommended.

11

found this helpful.

boss

August 9, 2011

Great amp

Its a great amp but i didnt like it as much cause i wun push my 4 12's and they was only 300 rms and it sounded like garbarge so i just plugged it into my two 12's and they bang the seal around my trunk. I got a 2 door monte carlo.

10

found this helpful.

Austin

May 20, 2011

Great Amp.

I have this amp rockin 2 Renegade GTB2600 subs (both connected by one wire) The sound quality is better that great and the bass it kicks is next level. The bass contoller is a great feature and does get a lot of use.

10

found this helpful.

Carlos Campo

May 5, 2011

Great sound

I got this Class D mono-block Amplifier connected to a sub which will deliver in 2 ohms: 600 watts x 1 chan. The sub is a 12" Dual 2 ohm Champion PRO Series Subwoofer Pioneer TS-W3002D2. The sound is GREAT..! The remote bass level control option is really good and needed.

If you are looking for quality this is a good option. Just make sure the Box has the Proper volume. I recommend a sealed box working at 50 db.

10

found this helpful.

alex

April 26, 2011

Pioneer GM-D8500M

Great amp I have it powering a JL W6v2 12" and it sounds awesome and it comes with a wired bass knob

10

found this helpful.

torcher

November 14, 2011

Pioneer GM-D8500M

I own a JL audio w3 sub. now if you know much about subs u know the w3 is a powerful sub. i bought the pioneer mono block to run a single w3 and it does the job marviously i would reccomend this amp to anyone looking for maximum power. Great product i have nothing to fault about the amp.

9

found this helpful.

Patrick

October 14, 2011

great amp

i bought the Pioneer GM-D8500M amp with Pioneer TS-W309D4 sub dam do they work great together. Sub hits hard and never over heats. I never had any problems with the products and i would recommend them.

9

found this helpful.

MauiBlueBandit

September 20, 2011

Pioneer GM-D8500M & TS-W308D4

This amp, 2 pioneer 12s wired @ 1 OHM in a sealed box (overpowers them) . knocked my rearview mirror off and unbolted my hatch motor right off the car. So loud people complain their ears hurt from the sound pressure. No light dimming, over heating or anything. Next im replacing my stock speakers with pioneer A- Series and a GM-D9500F. PIONEER IS BEST. make sure you do not loose the remote cause without it the output is WEAK

9

found this helpful.
