Product highlights

Item has never been used, Outer box is damaged
• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 2400W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB
• Class D Circuitry
• Dimensions: 12-3/8"W x 7-7/8"D x 2-3/8"H

Learn more about the LS-gmd9601-OBCra229300

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

BONUS DEAL OF THE DAY

For a limited time only, we have a great deal on the JBL MS-A5001 right now, an alternative to this model! Click here to compare!

Item Condition: Open Box Complete

Item has never been used, Outer box is damaged

General Features:

GM Digital Series Class D Monoblock Amplifier
RMS Power Rating:

4 ohm: 500 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

Max power output: 2400 watts x 1 chan.
Pulse Width Modulated MOSFET power supply

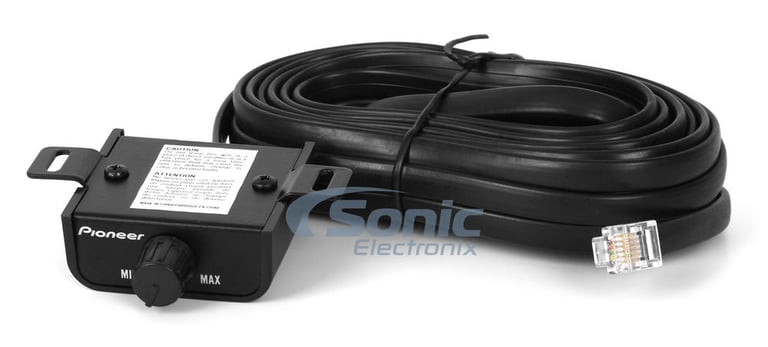

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
Soft start turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (40-240 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 10-240 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 12-3/8"W x 7-7/8"D x 2-3/8"H
1-year Sonic Electronix Warranty

Product history:

	Pioneer GM-D9601 OPEN BOX COMPLETE (newest, current model)
	Pioneer GM-D8500M (previous model, replaced by Pioneer GM-D9601 OPEN BOX COMPLETE)
	Pioneer GM-D8400M (previous model, replaced by Pioneer GM-D8500M)

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Series

GM Digital Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 240 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
