Name: Alpine Marine PDX-4.100M R/B
Brand: Alpine
SKU: LS-pdx4100m-RB
Price: 249.99 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Reviews
Add-ons
Related Searches

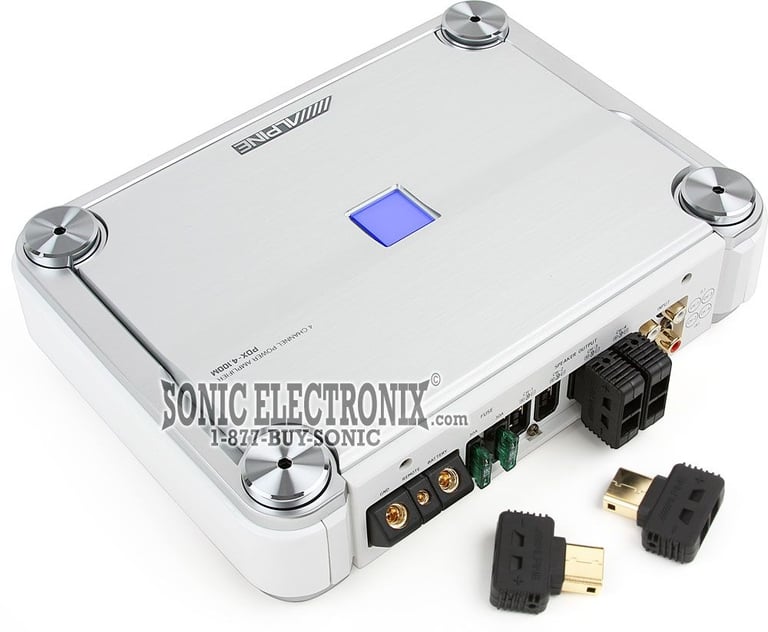

Alpine Marine PDX-4.100M R/B Image 1 — Alpine Marine PDX-4.100M R/B

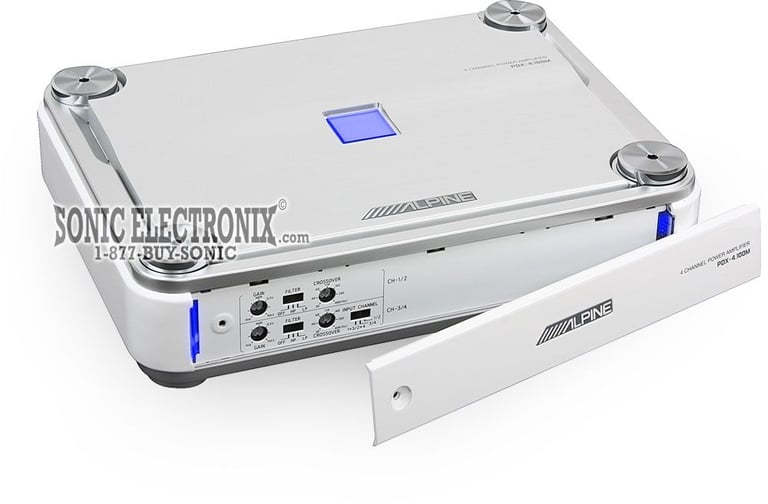

Alpine Marine PDX-4.100M R/B Image 2 — Alpine Marine PDX-4.100M R/B

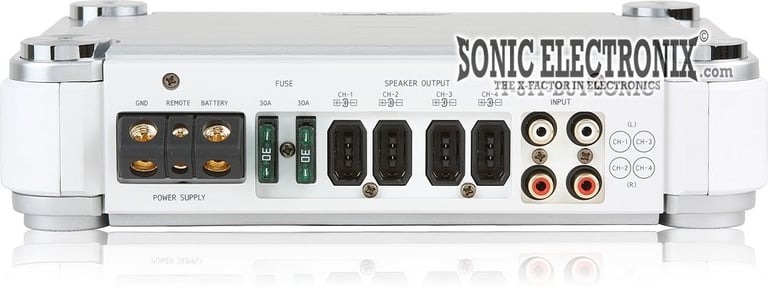

Alpine Marine PDX-4.100M R/B Image 3 — Alpine Marine PDX-4.100M R/B

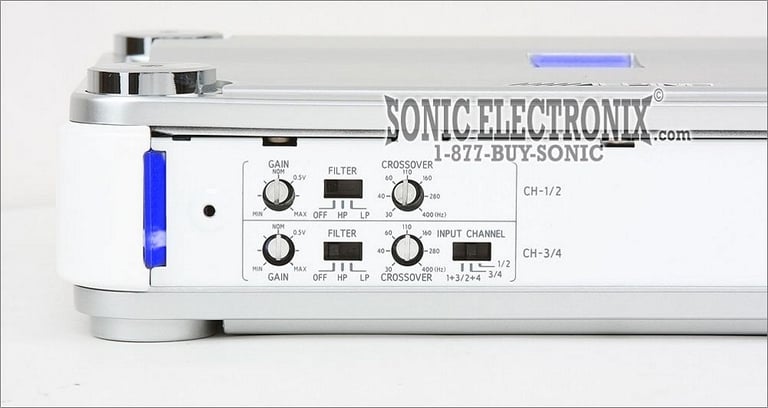

Alpine Marine PDX-4.100M R/B Image 4 — Alpine Marine PDX-4.100M R/B

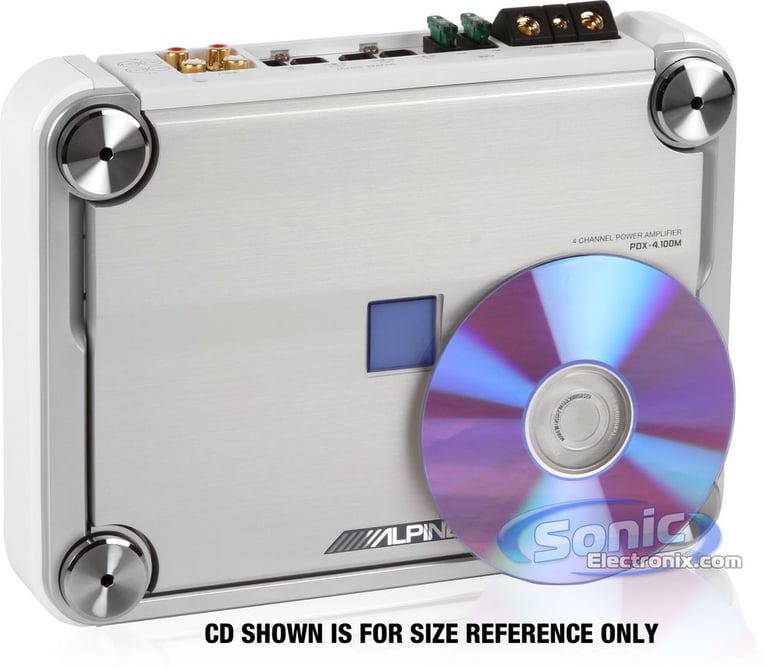

Alpine Marine PDX-4.100M R/B Image 5 — Alpine Marine PDX-4.100M R/B

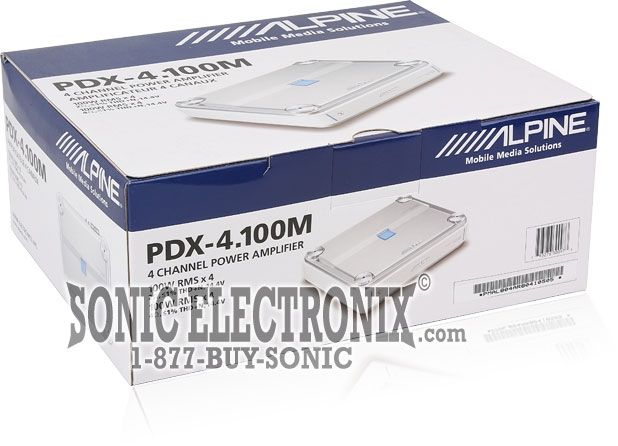

Alpine Marine PDX-4.100M R/B Image 6 — Alpine Marine PDX-4.100M R/B

Product highlights

Marine Series 4-Channel Class D Car Amplifier • 100W x 4 chan. @ 4 ohm • 100W x 4 chan. @ 2 ohm • 200W x 2 chan. @ 4 ohm • 4/3/2 channel operation • Coated to protect unit against harsh marine environment • Compact and stackable design

Learn more about the LS-pdx4100m-RB

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Marine Series 4-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 ohm: 200 watts x 2 chan.

DC-DC PWM (Pulse Width Modulated) power supply
LED power and protection indicators
STAR Topology (minimizes internal noise and prevents ground interference)
4/3/2 channel operation
Overload and thermal protection circuitry
Coated to protect unit against harsh marine environment
Salt/Fog (ASTM B117) Certified
UV (ASTM G154/D4329) Certified
4-Layer glass epoxy PC board
"Quick connect" High Current speaker terminals
Improved feedback circuitry
Compact and stackable design
Identical power output at 2 or 4 ohm setups
Heavy duty aluminum alloy heatsink
Gold-plated RCA level inputs
Gold-plated screw terminals
Variable high-pass filter (30-400 Hz, 12 dB/octave)
Variable low-pass filter (30-400 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-20000 Hz
Dimensions: 10-1/8"L x 7-9/16"W x 2-7/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day Repair Only SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

200 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

400 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

30 - 400 Hz

Low-Pass Crossover Frequency

30 - 400 Hz

Signal-to-Noise Ratio

76 dB

Remote bass/level controller

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
