Name: Alpine XA90V (Open Box, Complete)
Brand: Alpine
SKU: ls-xa90v-obc10
Price: 849.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all Alpine

by Alpine

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Alpine XA90V (Open Box, Complete) Image 1 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 2 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 3 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 4 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 5 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 6 — Alpine XA90V (Open Box, Complete)

Alpine XA90V (Open Box, Complete) Image 7 — Alpine XA90V (Open Box, Complete)

Product highlights

• 600 Watts RMS x 5 @ 4 ohm (75W x 4, 300W x 1)
• 900 Watts RMS x 5 @ 2 ohm (100W x 4, 500W x 1)
• 900 Watts RMS x 5 @ 4 ohm, Bridged (200W x 2, 500W x 1)
• CEA-2006 Compliant
• Low Pass, High Pass and Subsonic Filters
• 0 - 12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11-3/4" W x 7-5/8" L x 2" H

Learn more about the ls-xa90v-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

Alpine X-Series X-A90V
Class-D Full Range 2 ohm Stable 5-Channel Amplifier
RMS Power Rating:

4-channel side

4 ohm: 75 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohm: 200 watts x 2 chan.

Sub channel

4 ohm: 300 watts x 1 chan.
2 ohm: 500 watts x 1 chan.
1 ohm: ------------N/A------------

Total power output: 900 watts
CEA-2006 Compliant Amplifier
Hi-Res Audio compatible
Wired remote bass level control, Alpine RUX-KNOB.2, available
Included plastic covers available to offer a brushed aluminum finish around the edges
LED power (green) and protect (red) indicators
Soft start turn-on
5/3 channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity

High level: .5 - 10V
Low level: .2 - 4V

Frequency Response:

4-channel: 10 - 60,000Hz
Sub channel: 8 - 400Hz

Total Harmonic Distortion (THD): .07%
Signal to Noise Ratio: >105dB
Variable high-pass filter: 50 - 400Hz, -24dB/octave
Variable low-pass filter: 50 - 400Hz, -24dB/octave
Subsonic filter: 8 - 40Hz
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 30A x 3
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 11-3/4"W x 7-5/8"L x 2"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the X-A90V Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

5-Channel

Total RMS Power Output

900 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.07%

Speaker Level Inputs

Yes - with included adapter

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Subsonic

High-Pass Crossover Frequency

50 - 400 Hz

Low-Pass Crossover Frequency

50 - 400 Hz

Subsonic Filter

8 - 40 Hz

Signal-to-Noise Ratio

>105 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Alpine RUX-KNOB.2

Fuse Rating

30A x 3

Total Fuse Rating

Hi-Res Certified

Yes

What is in the box?

Paperwork

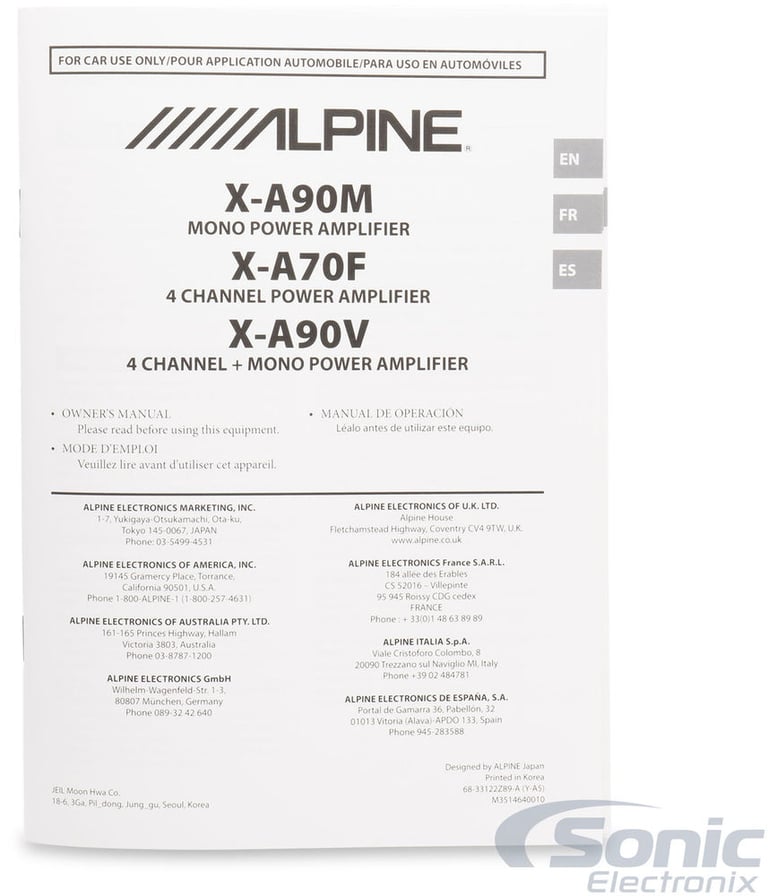

User manual
Warranty/Registration card
Serial number card
Power certification

WITB: Amplifiers

Amplifier

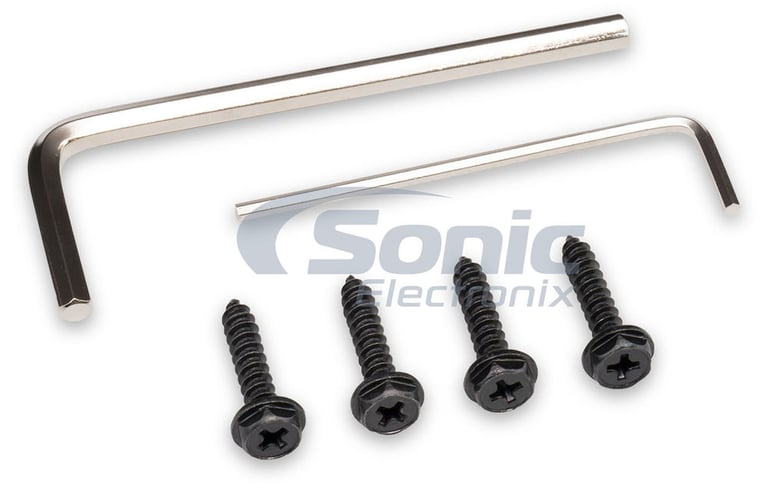

Mounting screws (4)
High-level input wiring harness w/ molex connector
Adhesive brand badge
Allen wrenches (2)

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Alpine XA90V (Open Box, Complete) thumbnail image

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

Alpine X-A90V

The following review is for X-A90V, which is a part of the bundle you are viewing.

Easy install sounds as good as the PDX amp I have. Seems to run much cooler than the PDX series. I like that the controls are on the top of the unit. It made things much easier for making adjustments. I would buy it again.

By Anonymous on May 16, 2018

33 found this helpful
