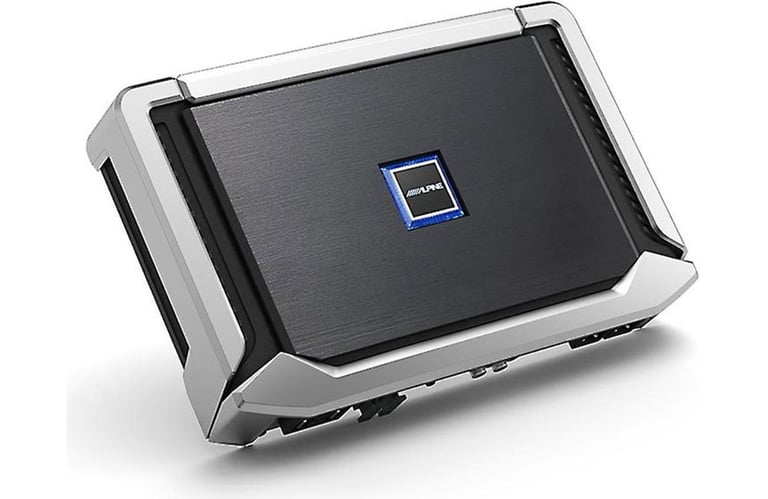

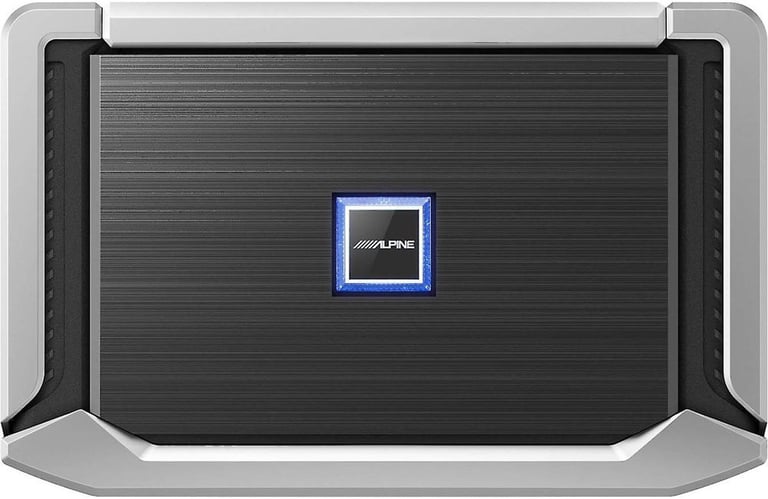

Name: Alpine X-A90M - Like New Open Box
Brand: Alpine
SKU: ls-xa90m-obc7
Price: 509.99 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Product highlights

• 600 Watts RMS x 4 @ 4 ohm
• 900 Watts RMS x 4 @ 2 ohm
• CEA-2006 Compliant
• Low Pass and High Pass Filters
• 0 - 12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11-3/4" W x 7-5/8" L x 2" H

Learn more about the ls-xa90m-obc7

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

General Features:

Alpine X-Series X-A90M
Class-D Full Range 2 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 600 watts x 1 chan.
2 ohm: 900 watts x 1 chan.
1 ohm: ------------N/A------------

Total power output: 900 watts
CEA-2006 Compliant Amplifier
Hi-Res Audio compatible
Wired remote level control, Alpine RUX-KNOB.2, available
Included plastic covers available to offer a brushed aluminum finish around the edges
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity

High level: .4 - 10V
Low level: .1 - 4V

Frequency Response: 8 - 400
Total Harmonic Distortion (THD): .07%
Signal to Noise Ratio: >107dB
Variable low-pass filter: 50 - 400Hz, -24dB/octave
Variable subsonic filter: 8 - 40Hz, -24dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 30A x 3
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 11-3/4"W x 7-5/8"L x 2"H
Authorized Internet Dealer

PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Check out the X-A70F Owner's Manual

Product history:

	Alpine X-A90M - Like New Open Box (newest, current model)
	Alpine PDX-M6 (previous model, replaced by Alpine X-A90M - Like New Open Box)
	Alpine PDX-1.600 (previous model, replaced by Alpine PDX-M6)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

900 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

.07%

Speaker Level Inputs

Yes - with included adapter

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 400 Hz

Subsonic Filter

8 - 40 Hz

Signal-to-Noise Ratio

107 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Alpine RUX-KNOB.2

Fuse Rating

30A x 3

Total Fuse Rating

Hi-Res Certified

Yes

What is in the box?

Paperwork

User manual
Warranty/Registration card
Serial number card
Power certification

WITB: Amplifiers

Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Adhesive brand badge
Allen wrenches (2)

Other Accessory #1

4 plastic panels
