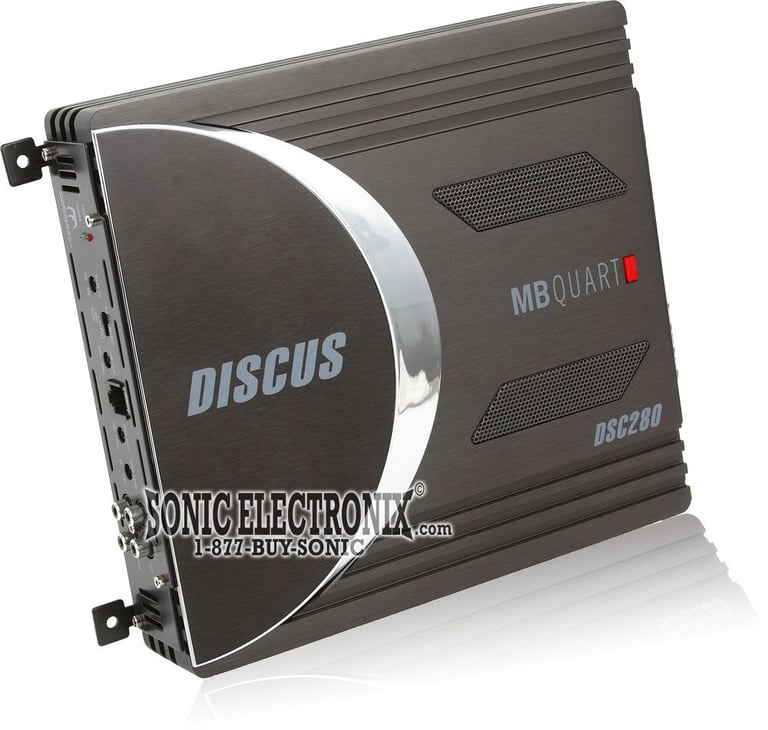

MB Quart DSC 280

320W RMS, Class A/B 2-Channel Discus Series Amplifier (DSC280)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Discus Series 2-Channel Class AB Car Amplifier • 80W x 2 chan. @ 4 ohm • 160W x 2 chan. @ 2 ohm • 320W x 1 chan. @ 4 ohm • Preamp RCA outputs • Unbalanced RCA inputs • Damping Factor: >180

Learn more about the dsc280

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


Discus Series 2-Channel Class AB Car Amplifier • 80W x 2 chan. @ 4 ohm • 160W x 2 chan. @ 2 ohm • 320W x 1 chan. @ 4 ohm • Preamp RCA outputs • Unbalanced RCA inputs • Damping Factor: >180

Description


MB Quart brand icon

Authorized dealer

  • Discus Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 2 chan.
    • 2 ohm: 160 watts x 2 chan.
    • Bridged, 4 ohm: 320 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply
  • Remote bass level input (remote level control sold separately)
  • LED power and protection indicators
  • Tuned Bass EQ (0-9 dB bass boost at 45 Hz)
  • Bridgeable operation
  • Soft start sound
  • Preamp RCA outputs
  • DC, short, thermal, and overload protection circuitry
  • Unbalanced RCA inputs
  • Damping Factor: >180
  • Variable input level control: 0.2V-0.6V
  • Variable high-pass filter (10-1200 Hz, 24 dB/octave)
  • Variable low-pass filter (30-150 Hz, 24 dB/octave)
  • Frequency response: 10-20000 Hz
  • Dimensions: 10.24"L x 9.45"W x 2.7H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 2 channel
RMS Power @ 2 ohms
160 watts x 2 channel
Bridged RMS Power
320 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Signal-to-Noise Ratio
93 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DSC-280

Weight:

8.00lbs

Internal SKU:

dsc280

Internal Product ID:

13495

Product and How-to Videos
