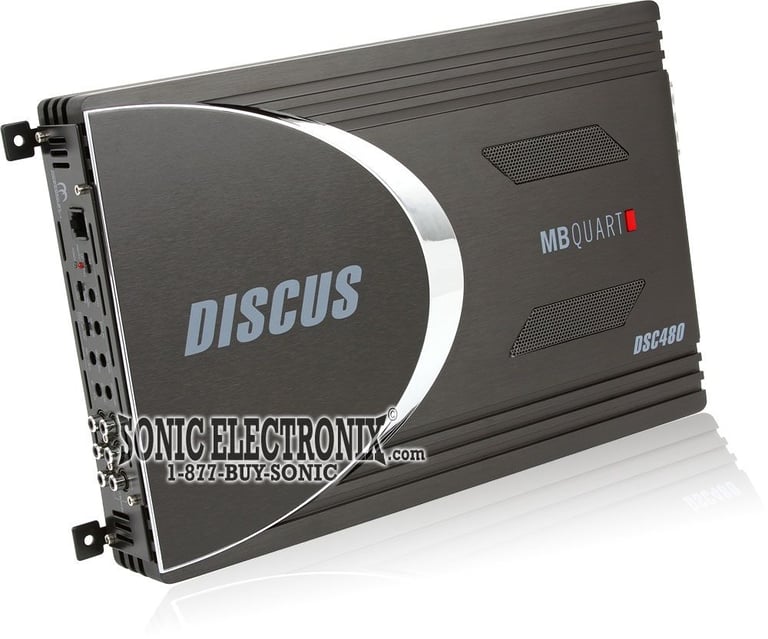

MB Quart DSC 480

640W RMS, Class A/B 4-Channel Discus Series Amplifier (DSC480)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Discus Series 4-Channel Class AB Car Amplifier • 80W x 4 Chan. @ 4 Ohm • 160W x 4 Chan. @ 2 Ohm • 320W x 2 Chan. @ 4 Ohm • Preamp RCA Outputs • Switchable 2-Channel/4-Channel Input Modes

Learn more about the dsc480

We apologize

This item has been discontinued


Loading...
99-7505 main

Metra 99-7505 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2006 vehicles from Mazda (Black)

7
-50.02%

$14.99

List price $29.99

70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Product Highlights


Discus Series 4-Channel Class AB Car Amplifier • 80W x 4 Chan. @ 4 Ohm • 160W x 4 Chan. @ 2 Ohm • 320W x 2 Chan. @ 4 Ohm • Preamp RCA Outputs • Switchable 2-Channel/4-Channel Input Modes

Description


MB Quart brand icon

Authorized dealer

  • Discus Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 160 watts x 4 chan.
    • Bridged, 4 ohm: 320 watts x 2 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply
  • Remote bass level input (remote level control sold separately)
  • LED power and protection indicators
  • Tuned Bass EQ (0-9 dB bass boost at 45 Hz)
  • Bridgeable operation
  • Soft start sound
  • Preamp RCA outputs
  • DC, short, thermal, and overload protection circuitry
  • Unbalanced RCA inputs
  • Switchable 2-channel/4-channel input modes
  • Damping Factor: >180
  • Variable input level control: 0.2V-0.6V
  • Variable high-pass filter (10-1200 Hz, 24 dB/octave)
  • Variable low-pass filter (30-150 Hz, 24 dB/octave)
  • Frequency response: 10-20000 Hz
  • Dimensions: 14.17"L x 9.45"W x 2.7"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
160 watts x 4 channel
Bridged RMS Power
320 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
640 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Signal-to-Noise Ratio
92 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DSC-480

Weight:

12.00lbs

Internal SKU:

dsc480

Internal Product ID:

13498
