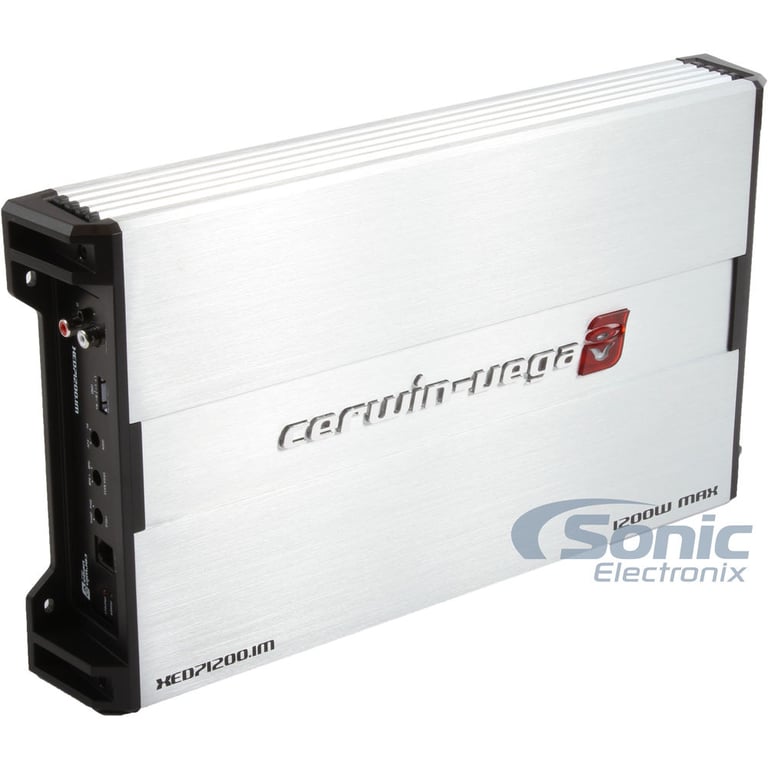

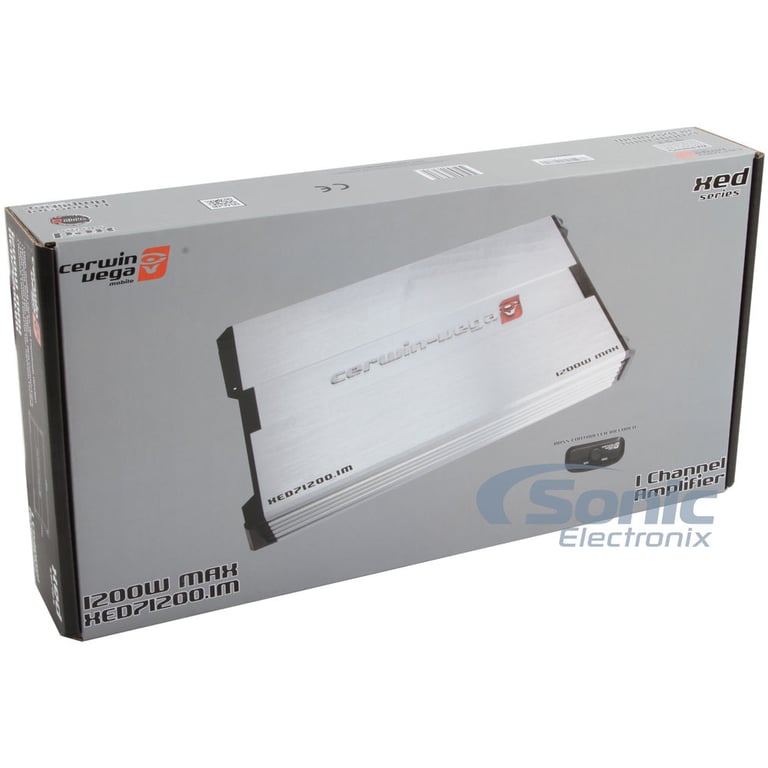

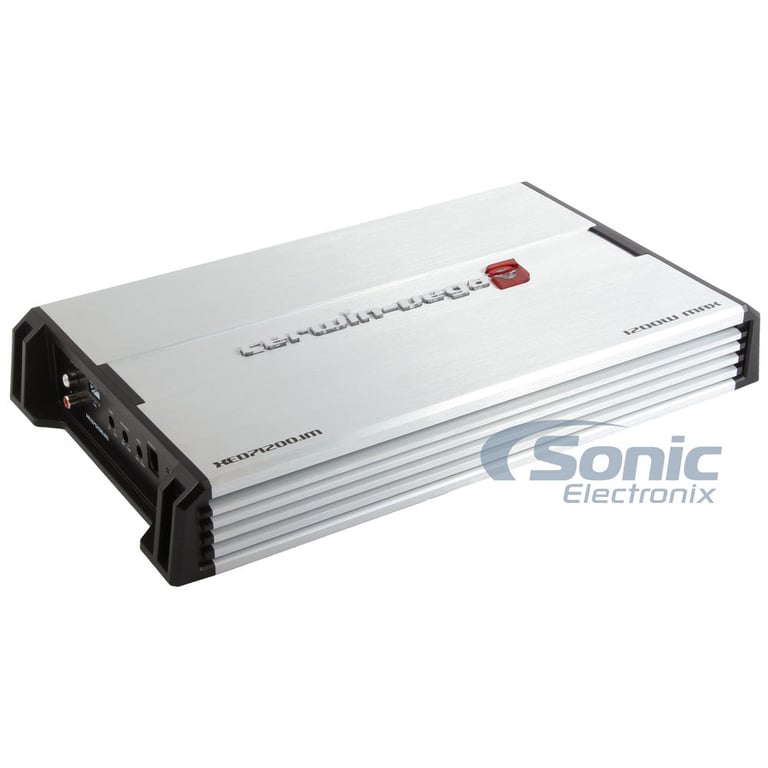

Cerwin Vega XED71200.1M

1200W Max (450W RMS) XED Series Class-A/B Monoblock 2 Ohm Stable Amplifier with Bass Knob Included

highlight-star-icon

• 300 Watts RMS x 1 @ 4 ohm
• 400 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 1200 Watts
• Built-In Low-Pass Filter
• 0-9 Vega Boost Bass Boost
• Aluminum Heatsink
• Dimensions: 8.875" x 15.7" x 2.187"

Learn more about the xed712001m

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

99-5831G main

Metra 99-5831G Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2014-2018 Transit Connect (Two-tone Gray and Black)

-42.86%

$107.99

List price $188.99

AXDI-FOC main

Axxess AXDI-FOC

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2011-2019 vehicles from Ford

-10.37%

$120.99

List price $134.99

70-5524 main

Metra Ford Fiesta Wiring Harness (70-5524)

Wiring Harness For select 2011-2019 vehicles from Ford

1
-10.01%

$17.99

List price $19.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • Cerwin Vega XED71200.1M
  • Class-A/B 2-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 450 watts x 1 chan.
    • 1 ohm: ------------N/A------------
  • Pulse-Width Modulated MOSFET Power Supply
  • Total power output: 1200 watts
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation

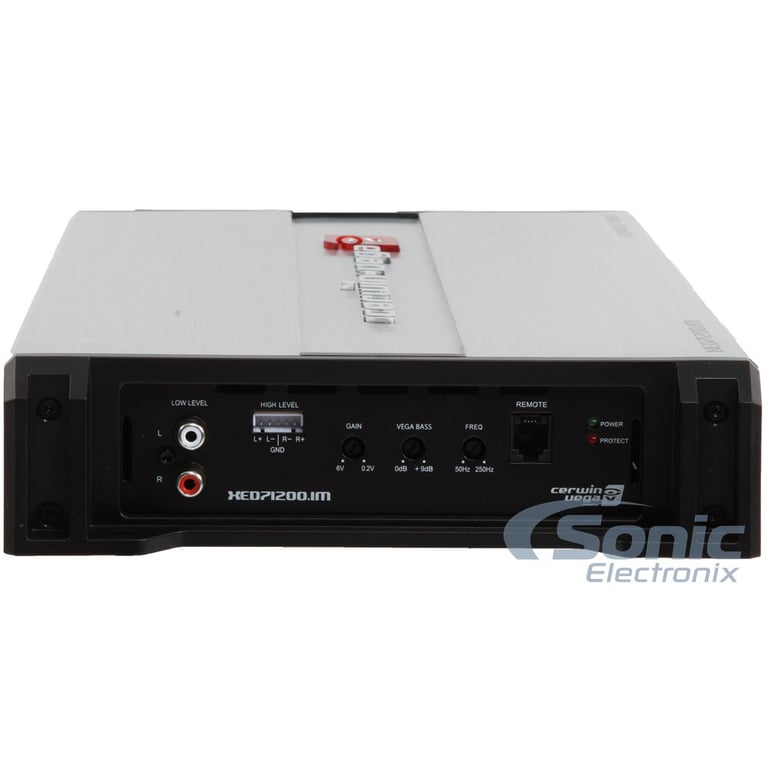

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

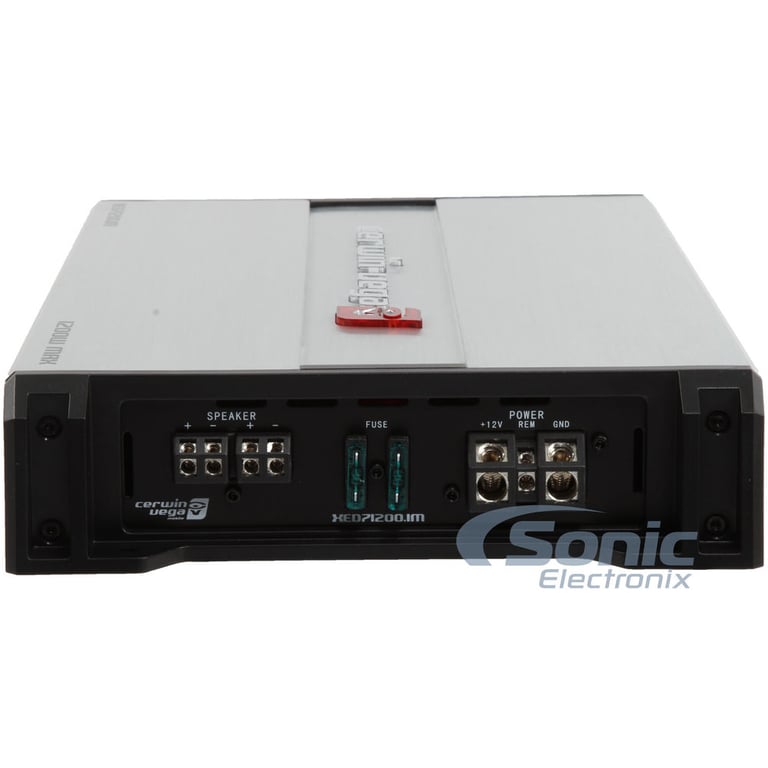

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 200mV-6V
    • High level: 2V~>20V
  • Frequency Response: 20 - 350 Hz
  • Total Harmonic Distortion (THD): .1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost
  • Fuse Rating: 30 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8.875"W x 15.7"L x 2.187"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
450 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Series
XED Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
450 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
-85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Mounting screws (4)
Washers (4)
Two spare fuses
High-level input wiring harness w/ molex connector
Allen wrenches (2)
Other Accessory #1
Adhesive Mount for Bass Knob
Other Accessory #2
4 Lock Washers
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XED71200.1M

Weight:

10.00lbs

Internal SKU:

xed712001m

Internal Product ID:

135685
