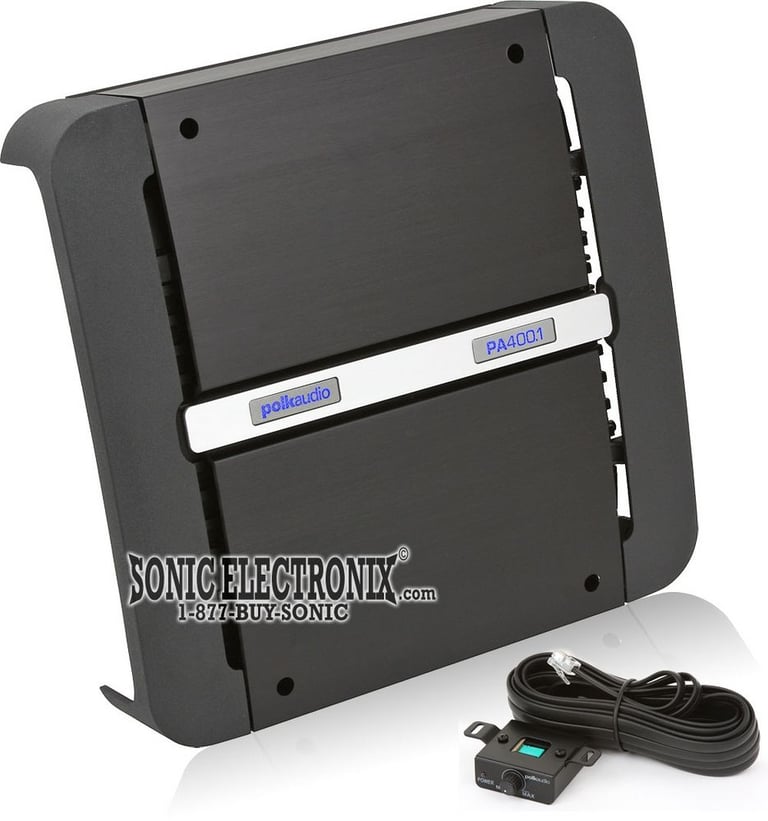

Polk Audio PA400.1 (PA 400.1)

800W Max, Class D Monoblock Amplifier

Product videos
highlight-star-icon

PA Series Class D Monoblock Car Amplifier • 200W x 1 chan. @ 4 ohm • 300W x 1 chan. @ 2 ohm • 400W x 1 chan. @ 1 ohm • 800W x 1 chan. Max • 1 ohm stable • Preamp RCA outputs

Learn more about the pa4001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

AXSUB-CH5 main

Axxess AXSUB-CH5

Active 2-Channel Line Output Converter and Subwoofer Data Interface for select 2014-2026 vehicles from Ram, Jeep, Dodge

-10.04%

$205.99

List price $228.99

99-6511 main

Metra 99-6511 Dash Kit

Install a new Single-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler Multi-Kit

12
-41.39%

$16.99

List price $28.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

VWA4B main

Scosche VWA4B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2026 vehicles from Audi, Chevrolet, Ram

11
-17.73%

$12.99

List price $15.79

MET-CH6 main

Metra MET-CH6

Install a New Car Stereo and Retain Steering Wheel Controls, Backup Camera and Other Factory Features in select 2014-2023 vehicles from Jeep, Ram, Fiat with Non-Amplified Systems

-10.38%

$94.99

List price $105.99

AXUSB-JP1 main

Axxess AXUSB-JP1

USB, HDMI and Auxiliary Replacement Panel for 2015-up Vehicles from Jeep

-10.00%

$62.99

List price $69.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Product Highlights


PA Series Class D Monoblock Car Amplifier • 200W x 1 chan. @ 4 ohm • 300W x 1 chan. @ 2 ohm • 400W x 1 chan. @ 1 ohm • 800W x 1 chan. Max • 1 ohm stable • Preamp RCA outputs

Description


Polk Audio brand icon

Authorized dealer

  • PA Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
    • 1 ohm: 400 watts x 1 chan.
  • Max power output: 800 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply

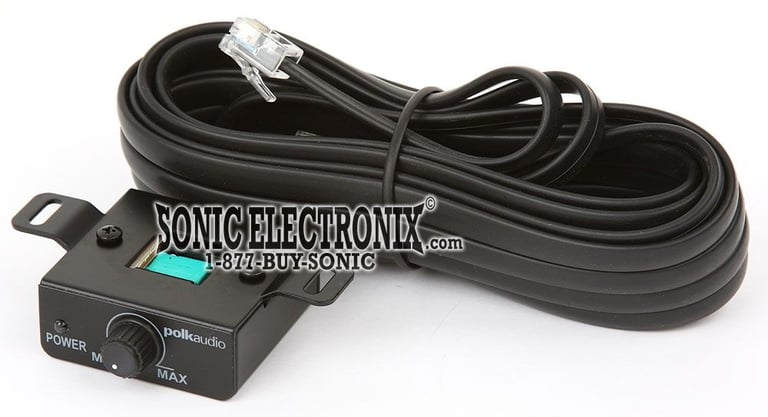

  • Wired remote volume level control included
  • LED power and protection indicators
  • Selectable bass boost (0, +8 dB at 40 Hz)
  • Double-layer fiberglass epoxy printed circuit boards
  • 1 ohm stable
  • High-speed MOSFET switching power supply and high current Bipolar Output Transistors pump maximum voltage and high current to your subwoofers
  • Connection for optional LED light bar or optional amplifier cooling
  • Power/ground-reversal, thermal, short, current, overdraw, and low impedance protection circuitry
  • Cast aluminum textured end caps
  • Switchable 180° phase inversion

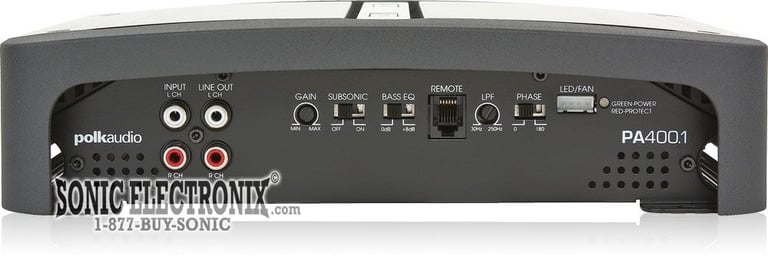

  • Variable input sensitivity optimizes match with different signal sources
  • Unity gain pass-through RCA jacks
  • Mounting hardware with rubber isolation grommets and extra fuses included.
  • Effective Damping Factor: >150
  • Anodized extruded brushed-aluminum cover for maximum heat dissipation
  • Preamp RCA outputs
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Subsonic Filter (24 dB at variable frequencies)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 10-1/2"L x 10-1/4"W x 2-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
Variable
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
Yes

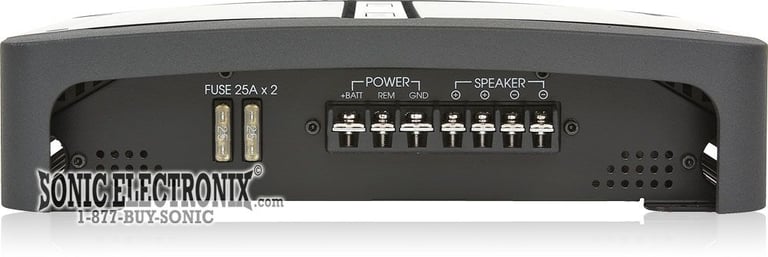

Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PA400.1

Weight:

11.50lbs

Internal SKU:

pa4001

Internal Product ID:

13579
