See all parts that fit your 2007 Canyon

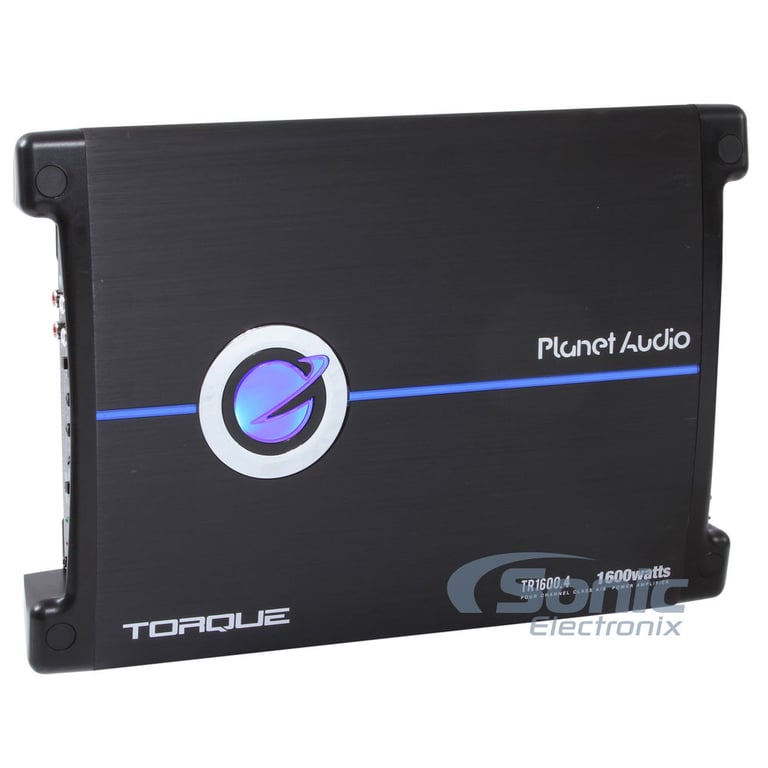

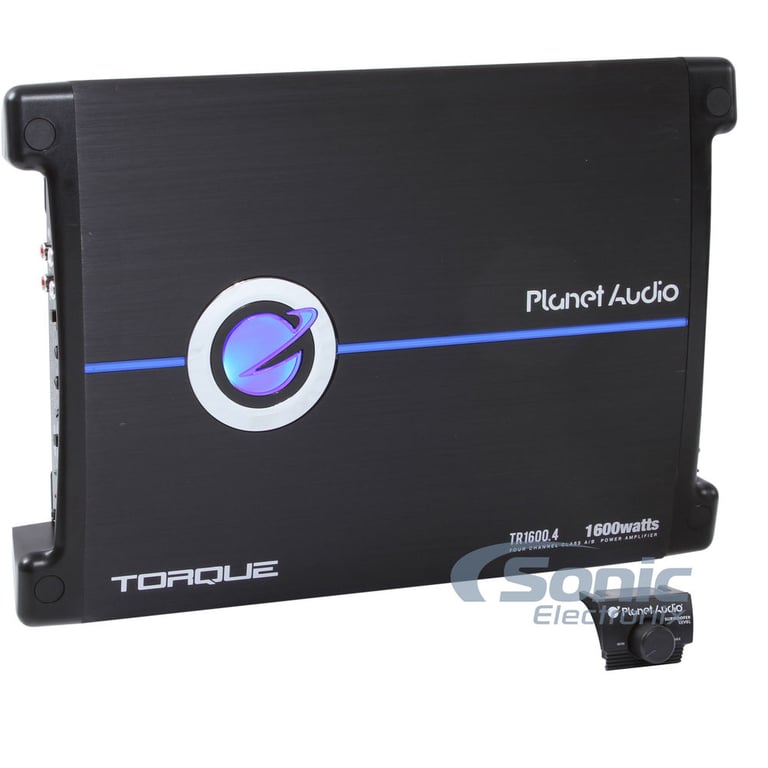

Planet Audio TR1600.4

1600W Max (300 W RMS) Torque Class-A/B 4-Chan. 2 ohm Stable Amp with Remote Level Control Included

Planet Audio
Shop all Planet Audio
highlight-star-icon

• 150W RMS x 4 @ 4 ohm
• 300W RMS x 4 @ 2 ohm
• 600W RMS x 2 @ 4 ohm, Bridged
• Total Peak Power: 1600 Watts
• High and Low Pass Filters
• 0 - 18 dB Bass Boost
• Aluminum Heatsink
• Dimensions: 9.5" W x 13.6875" L x 2.125" H

Learn more about the tr16004

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

120
-33.36%

$9.99

List price $14.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Stadium 62CF main

JBL Stadium 62CF (JBLSPKSD62CFAM)

660W Peak (220W RMS) 6.5" Stadium Series 2-Way Component 3-ohm Speaker System

2
-6.25%

$449.95

List price $479.95

BE9ACP.X main

Boss Elite BE9ACP.X

9" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

1
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
CS-DR621 main

JVC CS-DR621

600W Peak (100W RMS) 6.5" DRVN DR Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

3
-16.81%

$99.00

List price $119.00

Limited time!

Rockford Fosgate Prime R165-S

160W Peak (80W RMS) 6.5" Prime Series 2 Way Component 4-ohm Speaker System

25
-12.50%

$69.99

List price $79.99

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Planet Audio Torque Series TR1600.4
  • Class-A/B Full Range 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Total power output: 1600 watts
  • Pulse Width Modulated MOSFET power supply

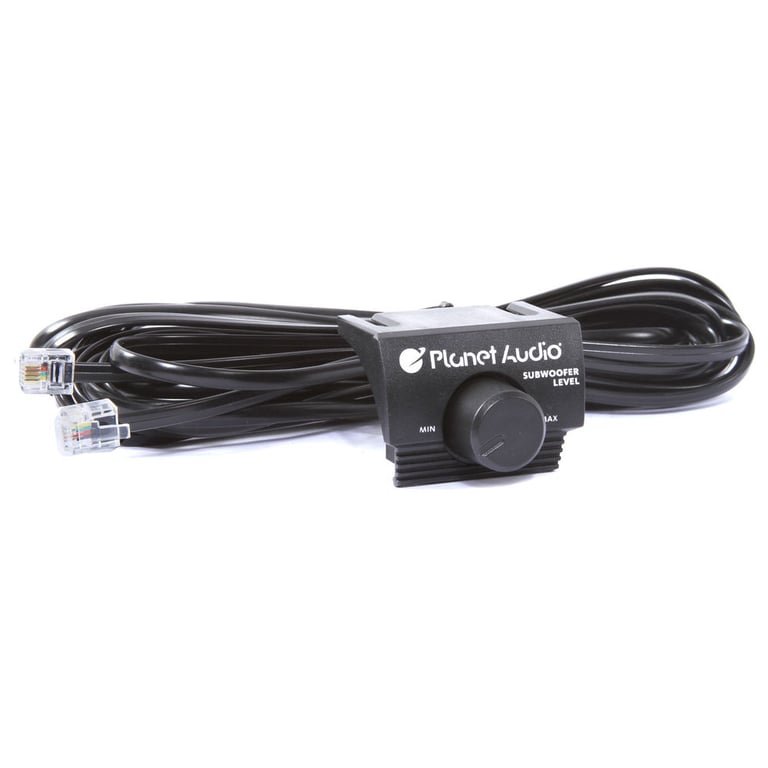

  • Wired remote level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

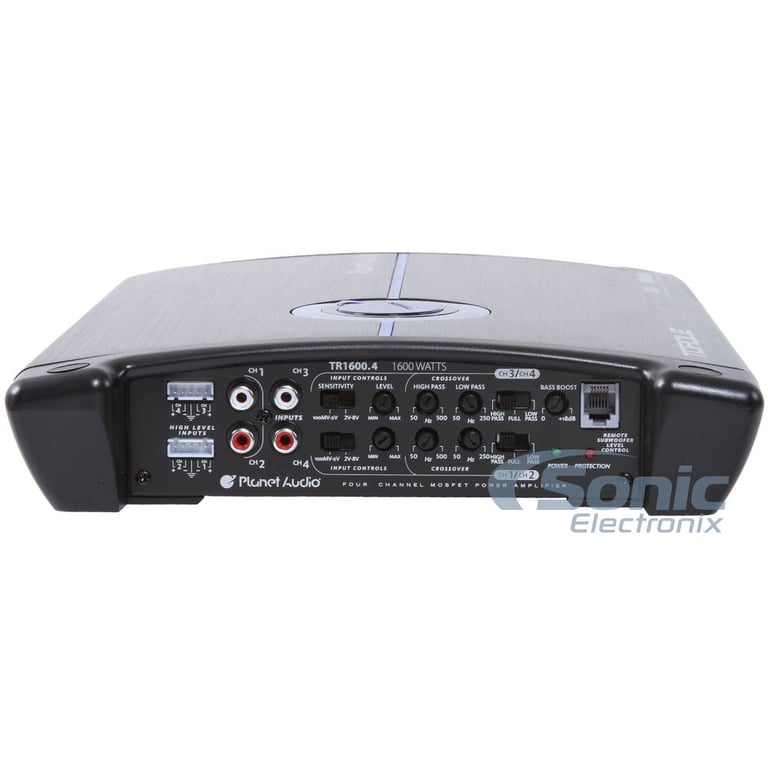

  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Frequency Response: 20 - 20000 Hz
  • Signal to Noise Ratio: 87 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 25Ax 2

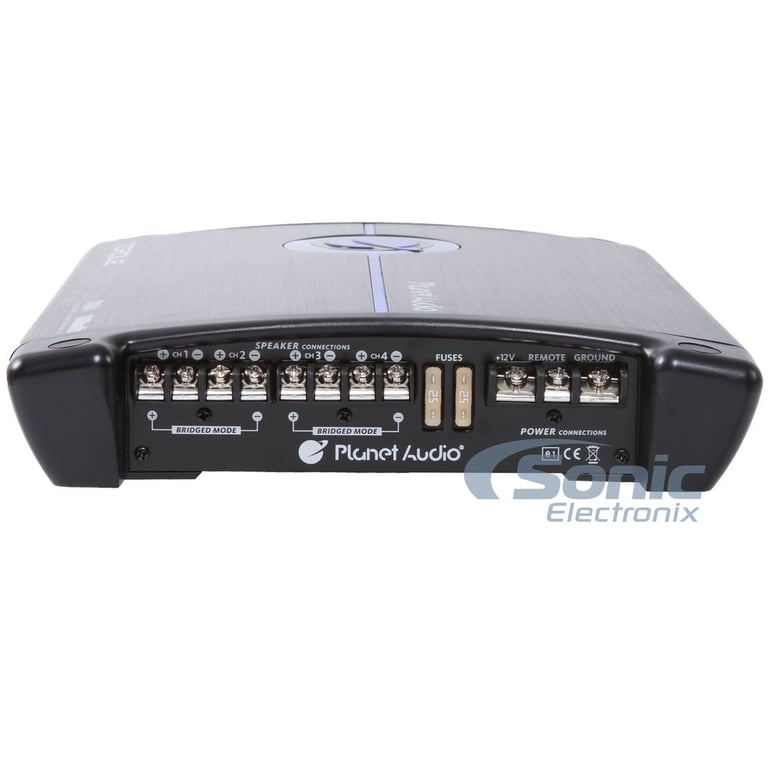

  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.5"W x 13.6875"L x 2.125"H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
Check out the TR1600.4 Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 4 channel
Power Specifications - Full Range Channels
Peak Power @ 2 ohms
600 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Amplifier Specifications
Series
Torque Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
87 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Gain knob wire
Mounting screws (6)
High-level input wiring harness w/ molex connectors (2)
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TR1600.4

Weight:

10.00lbs

Internal SKU:

tr16004

Internal Product ID:

137547
