Clarion SRV314

120W, 6-3/4" Slim-Mount Powered Subwoofer Enclosure with Remote and Counter Drive Technology

Clarion
Shop all Clarion
highlight-star-icon

120W, 6-3/4" Slim-Mount Powered Subwoofer Enclosure with Remote and Counter Drive Technology • 120W Max • 60W RMS • Mica injection polypropylene (MIPP) cone woofer • Rubber surround • Counter drive design with dual neodymium magnet • RCA and Speaker level inputs

Learn more about the srv314

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Description


Clarion brand icon

Authorized dealer

Subwoofer Features:

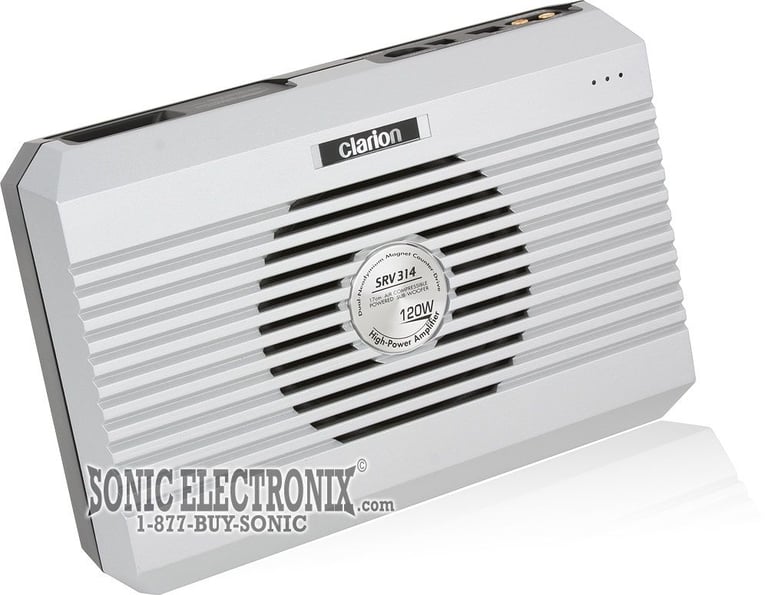

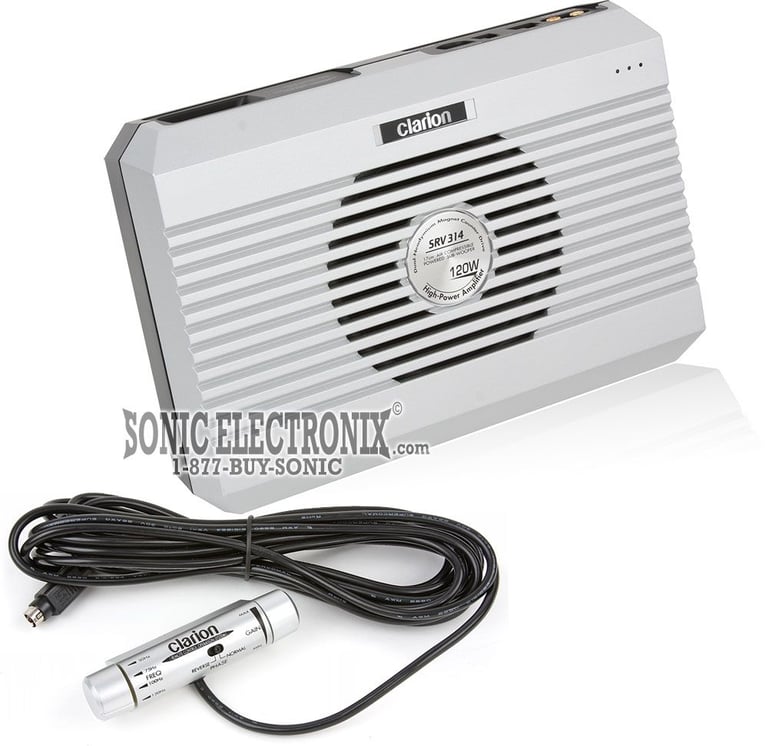

  • 6-3/4" Slim-Mount Powered Subwoofer Enclosure
  • Power Handling:
    • Peak: 120 watts
    • RMS: 60 watts
  • Impedance: Dual 4 ohm
  • Mica injection polypropylene (MIPP) cone woofer
  • Rubber surround

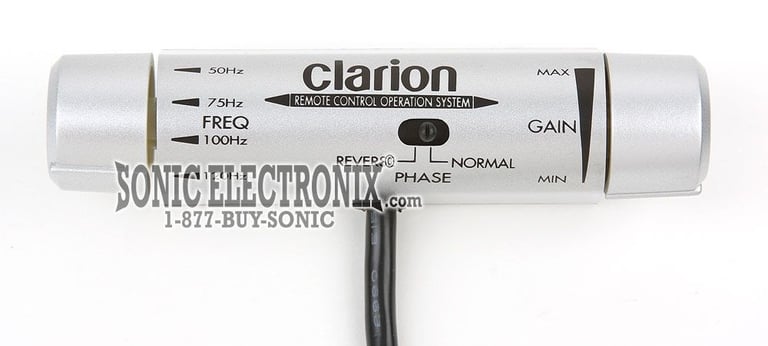

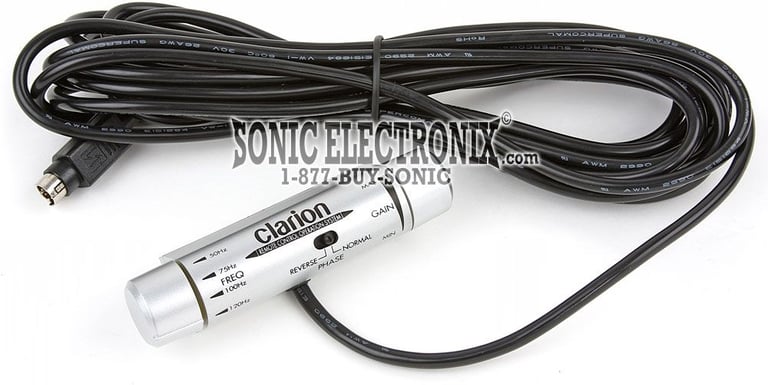

  • Stick-style wired remote control
  • "Maxx Bass" circuit for virtual bass enhancer
  • Counter drive design with dual neodymium magnet
  • Built-in gain control and low pass crossover filter (selectable at 50, 75, 100, 120 Hz)
  • Frequency response: 30-200 Hz
  • Sensitivity: 65 dB
  • 1-year SonicElectronix.com warranty

Enclosure Features:

  • Air compression structure with aluminum die-cast design

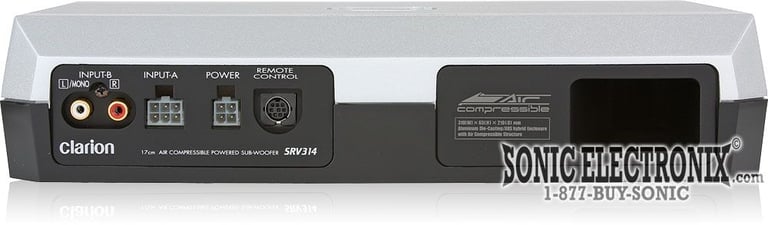

  • Features both RCA low level input and speaker/high level input
  • Input sensitivity: RCA input 20mV to 2V, speaker input 0.2V to 20V
  • Dimensions: 8-1/4"D x 12-1/4"W x 2-5/8"H

Product history:

Clarion SRV314 thumbnail
(newest, current model)
Clarion SRV303 thumbnail
(previous model, replaced by Clarion SRV314)

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

Specifications & Details


Subwoofer Specifications
Subwoofer Size
6-3/4"
RMS Power Handling
60 watts
Peak Power Handling
120 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Sensitivity
80 dB
Frequency Response
30 - 200 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Number of Terminals
1
Terminal Type
RCA or Speaker Level
Box Exterior Color
Silver
Box Finish
Paint
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRV314

Weight:

7.00lbs

Internal SKU:

srv314

Internal Product ID:

14043

Customer Ratings & Reviews


Clarion SRV314 thumbnail image

5 star
0%
4 star
50%
3 star
50%
2 star
0%
1 star
0%



Durability
3.5
Value
3.5
Features
3
Design
3.5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great spacer design

if you're looking to fit a small sub with decent bass in your sports car, this is a good inexpensive solution.

By Julian on April 22, 2009

5 found this helpful


Clarion subwoofer was a compromise

I needed a sub that didn't suck up huge space in my Scion xB "trunk" and the Clarion fit the bill, installing it under the driver's seat. After having it for several months, now, I still don't think the wired remote control unit does much. It adjusts frequency (crossover point, I suppose), gain, and has a slide switch for phase reversal. Even when I swing the frequency and gain controls widely to get a drastic change, I barely hear a difference, at least playing CD-Rs of burned .mp3s. Maybe on FM there might be a bit more difference, I just don't listen to radio all that much, anymore.

The bass IS improved over my upgraded 6" speakers with the addition of the Clarion, but the frequencies below 200HZ must have a heck of a skew toward the higher end, as the deep punch you can hear with a non-powered 8" Bazooka is more of what I'm listening for, but missing. I'll probably end up re-buying a Bazooka for the trunk and re-installing my small Alpine amplifier to power it. First, I'll parallel-wire the non-powered Bazooka and see if that is enough added punch, then dump the Clarion and switch the whole thing out it it's still weak. Don't get me wrong, I'm not expecting 18" band-pass sound out of a cereal bowl. I'm 65 and still love the full sound. I wish I could put a sub in the spare tire & wheel cavity and up-fire the sound, but then I'd have no spare in traffic and trips. Such a conundrum!

By Bob on April 28, 2009

4 found this helpful
