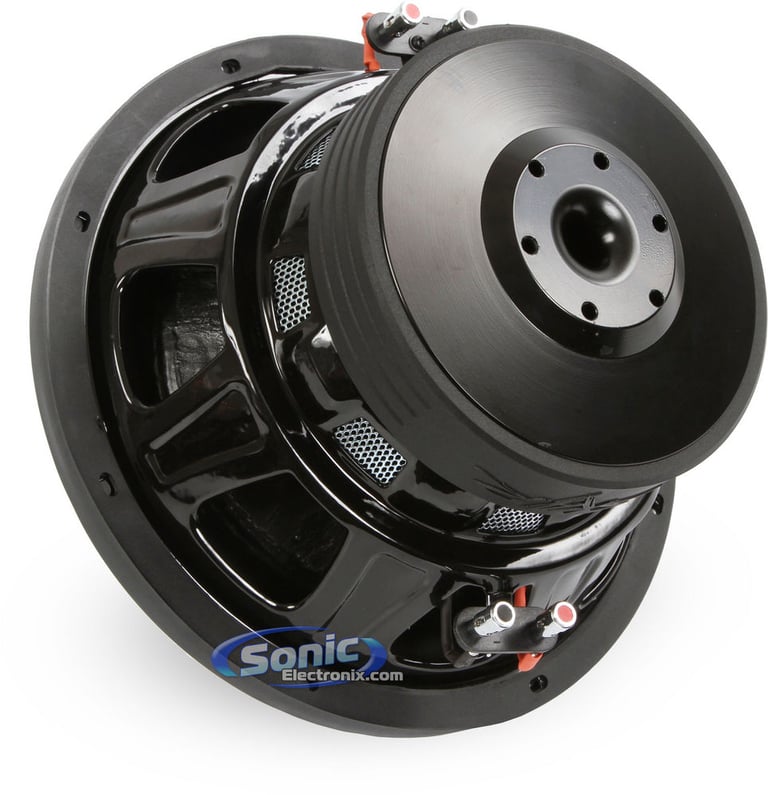

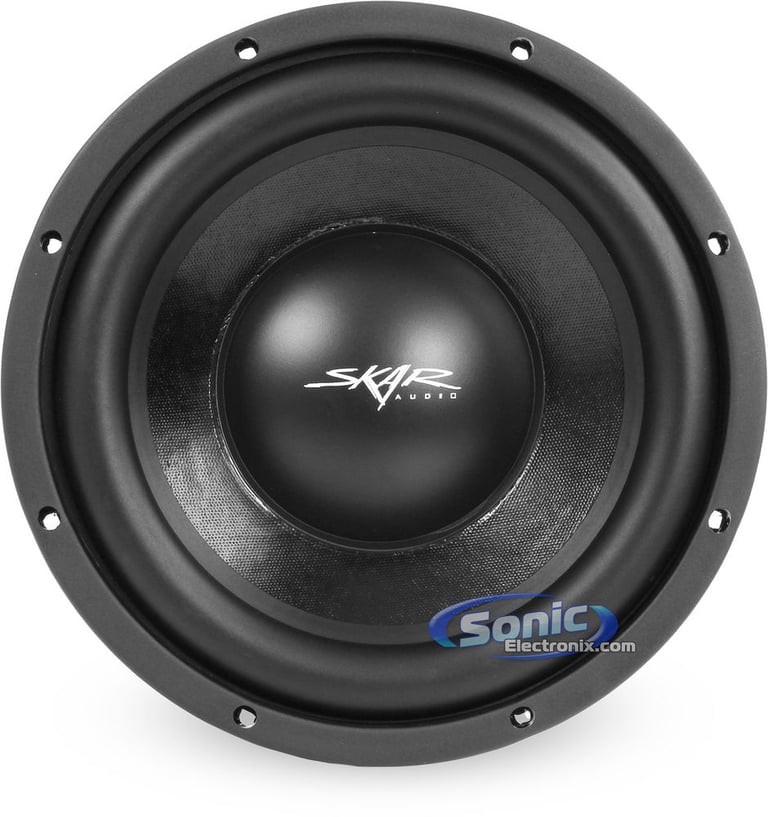

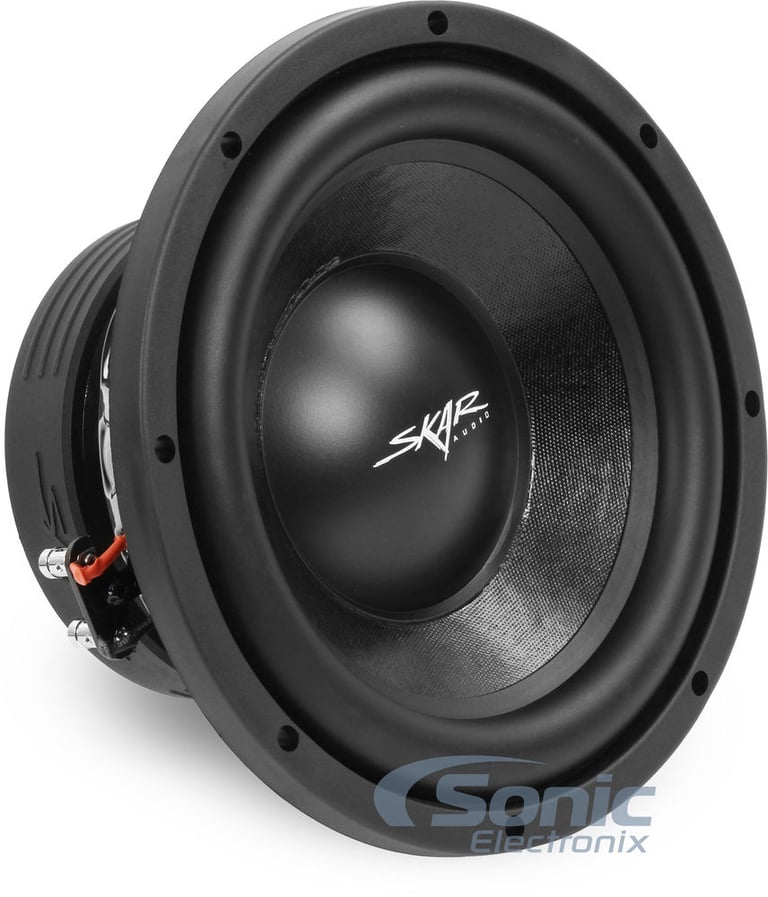

Name: SKAR Audio IVX-10 V2 D2
Brand: SKAR Audio
SKU: ivx10v2d2
Price: 94.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all SKAR Audio

by SKAR Audio

About
Wiring Guide
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

Product videos

Product highlights

• RMS Power: 400W
• Dual 2 ohm Voice Coil
• High Quality Paper Cone
• Premium Grade Foam Surround
• Spring Loaded Push-Terminals
• 50 Oz. Ferrite Magnet

Learn more about the ivx10v2d2

Product Highlights

• RMS Power: 400W
• Dual 2 ohm Voice Coil
• High Quality Paper Cone
• Premium Grade Foam Surround
• Spring Loaded Push-Terminals
• 50 Oz. Ferrite Magnet

Description

Authorized dealer

General Features:

10" Dual 2 Ohm IVXv2 Series Subwoofer
Power Handling:

RMS: 400 watts

High quality paper cone
Premium grade foam surround
2-Layer spider
Spring loaded push-terminals
2" BASV Voice coil
50 Oz. Ferrite magnet
Resonance Frequency (Fs): 41 Hz
Top-mount depth: 5-5/16"
Sensitivity: 87dB
Authorized Internet Dealer
2 Year Manufacturer's Warranty

Also Found As: IVXv210D2

Subwoofer Wiring Guide

Wiring Guide to Wire 1 SKAR Audio IVX-10 V2 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 SKAR Audio IVX-10 V2 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 SKAR Audio IVX-10 V2 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 SKAR Audio IVX-10 V2 D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

IVX Series

Subwoofer Size

10"

RMS Power Handling

400 watts

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

2 ohms

Voice Coil Diameter

Sensitivity

87 dB

Xmax (millimeters)

10.48 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Paper

Woofer Surround

Foam

Subwoofer Grille

Re-Cone Kit Available

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Minimum Sealed Box Volume

0.50 cubic feet

Maximum Sealed Box Volume

0.85 cubic feet

Minimum Ported Box Volume

0.75 cubic feet

Maximum Ported Box Volume

1.3 cubic feet

Top-Mount Depth (Mounting Depth)

5-5/16"

Cutout Diameter

9.1"

Shallow Mount Installation

Electromechanical Parameters

Free-Air Resonance (Fs)

41 Hz

Equivalent Compliance (Vas)

20 liters

Total Speaker Q Value (Qts)

0.361

Electrical Q Value (Qes)

0.421

Mechanical Q Value (Qms)

2.543

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
