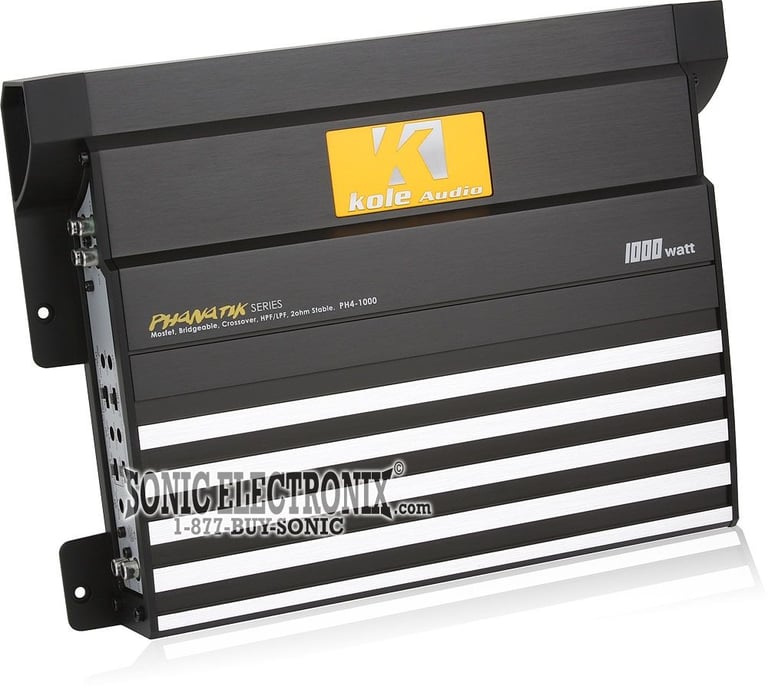

Kole Audio PH4-1000

1000W Max, 4-Channel Phanatik Series Amplifier

Product videos
highlight-star-icon

Phanatik Series 4-Channel Class AB Car Amplifier • 100W x 4 chan. @ 4 ohm • 125W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 500W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Learn more about the ph41000

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
LVE-NIS-TTNCKCG1-D12S main

NVX LVE-NIS-TTNCKCG1-D12S

Custom Fit 800W RMS Dual 12" Loaded Subwoofer Enclosure for 2004-2018 Nissan Titan Crew and King Cab Trucks

-18.92%

$359.99

List price $443.99

LVE-NIS-TTNCKCG1-D10S main

NVX Loaded BOOST Box - 2004-2018 Nissan Titan, Titan XD - LVE-NIS-TTNCKCG1-D10S

For select 2004-2018 Titan and Titan XD Crew and King Cab - Dual 10" 700W RMS Loaded BOOST Sealed Truck Enclosure

-16.67%

$339.99

List price $407.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Product Highlights


Phanatik Series 4-Channel Class AB Car Amplifier • 100W x 4 chan. @ 4 ohm • 125W x 4 chan. @ 2 ohm • 250W x 2 chan. @ 4 ohm • 500W x 2 chan. Max • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs • Preamp RCA outputs

Description


Kole Audio brand icon

Authorized dealer

  • Phanatik Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Max power output: 500 watts x 2 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply and transistor outputs
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost)
  • Tri-mode capable
  • Preamp RCA outputs
  • 3-Way protection circuitry
  • System distress indicator
  • Shiny jet black heatsink with diamond cut rubs
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Variable high-pass filter (40-250 Hz, 24 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Frequency response: 10-30000 Hz
  • Dimensions: 13.4"L x 10.4"W x 2.4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH4-1000

Weight:

9.00lbs

Internal SKU:

ph41000

Internal Product ID:

14087

Product and How-to Videos


Customer Ratings & Reviews


Kole Audio PH4-1000 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
4.5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Kole audio- (PH4-1000wat amplifier)

I like everything about this amp it's 5 stars everytime thanks for the product

By Clay on April 14, 2023


Very good amp for the Money

I used this amp to run my inside speakers. It is extremely clean to my surprise, and it does not run very hot. I am extremely satisfied with it for my application.
