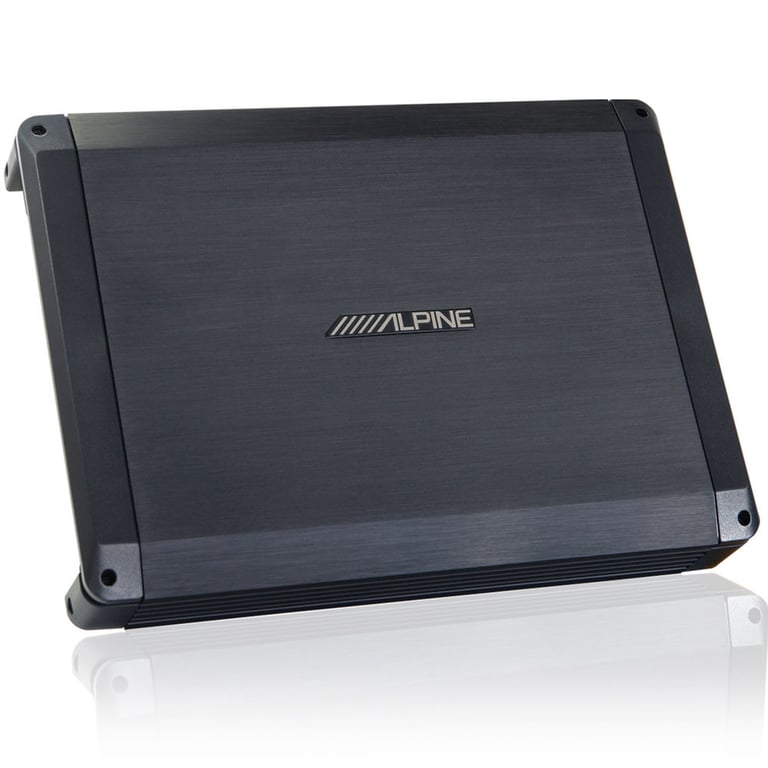

Alpine BBX-F1200 | 600 Watt Class-A/B 4-Channel Amplifier

Alpine BBX-F1200

600W Max (280W RMS) 2-ohm Stable 4 Channel Class-A/B Amplifier

600W Max (280W RMS) 2-ohm Stable 4 Channel Class-A/B Amplifier

• 50 Watts RMS x 4 @ 4 ohms
• 70 Watts RMS x 4 @ 2 ohms
• 130 Watts RMS x 2 @ 4 ohms
• Total Peak Power: 600 Watts
• High and Low Pass Filters
• 0-12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 9.4" W x 12.9" L x 2" H

4.5

(6)
List price $230.00
Save: $70.05

$159.95

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Alpine

Authorized dealer

General Features:

  • Alpine BBX-F1200
  • Class-A/B 2-ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 70 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 130 watts x 2 chan.
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: .2V - 8V
  • Frequency Response: 5 - 50000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 95dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • Fuse Rating: 40A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.4"W x 12.9"L x 2"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channels
RMS Power @ 2 ohms
70 watts x 4 channels
Bridged RMS Power
130 watts x 2 channels
Amplifier Specifications
Amplifier Series
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total Peak Power Output
600 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
40A x 1
Total Fuse Rating
40
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
REVIEWS
Alpine BBX-F1200

Alpine BBX-F1200

4.5

(6)

Write a review

Overall rating distribution

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
5
Features
5
Design
5
Usability
5

Anonymous

May 31, 2019

Good amp for the price

This amp is good for the budget conscious individual who is looking to power speakers but not wake up the neighborhood loud door speakers

6

found this helpful.

Rigo

October 10, 2020

High quality amplifier

It brought life to my car audio. Had 4 speakers installed without an amp they sounded okay, but after installing the amp both power and fidelity increased.

4

found this helpful.

Steve

September 3, 2020

So far so good

Well it's been a while and no issues with this amp.

4

found this helpful.

kevin

October 29, 2020

Alpine BBX-F1200 Clean signal to speakers

I have this amp running my tweeters and midrange in my 3way front stage, and I have nothing bad to say of the sound the amp produce. My gripe with this amp is where the RCA and speaker terminals are located. The top RCA control the bottom speaker output, and the bottom RCA controls the top speaker output. Why not have the top RCA control the speaker terminal right across and vice versa for the bottom.

3

found this helpful.

Jeff

April 1, 2020

Alpine amp

This is a great amplifier my other Alpine amplifier is 25 years old and still kicking. This one is the replacement for my old one I think it does an even better job. My 12-inch subwoofer is being works hard by this amplifier it's a good price at a hundred and twenty bucks

6

found this helpful.

Casey

March 22, 2020

Alpine BBX-F1200

Good product and great delivery time from sonic......sleek design on the amp.

7

found this helpful.
