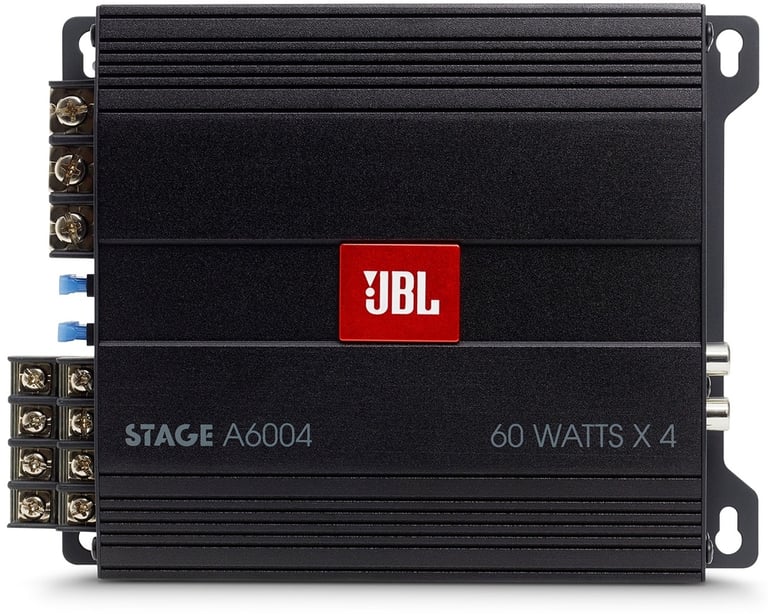

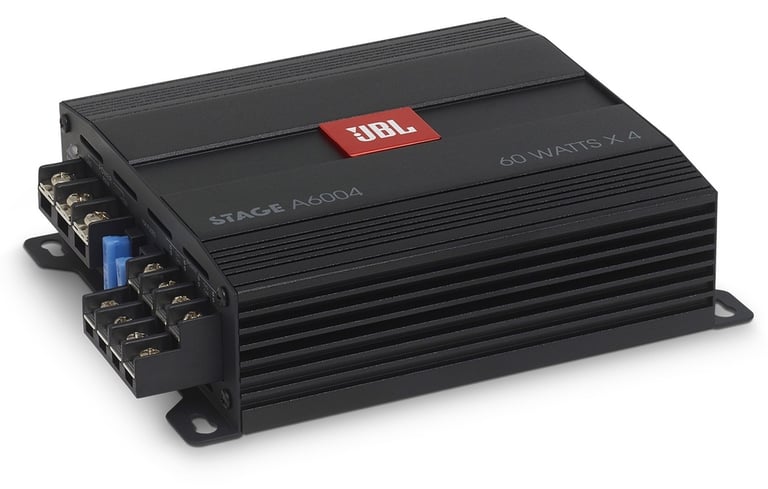

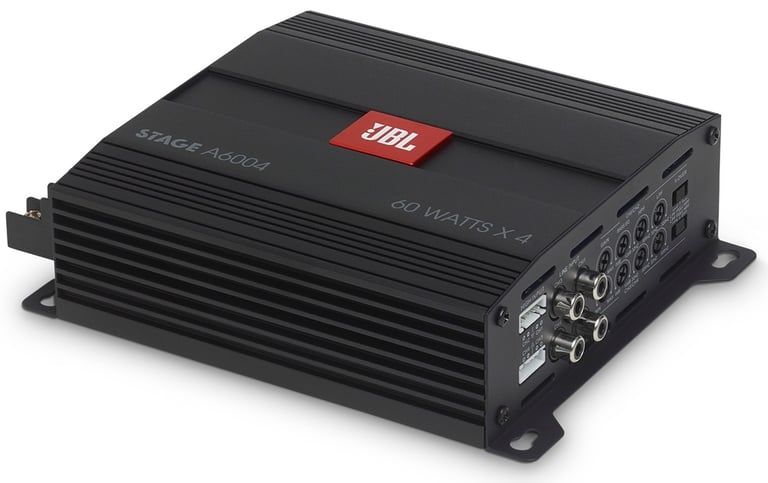

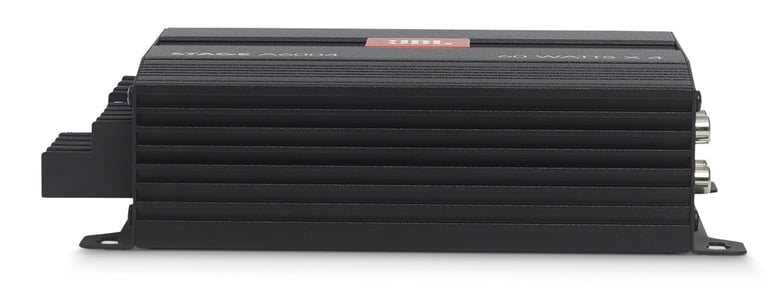

JBL STAGEA6004

560W Max (240W RMS) 4-Channel Class-D Amplifier w/ Remote Level Control

JBL
Shop all JBL
highlight-star-icon

• 60 Watts RMS x 4 @ 4 ohm
• 70 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 560 Watts
• CEA-2006 Compliant
• 12dB Bass Boost
• Alloy Heat Sink
• Frequency Response: 20 - 20000 Hz

Learn more about the stagea6004am

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

General Features:

  • JBL Stage A6004
  • Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 70 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 140 watts x 2 chan.
  • Total power output: 560 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps

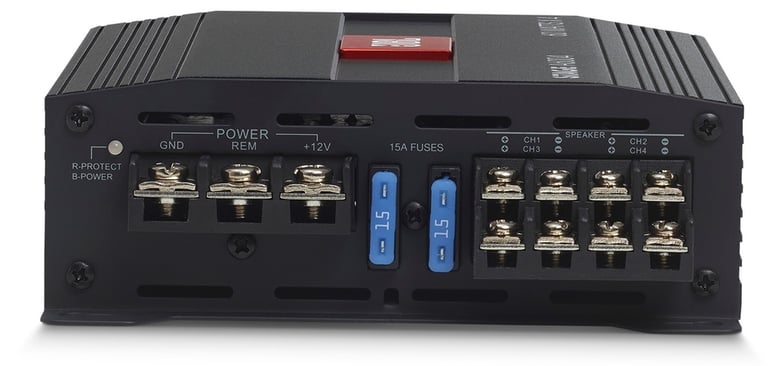

  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • High level: 0.5V-12V
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >75 dB
  • Variable high-pass filter: 32 - 320 Hz, 24 dB/octave
  • Variable low-pass filter: 32 - 320 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Fuse Rating: 15A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6"W x 7.25"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF IconJBL STAGEA6004AM owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
70 watts x 4 channel
Bridged RMS Power
140 watts x 2 channel
Amplifier Specifications
Series
Stage Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
560 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
15A x 2
Total Fuse Rating
30
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Amplifiers
Amplifier
Mounting screws (4)
Two spare fuses
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

STAGEA6004

Weight:

3.00lbs

Internal SKU:

stagea6004am

Internal Product ID:

145731
