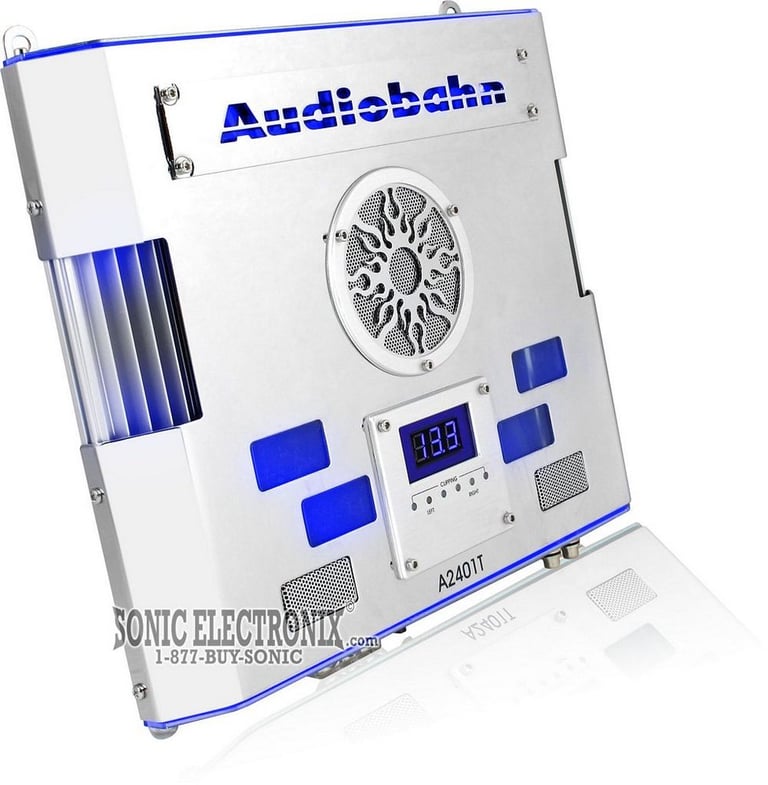

Audiobahn A2401T

560W Max, Class A/B 2-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 560W Max Power Output • 280W RMS @ 2 ohm • 200W RMS @ 4 ohm • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Learn more about the a2401t

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

Product Highlights


2-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 560W Max Power Output • 280W RMS @ 2 ohm • 200W RMS @ 4 ohm • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Description


  • 560W Max, Class A/B 2-Channel Car Amplifier
  • RMS Power Rating:
    • 100 watts x 2 chan. @ 4 ohm
    • 140 watts x 2 chan. @ 2 ohm
    • 280 watts x 1 chan. @ 4 ohm Bridged
  • Max Power Output: 560 watts @ 2 ohm stereo or 4 ohm bridged
  • Full MOSFET Power Supply with Soft Start Class A/B Circuitry
  • Preamp Outputs
  • Cobalt Blue Illumination (on/off switch for your preference)
    • Circuit Board, Heat Sink, Audiobahn Name Plate, Volt-meter and End Caps illuminate
  • Cobalt Blue Digital Volt-meter Display
  • Clipping Blue LED Indicators under the volt-meter display
  • Cooling Fan
  • Chrome Flame Cooling Fan Grill Cover Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish

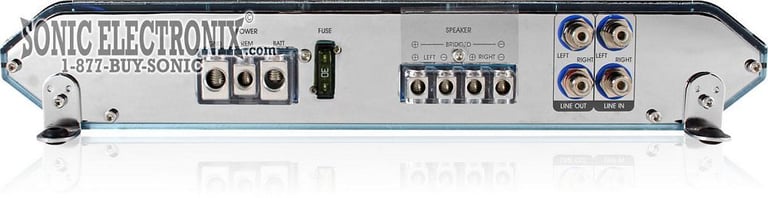

  • Nickel Plated Block Terminals
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • High quality Bipolar Audio Stage

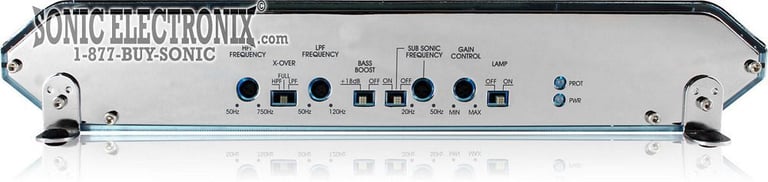

  • On/Off Bass Boost Setting: 0 or +18dB
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 10-1/4" L x 12-3/4" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Loading...
SB-F-EXPED4G/10TW1 main

JL Audio Stealthbox® SB-F-EXPED4G/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2018-2024 Expedition and Expedition Max

$1,449.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
140 watts x 2 channel
Bridged RMS Power
280 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
560 watts
Total RMS Power Output
280 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
No
Fuse Rating
30A x 1

Item Details


Manufacturer:

Model Number:

A2401T

Weight:

12.00lbs

Internal SKU:

a2401t

Internal Product ID:

1481
