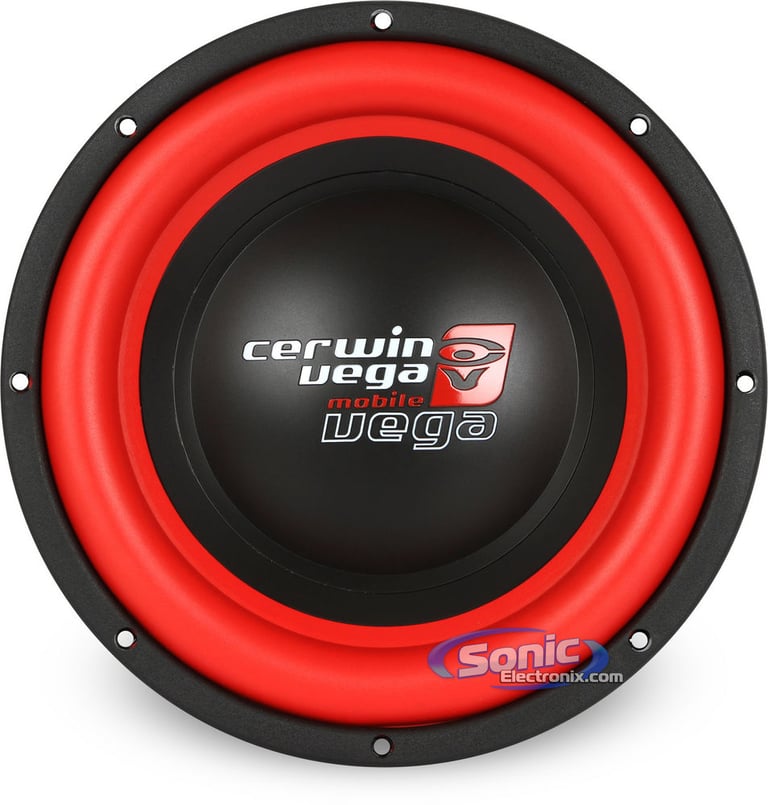

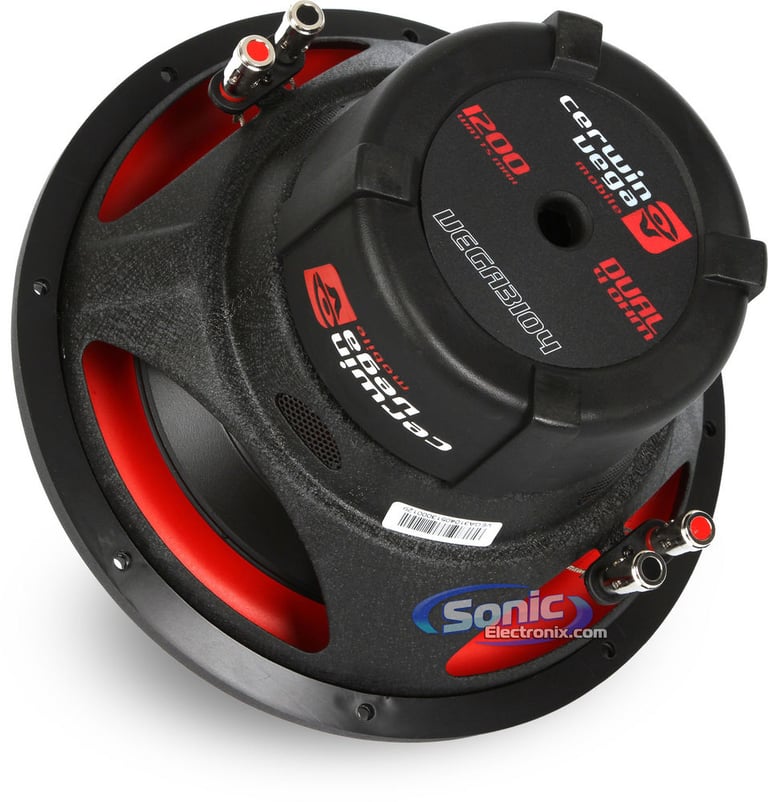

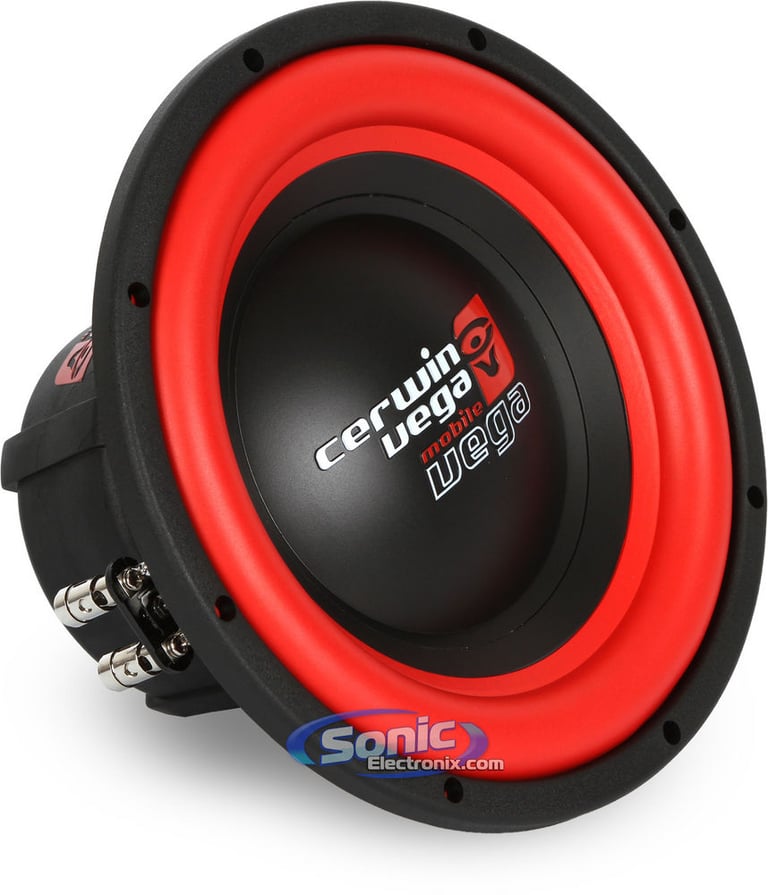

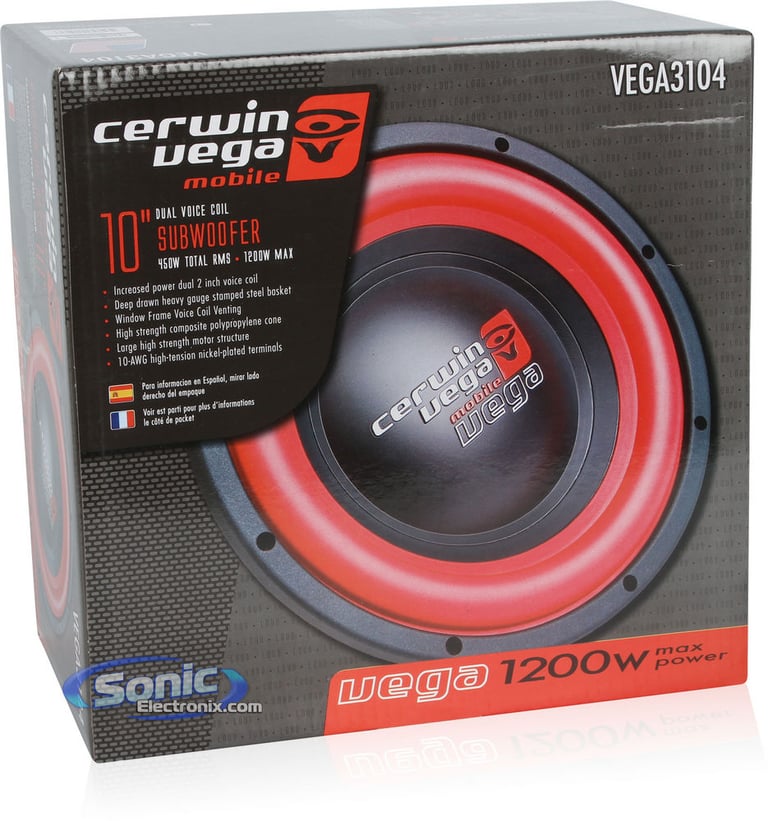

Cerwin-Vega VEGA3104

10" Dual 4 Ohm Vega3 Series Car Subwoofer

Product videos
highlight-star-icon

• 1200W Peak
• 450W RMS
• Dual 4 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• Deep Drawn Heavy Gauge Stamped Steel Basket
• 2" Voice Coil with Rolled Aluminum Former

Learn more about the vega3104

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

v104dv2 thumbnail

Cerwin Vega V104DV2

OUR PRICE: $129.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

31
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34

Product Highlights


• 1200W Peak
• 450W RMS
• Dual 4 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• Deep Drawn Heavy Gauge Stamped Steel Basket
• 2" Voice Coil with Rolled Aluminum Former

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 10" Dual 4 Ohm Vega3 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 450 watts
  • Impedance: 4 ohm
  • High strength composite polypropylene cone
  • Butyl rubber surround
  • Deep drawn heavy gauge stamped steel basket
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • 2" Voice coil with rolled aluminum former
  • Large, high strength motor structure
  • Forge alloy yoke (FAY) for better magnetic transfer
  • Resonance Frequency (Fs): 30 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 82 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega V104DV2 thumbnail
(newest, current model)
Cerwin-Vega V104D thumbnail
(previous model, replaced by Cerwin Vega V104DV2)
Cerwin-Vega VEGA3104 thumbnail
(previous model, replaced by Cerwin-Vega V104D)
Cerwin-Vega VEGA104.2 thumbnail
(previous model, replaced by Cerwin-Vega VEGA3104)
Cerwin-Vega Vega-104 thumbnail
(previous model, replaced by Cerwin-Vega VEGA104.2)
Cerwin-Vega VEGA104 thumbnail
(previous model, replaced by Cerwin-Vega Vega 104)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VEGA3104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VEGA3104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VEGA3104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VEGA3104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
VEGA Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
82 dB
Xmax (millimeters)
4.0 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
26.61 liters
Total Speaker Q Value (Qts)
0.456
Electrical Q Value (Qes)
0.502
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
4.89
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VEGA3104

Weight:

10.50lbs

Internal SKU:

vega3104

Internal Product ID:

68593

Product and How-to Videos


  • Cerwin-Vega VEGA3 Car Subwoofers | New VEGA Subs for 2013!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Cerwin-Vega VEGA3104 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

amazing

i had an old MTX that blew up so i got a new cerwin vega. and it hits twice as hard as my MTX did!!! best sub for the price!

By c_Stan23 on October 3, 2013

24 found this helpful


This is one of the best subs I have ever owned

I am running it parallel at 2 ohms hooked up to a Kenwood KAC-7005PS. It is in an ugly home made box. I ran it at about 25% for the first week or so that I had it and it hit pretty good. I turned it up to about 75% and it slams really hard for a 10". For the price this is definitely the best 10" sub you can get based on my experience.

By Timothy on August 14, 2013

20 found this helpful


These 10 inch speakers are a hit....

this cerwin vega 10's are great I will recommend this speakers I love them I Own 4 of them and they hit fine in my car...

By Kenneth on September 29, 2013

19 found this helpful




TSB910 small

American International TSB910

6.5" to 6.75" Speaker Mounting Adapters for select 2002-2020 vehicles from Toyota, Lexus

(1)

$16.99

List price $44.00

3D160NO-4 small

DS18 3D160NO-4

320W Peak (160W RMS) 3" Midrange 4-ohm OEM Dashboard Loudspeakers

$119.95

List price $143.99

XD-RT8-4PAK small

JL Audio XD-RT8-4PAK

8 AWG Premium Series Crimpable Ring Terminals

(2)

$19.99

List price $19.99

AD-KI11 small

Metra AD-KI11

Raptor Antenna Adapter Cable for select 2009-2024 vehicles from Hyundai, Kia

$3.99

List price $4.99

GRL69PH small

Cerwin-Vega GRL69PH

Mesh Grilles for Cerwin Vega 6x9" PH Speakers

$29.99

List price $29.99

99-7382HG small

Metra 99-7382HG Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2017-2019 Niro

$328.99

List price $466.99

HRN-RR-TO3 small

iDataLink HRN-RR-TO3

Wire harness to Installnew iDatalink-ready car stereo and retain steering wheel controls for select 2018-2025 vehicles from Toyota (ADS-MRR or ADS-MRR2 module also required)

$33.99

List price $43.99

FRP-8K/TI small

DS18 FRP-8K/TI

9000W Peak (8000W RMS) Class D FRP Series Monoblock Amplifier with Bass Remote (Titanium)

$899.95

List price $899.95

HA10B small

Scosche HA10B Wiring Harness

Install a new car stereo in select 2006-2013 vehicles from Honda, Acura

(24)

$7.95

List price $8.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Cadillac DeVille

2000 Hyundai Accent

2007 Ford Mustang

1995 Ford Aerostar

2014 Scion xB

1987 Cadillac Eldorado

2008 MINI Cooper

2016 BMW M2

2004 Kia Optima

2021 Ford Expedition Max

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
