Name: Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX
Brand: Power Acoustik
SKU: LS-bamf55001d-OB
Price: 199.99 USD
Availability: Discontinued

by Power Acoustik

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 1 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 2 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 3 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 4 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 5 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 6 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX Image 7 — Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX

Power Acoustik BAMF-5500/1D (BAMF55001/D)-OPEN BOX-video

Product videos

Product highlights

• RMS: 1700W x 1 @ 4 ohm, 2300W x 1 @ 2 ohm, 3200W x 1 chan @ 1 ohm
• Total Peak Power: 5500W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 1 Pair of Preamp Outputs
• Dimensions: 16-7/8"L x 8-1/4"W x 2-1/8"H

Learn more about the LS-bamf55001d-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

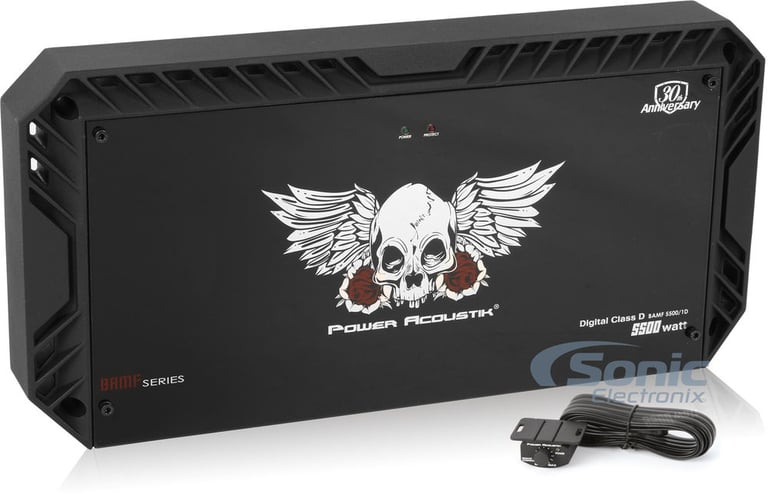

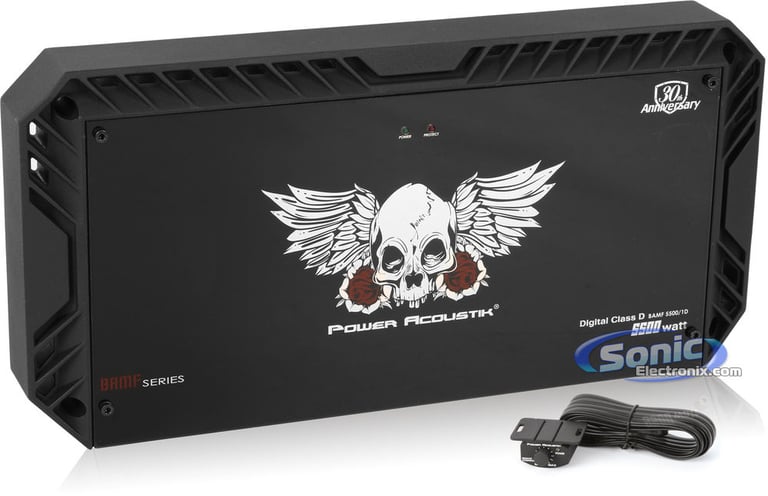

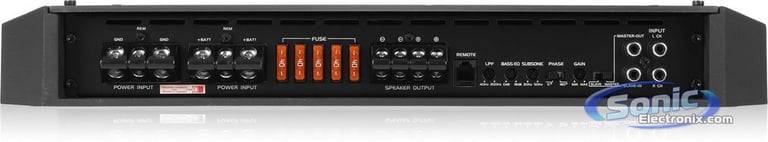

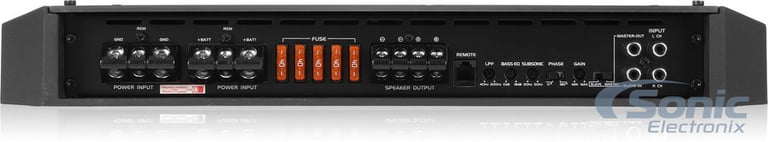

Power Acoustik's BAMF amplifier series is the perfect amplifier for those that are looking for quality performance, while wanting to save some cash. Each amplifier in the BAMF series feature a die-cast aluminum heat sink that dissipates heat from three sides of the amplifier. For convenience, all the connections and control functions can be found on one side of the amplifier.

5500W Max Monoblock Class D Amplifier Car Amplifier
RMS Power Rating:

4 ohm: 1700 watts x 1 chan.
2 ohm: 2300 watts x 1 chan.
1 ohm: 3200 watts x 1 chan.

Max power output: 5500 watts x 1 chan.
Fully regulated PWM power supply

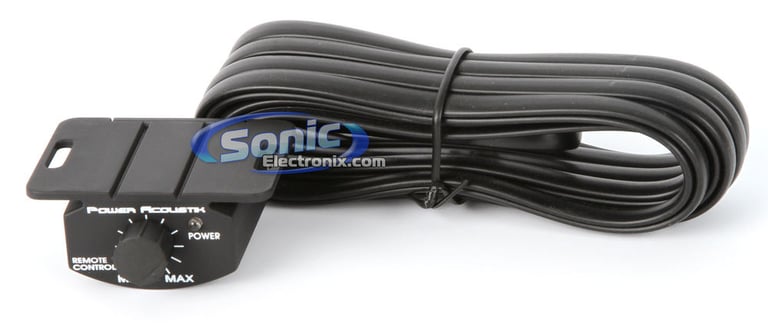

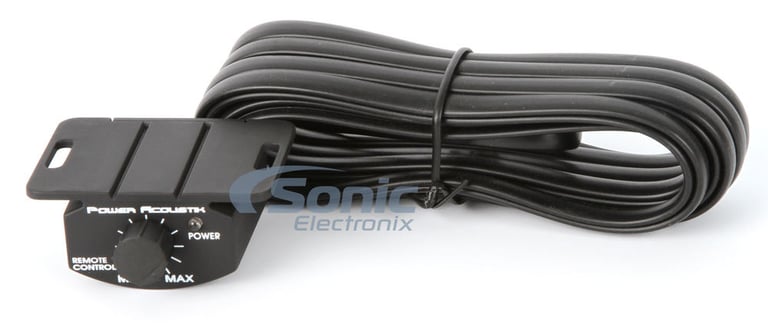

Wired remote bass level control included
System distress indicator
Four way protection circuit
Adjustable Tuned Bass EQ (0-18 dB Bass Boost)
Hi-Speed digital circuitry
Full selectable crossover (HI,Full,Low
1-Ohm Stable
Full selectable crossover (HI,Full,Low)
Die-cast aluminum heat sink designed for massive heat dissipation from three sides of the amplifier
Heavy duty aluminum alloy heatsink or High-density split-dome convection heat sink for extreme heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Variable low-pass filter (40-200 Hz, 12 dB/octave)
Variable subsonic filter (20-50 Hz)
Variable subwoofer EQ @ 45 Hz
Frequency response: 20-200 Hz
Signal to Noise Ratio: 100 dB
Dimensions: 16-7/8"L x 8-1/4"W x 2-1/8"H
1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1700 watts x 1 channel

RMS Power @ 2 ohms

2500 watts x 1 channel

RMS Power @ 1 ohm

3200 watts x 1 channel

Amplifier Specifications

Series

BAMF Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

5500 watts

Total RMS Power Output

3200 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

<1%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 500 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 5

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
