Name: Cadence QRS 4.125GH Open Box (Complete)
Brand: Cadence
SKU: ls-qrs4125gh-obc10
Price: 407.47 USD
Availability: Discontinued

by Cadence

About
Specs & Details
Reviews
Add-ons
Related Searches

Cadence QRS 4.125GH Open Box (Complete) Image 1 — Cadence QRS 4.125GH Open Box (Complete)

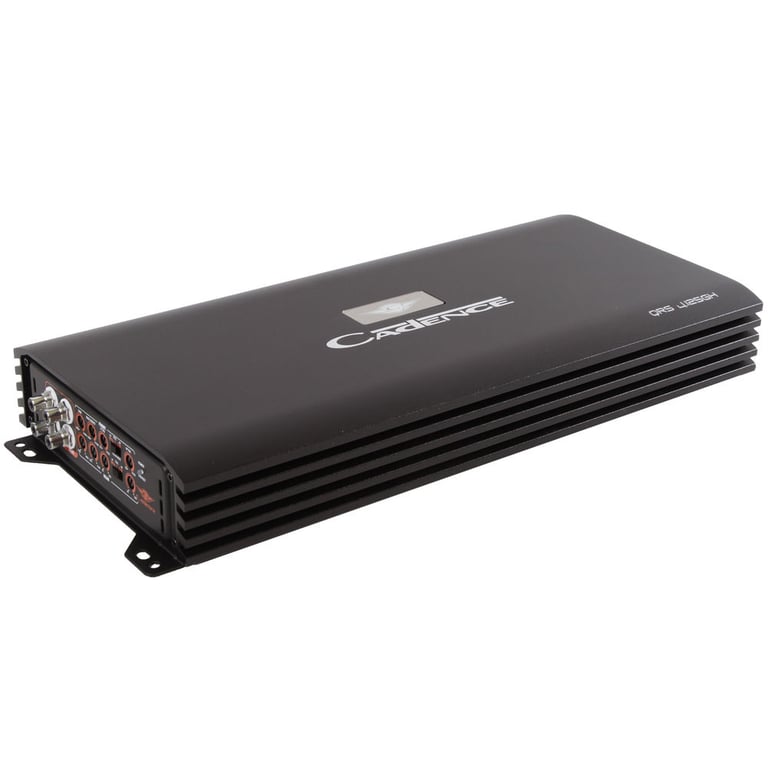

Cadence QRS 4.125GH Open Box (Complete) Image 2 — Cadence QRS 4.125GH Open Box (Complete)

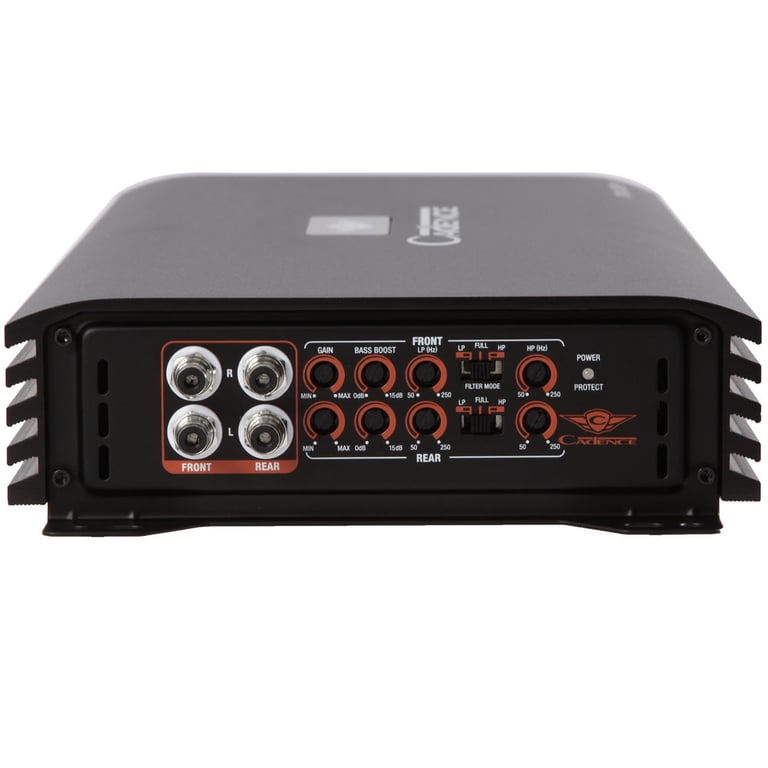

Cadence QRS 4.125GH Open Box (Complete) Image 3 — Cadence QRS 4.125GH Open Box (Complete)

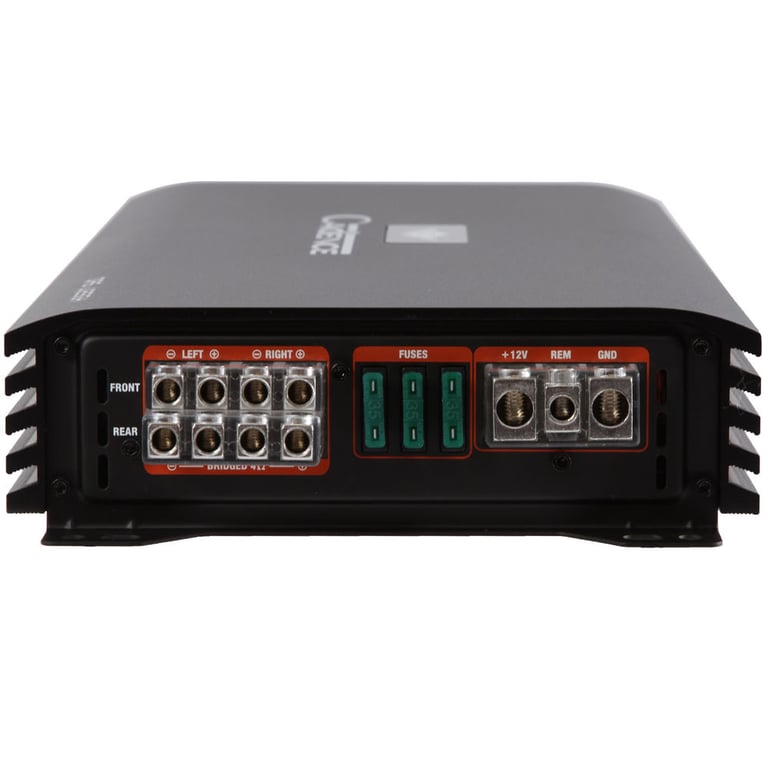

Cadence QRS 4.125GH Open Box (Complete) Image 4 — Cadence QRS 4.125GH Open Box (Complete)

Cadence QRS 4.125GH Open Box (Complete) Image 5 — Cadence QRS 4.125GH Open Box (Complete)

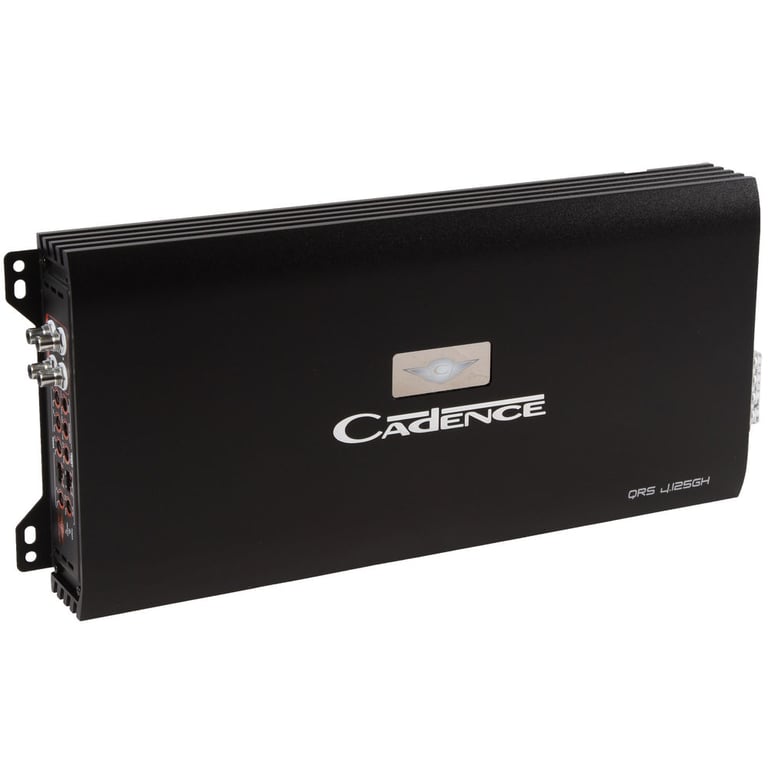

Cadence QRS 4.125GH Open Box (Complete) Image 6 — Cadence QRS 4.125GH Open Box (Complete)

Product highlights

• 125 Watts RMS x 4 @ 4 ohm
• 200 Watts RMS x 4 @ 2 ohm
• 400 Watts RMS x 2 @ 4 ohm, Bridged
• High and Low Pass Filters
• 0-15dB
• Aluminum Heatsink
• Dimensions: 17.6" W x 7.56" L x 2.32" H

Learn more about the ls-qrs4125gh-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

Cadence QRS Series QRS 4.125GH
Class-GH 2 ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohm: 125 watts x 4 chan.
2 ohm: 200 watts x 4 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohm: 400 watts x 2 chan.

Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
4/3/2 or channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity: 200mV - 6V
Frequency Response: 20 - 30000 Hz
Total Harmonic Distortion (THD): .05%
Signal to Noise Ratio: >86 dB
Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
Variable Bass Boost: 0 to +15 dB bass boost
Fuse Rating: 35A x 3
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 17.6"W x 7.56"L x 2.32"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

>86 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Fuse Rating

35A x 3

Total Fuse Rating

105

Strappable

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
