Name: AudioControl ACM4300 (Open Box, Complete)
Brand: AudioControl
SKU: ls-acm4300-obc
Price: 264.80 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all AudioControl

by AudioControl

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

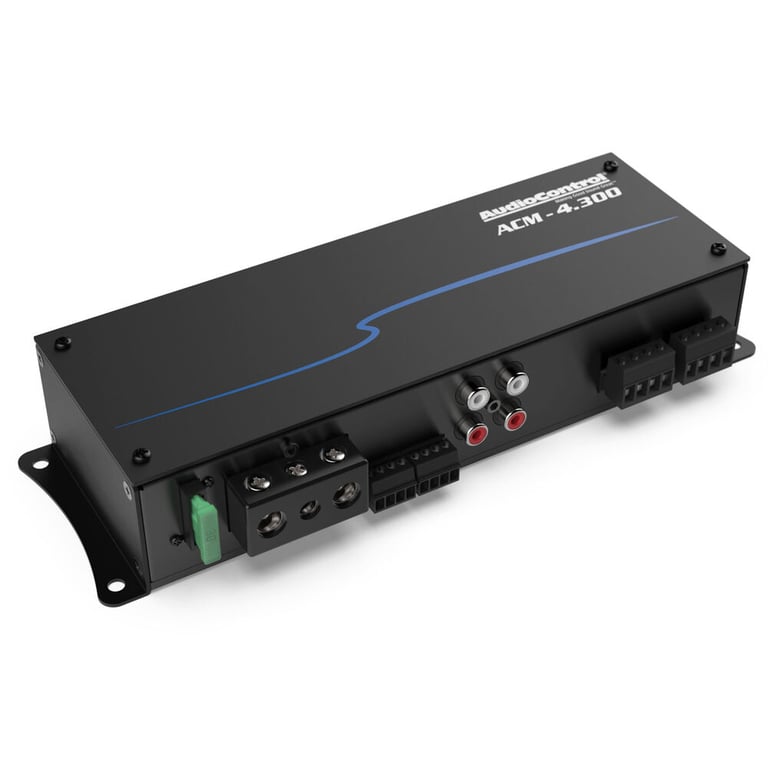

AudioControl ACM4300 (Open Box, Complete) Image 1 — AudioControl ACM4300 (Open Box, Complete)

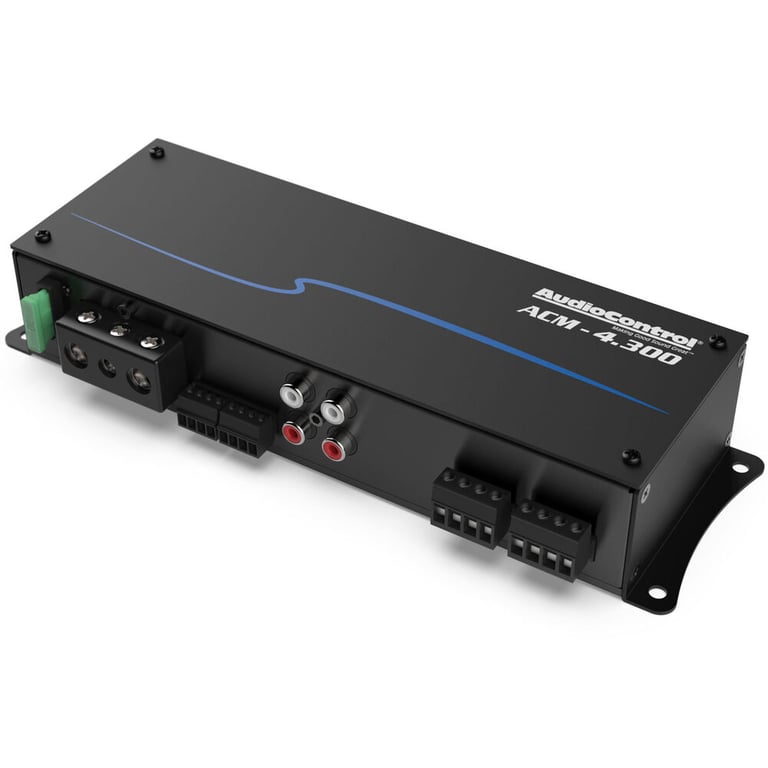

AudioControl ACM4300 (Open Box, Complete) Image 2 — AudioControl ACM4300 (Open Box, Complete)

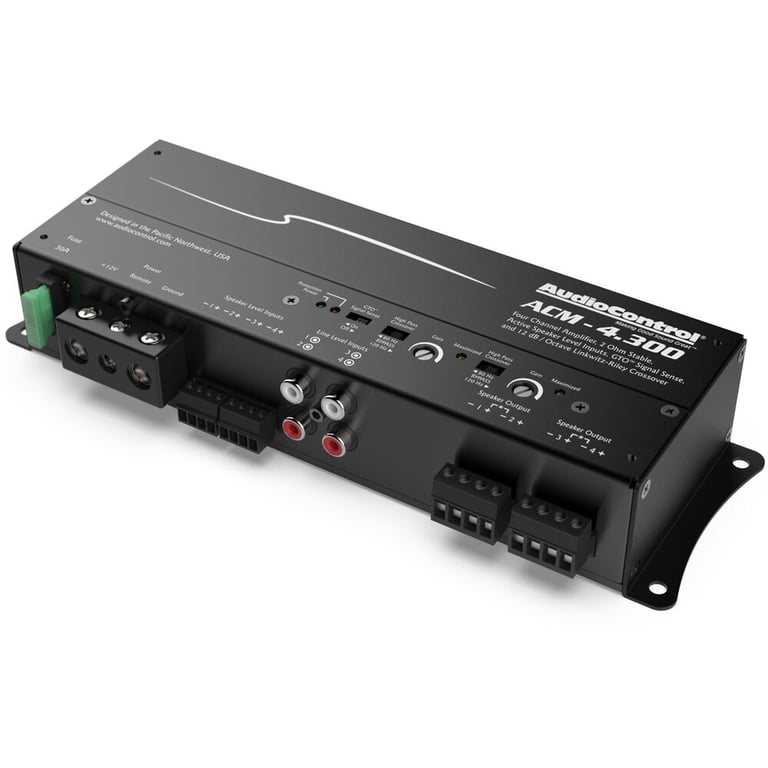

AudioControl ACM4300 (Open Box, Complete) Image 3 — AudioControl ACM4300 (Open Box, Complete)

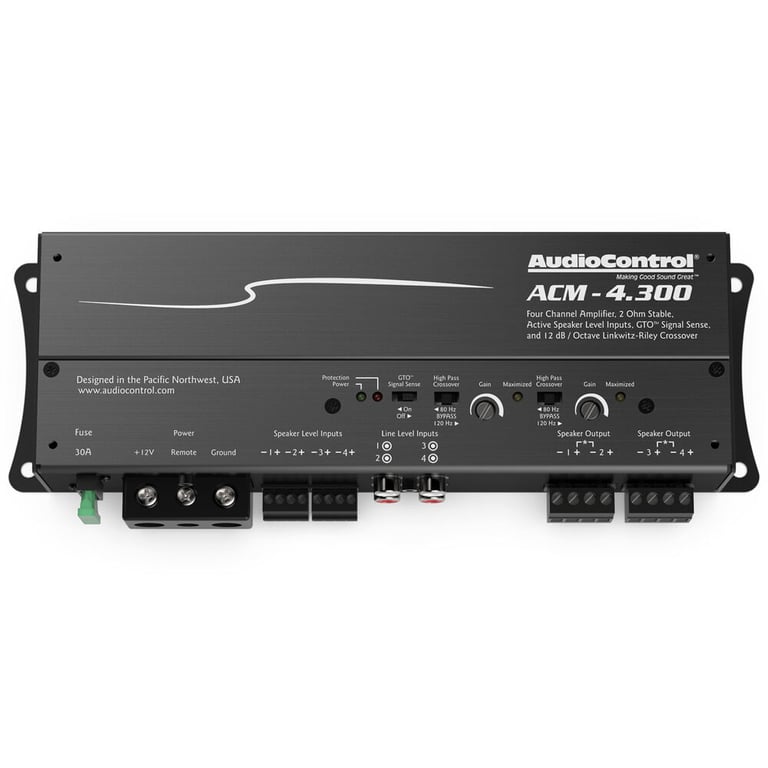

AudioControl ACM4300 (Open Box, Complete) Image 4 — AudioControl ACM4300 (Open Box, Complete)

Product highlights

• 50 Watts RMS x 4 @ 4 ohm
• 175 Watts RMS x 2 @ 2 ohm
• 150 Watts RMS x 2 @ 4 ohm, Bridged
• Small Footprint for Flexible Mounting
• AccuBASS and GTO Signal Sense Built In
• Linkwitz-Riley Crossover
• Aluminum Heatsink
• Dimensions: 9.4" W x 3" L x 1.75" H

Learn more about the ls-acm4300-obc

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

General Features:

AudioControl ACM Series ACM-4.300
Class-D 2 ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 175 watts x 4 chan.
4 ohm, Bridged: 150 W x 2 chan.

Small footprint for flexible mounting options
GTO Signal Sense turns on the amp when signal is detected from the factory amp or stereo
Patented AccuBASS processing restores bass
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 500 mV - 6V
High level: 3V - 40V

Frequency Response: 10 - 22000Hz
Total Harmonic Distortion (THD): <.01%
Signal to Noise Ratio: 102 dB
Linkwitz-Riley Crossover
High pass crossover selectable at 80Hz or 120Hz
Fuse Rating: 30A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 9.4"W x 3"L x 1.75"H
Authorized Internet Dealer
5 Year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.01%

Speaker Level Inputs

Yes

Built-in Crossover

High-Pass (HP)

High-Pass Crossover Frequency

60 - 120 Hz

Fuse Rating

30A x 1

Total Fuse Rating

Warranty and Return Policy

Parts Warranty Duration

5 years

Labor Warranty Duration

5 years

Warranty Provider

Manufacturer
