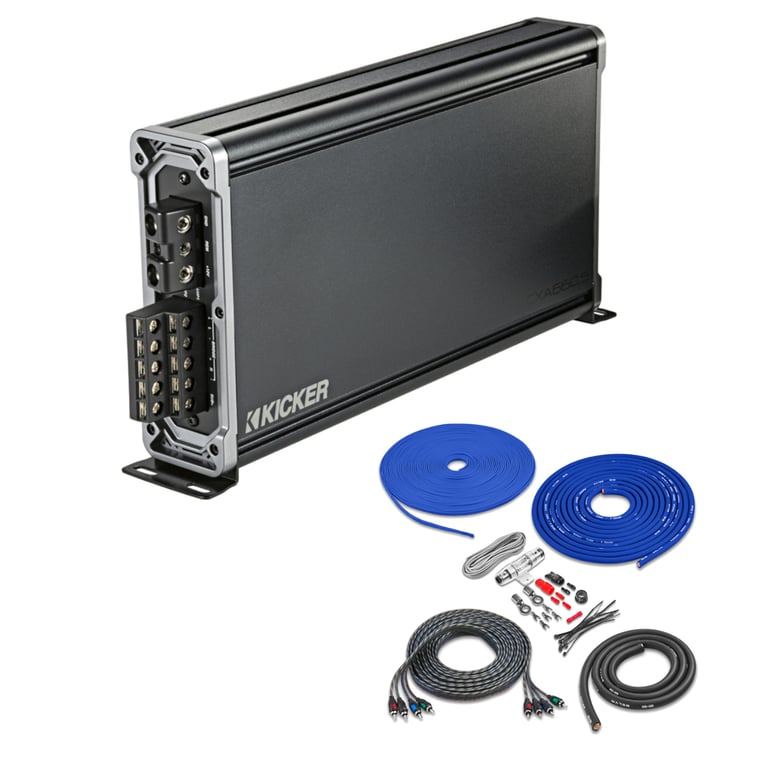

Kicker 46CXA6605 with Amplifier Wiring Kit

360W RMS CX-Series Class-D 5-Channel Amplifier

Kicker
Shop all Kicker
highlight-star-icon

• 75 Watts RMS x 4 @ 2 ohms
• 2 ohms: 300 watts x 1 chan. Subwoofer Channel
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low/High-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

Learn more about the 43cxa6005_bak42
Was $559.98 Details
Thanks , You Pay:

$404.96

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one 43cxa6005_bak42.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


Kicker brand icon

Authorized dealer

CXA600.5

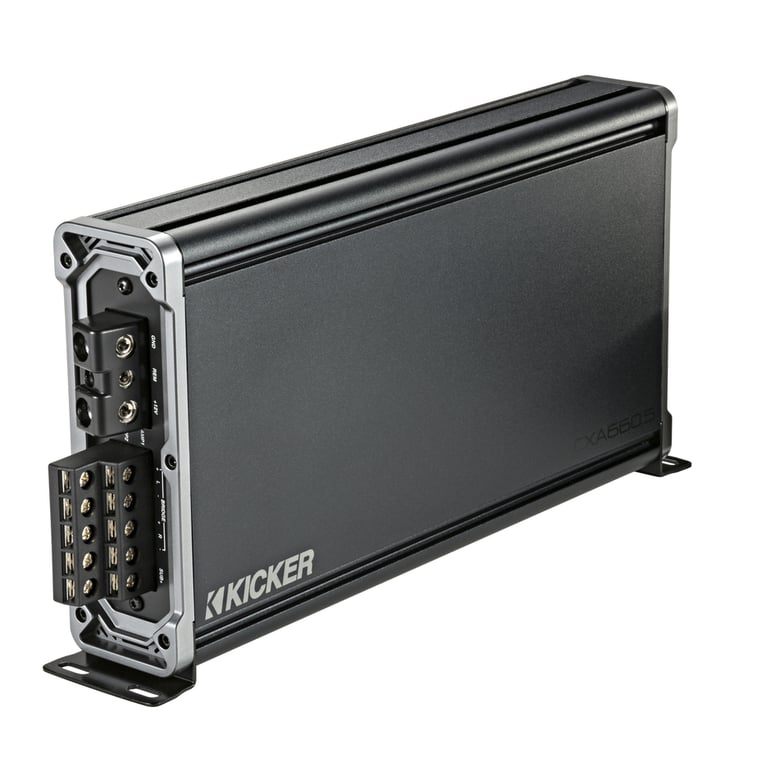

Mount a Kicker CX amp vertically to save space

The CX Series spans all kinds of systems, whether you're just trying to get a little more out of your factory radio or you're ready to blow the doors off with a completely aftermarket setup. Either way, the quality of your sound is at the heart of the CX Series. Sleek, simple styling and installation flexibility all round out the amplifiers' functionality.

Kicker makes your installation simple, but gives you plenty of options. Make it easy on yourself when plugging in with Kicker's KISL so you can take high-level signal from the headunit's speaker outputs straight into the amp's RCA input. Also, most models are just more than two inches thick and included brackets allow you to install these vertically. If space is at a premium in your ride, the CX series gives off plenty of power while saving you some room.

CXA600.5

The CXA600.5 makes for a great all-in-one power solution for your stereo. This Class-D 2-ohm stable 5-channel amp is built to handle 75 watts at 2 ohms for 4 channels, or 150 watts at 4 ohms for 2 channels when bridged, and the subwoofer channel can pump out 300 watts at 2 ohms.

Like most of the amps in the CX series, it's easy to control your bass output from the driver's seat. Pick up a Kicker CXARC wired remote bass level control, plug it in, and optimize your sound easily.

Under the hood

The CX Series has a lot of built-in technology to make sure your system just keeps going for the long haul. With litz-wound transformers to maximize power transfer while minimizing power loss, high current switching, buffered RCA outputs, these amps are built to put out lasting, quality power.

These amps also include their own crossovers and an adjustable KickEQ Bass Boost. A 3-second turn-on delay helps eliminate any additional interference that might affect your system.

Power a sub or a whole system with Kicker CX amps

But these amps also have Kicker's Failsafe Integration Technology inside. That means they can take signal from any audio source and run it straight into the amp. For you, it means no need for line-out converters, step down modules, processors or less conventional wiring to complete your system. Kicker's FIT eliminated the need for additional equipment that could introduce additional noise to your signal. It even works well with factory amplified systems from other premium brands.

For a potent, versatile power solution for your sound system, pick up as many CX Series amps as you need here at Sonic Electronix. Add one, or however many you need, to your cart today.

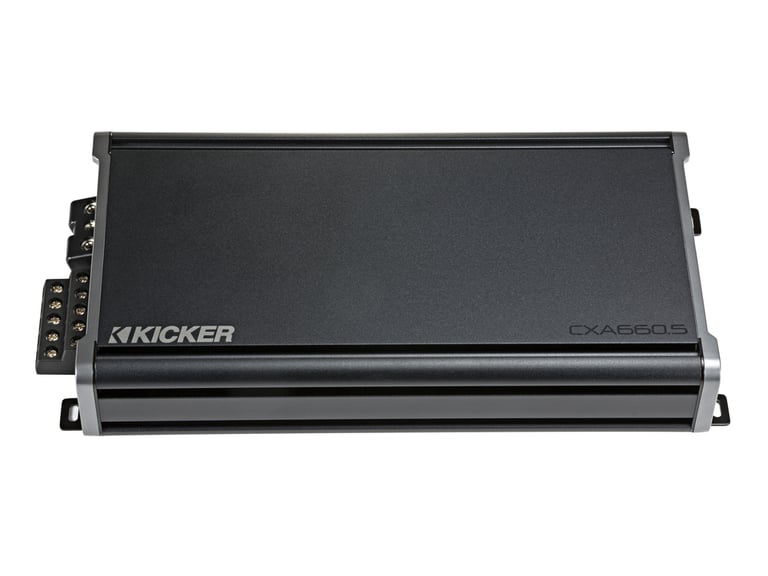

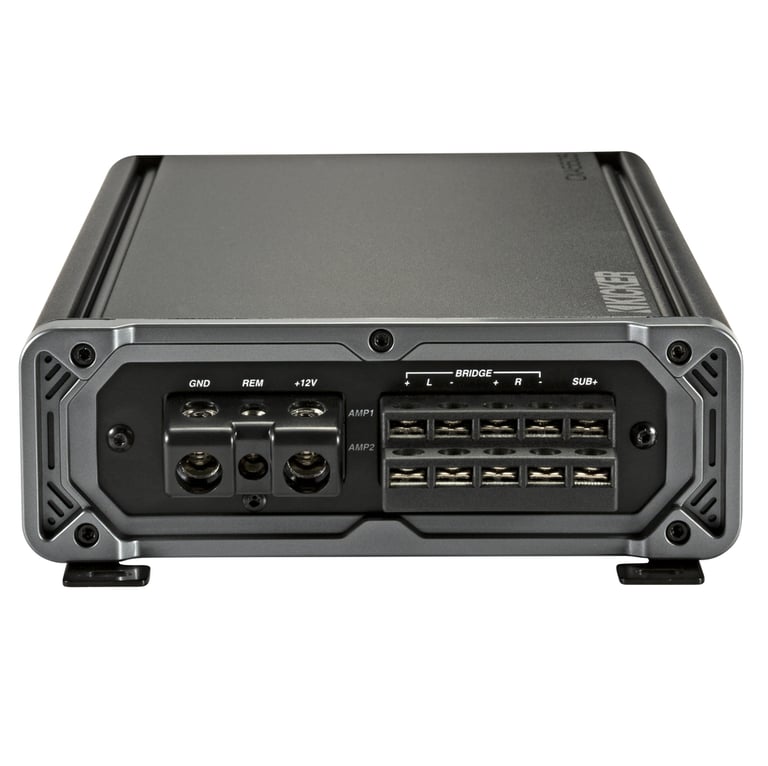

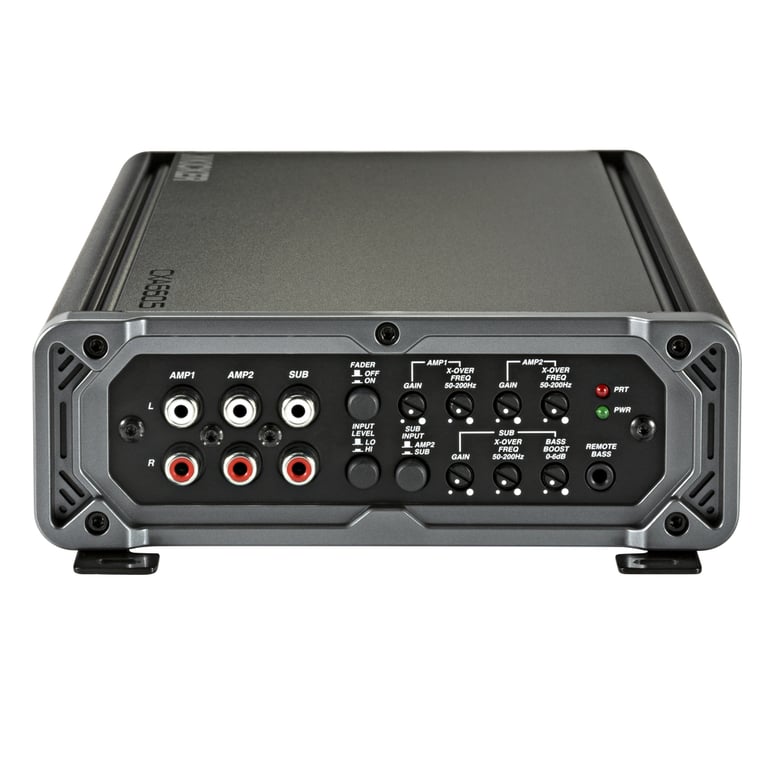

Kicker CXA660.5 (46CXA6605T)

660W RMS CX-Series Class-AB 5-Channel Amplifier
Quantity: 1

Product Details:

  • CX Series Class A/B 2 ohms Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 65 watts x 4 channel + 150 watts x 1 channel
    • 2 ohms: 90 watts x 4 channel + 300 watts x 1 channel
    • Bridged: 180 watts x 2 channel @ 4 ohms + 300 watts x 1 channel @ 2 ohms
  • Total power output: 660 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional Kicker 46CXARCT
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • Signal sensing remote turn-on
  • CTA-2006 compliant
  • Protection circuitry
  • KickEQ™ 6dB variable bass boost
  • FIT+™ (Fail-safe Integration Technology-PLUS) compatible with every radio
  • Vertical mounting hardware included
  • Input sensitivity:
    • Low level: 125mV - 5 volts
    • High level: 1V - 40 volts
  • Frequency Response: 10 - 20000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Subsonic filter: 25Hz @24dB/Octave
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 80A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14-1/8" L x 6-3/4" W x 2-3/8" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: 46CXA6605T

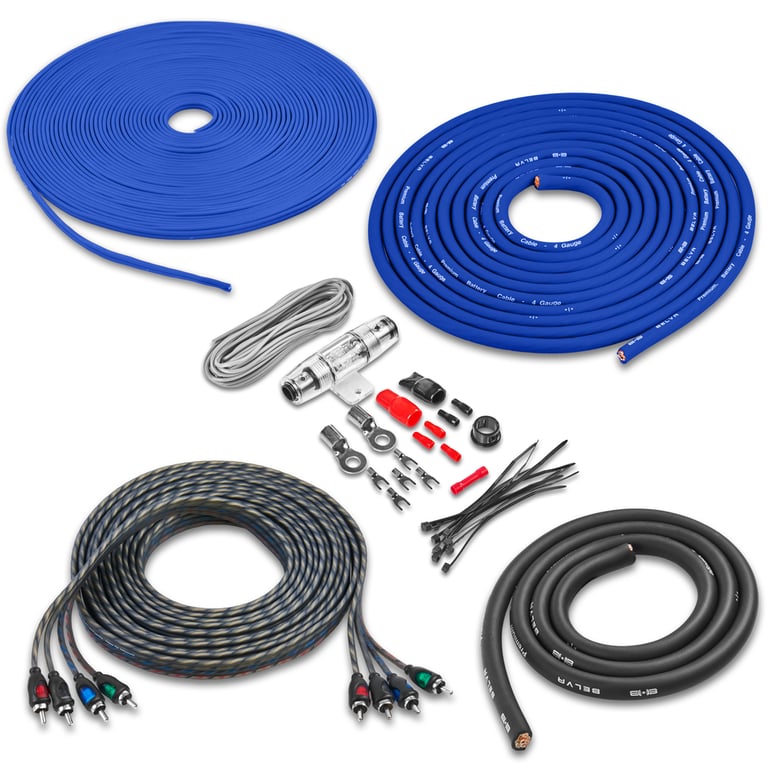

Belva BAK44BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • Complete 4 Gauge 4-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS

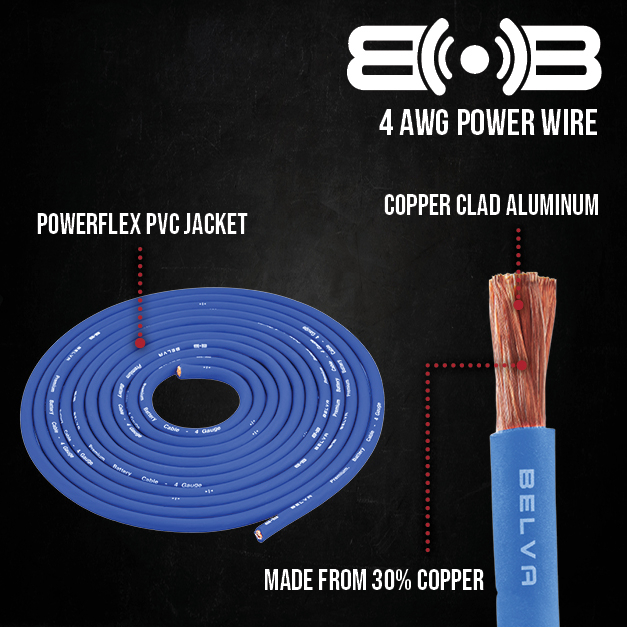

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

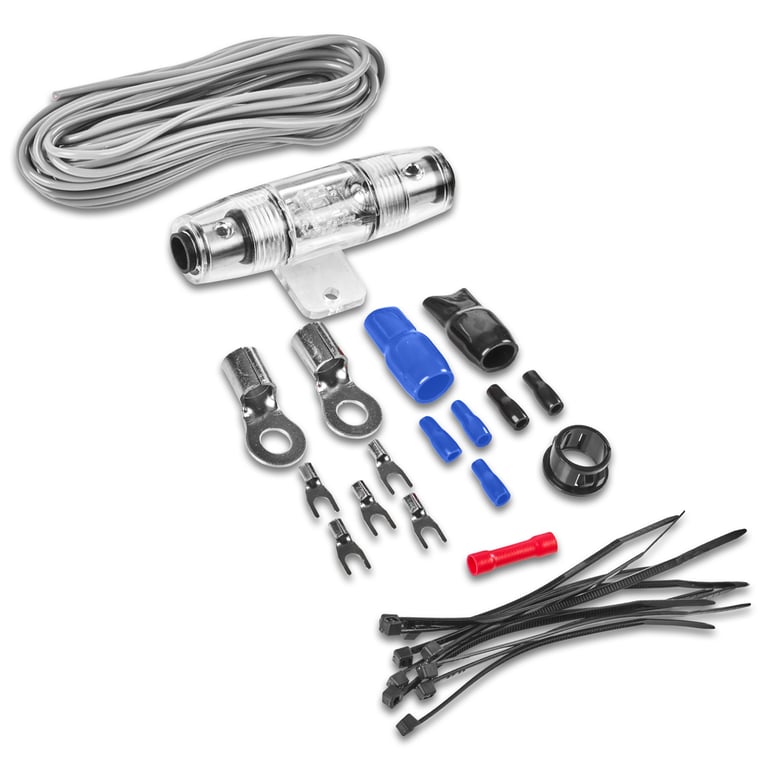

Kit includes:

  1. 17 ft. (5.2 meters) Blue 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

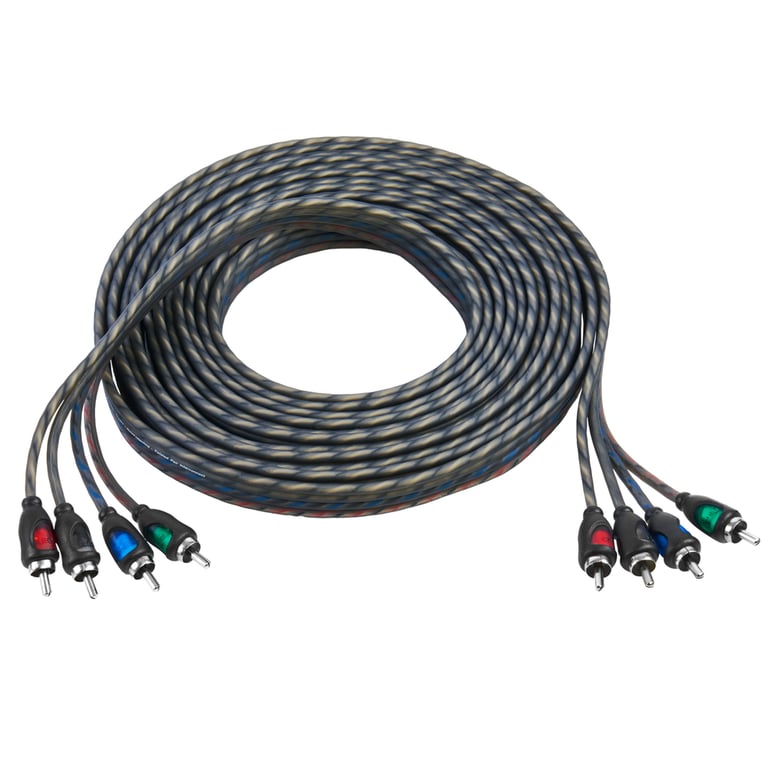

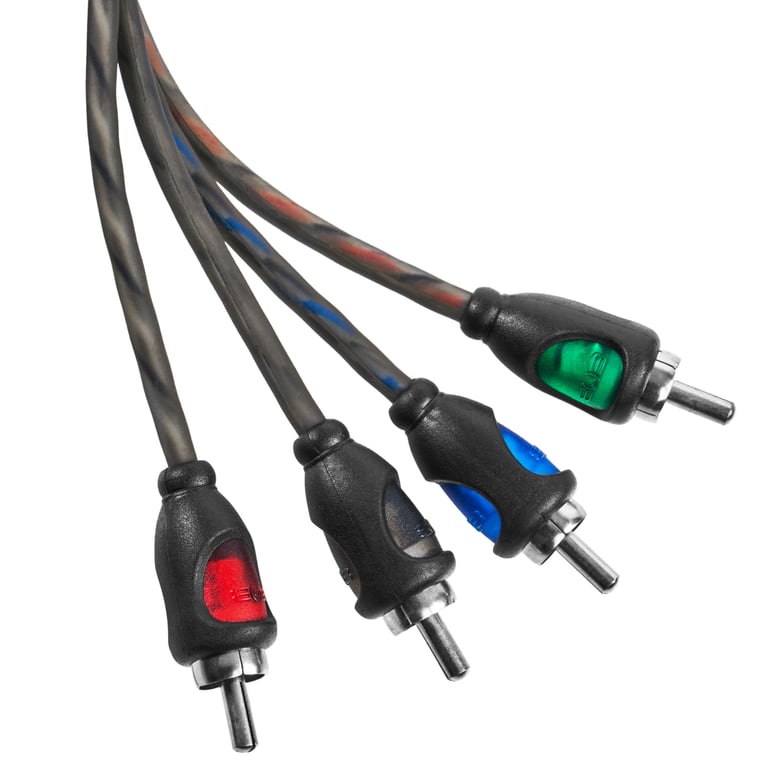

  4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

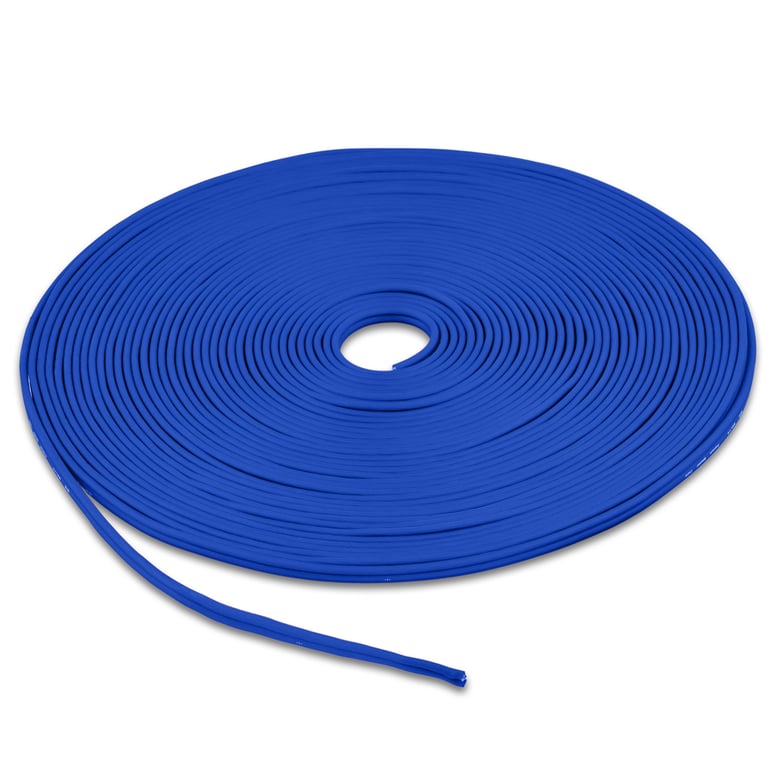

  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAK42BK,46CXA6605T

Weight:

12.53lbs

Internal SKU:

43cxa6005_bak42

Internal Product ID:

155553
