Product Highlights


Dual XIA Series illumiNITE 2-Channel Class A/B Car Amplifier • 100W x 2 Chan. 4 ohm • 145W x 2 Chan. 2 ohm • 580W x 1 Chan. Max • 0-12 dB Bass Boost • Die-Cast Aluminum Heatsink • High-Pass Filter • Low-Pass Filter

Description


Dual brand icon

Authorized dealer

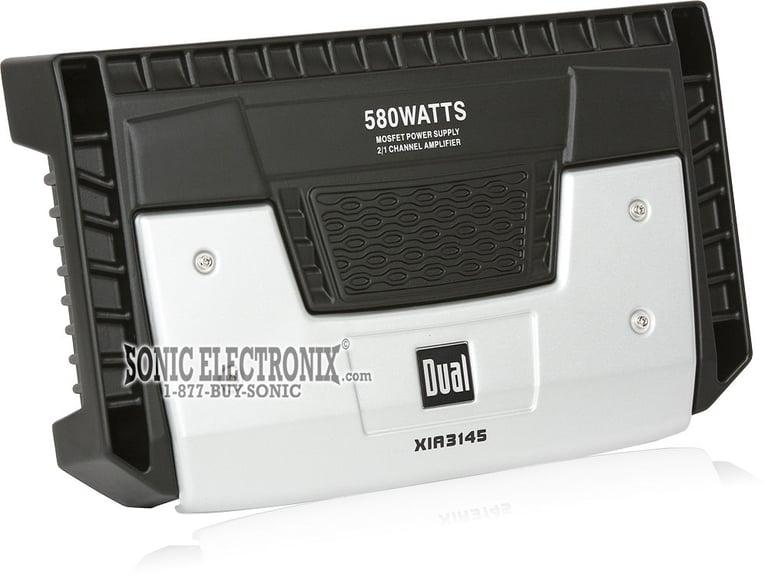

The Dual XIA3145 is the perfect entry level amplifier for those just beginning to replace their factory system. The two channel amplifier will produce 145 watts RMS at 2 ohm or you can bridge the two channels together to result in a 290 watt RMS output. The XIA3145 has a max output of 580 watts through a single bridged channel. This amplifier is also compatible with Dual illuminite speakers, which shine an impressive blue hue. With a price this low, it is hard to go wrong.

  • Dual XIA Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 145 watts x 2 chan.
    • Bridged, 4 ohm: 290 watts x 1 chan.
  • Max power output: 580 watts x 1 chan.
  • MOSFET power supply
  • Bi-color LED status indicator
  • Tuned Bass Boost (0-12 dB bass boost at 45 Hz)
  • Illuminite circuit output
  • Thermal overload protection
  • Auto-reset speaker short circuit protection
  • Reverse polarity protection
  • Die-cast aluminum heatsink

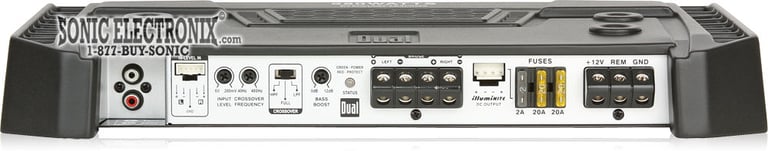

  • RCA level inputs
  • screw terminals
  • Variable high-pass filter (40-400 Hz, 24 dB/octave)
  • Variable low-pass filter (40-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9-3/4"L x 16"W x 2-1/2H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
145 watts x 2 channel
Bridged RMS Power
290 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
580 watts
Total RMS Power Output
290 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XIA3145

Weight:

11.00lbs

Internal SKU:

xia3145

Internal Product ID:

15772
